OVERVIEW

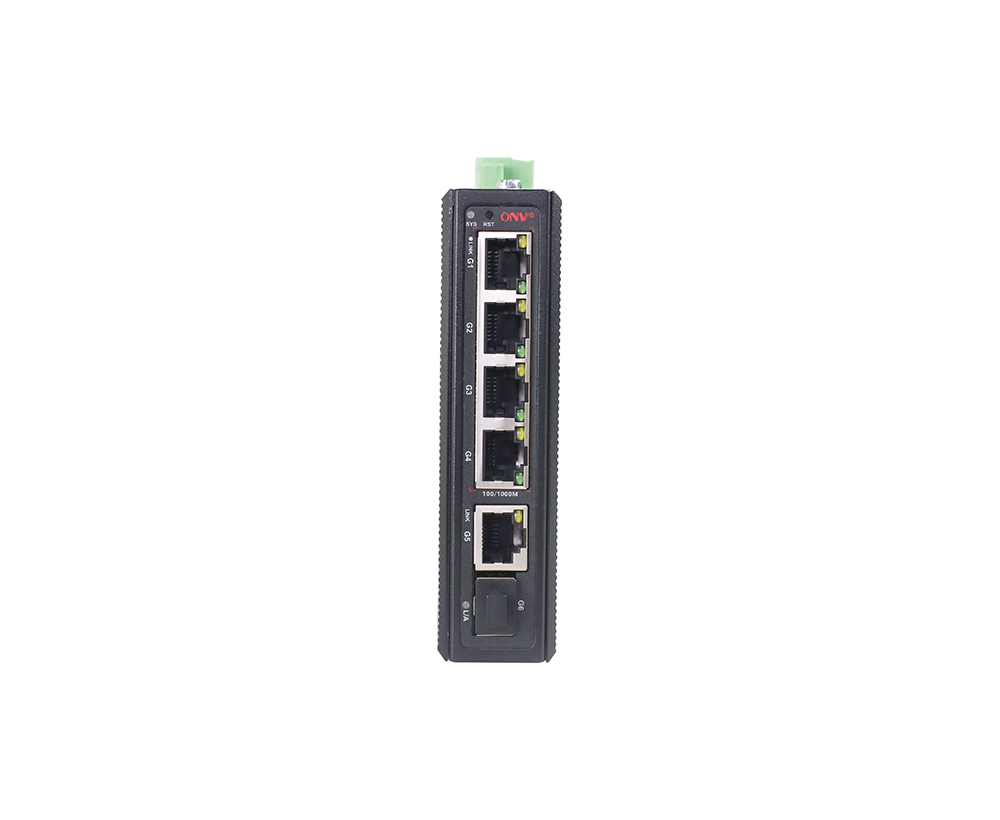

The ONV-IPS53064FGM is a full Gigabit cloud managed industrial Ethernet fiber switch independently developed by ONV. It has 5*10/100/1000Base-T adaptive RJ45 ports and 1*100/1000Base-X uplink SFP fiber slot ports. Each port can support wire-speed forwarding.
The ONV-IPS53064FGM can support Web management, ONV-NMS management platform, and mobile APP cloud platform management, which can realize functions such as security network topology management, link aggregation, port management, port mirroring, and remote operation and maintenance. The switch has high reliability, easy installation and maintenance, fast switching function, and multiple access ports, which are suitable for access to LAN devices of various scales. The ONV-IPS53064FGM follows the design and materials of industrial products. The shell is made of aluminum alloy, which has excellent industrial field environmental adaptability (including mechanical stability, climate environment adaptability, electromagnetic environment adaptability, etc.). the protection level is IP40, supports dual redundant power supply, low power consumption, and no fan, and 5-year warranty. It is suitable for industrial scenarios such as intelligent transportation, rail transit, the electric power industry, mining, petroleum, shipping, metallurgy, and green energy construction to establish a cost-effective, stable, and reliable communication network.
FEATURE
Gigabit access, SFP fiber port uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support Gigabit Ethernet port and Gigabit SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Extreme optimization, minimalist application
◇ Real-time fault alarm and fault location.
◇ Remote upgrade, remote restart, and factory reset.
◇ Local platform, cloud platform and mobile APP operation and maintenance management.
◇ Visualized network topology management, VLAN division, QoS, link aggregation, ring network management, port mirroring, port control and bandwidth management.
◇ According to industry application requirements, complex network management configurations are discarded, practical network management functions are retained, and network deployment and centralized operation and maintenance can be quickly realized through the operation and maintenance platform.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, and L/A.
◇ Low power consumption, No fan, aluminum shell, excellent heat dissipation to ensure the stable operation of the switch.
DIMENSION
ORDERING INFORMATION
Model |
Description |
Recommended Power Supply |
ONV-IPS53064FGM |
L2 managed industrial Ethernet fiber switch with 5*10/100/1000M RJ45 ports and 1*100/1000M uplink SFP fiber port. It can support redundant dual DC power input and DIN rail mounting. |
24V/24W |
Note: The optical module and power supply are not included and need to be purchased. |
PACKING LIST
Packing List |
Content |
Qty |
Unit |
6-port full gigabit cloud managed industrial switch |
1 |
SET |
|
User Guide |
1 |
PC |
|
Warranty Card |
1 |
PC |
OPTICAL MODULE
Product |
Model |
Description |
Unit |
1.25G Optical Module
|
2630-G |
Industrial SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, support DDM function, support hot plug and pull. |
PC |
2632-G |
Industrial SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2612-T-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2613-R-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2612-T-SC-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
2613-R-SC-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
POWER SUPPLY
Product |
Model |
Description |
Unit |
12W DIN Rail Industrial Power Supply |
GWS-DP12-12 |
DIN Rail 12W single set of output power supply Input Voltage: AC100V~240V 50-60H, 0.5A Output Voltage: DC12V, 1A Operation Temperature: -40℃ to +70℃ |
PC |
24W DIN Rail Industrial Power Supply |
GWS-DP24-24 |
DIN Rail 24W single set of output power supply Input Voltage: AC100V~240V 50-60H, 0.65A Output Voltage: DC24V, 1.0A Operation Temperature: -40℃ to +70℃ |
PC |
RELATED PRODUCT
Model |
Description |
ONV-IPS53064FM |
L2 managed industrial Ethernet fiber switch with 4*10/100/1000M RJ45 ports and 2*100/1000M uplink SFP fiber ports. It can support redundant dual DC power input and DIN rail mounting. |
ONV-IPS53108FM |
L2 managed industrial Ethernet fiber switch with 8*10/100/1000M RJ45 ports and 2*100/1000M uplink SFP fiber ports. It can support redundant dual DC power input and DIN rail mounting. |
TECHNICAL SPECIFICATION
Model |
ONV-IPS53064FGM |
Interface Characteristics |
|
Fixed Port |
1*DC5521 power socket 4*10/100/1000Base-T RJ45 ports (Data) 1*10/100/1000Base-T uplink RJ45 port (Data) 1*100/1000Base-X uplink SFP fiber port (Data) 2 groups of V+, V- redundant DC power port (5P phoenix terminal) |
Ethernet Port |
Port 1-5 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
SFP Slot Port |
Gigabit optical fiber interface, default no included optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-500m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
Chip Parameter |
|
Network Management Type |
L2 (Web management, platform management) |
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
Forwarding Mode |
Store and Forward(Full wire-speed) |
Switching Capacity |
12Gbps |
Forwarding Rate@64byte |
8.93Mpps |
MAC |
2K |
Buffer Memory |
2M |
Jumbo Frame |
9.2K |
LED Indicator |
Fiber port: L/A (Green), Network: Link (Yellow), Power/ System: SYS (Green) |
Reset Switch |
Press and hold for 6 seconds and release to restore the factory default settings, short press 2 times (1 second interval) to switch to the unmanaged state |
Power Supply |
|
Power Consumption |
Standby<4W, Full load<6W |
Interface |
DC12-48V, 5 Pin industrial Phoenix terminal, support anti-reverse protection. |
Power Supply |
No, optional 12V/12W or 24V/24W industrial power supply |
Physical Parameter |
|
Operation TEMP / Humidity |
-40°C~+75°C, 5%~90% RH Non condensing |
Storage TEMP / Humidity |
-40°C~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) |
119*100*30mm |
Net /Gross Weight |
0.4kg / 0.5kg |
Installation |
Desktop, 35mm DIN Rail |
Certification & Warranty |
|
Lightning Protection |
Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
Network Management Feature |
|
Interface |
Port status display, Port traffic statistics Port duplex/ negotiation rate configuration EEE Energy-saving and green Ethernet function IEEE802.3x flow control configuration (Full-duplex) |
VLAN |
Port-based IEEE802.1Q VLAN configuration (4K) |
Port Aggregation |
Static aggregation |
Loop Protection |
Loop protection function |
Multicast |
IGMP Snooping v1/v2, Max 256 multicast groups |
Port Mirroring |
Bidirectional data mirroring based on port |
QoS |
Diff-Serv QoS, Priority Mark/Remark 8*Output queues of each port, 802.1p/DSCP priority mapping |
Security |
Broadcast storm control, Port isolation, Port speed limit |
DHCP |
DHCP Snooping |
Management |
Mobile APP operation and maintenance management ONV-NMS platform management (Local platform/ Cloud platform) One-key recovery, Cable Diagnose, Web Management (https) |
System |
Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable |
