OVERVIEW
The ONV-IPS1032PF is a 10/100M industrial PoE fiber switch independently developed by ONV. It has 2*10/100M RJ45 ports and 1*155M uplink SC fiber port. Port 1-2 can support IEEE 802.3 af/at PoE standard, and single-port PoE power up to 30W. As a PoE power supply device can automatically detect and recognize the power-receiving equipment that meets the standard and supplies power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP cameras, VoIP phones, and industrial sensors through network cables, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy, and industrial scenes such as construction to set up a cost-effective and stable communication network. Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
10/100M RJ45 and SC port, fast Ethernet
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support 10/100M RJ45 port and 155M SC fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ 2*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.
◇ Low power consumption, no fan, aluminum shell, excellent heat dissipation to ensure the stable operation of the switch.

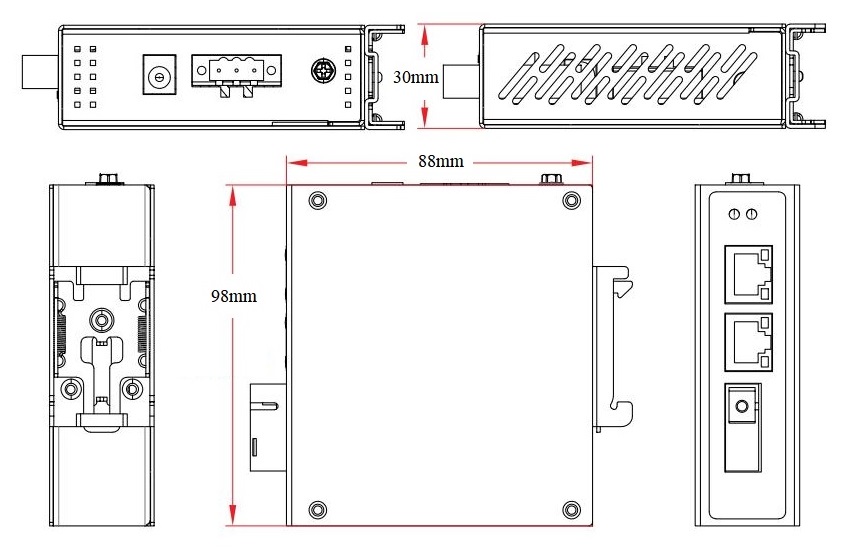

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Recommended Power Supply |
|
ONV-IPS1032PF |
Unmanaged industrial PoE fiber switch with 2*10/100M RJ45 ports and 1*155M uplink SC fiber port (1310nm/20km single-mode dual fiber). Port 1-2 support IEEE 802.3 af/at PoE standard. It can support DC redundant power supply input and DIN rail mounting. |
36W/60W |
|
ONV-IPS1032PF-A |
Unmanaged industrial PoE fiber switch with 2*10/100M RJ45 ports and 1*155M uplink SC fiber port (1310nm/20km single-mode single fiber). Port 1-2 support IEEE 802.3 af/at PoE standard. It can support DC redundant power supply input and DIN rail mounting. |
36W/60W |
|
ONV-IPS1032PF-B |
Unmanaged industrial PoE fiber switch with 2*10/100M RJ45 ports and 1*155M uplink SC fiber port (1550nm/20km single-mode single fiber). Port 1-2 support IEEE 802.3 af/at PoE standard. It can support DC redundant power supply input and DIN rail mounting. |
36W/60W |
|
Note: The power supply is not included, and needs to be purchased separately. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
3-port 10/100M industrial PoE fiber switch |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
POWER SUPPLY
|
Product |
Model |
Description |
Unit |
|
36W Desktop Power Adapter |
GWS-AP36-52 |
Desktop 36W single set of output power adapter Input Voltage: AC100V~240V 50-60Hz, 0.56A Output Voltage: DC52V, 0.7A Operation Temperature: -20℃ to +65℃ |
PC |
|
65W Desktop Power Adapter |
GWS-AP65-52 |
Desktop 65W single set of output power adapter Input Voltage: AC100V~240V 50-60Hz, 1.1A Output Voltage: DC52V, 1.25A Operation Temperature: -20℃ to +65℃ |
PC |
|
36W DIN Rail Industrial Power Supply |
GWS-DP36-48 |
DIN Rail 36W single set of output power supply Input Voltage: AC100V~240V 50-60Hz, 0.56A Output Voltage: DC48V 0.75A Operation Temperature: -40℃ to +70℃ |
PC |
|
60W DIN Rail Industrial Power Supply |
GWS-DP60-48 |
DIN Rail 60W single set of output power supply Input Voltage: AC100V~240V 50-60Hz,1.0A Output Voltage: DC48V, 1.25A Operation Temperature: -40℃ to +70℃ |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-IPS1032PF |
|
Interface Characteristics |
|
|
Fixed Port |
1*DC5521 power socket 1*155M uplink SC fiber port (Data) 2*10/100Base-TX PoE ports (Data/Power) 2 set of V+, V- redundant DC power interface (3P Phoenix terminal) |
|
Ethernet Port |
Port 1 to 2 support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) |
|
Fiber Port |
Single-mode dual fiber 20km, SC interface. (optional single-mode single fiber optical module) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-500m, 1310nm/ 0-2km, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3u 100Base-FX, IEEE802.3x |
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
Switching Capacity |
1.0Gbps (no-blocking) |
|
Forwarding Rate@64byte |
0.45Mpps |
|
MAC |
2K |
|
Buffer Memory |
512Kb |
|
Jumbo Frame |
2048B |
|
LED Indicator |
Power: PWR (Green), Fiber port: 3 (Green) PoE: PoE1-2 (Green), Network: Link 1-2 (Yellow) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1 to 2 |
|
Power Supply Pin |
1/2 (+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
Power Consumption |
Standby<1W, Full load af<30, at<60W |
|
Operating Voltage |
DC44-56V, 3P industrial Phoenix terminal, support anti-reverse protection. |
|
Power Supply |
No, optional 48V/36W or 48V/60W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
98*88*30mm |
|
Net /Gross Weight |
<0.25kg / <0.35kg |
|
Installation |
Desktop, 35mm DIN Rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Protection level: IP30, Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
