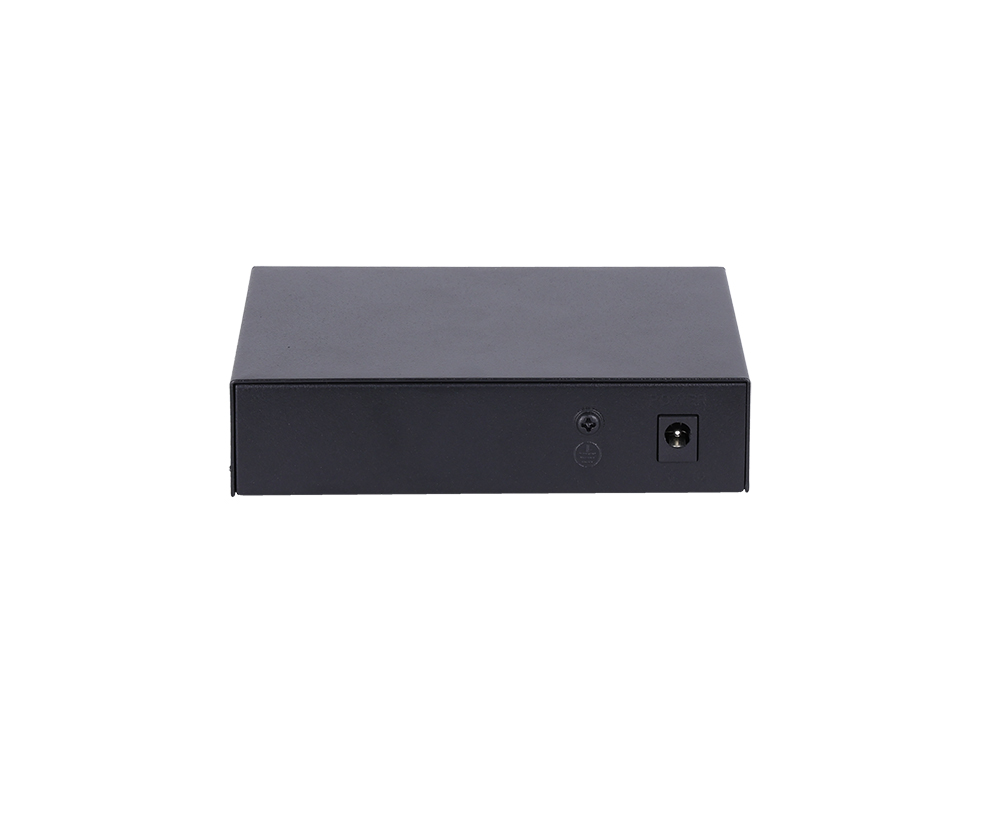

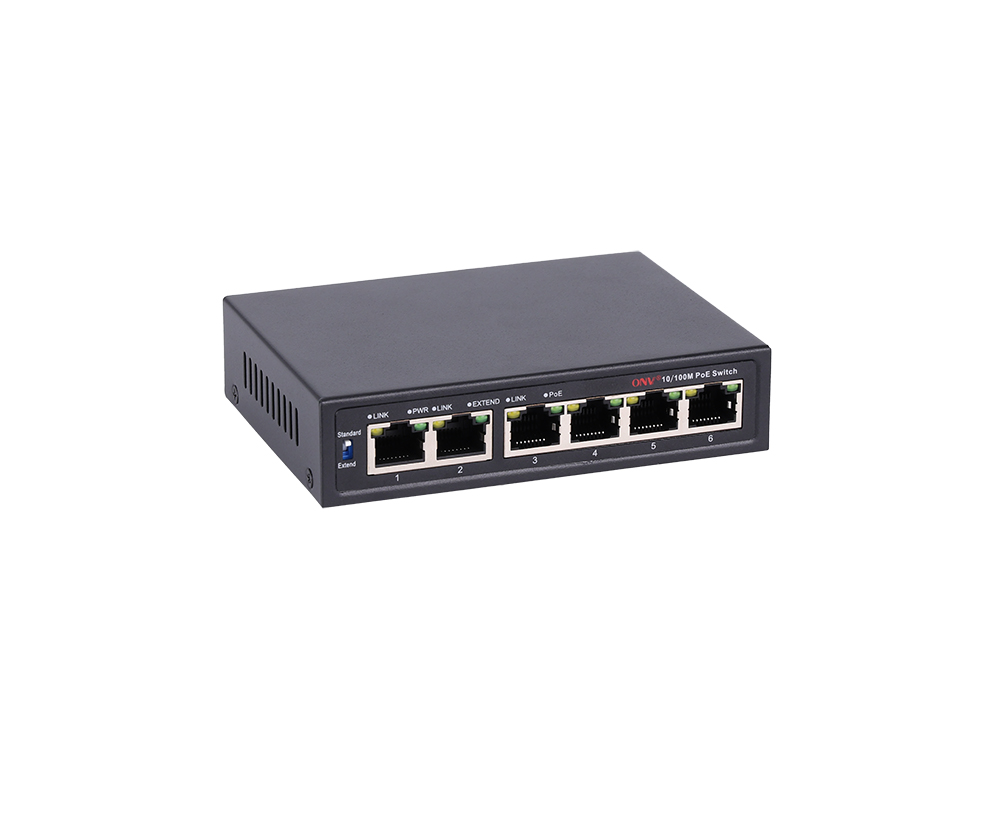

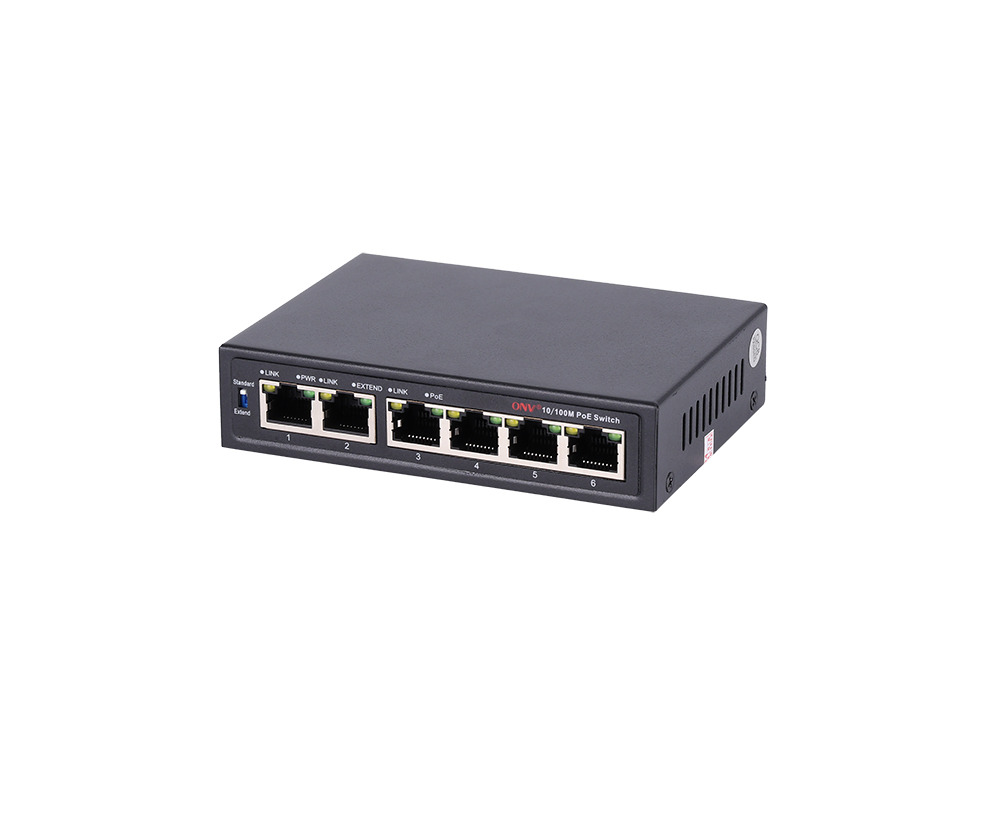

OVERVIEW
The ONV-POE31064PL is an unmanaged PoE switch independently developed by ONV. It has 4*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 3-6 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 65W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
10/100Mbps access,dual RJ45 port uplink
◇ 6*10/100Base-TX RJ45 port and uplink dual RJ45 ports ,which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Smart PoE function
◇ 4*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
Innovative features (only with function switch models)
◇ Long-distance file: When turned on, the rate of port 3-6 is reduced to 10M. Using the existing twisted-pair cable, the limit of 100 meters of twisted-pair transmission can be exceeded, and the transmission distance can reach up to 250 meters; on the other hand, Can solve the problem of poor transmission due to aging of the line.
◇ Video Surveillance Mode: Open with long-distance switches. Port 3-6 are isolated from each other but communicate with ports 1-2 to prevent DHCP conflicts, optimize port cache utilization, and reduce broadcast storms.
Stable and reliable, easy to operate
◇ Low power consumption, galvanized steel casing, no fan.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ CCC,CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.

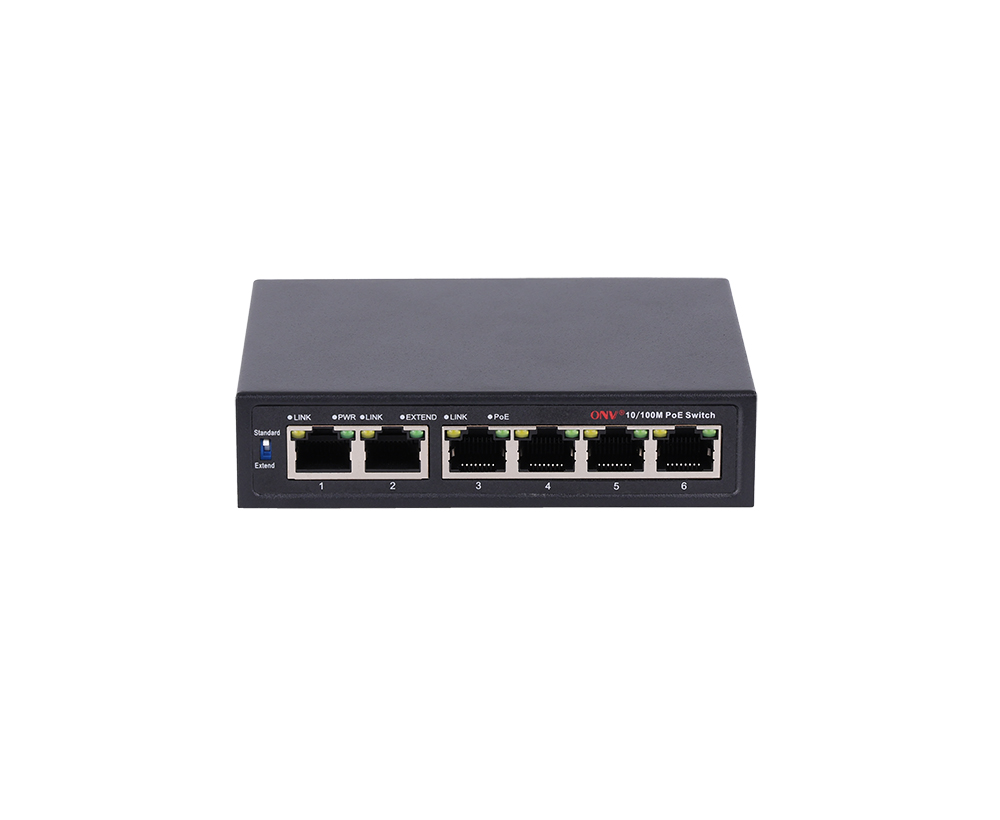

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.

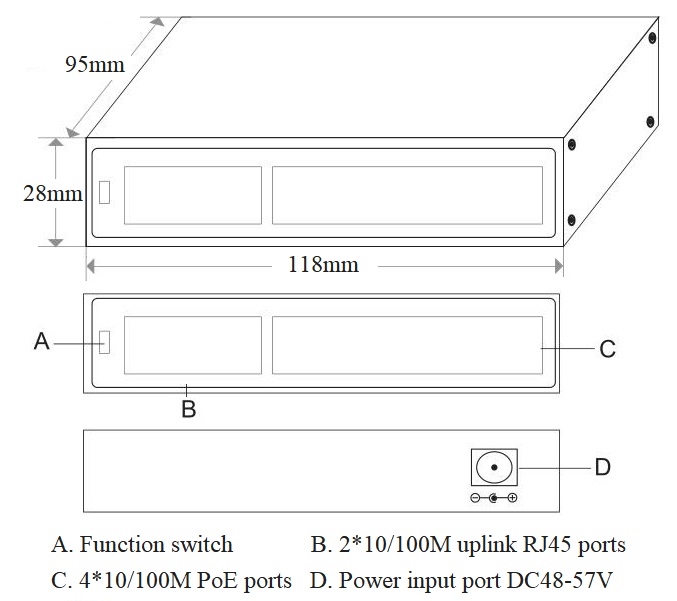

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
|
ONV-POE31064PL |
Unmanaged PoE switch with 4*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 3-6 can support IEEE802.3af/at PoE standard. Adjust function switch, port 3-6 VLAN isolation or 10M/250m transmission. External 65W power supply. |
|
ONV-POE31064PL-at |
Unmanaged PoE switch with 4*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 3-6 can support IEEE802.3af/at PoE standard. Adjust function switch, port 3-6 VLAN isolation or 10M/250m transmission. External 110W power supply. |
PACKING LIST
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
6-port 10/100Mbps PoE switch |
1 |
SET |
|
|
Power Cable |
1 |
PC |
|
|
Mounting Kits(hanging Ear) |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-POE31064PL |
ONV-POE31064PL-at |
|
Interface Characteristics |
||
|
Fixed Port |
4*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX Uplink RJ45 Ports (Data) |
|
|
Ethernet Port |
Port 1-6 can support 10/100Base-TX automatic detection, full/half Duplex MDI/MDI-X adaptive |
|
|
Twisted Pair Transmission |
10BASE: Cat3,4,5 UTP(≤250 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
|
|
Functional Switch
|
1*(Extender+CCTV) |
|
|
Note: When the switch status changes, the PoE switch must be restarted for the switch function to take effect. |
||
|
Chip Parameter |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3x |
|
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
|
Switching Capacity |
1.6Gbps(non-blocking) |
|
|
Forwarding Rate@64byte |
0.89Mpps |
|
|
MAC |
1K |
|
|
Buffer Memory |
768K |
|
|
LED Indicator |
Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green) Functional switch: EXTEND (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Port 3 to 6 IEEE802.3af/at @ POE |
|
|
Power Supply Pin |
Default 1/2(+), 3/6(-),optional 4/5(+), 7/8(-) |
|
|
Max Power Per Port |
30W; IEEE802.3af/at |
|
|
Total PWR / Input Voltage |
65W/ 52VDC |
110W/52VDC |
|
Power Consumption |
Standby<4W, Full load<65W |
Standby<5W, Full load<110W |
|
Power Supply |
External power adaptor AC100~240V 50-60Hz 1A |
External power adaptor AC100~240V 50-60Hz 2.2A |
|
Physical Parameter |
||
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
118*95*28mm |
|
|
Net /Gross Weight |
<0.4kg / <0.9kg |
|
|
Installation |
Desktop, wall mounted |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us; Protection level: IP30 |
|
|
Certification |
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS |
|
|
Warranty |
3 years, lifelong maintenance. |
|
