OVERVIEW

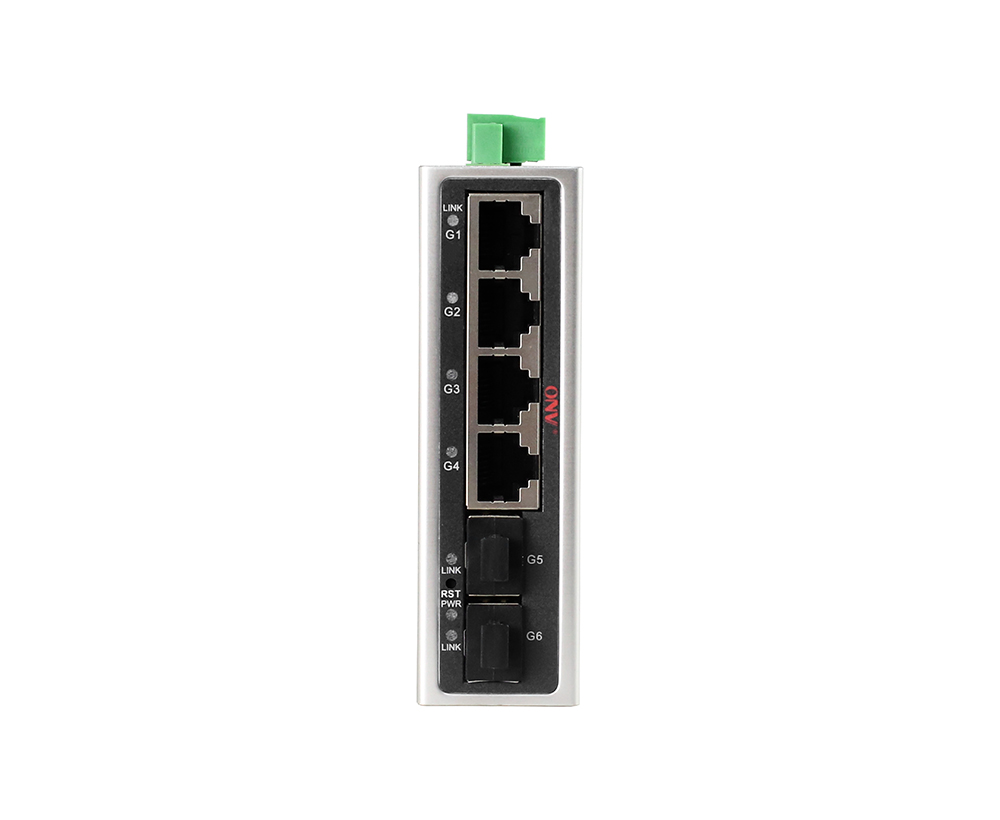

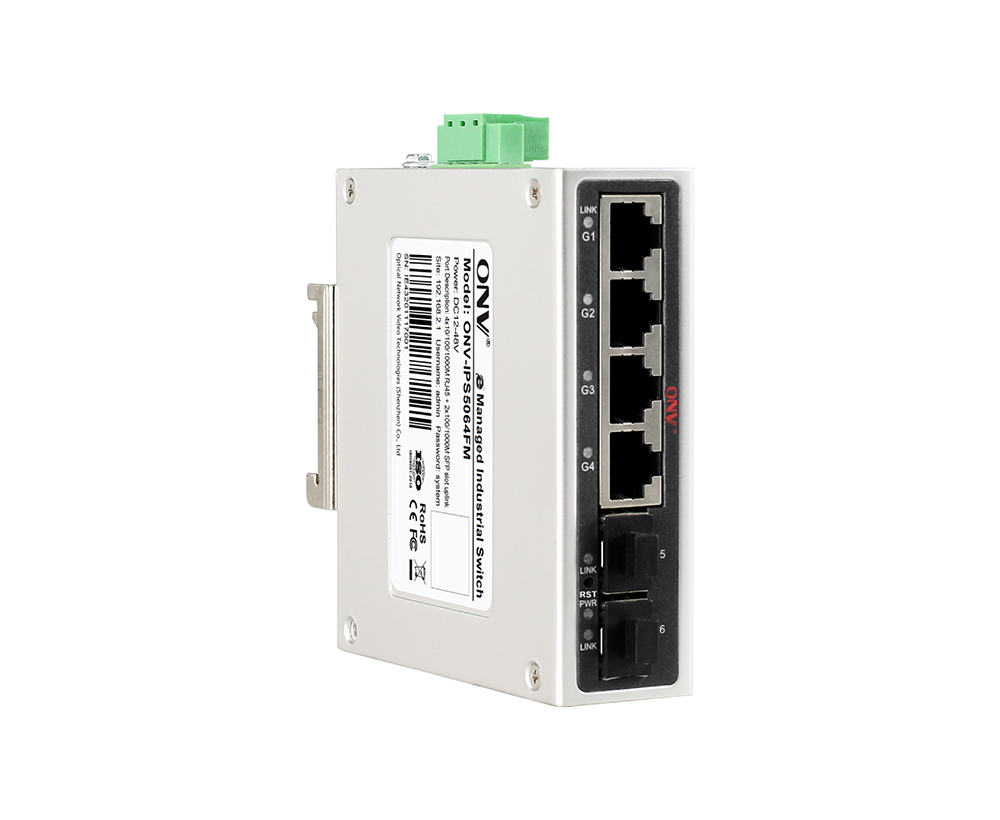

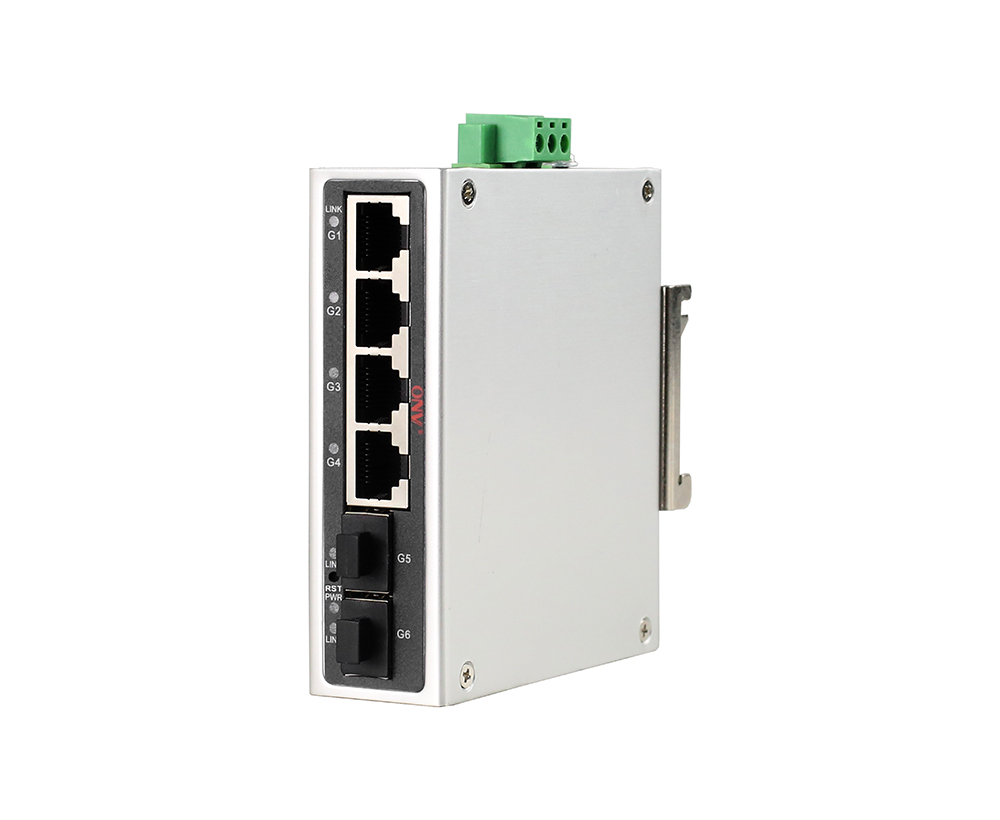

The ONV-IPS5064FM is a full Gigabit Easy managed industrial Ethernet fiber switch independently developed by ONV. It has 4*10/100/1000Base-T adaptive RJ45 ports and 2*100/1000Base-X uplink SFP fiber ports. Each port can support wire-speed forwarding.
The ONV-IPS5064FM supports Web management, ONV-NMS management platform, and cloud management APP management, which can realize functions such as security network topology management, link aggregation, port management, port mirroring, and remote operation and maintenance. The switch has high reliability, is easy to install and maintain, has fast switching functions and multiple access ports, and is suitable for accessing LAN devices of various sizes. ONV-IPS5064FM follows industrial product design and materials, and its shell is made of aluminum alloy. It has excellent industrial site environment adaptability (mechanical stability, climate environment adaptability, electromagnetic environment adaptability, etc.). The protection level reaches IP40, dual redundancy power supply, low power consumption, no fan, 5-year warranty. It is suitable for establishing cost-effective, stable, and reliable communication networks in industrial scenarios such as intelligent transportation, rail transportation, power industry, mining, petroleum, shipping, metallurgy, and green energy construction.
FEATURE
Gigabit access, SFP fiber port uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support Gigabit Ethernet port and Gigabit SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Extreme optimization, minimalist application
◇ Real-time fault alarm and fault location.
◇ Remote upgrade, remote restart, and factory reset.
◇ Local platform, cloud platform and mobile APP operation and maintenance management.

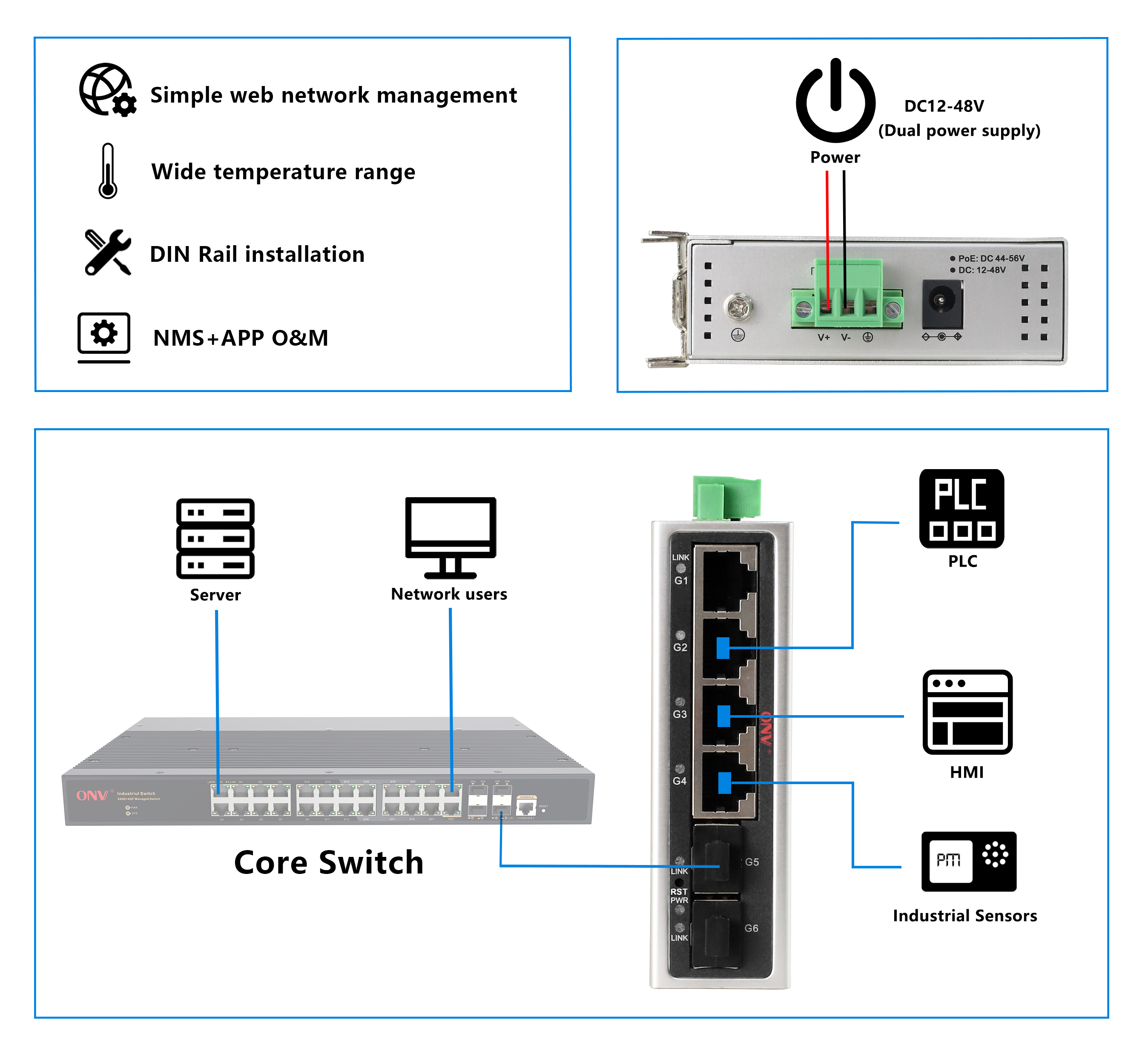

◇ Visualized network topology management, VLAN division, QoS, link aggregation, ring network management, port mirroring, port control and bandwidth management.
◇ According to the application requirements of the industry, we have abandoned the complicated network management configuration while retaining the practical network management functions. Through the operation and maintenance platform, network deployment and centralized operation and maintenance can be quickly realized.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and L/A.
◇ Low power consumption, no fan, aluminum shell, excellent heat dissipation to ensure the stable operation of the switch.
DIMENSION
ORDERING INFORMATION
Model |
Description |
Recommended Power Supply |
ONV-IPS5064FM |
Easy managed industrial Ethernet fiber switch with 4*10/100/1000M RJ45 ports and 2*100/1000M uplink SFP fiber ports. It can support dual DC power input and DIN rail mounting. |
12W/24W |
Note: optical module and power supply are not included, and need to be purchased separately. |
PACKING LIST
Packing List |
Content |
Qty |
Unit |
6-port full gigabit Easy managed industrial Ethernet switch |
1 |
SET |
|
User Guide |
1 |
PC |
|
Warranty Card |
1 |
PC |
OPTICAL MODULE
Product |
Model |
Description |
Unit |
1.25G Optical Module
|
2630-G |
Industrial optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, support DDM function, support hot plug and pull. |
PC |
2632-G |
Industrial optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2612-T-G |
Industrial optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2613-R-G |
Industrial optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2612-T-G-SC |
Industrial optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
2613-R-G-SC |
Industrial optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
POWER SUPPLY
Product |
Model |
Description |
Unit |
12W DIN Rail Industrial Power Supply |
GWS-DP12-12 |
DIN Rail 12W single set of output power supply Input Voltage: AC100V~240V 50-60H, 0.5A Output Voltage: DC12V, 1.0A Operation Temperature: -40℃ to +70℃ |
PC |
24W DIN Rail Industrial Power Supply |
GWS-DP24-24 |
DIN Rail 24W single set of output power supply Input Voltage: AC100V~240V 50-60H, 0.65A Output Voltage: DC24V, 1.0A Operation Temperature: -40℃ to +70℃ |
PC |
TECHNICAL SPECIFICATION
Model |
ONV-IPS5064FM |
Interface Characteristics |
|
Fixed Port |
4*10/100/1000Base-T RJ45 ports (Data) 2*100/1000Base-X uplink SFP ports (Data) 2 groups of V+, V- redundant DC power port (3P phoenix terminal) |
Ethernet Port |
Port 1-4 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
SFP Slot Port |
Gigabit optical fiber interface, default no included optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
Optical Cable |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
Chip Parameter |
|
Network Management Type |
Simple web network management, cloud platform management |
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
Forwarding Mode |
Store and Forward(Full wire-speed) |
Switching Capacity |
12Gbps |
Forwarding Rate@64byte |
8.93Mpps |
MAC |
2K |
Buffer Memory |
2Mb |
Jumbo Frame |
9.2KB |
LED Indicator |
Power/ System: SYS (Green), Network: Link (Yellow), Fiber port: L/A (Green) |
Power Supply |
|
Total power/ Input Voltage |
5W/12-48VDC |
Power Consumption |
Standby<4W, Full load<6W |
Interface |
3 Pin industrial Phoenix terminal, support anti-reverse protection. |
Power Supply |
No, optional 48V/12W or 48V/24W industrial power supply |
Physical Parameter |
|
Operation TEMP/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
Storage TEMP/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) |
98*88*30mm |
Net /Gross Weight |
<0.25kg / <0.35kg |
Installation |

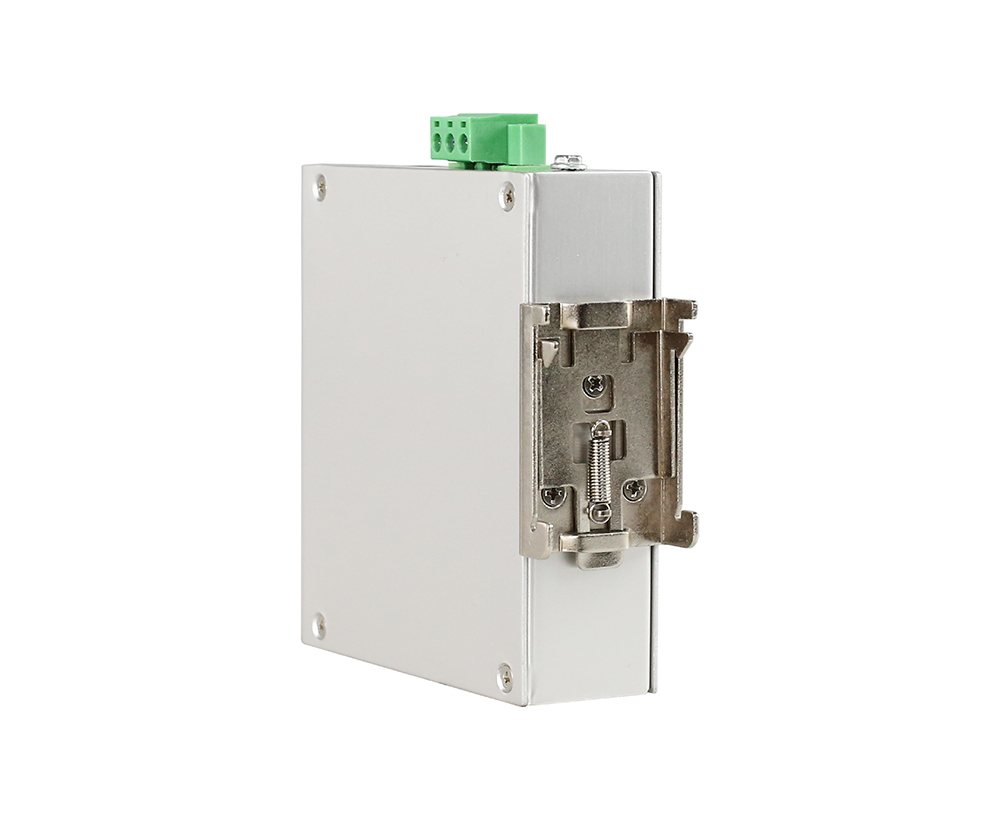

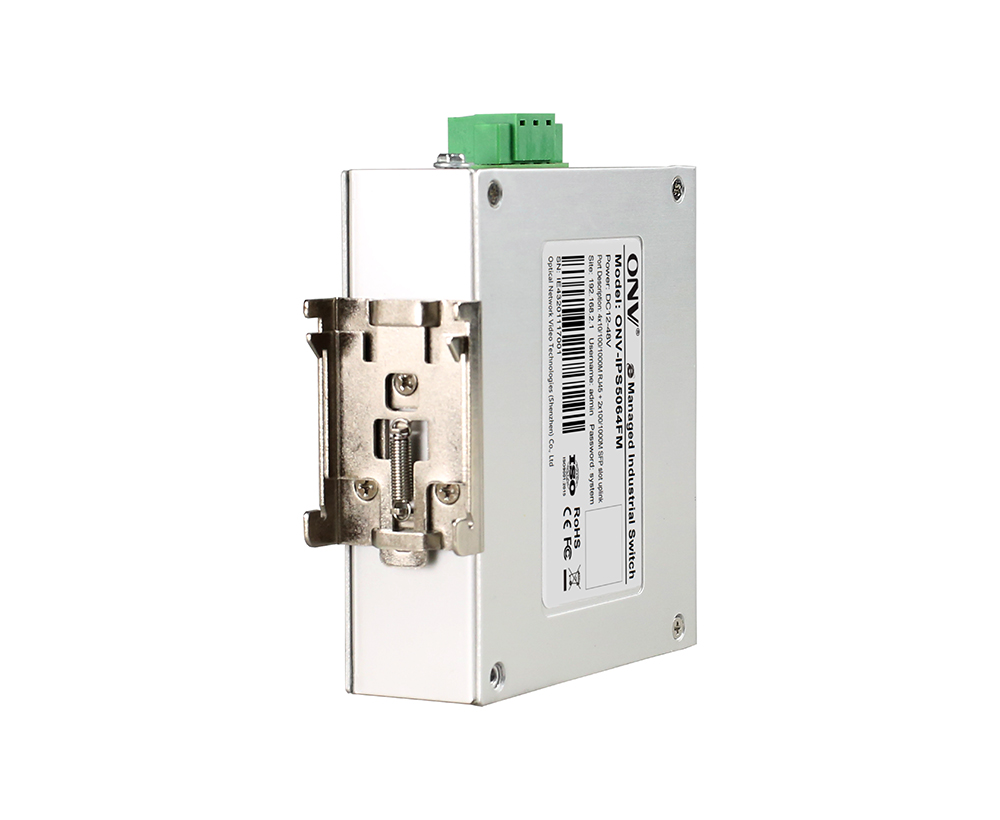

Desktop, 35mm DIN rail |
Certification & Warranty |
|
Lightning Protection |
Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field):1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
Mechanical Properties |
IEC60068-2-6 (Anti Vibration) IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
Network Management Features |
|
Interface |
Port status display, Port traffic statistics Port duplex/negotiation rate configuration EEE Energy-saving and green Ethernet function IEEE802.3x flow control configuration (Full-duplex) |
VLAN |
Port-based IEEE802.1Q VLAN configuration (4K) |
Port Aggregation |
Static aggregation |
Loop Protection |
Loop protection function |
Multicast |
IGMP Snooping v1/v2, Max 256 multicast groups |
Port Mirroring |
Bidirectional data mirroring based on port |
QoS |
Diff-Serv QoS, Priority Mark/Remark 8*Output queues of each port, 802.1p/DSCP priority mapping |
Security |
Broadcast storm control, Port isolation, Port speed limit |
DHCP |
DHCP Snooping |
Management |
Mobile APP operation and maintenance management NMS platform management (Local platform/Cloud platform) One-key recovery, Cable Diagnose, Web Management (HTTPS) |
System |
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Category 5 and above Ethernet cables TCP/IP, network adapter, and network operating systems (Such as Microsoft Windows, Linux or Mac OS X) are installed on each computer in the network with Category 5 and above Ethernet cables |
