OVERVIEW

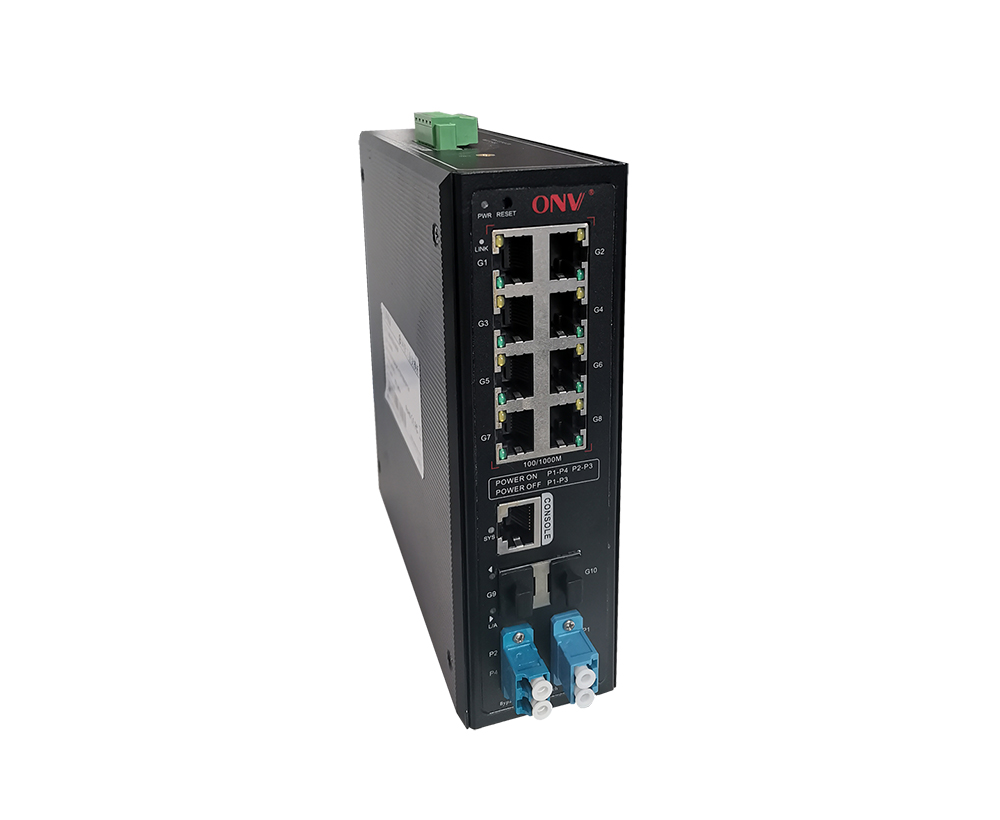

The ONV-IPS33010FM-BY is a full Gigabit L2+ managed bypass industrial Ethernet fiber switch independently developed by ONV. It has 8*10/100/1000Base-T adaptive RJ45 ports and 2*100/1000Base-X uplink SFP fiber ports. Each port can support wire-speed forwarding. The switch integrates the bypass optical switching module. When the power supply of the switch is interrupted, the optical fiber is automatically switched to the bypass-through state to avoid communication interruption due to switch failure and ensure the reliability of network transmission.
The ONV-IPS33010FM-BY has L2+ network management function, supports IPV4 static route forwarding, complete security protection mechanism, ACL/QoS policy, and rich VLAN functions, easy to manage and maintain. Support multiple network redundancy protocols STP/RSTP/MSTP(<50ms) to improve link backup and network reliability to ensure uninterrupted communication of important applications. According to actual application needs, port management, routing address management, port flow control, VLAN division, IGMP, security policy, and other application service configurations are performed through Web, CLI, SNMP, Telnet, and other network management methods. The shell is made of aluminum alloy, which has excellent industrial field environmental adaptability (including mechanical stability, climate environment adaptability, electromagnetic environment adaptability, etc.). the protection level is IP40, supports dual redundant power supply, low power consumption, and no fan, and 5-year warranty. It is suitable for industrial scenarios such as intelligent transportation, rail transit, the electric power industry, mining, petroleum, shipping, metallurgy, and green energy construction to establish a cost-effective, stable, and reliable communication network.
FEATURE
Gigabit access, SFP fiber port uplink, Integrated Bypass function
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support Gigabit Ethernet port and Gigabit SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support physical single-mode single fiber optical path (Bypass) function, pure hardware switching, short switching time, does not affect the data transmission rate and improves the stability of the network system.
Strong business processing ability
◇ Support STP/RSTP/MSTP production tree protocol, eliminate layer 2 loops and realize link backup.
◇ Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
◇ Support IGMP Snooping V1/V2/V3 to meet the multi-terminal high-definition video surveillance and video conference access requirements.
◇ Support QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
◇ Support IEEE 802.1Q VLAN, users can flexibly divide VLAN according to needs, and support three types of port configurations: Access, Trunk, and Hybrid.
◇ Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
Security
◇ Support port isolation.
◇ Support port broadcast storm suppression.
◇ Support IP+MAC+port+VLAN quadruple flexible combination binding function.
◇ Support 802.1X authentication to provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly pane can show the device status through the LED indicator of PWR, SYS, Link, and L/A.
◇ Low power consumption, no fan, aluminum shell, and excellent heat dissipation ensure the stable operation of the switch.
Easy O&M management
◇ Support CPU monitoring, memory monitoring, Ping detection, and cable length detection.
◇ Support HTTPS, SSHV1/V2, and other encryption methods, making management more secure.
◇ Support RMON, system log, and port traffic statistics to facilitate network optimization and transformation.
◇ Support LLDP to facilitate the network management system to query and judge the communication status of the link.
◇ Support Web network management, CLI (Console, Telnet), SNMP (V1/V2/V3), Telnet, and other diversified management and maintenance methods.
ORDERING INFORMATION
|
Model |
Description |
Recommended Power Supply |
|
ONV-IPS33010FM-BY |
L2+ managed bypass industrial Ethernet fiber switch with 8*10/100/1000M RJ45 ports and 2*100/1000M uplink SFP fiber ports. It can support dual DC power supply input and DIN rail mounting. |
24V/24W |
|
Note: The optical module and power supply are not included. need to be purchased separately. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
10-port full gigabit managed bypass industrial Ethernet switch |
1 |
SET |
|
|
RJ45-DB9 Line |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module
|
2630-G |
Industrial SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2632-G |
Industrial SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T-SC-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R-SC-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
POWER SUPPLY
|
Product |
Model |
Description |
Unit |
|
24W DIN Rail Industrial Power Supply |
GWS-DP24-24 |
DIN Rail 24W single set of output power supply Input Voltage: AC100V~240V 50-60Hz, 0.35A Output Voltage: DC24V, 1.0A Operation Temperature: -40℃ to 70℃ |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV-IPS33006FM-BY |
L2+ managed bypass industrial Ethernet fiber switch with 4*10/100/1000M RJ45 ports and 2*100/1000M uplink SFP fiber ports. It can support dual DC power supply input and DIN rail mounting. |
TECHNICAL SPECIFICATION
|
Model |
ONV-IPS33010FM-BY |
|
Interface Characteristics |
|
|
Fixed Port |
1*RS232 console port (115200,N,8,1) 8*10/100/1000Base-T RJ45 ports (Data) 2*100/1000Base-X uplink SFP slot ports (Data) 2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal) |
|
Bypass Optical Port |
Power ON: P1— P4 intercommunication, P2—P3 intercommunication Power OFF: P1— P3 Pass-through |
|
Ethernet Port |
Port 1-8 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
SFP Slot Port |
Gigabit optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi-mode: 850nm / 0-500m Single-mode: 1310nm / 0-40km, 1550nm / 0-120km |
|
Chip Parameter |
|
|
Network Management Type |
L2+ |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
20Gbps |
|
Forwarding Rate@64byte |
14.88Mpps |
|
CPU(Hz) |
500M |
|
DRAM |
1G |
|
Flash |
128M |
|
MAC |
8K |
|
Buffer Memory |
4M |
|
Jumbo Frame |
10K |
|
LED Indicator |
Power/ System: SYS (Green), Network: Link (Yellow), Fiber port: L/A (Green) |
|
Reset Switch |
Yes, Press and hold the reset switch for 10s and release it to restore the factory settings |
|
Power Supply |
|
|
Working Voltage |
DC12-48V, 5 Pin industrial Phoenix terminal, support anti-reverse protection. |
|
Power Consumption |
Standby<8W, Full load<12W |
|
Power Supply |
No, optional 24V/24W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension |
165*148*54mm |
|
Net /Gross Weight |
0.9kg / 1.1kg |
|
Installation |
Desktop, 35mm DIN Rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m(80~1000MHz) FCC Part 15/ CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4 (EFT): Power cable:±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission):10V (150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/DM±2kV, data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock) IEC60068-2-32 (Free Fall) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
|
Network Management Feature |
|
|
Interface |
IEEE802.3x flow control (Full duplex) Port real-time traffic management (Flow Interval) Broadcast storm suppression based on port rate Limit the rate of packet traffic on the ingress and egress ports. The mini granularity is 16Kbps and the max is 1Gbps |
|
Layer 3 Features |
Static routing/ default routing with max 128 entries L2+ network management, ARP protocol max entries 1024 |
|
VLAN |
Port configuration of Access, Trunk, Hybrid 4K VLAN based on port, IEEE802.1q, VLAN based on the protocol |
|
Port Aggregation |
LACP dynamic aggregation, Static aggregation Max 5 aggregation groups and 8 ports per group. |
|
Spanning Tree |
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
|
Multicast |
Multicast VLAN, Fast log out IGMP Snooping v1/v2/V3, Max 1024 multicast groups |
|
Port Mirroring |
Bidirectional data mirroring based on port |
|
QoS |
Diff-Serv QoS, Priority Mark/ Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based rate limiting, Flow-based packet filtering 8*output queues of each port, 802.1p/DSCP priority mapping |
|
ACL |
Port-based Issuing ACL, ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
|
Security |
IP-MAC-VLAN-Port binding ARP inspection, Anti-DoS attack AAA & RADIUS, MAC learning limit Mac black holes, IP source protection IEEE802.1X & MAC address authentication Broadcast storm control, Backup for host datum SSH 2.0, SSL, Port isolation, ARP message speed limit User hierarchical management and password protection |
|
DHCP |
DHCP Client, DHCP Snooping, DHCP Server |
|
Management |
FTP, TFTP file upload and download management ONV NMS platform cluster management (LLDP+SNMP) NTP, System work log, Ping Test, SNMP V1/V2/V3, LLDP CPU instant utilization status view, Console/ Telnet/ SSH2.0 CLI Web Management (HTTPS), Cable Diagnose, One-key recovery |
|
System |
Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable |
