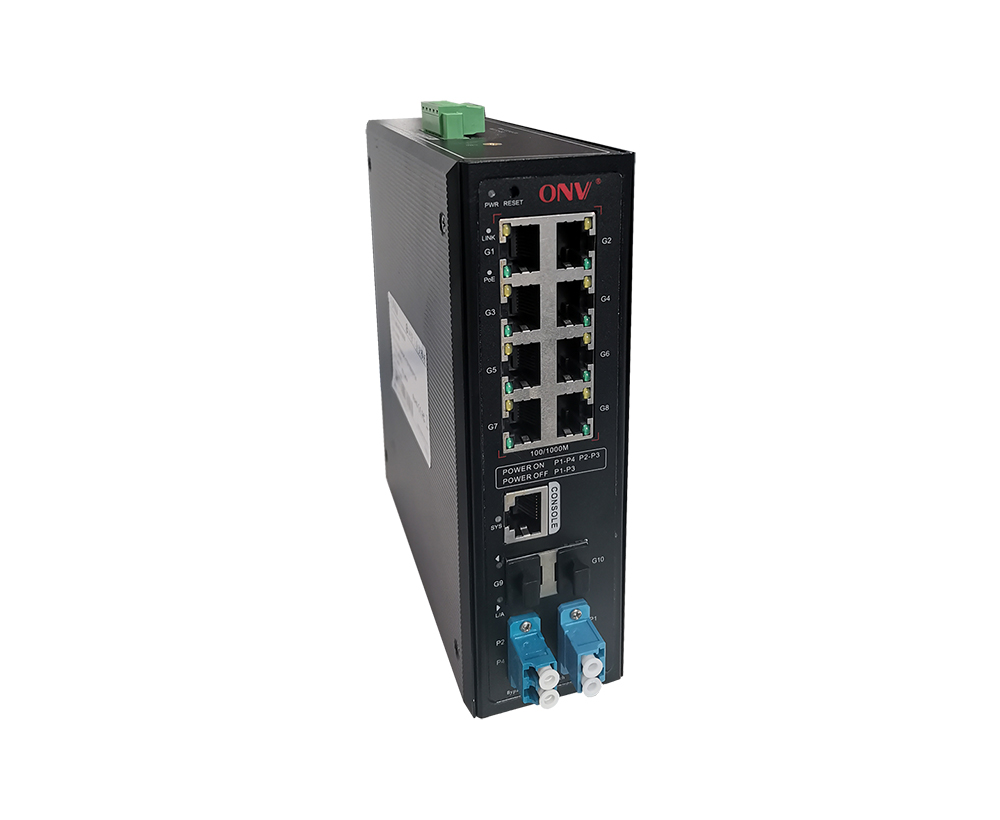

OVERVIEW
The ONV-IPS33010PFM-BY is a Gigabit bypass managed industrial PoE fiber switch independently developed by ONV. It has 8*10/100/1000M adaptive RJ45 ports and 2*100/1000M uplink SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and identify the electrical equipment that meets the standard and supply power through the cable. It can supply the PoE terminal equipment, such as wireless AP, IP camera, network telephone, and industrial sensors to meet the demand for a high-density PoE power supply network environment. The switch integrates the Bypass optical switching module. When the power supply of the switch is interrupted, the optical fiber is automatically switched to the bypass-through state to avoid communication interruption due to switch failure and ensure the reliability of network transmission. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy, and industrial scenes such as construction setting up a cost-effective and stable communication network.
The ONV-IPS33010PFM-BY has L2+ network management functions, supports IPV4 static routing forwarding, and has complete security protection mechanisms, perfect ACL/QoS strategies, and rich VLAN functions for easy management and maintenance. It supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) to improve link backup and network reliability. When a unidirectional network fails, communication can be quickly restored to ensure uninterrupted communication of important applications. PoE power supply management, routing address management, port flow control, VLAN division, IGMP, security policy, and other application business configurations can be performed through Web, CLI, SNMP, Telnet, and other network management methods according to application needs.
FEATURE
Gigabit access, SFP fiber port uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support Gigabit RJ45 port and SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support physical single-mode single fiber optical path (Bypass) function, pure hardware switching, short switching time, does not affect the data transmission rate and improves the stability of the network system.
Smart PoE power supply
◇ PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
◇ 8*10/100/1000Base-T RJ45 ports can support PoE power to meet the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
Strong business processing ability
◇ Support Access, Trunk, and Hybrid port configuration.
◇ Support IEEE 802.1Q VLAN. Users can divide VLAN according to their needs.
◇ Support STP/RSTP/MSTP production tree protocol, eliminate layer 2 loops and realize link backup.
◇ Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
◇ Support IGMP Snooping V1/V2/V3 to meet the multi-terminal high-definition video surveillance and video conference access requirements.
◇ Support QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
◇ Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
Security
◇ Support port isolation and port broadcast storm suppression.
◇ Support IP+MAC+port+VLAN quadruple flexible combination binding function.
◇ Support 802.1X authentication to provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly pane can show the device status through the LED indicator of PWR, SYS, Link, L/A, and PoE.
◇ Low power consumption, no fan, aluminum shell, and excellent heat dissipation ensure the stable operation of the switch.
Easy O&M management
◇ Support CPU monitoring, memory monitoring, Ping detection, and cable length detection.
◇ Support HTTPS, SSHV1/V2, and other encryption methods, making management more secure.
◇ Support RMON, system log, and port traffic statistics to facilitate network optimization and transformation.
◇ Support LLDP to facilitate the network management system to query and judge the communication status of the link.
◇ Support Web network management, CLI (Console, Telnet), SNMP (V1/V2/V3), Telnet, and other diversified management and maintenance methods.
DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Recommended Power Supply |
|
ONV-IPS33010PFM-BY |
L2+ managed bypass industrial PoE fiber switch with 8*10/100/1000M RJ45 ports and 2*100/1000M uplink SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard. It can support dual DC power supply input and DIN rail mounting. |
120W/240W |
|
Note: The optical module and power supply are not included and need to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
10-port gigabit bypass managed industrial PoE switch |
1 |
SET |
|
|
RJ45-DB9 adapter cable |
1 |
PC |
|
|
User guide |
1 |
PC |
|
|
Warranty card |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module |
2630-G |
Industrial SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, supports DDM function and hot plugging. |
PC |
|
2632-G |
Industrial SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. |
PC |
|
|
2612-T-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. |
PC |
|
|
2613-R-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging. |
PC |
|
|
2612-T-G-SC |
Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface, supports DDM function and hot plugging. |
PC |
|
|
2613-R-G-SC |
Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface, supports DDM function and hot plugging. |
PC |
POWER SUPPLY
|
Product |
Model |
Description |
Unit |
|
130W Desktop Power Adapter |
GWS-AP130-52 |
Desktop 130W single set of output power adapter Input Voltage: AC100V-240V 50-60Hz, 2.3A Output Voltage: DC52V, 2.5A Operation Temperature: -20℃ to 65℃ |
PC |
|
250W Desktop Power Adapter |
GWS-AP250-52 |
Desktop 250W single set of output power adapter Input Voltage: AC100V-240V 50-60Hz, 5.0A Output Voltage: DC52V, 5.0A Operation Temperature: -20℃ to 65℃ |
PC |
|
120W DIN Rail Industrial Power Supply |
GWS-DP120-48 |
DIN Rail 120W single set of output power supply Input Voltage: AC100V-240V 50-60Hz, 2.3A Output Voltage: DC48V, 2.5A Operation Temperature: -40℃ to 70℃ |
PC |
|
240W DIN Rail Industrial Power Supply |
GWS-DP240-48 |
DIN Rail 240W single set of output power supply Input Voltage: AC100V-240V 50-60Hz, 3.0A Output Voltage: DC48V, 5.0A Operation Temperature: -40℃ to 70℃ |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV-IPS33006PFM-BY |
L2+ managed bypass industrial PoE fiber switch with 4*10/100/1000M RJ45 ports and 2*100/1000M uplink SFP fiber ports. Port 1-4 can support IEEE 802.3 af/at PoE standard. It can support dual DC power supply input and DIN rail mounting. |
TECHNICAL SPECIFICATION
|
Model |
ONV-IPS33010PFM-BY |
|
Interface Characteristics |
|
|
Fixed Port |
2 sets bypass optical fiber ports 1*Console RS232 port (115200,N,8,1) 2*100/1000Base-X uplink SFP ports (Data) 8*10/100/1000Base-T PoE ports (Data/Power) 2 sets V+, V- redundant DC power ports (5P Phoenix terminal) |
|
Bypass Optical Port |
Power ON: P1-P4 intercommunication, P2-P3 intercommunication Power OFF: P1-P3 Pass-through |
|
Ethernet Port |
Port 1-8 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
Optical Fiber Port |
Gigabit optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-500m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
Chip Parameter |
|
|
Network Management Type |
L2+ |
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x |
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
Switching Capacity |
20Gbps (non-blocking) |
|
Forwarding Rate @64byte |
14.88Mpps |
|
CPU(Hz) |
500M |
|
DRAM |
1G |
|
Flash |
128M |
|
MAC |
8K |
|
Buffer Memory |
4M |
|
Jumbo Frame |
10K |
|
LED Indicator |
PoE: PoE (Green), Fiber port: L/A (Green), Power: PWR (Yellow), System: SYS (Yellow), Network: Link (Yellow) |
|
Reset Switch |
Yes. Press and hold the reset switch for 10 seconds and release it to restore factory settings |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1-8 |
|
PoE Management |
PoE working status display, Port PoE out on/off |
|
Power Supply Pin |
1/2 (+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
Power Consumption |
Standby<6W, Full load af<120W, at<240W |
|
Input Voltage/ Interface |
DC48-57V, 5Pin industrial phoenix terminal, support anti-reverse protection. |
|
Power Supply |
No, optional 48V/120W or 48V/240W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP/ Humidity |
-40°C~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP/ Humidity |
-40°C~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
165*148*54mm |
|
Net /Gross Weight |
0.9kg / 1.1kg |
|
Installation |
Desktop, 35mm DIN Rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m(80~1000MHz) FCC Part 15/ CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4 (EFT): Power cable:±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission):10V (150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/DM±2kV, data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
|
Network Management Feature |
|
|
Interface |
IEEE 802.3x flow control (Full duplex) Port real-time traffic management (Flow Interval) Broadcast storm suppression based on port rate Limit the speed of the message traffic at the inbound and outbound ports, mini granularity is 16Kbps and max 1Gbps |
|
L3 Feature |
IPV4 static routing/ default routing, max 128 entries L2+ network management, ARP protocol max 1024 entries |
|
VLAN |
Port configuration of Access, Trunk, Hybrid 4K VLAN based on port, IEEE802.1q, VLAN based on the protocol |
|
Port Aggregation |
LACP dynamic aggregation, Static aggregation Max 5 aggregation groups and 8 ports per group. |
|
Spanning Tree |
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
|
Multicast |
Multicast VLAN, Fast log out IGMP Snooping v1/v2/V3, Max 1024 multicast groups |
|
Port Mirroring |
Bidirectional data mirroring based on port |
|
QoS |
Diff-Serv QoS, Priority Mark/ Remark Queue scheduling mechanism (SP, WRR, SP+WRR) 8*output queues of each port, 802.1p/DSCP priority mapping Flow-based packet filtering, Flow-based redirection, Flow-based rate limiting |
|
ACL |
Port-based Issuing ACL, ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
|
Security |
IP-MAC-VLAN-Port binding ARP inspection, Anti-DoS attack AAA & RADIUS, MAC learning limit Mac black holes, IP source protection IEEE802.1X & MAC address authentication Broadcast storm control, Backup for host datum SSH 2.0, SSL, Port isolation, ARP message speed limit User hierarchical management and password protection |
|
DHCP |
DHCP Client, DHCP Snooping, DHCP Server |
|
Management |
Web network management (HTTPS) CPU real-time utilization status check Link Layer Discovery Protocol (LLDP) NTP clock, SNMP V1/V2/V3, One-click restore FTP, TFTP file upload and download management System work log, Cable status check, Ping detection ONV-NMS platform cluster management (LLDP+SNMP) Console/ Telnet/ SSH2.0, CLI command line configuration |
|
System |
Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable |

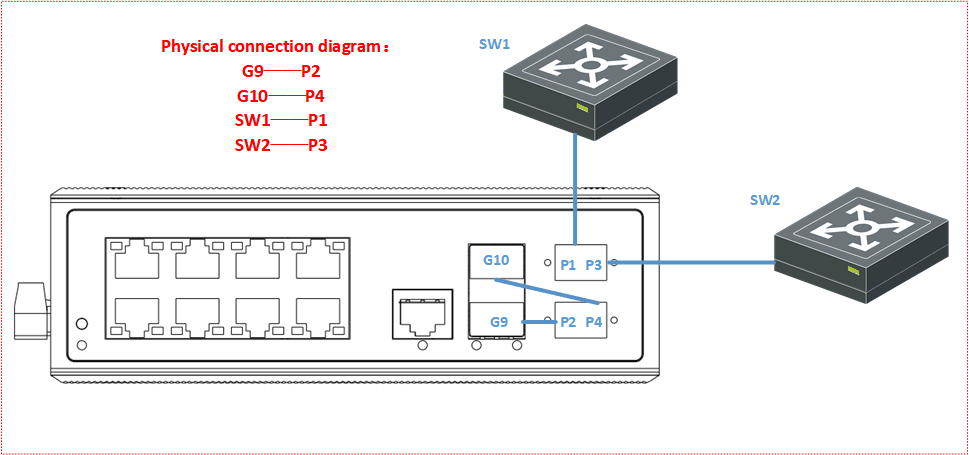

PHYSICAL CONNECTION
APPLICATION
