OVERVIEW

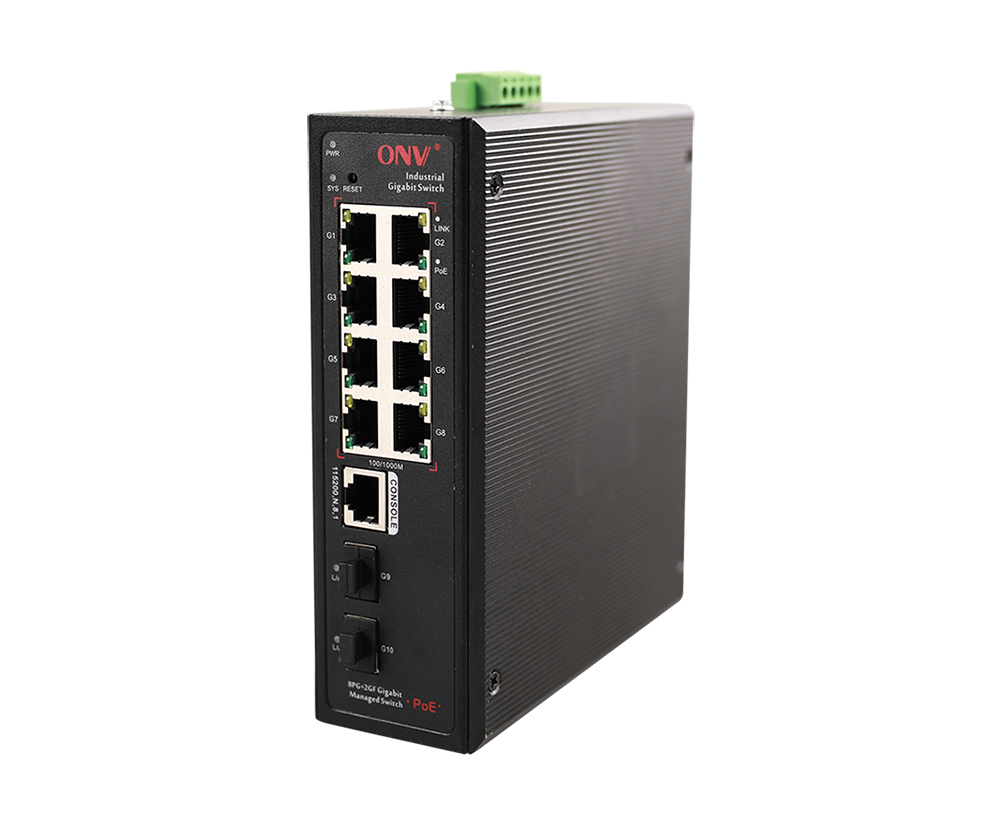

The ONV-IPS33108PFM-bt is a Gigabit L2+ managed industrial bt PoE fiber switch independently developed by ONV. It has 8*10/100/1000Base-T adaptive RJ45 and 2*100/1000Base-X uplink SFP fiber ports. Port 1-8 can support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard and the single-port PoE power reaches 90W. As a PoE power supply device, it can automatically detect and identify standard-powered devices and supply power to them through network cables. It can supply power for high-power wireless AP, network dome cameras, high-power PoE lighting, industrial sensors, high-power network industrial control equipment, and other PoE terminal equipment through network cables to meet the network environment that requires high-density and high-power PoE power. It is suitable for intelligent transportation and industrial scenarios such as rail transit, electric power, mining, metallurgy, and green energy construction to establish cost-effective, stable, and reliable communication networks.
The ONV-IPS33108PFM-bt has L2+ network management function, supports IPV4/ IPV6 management, static route forwarding, security protection mechanism, ACL/ QoS policy, and VLAN, and is easy to manage and maintain. Support multiple network redundancy protocols STP/ RSTP/ MSTP(<50ms) and (ITU-T G.8032) ERPS (<20ms) to improve link backup and network reliability. When a one-way network fails, communication can be quickly restored to ensure important uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web network management mode.
FEATURE
Gigabit access, uplink SFP fiber port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Support Gigabit RJ45 port and SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
◇ PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
◇ Comply with IEEE 802.3 af/at/bt PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
◇ 8*10/100/1000Base-T RJ45 ports can support bt PoE power, meeting the demand for super high power PoE power supply in various scenarios.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Strong business processing ability
◇ Support ERPS ring network and STP/ RSTP/ MSTP to eliminate layer 2 loops and realize link backup.
◇ Support IEEE 802.1Q VLAN, users can flexibly divide VLAN according to needs, support Voice VLAN and QinQ configuration.
◇ Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
◇ Support QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
◇ Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
◇ Support IGMP V1/V2/V3 multicast protocol and IGMP Snooping to meet multi-terminal high-definition video surveillance and video conference access requirements.
Security
◇ Port isolation and storm control.
◇ IP+MAC+port+VLAN quadruple flexible combination binding function.
◇ 802.1X authentication provides authentication functions for LAN computers, and controls the authorization status of controlled ports according to the authentication results.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Low power consumption, metal shell, and excellent heat dissipation to ensure stable operation of the switch.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, L/A, and PoE.
Easy O&M management
◇ Support CPU monitoring, memory monitoring, Ping detection, and cable length detection.
◇ Support RMON, system log, and port traffic statistics to facilitate network optimization and transformation.
◇ Support HTTPS, SSLV3, SSHV1/V2, and other encryption methods, making management more secure.
◇ Support LLDP to facilitate the network management system to query and judge the communication status of the link.
◇ Support Web network management, CLI (Console, Telnet), SNMP (V1/V2/V3), Telnet and other diversified management and maintenance methods.
DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Recommended Power Supply |
|
ONV-IPS33108PFM-bt |
L2+ managed industrial bt PoE switch with 8*10/100/1000M RJ45 ports and 2*100/1000M uplink SFP fiber ports. Port 1-8 can support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. It supports dual DC power supply input and DIN rail mounting. |
480W |
|
Note: The optical module and power supply are not included and need to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
10-port gigabit managed industrial bt PoE switch |
1 |
SET |
|
|
RJ45-DB9 Network management configuration line |
1 |
PC |
|
|
User guide |
1 |
PC |
|
|
Warranty card |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module |
2630-G |
Industrial SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. supports DDM function and hot plugging. |
PC |
|
2632-G |
Industrial SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T-G-SC |
Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R-G-SC |
Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
|
|
Power Module |
2633 |
1.25G SFP optical module transfers to 10/100/1000M RJ45 port. |
PC |
POWER SUPPLY
|
Product |
Model |
Description |
Unit |
|
480W DIN Rail Industrial Power Supply |
GWS-DP480-48 |
DIN Rail 480W single set of output power supply Input Voltage: AC100V-240V 50-60Hz, 5.0A Output Voltage: DC48V, 10A Operation Temperature: -40℃ to +70℃ |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV-IPS31004PF-bt |
Unmanaged industrial bt PoE fiber switch with 4*10/100M RJ45 ports and 1*155M uplink SC fiber port. Port 1-4 can support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. It supports dual DC power supply input and DIN rail mounting. |
|
ONV-IPS31064P-bt |
Unmanaged industrial bt PoE switch with 6*10/100M RJ45 ports. Port 1-4 can support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. It supports dual DC power supply input and DIN rail mounting. |
|
ONV-IPS33064P-bt |
Unmanaged industrial bt PoE switch with 6*10/100/1000M RJ45 ports. Port 1-4 can support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. It supports dual DC power supply input and DIN rail mounting. |
|
ONV-IPS33064PF-bt |
Unmanaged industrial bt PoE switch with 4*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. Port 1-4 can support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. It supports dual DC power supply input and DIN rail mounting. |
|
ONV-IPS33064PFG-bt |
Unmanaged industrial bt PoE fiber switch with 4*10/100/1000M RJ45 ports and 1*10/100/1000M RJ45 port and 1*1000M uplink SFP fiber port. Port 1-4 can support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. It supports dual DC power supply input and DIN rail mounting. |
|
ONV-IPS33064PFM-bt |
L2+ managed industrial bt PoE fiber switch with 4*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. Port 1-4 can support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. It supports dual DC power supply input and DIN rail mounting. |
|
ONV-IPS57128PFM-bt |
L2+ managed industrial bt PoE fiber switch with 8*10/100/1000/2500M RJ45 ports and 4*1/10G uplink SFP+ fiber ports. Port 1-8 can support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. It supports dual DC power supply input and DIN rail mounting. |
TECHNICAL SPECIFICATION
|
Model |
ONV-IPS33108PFM-bt |
|
Interface Characteristics |
|
|
Fixed Port |
1*Console RS232 port (115200,N,8,1) 2*100/1000Base-X uplink SFP fiber ports (Data) 8*10/100/1000Base-T bt PoE ports (Data/Power) 2 set of V+, V- redundant DC power interface (6 Pin Phoenix terminal) |
|
Ethernet Port |
Port 1-8 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
Optical Fiber Port |
Gigabit optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-500m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
Chip Parameter |
|
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x |
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
Switching Capacity |
20Gbps (non-blocking) |
|
Forwarding Rate @64byte |
14.88Mpps |
|
CPU |
416MHz |
|
DRAM |
1G |
|
FLASH |
128M |
|
MAC |
8K |
|
Buffer Memory |
4M |
|
Jumbo Frame |
9.6K |
|
LED Indicator |
Fiber port: L/A (Green), PoE: PoE (Green), Power: PWR (Yellow), System: SYS (Yellow), Network: Link (Yellow) |
|
Reset Switch |
Yes, (Press and hold for 10 seconds and release, the switch will restore the factory settings) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1-8 |
|
PoE Management |
Port PoE working status display Port PoE output priority configuration PoE power supply total power limit configuration Power delay start, PoE work and time scheduling Port PoE output power distribution, PoE on/off, af/at/bt power distribution |
|
Power Supply Pin |
1/2(+)3/6 (-) 4/5(+)7/8 (-) |
|
Max Power Per Port |
90W, IEEE 802.3 af/at/bt |
|
Power Consumption |
Standby<8W, Full load<480W |
|
Working Voltage |
DC48-57V, 6 Pin industrial Phoenix terminal, support anti-reverse protection. |
|
Power Supply |
No, optional 48V/480W industrial power supply |
|
Physical Parameter |
|
|
Operation TEMP/ Humidity |
-40°C~+80°C, 5%~90% RH Non condensing |
|
Storage TEMP/ Humidity |
-40°C~+85°C, 5%~95% RH Non condensing |
|
Dimension(L*W*H) |
165*148*54mm |
|
Net /Gross Weight |
0.95kg / 1.2kg |
|
Installation |
Desktop, 35mm DIN Rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable: ±4kV; data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
|
Network Management Feature |
|
|
Interface |
Port temperature protection setting IEEE802.3x flow control (Full duplex) Port green Ethernet Energy-saving setting Broadcast storm control based on port speed The speed limit of the message flow in the access port, mini particle is 64Kbps. |
|
L3 Feature |
ARP protocol max 1024 entries Static routing/ default routing max 128 entries L2+ network management, IPV4/IPV6 dual stack management L3 routing and forwarding, and communication between different network segments and different VLAN |
|
VLAN |
Access, Trunk, and Hybrid port configurations Port-based VLAN (4K), IEEE802.1q, QinQ configuration Voice VLAN, Protocol-based VLAN, MAC address-based VLAN |
|
Port Aggregation |
LACP dynamic aggregation, Static aggregation Max 5 aggregation groups and 8 ports per group. |
|
Spanning Tree |
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
|
Ring Network Protocol |
G.8032 (ERPS), Recovery time less than 20ms 250 Ring at most, Max 250 devices per ring. |
|
Multicast |
MLD Snooping, Multicast VLAN IGMP Snooping v1/v2/v3, Max 1024 multicast groups, Fast log out |
|
Port Mirroring |
Bidirectional data mirroring based on port |
|
QoS |
Flow-based Rate Limiting, Flow-based redirection Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Packet Filtering, 8*Output queues of each port 802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority Mark/ Remark |
|
ACL |
ACL distribution based on port and VLAN L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc. |
|
Security |
Mac black holes, IP source protection IEEE802.1X & MAC address authentication Broadcast storm control, Backup for host datum SSH 2.0, SSL, Port isolation, ARP message speed limit User hierarchical management and password protection Anti-DoS attack, AAA & RADIUS & TACACS+ certification IP-MAC-VLAN-Port binding, ARP inspection, MAC learning limit |
|
DHCP |
DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay |
|
Management |
Web network management (https) Link Layer Discovery Protocol(LLDP) Viewing CPU Instant Utilization Status NTP clock, One click restore, SNMP V1/V2/V3 Cable status check, Ping detection, System work log ONV NMS platform cluster management (LLDP+SNMP) Console/ AUX Modem/ Telnet/ CLI command line configuration FTP, TFTP, Xmodem, SFTP file upload and download management |
|
System |
Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable |
