OVERVIEW
The ONV-IPS31021PFS is a 10/100M industrial PoE fiber switch independently developed by ONV. It has 1*10/100M RJ45 port and 1*155M uplink SC fiber port. Port 1 can support IEEE 802.3 af/at PoE standard and single-port PoE power is 30W. As a PoE power supply device, it can automatically detect and recognize power-compliant devices that meet the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP, and industrial sensors through the network cable. It also meets the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, maritime, metallurgy, and industrial scenarios such as green energy construction to build cost-effective, stable, and reliable communication networks. Unmanaged model, plug and play, no configuration required, simple and convenient to use.
FEATURE
10/100M access, uplink SC port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Support 10/100M RJ45 port and 155M uplink SC fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
◇ 1*10/100Base-TX RJ45 port supports PoE power to meet the PoE power supply needs of various scenarios in the industrial field.
◇ Priority system for the PoE port will supply power to the high-priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
◇ Low power consumption, no fan, aluminum alloy metal housing, and excellent heat dissipation to ensure the stable operation of the switch.

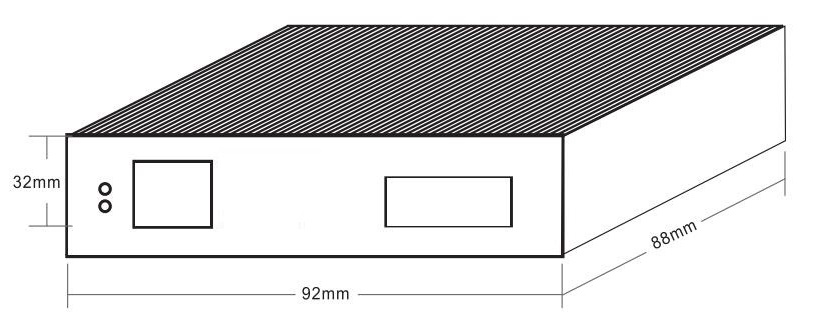

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Recommended Power Supply |
|
ONV-IPS31021PFS |
Unmanaged industrial PoE fiber switch with 1*10/100M RJ45 port and 1*155M uplink SC fiber port (1310nm/ 20km single-mode dual fiber optical module). Port 1 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
24W/36W |
|
ONV-IPS31021PFS-M |
Unmanaged industrial PoE fiber switch with 1*10/100M RJ45 port and 1*155M uplink SC fiber port (850nm/ 550m or 1310nm/ 2km multi-mode dual fiber optical module). Port 1 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
24W/36W |
|
ONV-IPS31021PFS-A |
Unmanaged industrial PoE fiber switch with 1*10/100M RJ45 port and 1*155M uplink SC fiber port (1310nm/ 20km single-mode single fiber optical module). Port 1 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
24W/36W |
|
ONV-IPS31021PFS-B |
Unmanaged industrial PoE fiber switch with 1*10/100M RJ45 port and 1*155M uplink SC fiber port (1550nm/ 20km or 1310nm/20km single-mode single fiber optical module). Port 1 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
24W/36W |
|
Note: The power supply is not included and needs to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
3-port 10/100M industrial PoE switch |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
POWER SUPPLY
|
Product |
Model |
Description |
Unit |
|
36W Desktop Power Adapter |
GWS-AP36-52 |
Desktop 36W single set of output power adapter Input Voltage: AC100V~240V 50-60Hz, 0.56A Output Voltage: DC52V, 0.7A Operation Temperature: -20℃ to +65℃ |
PC |
|
36W DIN Rail Industrial Power Supply |
GWS-DP36-48 |
DIN Rail 36W single set of output power supply Input Voltage: AC100V~240V 50-60Hz, 0.56A Output Voltage: DC48V, 0.75A Operation Temperature: -40℃ to +70℃ |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV-IPS31032PF |
Unmanaged industrial PoE fiber switch with 2*10/100M RJ45 ports and 1*155M uplink SC fiber port (1310nm/ 20km single-mode dual fiber optical module). Port 1-2 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
|
ONV-IPS31004PF |
Unmanaged industrial PoE fiber switch with 4*10/100M RJ45 ports and 1*155M uplink SC fiber port (1310nm/ 20km single-mode dual fiber optical module). Port 1-4 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
|
ONV-IPS31064PF |
Unmanaged industrial PoE fiber switch with 4*10/100M RJ45 ports and 2*155M uplink SFP fiber ports. Port 1-4 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
|
ONV-IPS31084PF |
Unmanaged industrial PoE fiber switch with 6*10/100M RJ45 ports and 2*155M uplink SC fiber ports (1310nm/ 20km single-mode dual fiber optical module). Port 1-4 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
|
ONV-IPS31128PFB |
Unmanaged industrial PoE fiber switch with 8*10/100M RJ45 ports and 2*10/100/100M RJ45 ports and 2*1000M uplink SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
TECHNICAL SPECIFICATION
|
Model |
ONV-IPS31021PFS |
|
Interface Characteristics |
|
|
Fixed Port |
1*155M uplink SC fiber port (Data) 1*10/100Base-TX PoE port (Data/ Power) 2 sets V+, V- redundant DC power port (5P Phoenix terminal) |
|
Ethernet Port |
Port 1 support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) |
|
Optical Fiber Port |
Single-mode dual fiber 20km, SC port. (optional single-mode single fiber/ multi-mode dual fiber optical module) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m, 1310nm/ 0-2km, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
Chip Parameter |
|
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEE E802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3x |
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
Switching Capacity |
1.6Gbps (non-blocking) |
|
Forwarding Rate @64byte |
0.30Mpps |
|
MAC |
1K |
|
Buffer Memory |
768K |
|
Jumbo Frame |
1536bytes |
|
LED Indicator |
PoE: PoE (Green), Fiber port: L/A (Green), Power: PWR (Green), Network: Link (Yellow) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1 |
|
Power Supply Pin |
1/2(+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
Power Consumption |
Standby<3W, Full load af<15, at<30W |
|
Operating Voltage |
DC48-57V, 5P industrial Phoenix terminal, support anti-reverse protection. |
|
Power Supply |
No, optional 48V/24W or 48V/36W industrial power supply |
|
Physical Parameter |
|
|
Operation Temp/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage Temp/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
92*88*32mm |
|
Net /Gross Weight |
0.3kg /0.4kg |
|
Installation |
Desktop, 35mm DIN Rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
