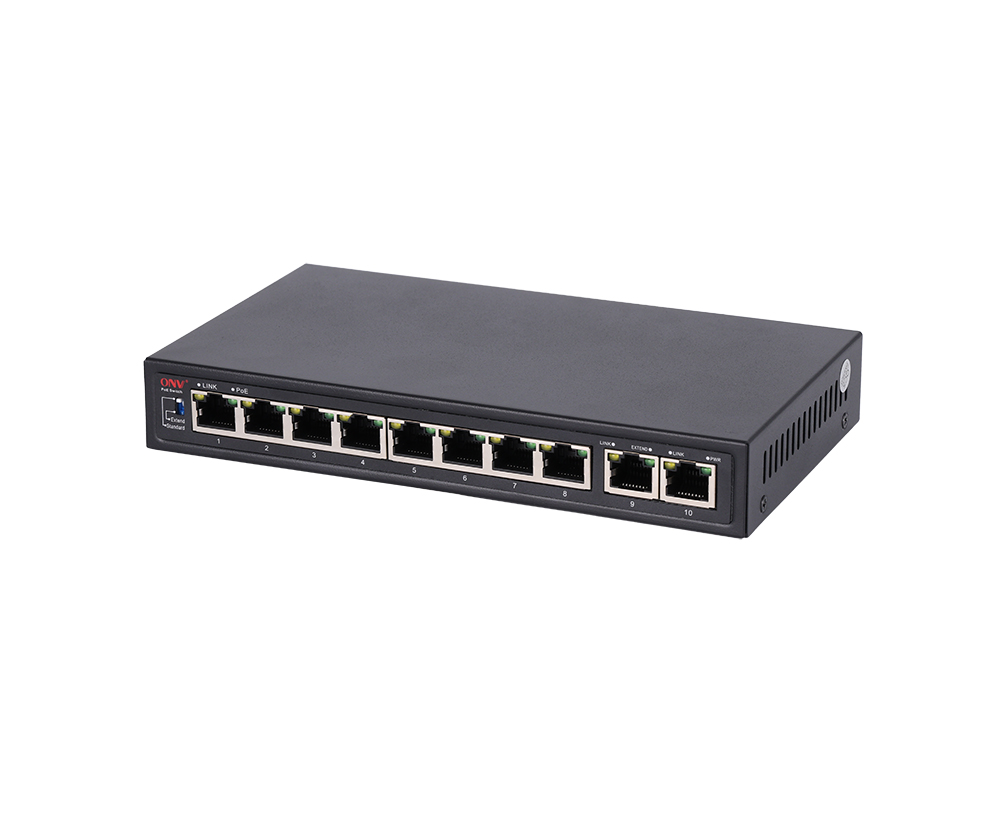

OVERVIEW
The ONV-POE31108PL is a 10/100M unmanaged PoE switch independently developed by ONV. It has 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 1-8 can support IEEE802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 110W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.
Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
10/100Mbps access, dual RJ45 ports uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
◇ 10*10/100Base-TX RJ45 ports ,which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.
Smart PoE power supply function
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ 8*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
Innovative function
◇ Long-distance mode: When it is turned on, the rate of ports 1-8 is reduced to 10M, and the existing twisted-pair wire can break through the transmission limit of 100 meters of twisted-pair wire, and the transmission distance can reach 250 meters.
◇ Video Surveillance mode: Opens with long-distance switches. Port 1-8 are isolated from each other but communicate with port 9-10 to prevent DHCP conflicts, optimize port cache utilization, and reduce broadcast storms.
Stable and reliable, easy to operate
◇ CCC,CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ Low power consumption, IP30 galvanized steel casing, No fan mute design.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

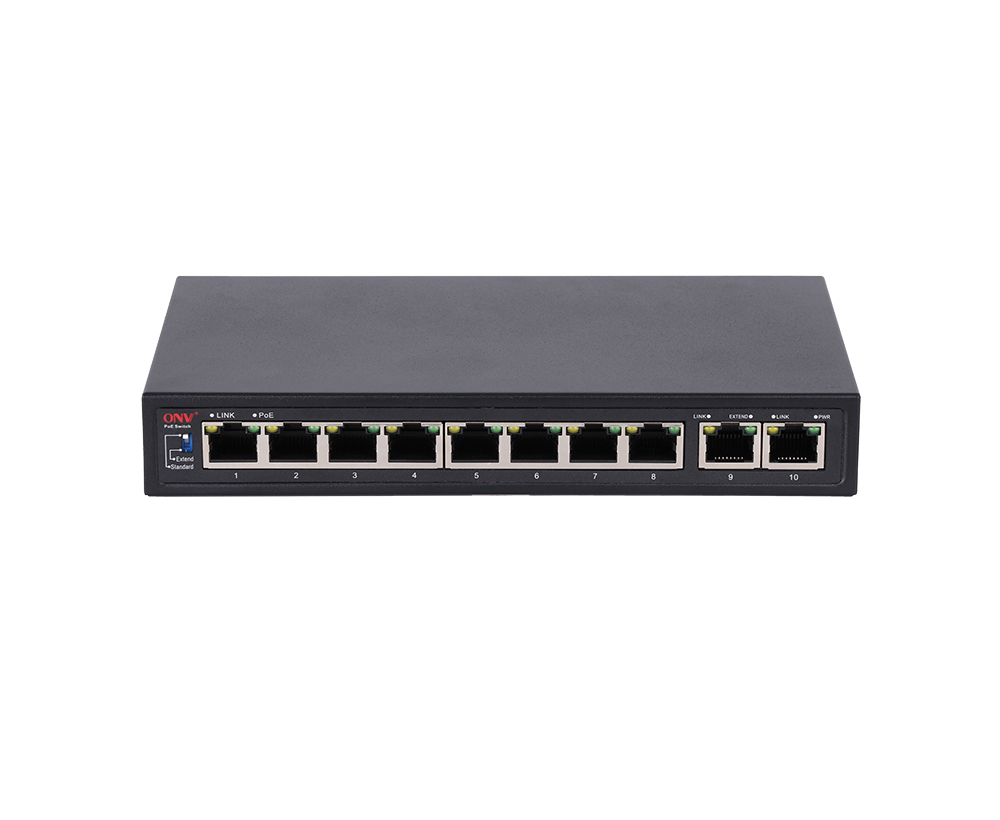

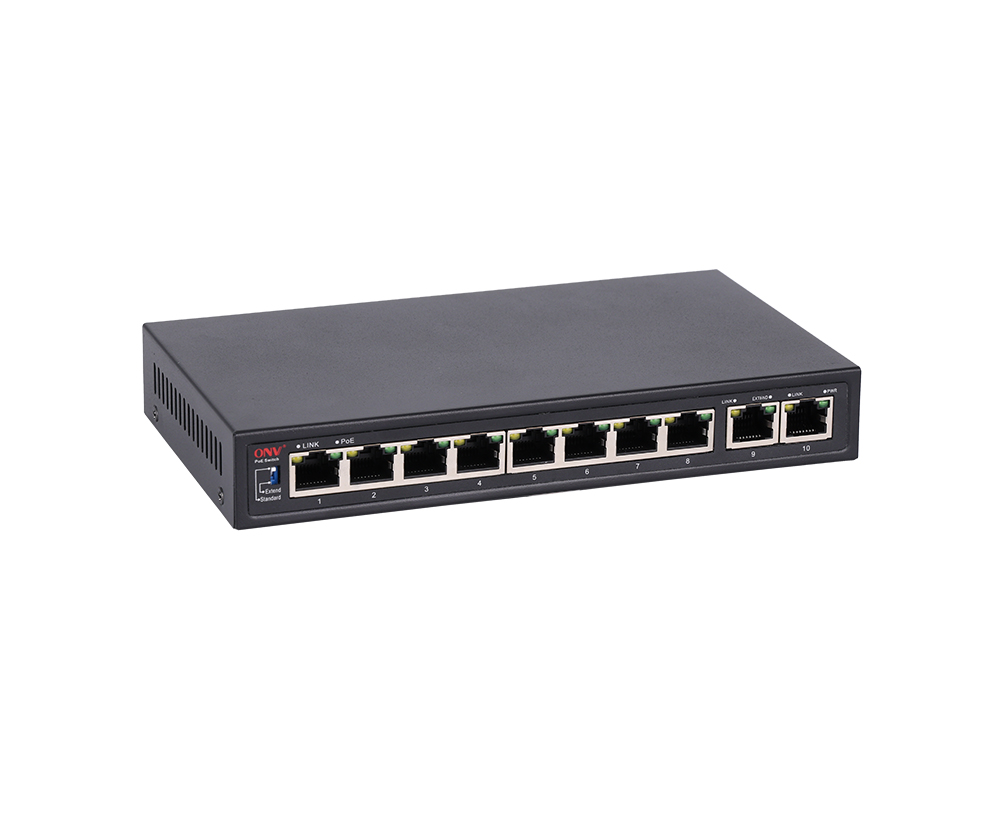

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.

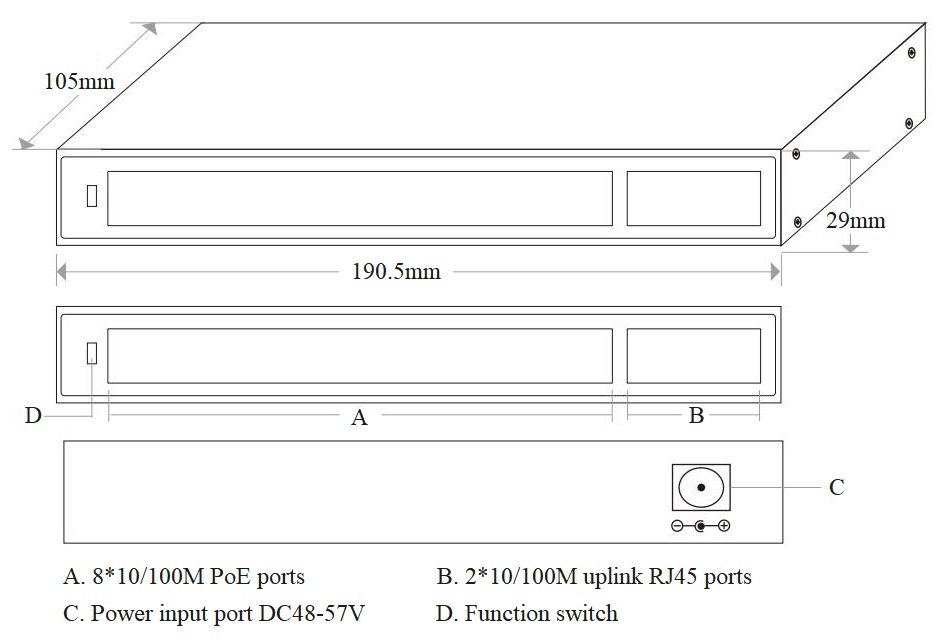

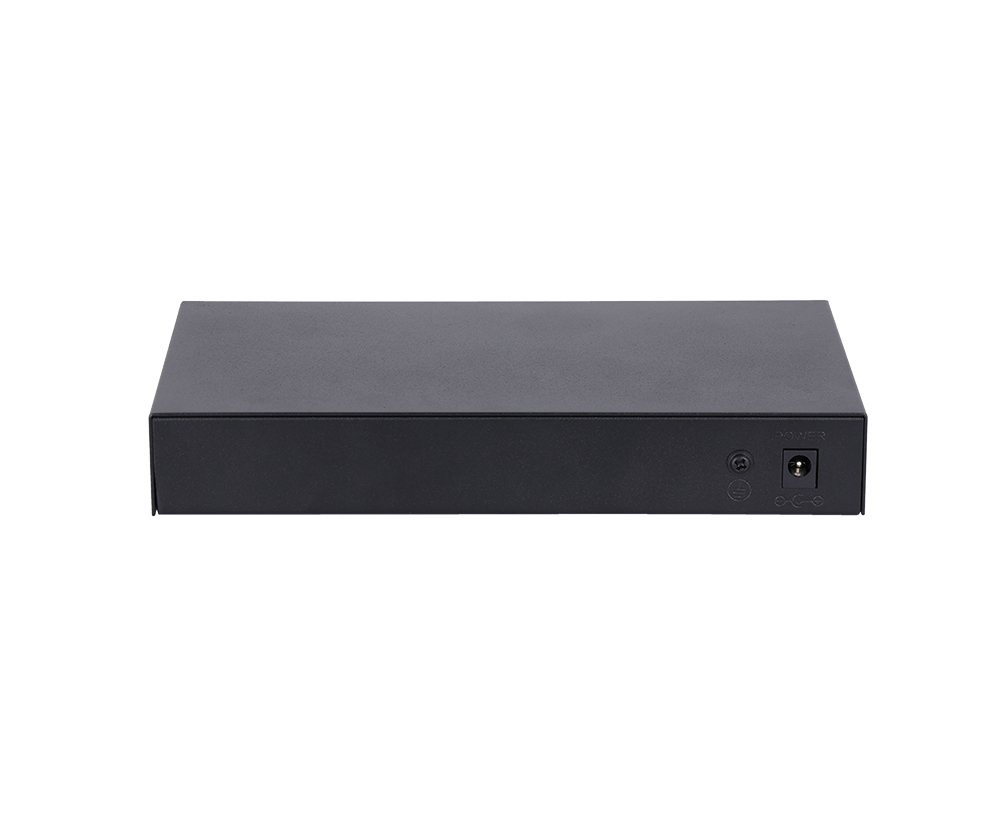

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
|
ONV-POE31108PL |
Unmanaged PoE switch with 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 1-8 can support IEEE802.3af/at PoE standard. Adjust function switch, 1-8 port VLAN isolation or 10M/250m long distance transmission. External 110W power supply. |
|
ONV-POE31108PL-at |
Unmanaged PoE switch with 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 1-8 can support IEEE802.3af/at PoE standard. Adjust function switch, 1-8 port VLAN isolation or 10M/250m long distance transmission. External 250W power supply. |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
10-port 10/100Mbps PoE switch |
1 |
SET |
|
|
AC Power Cable and Power Adapter |
1 |
SET |
|
|
Mounting Kits (Hanging Ear) |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-POE31108PL |
ONV-POE31108PL-at |
|
Interface Characteristics |
||
|
Fixed Port |
8*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX uplink RJ45 ports (Data) |
|
|
Ethernet Port |
Port 1-10 can support 10/100Base-TX automatic detection, full/half Duplex MDI/MDI-X adaptive |
|
|
Twisted Pair Transmission |
10BASE-T:Cat3,4,5 UTP(≤250 meters) 100BASE-TX:Cat5 or later UTP(≤100 meters) |
|
|
Functional Switch |
1*(Extender+CCTV) |
|
|
Note: When the switch status changes, the PoE switch must be restarted for the switch function to take effect. |
||
|
Chip Parameter |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3x |
|
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
|
Switching Capacity |
2Gbps(non-blocking) |
|
|
Forwarding Rate@64byte |
1.49Mpps |
|
|
MAC |
2K |
|
|
Buffer Memory |
1.25M |
|
|
LED Indicator |
Power: PWR (Green), Network:Link (Yellow), PoE: PoE (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Port 1 to 8 |
|
|
Power Supply Pin |
Default 1/2(+)3/6(-), optional 4/5(+)7/8(-) |
|
|
Max Power Per Port |
30W; IEEE802.3af/at |
|
|
Total PWR / Input Voltage |
110W/DC52V |
250W/DC 52V |
|
Power Consumption |
Standby<6W, Full load<110W |
Standby<8W, Full load<240W |
|
Power Supply |
External power adapter AC100~240V 50-60Hz 2A |
External power adapter AC100~240V 50-60Hz 5A |
|
Physical Parameter |
||
|
Operation TEMP / Humidity |
-20~+55°C;5%~90% RH Non condensing |
|
|
Storage TEMP / Humidity |
-40~+75°C;5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
191*105*29mm |
|
|
Net /Gross Weight |
<0.6kg / <1kg |
<0.6kg / <1.2kg |
|
Installation |
Desktop, wall mounted |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us; Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
3 years, lifelong maintenance. |
|
