Gigabit 10-port PoE switch-PoE Switch

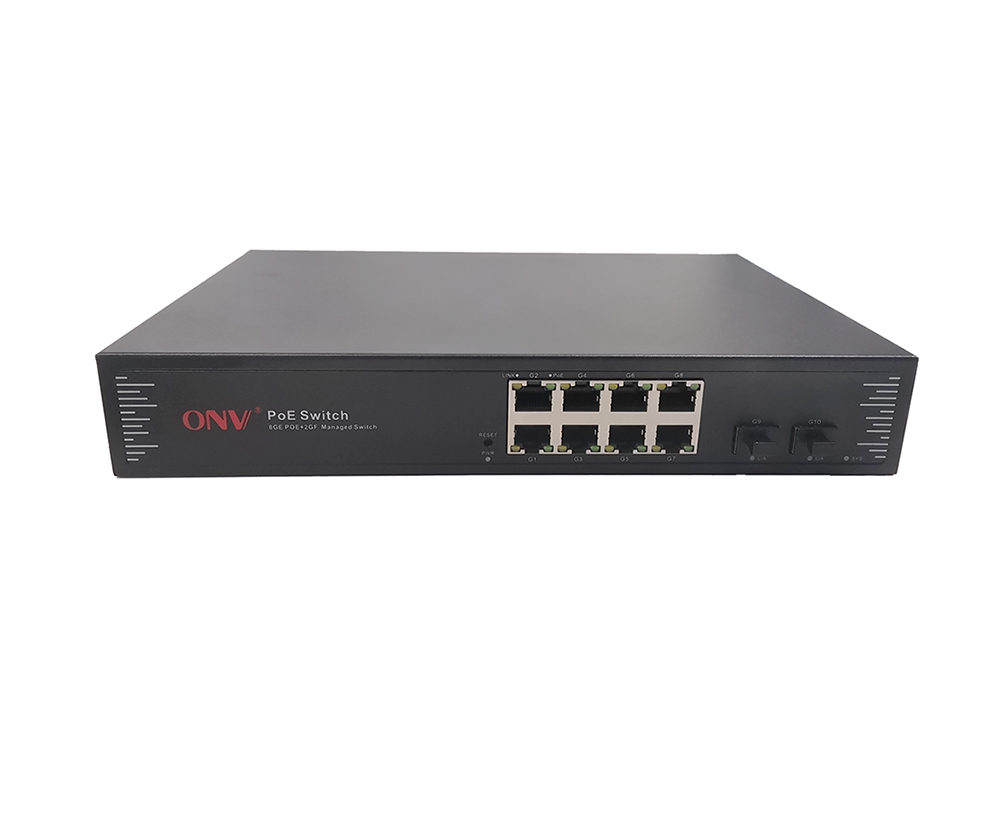

Gigabit 10-port PoE switch

Model： ONV-POE33108PFG

Unmanaged PoE fiber switch with 9*10/100/1000M RJ45 ports and 1*1000M uplink SFP fiber port. Port 1-8 can support IEEE 802.3 af/at PoE standard. External 110W power supply.

I want to make an inquiry

Overview
Technical Specification
Application
Documents
Related Products

OVERVIEW

The ONV-POE33108PFG is a gigabit unmanaged PoE fiber switch independently developed by ONV. It has 9*10/100/1000M adaptive RJ45 ports and 1*1000M uplink SFP fiber port. Port 1-8 can support IEEE 802.3 af/at PoE standard and single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP, and visual intelligent building intercom through a network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises. Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

Gigabit access, uplink SFP fiber port

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

◇ Support gigabit RJ45 port and uplink SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Smart PoE power supply

◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

◇ 8*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Stable and reliable

◇ CCC, CE, FCC, RoHS.

◇ Plug and play, no configuration, simple and convenient.

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link , L/A, and PoE.

◇ Self-developed power supply, high redundancy design, providing a long-term and stable PoE power output.

◇ Low power consumption, with fan, galvanized steel metal shell, and excellent heat dissipation to ensure the stable operation of the switch.

DIMENSION

ORDERING INFORMATION

Model	Description	External Power Supply
ONV-POE33108PFG	Unmanaged PoE fiber switch with 910/100/1000M RJ45 ports and 11000M uplink SFP fiber port. Port 1-8 can support IEEE 802.3 af/at PoE standard. External power supply.	110W
ONV-POE33108PFG-at		250W
Note: The optical module is not included and needs to be purchased.

PACKING LIST

Packing List	Content	Qty	Unit
	10-port full gigabit PoE switch	1	SET
	AC Power Cable+Power Adapter	1	SET
	Mounting Kits	1	SET
	User Guide	1	PC
	Warranty Card	1	PC

OPTICAL MODULE

Product	Model	Description	Unit
1.25G Optical Module	2630	SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. support DDM function and hot plugging.	PC
	2632	SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. support DDM function and hot plugging.	PC
	2612-T	SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface. support DDM function and hot plugging.	PC
	2613-R	SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface. support DDM function and hot plugging.	PC
	2612-T-SC	SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface. support DDM function and hot plugging.	PC
	2613-R-SC	SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface. support DDM function and hot plugging.	PC
Power Module	2633	1.25G SFP optical module transfers to 10/100/1000M RJ45 port.	PC

TECHNICAL SPECIFICATION

Model	ONV-POE33108PFG	ONV-POE33108PFG-at
Interface Characteristics
Fixed Port	11000Base-X uplink SFP fiber port (Data) 110/100/1000Base-T uplink RJ45 port (Data) 8*10/100/1000Base-T PoE ports (Data /Power)
Ethernet Port	Port 1-9 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm /0-550m, Single-mode: 1310nm /0-40km, 1550nm /0-120km
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	20Gbps (non-blocking)
Forwarding Rate@64byte	14.88Mpps
MAC	8K
Buffer Memory	2M
Jumbo Frame	9.6K
LED Indicator	Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green), Rate: 1000M (Green)
PoE & Power Supply
PoE Port	Port 1-8
Power Supply Pin	1/2(+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Total PWR / Input Voltage	110W /(DC52V)	250W/ (DC52V)
Power Consumption	Standby<6W, Full load<110W	Standby<7W, Full load<240W
Power Supply	External power adapter, AC100~240V 50-60Hz, 2.0A	External power adapter, AC100~240V 50-60Hz, 4.1A
Physical Parameter
Operation TEMP/ Humidity	-20°C~+55°C, 5%~90% RH Non condensing
Storage TEMP/ Humidity	-40°C~+75°C, 5%~95% RH Non condensing
Dimension (LWH)	190.510529mm
Net /Gross Weight	0.55kg / 1.15kg	0.55kg / 1.6kg
Installation	Desktop, wall mount
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	3 years, lifelong maintenance.
