OVERVIEW

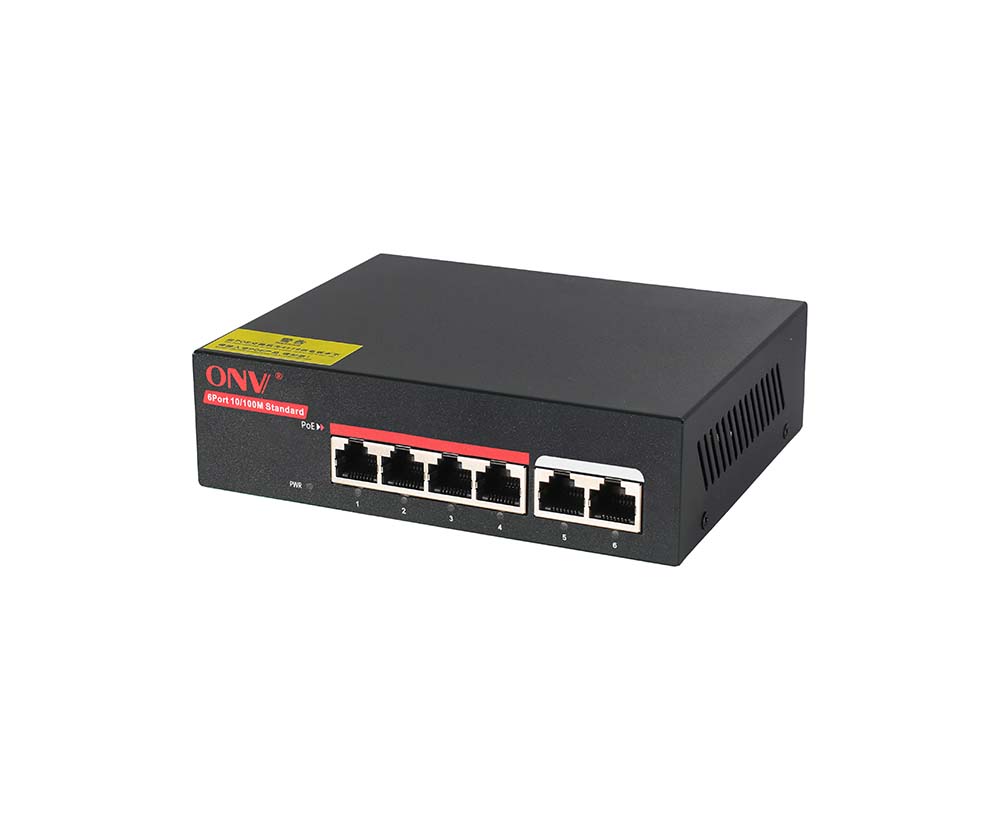

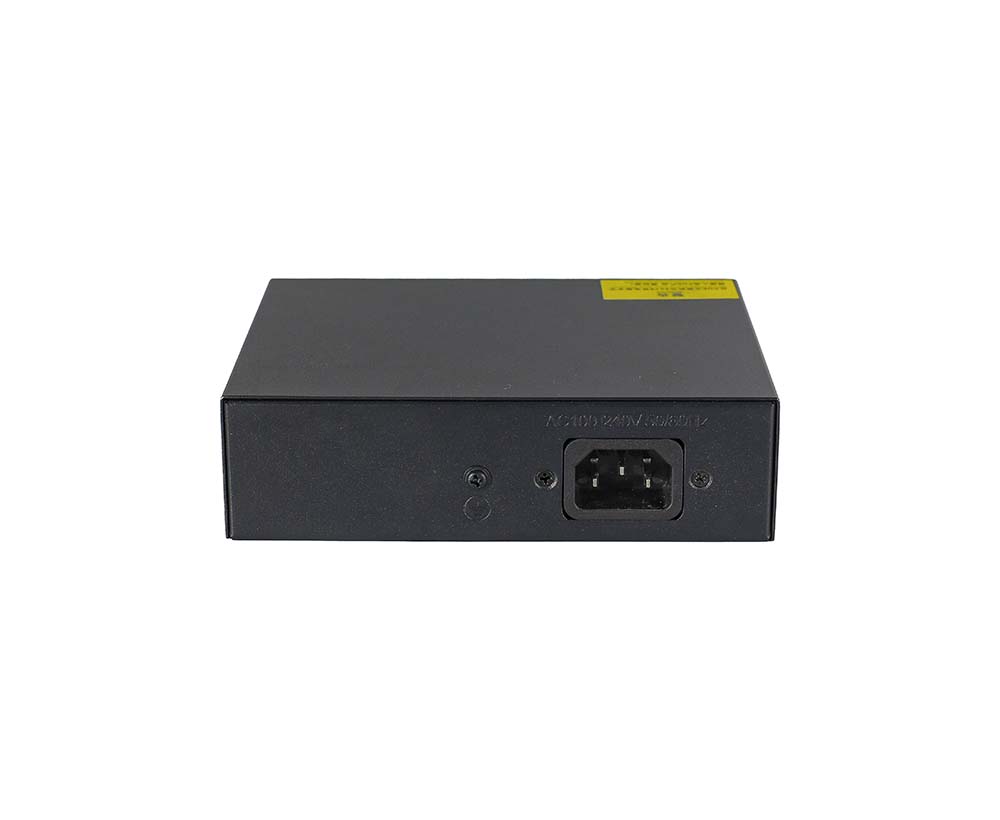

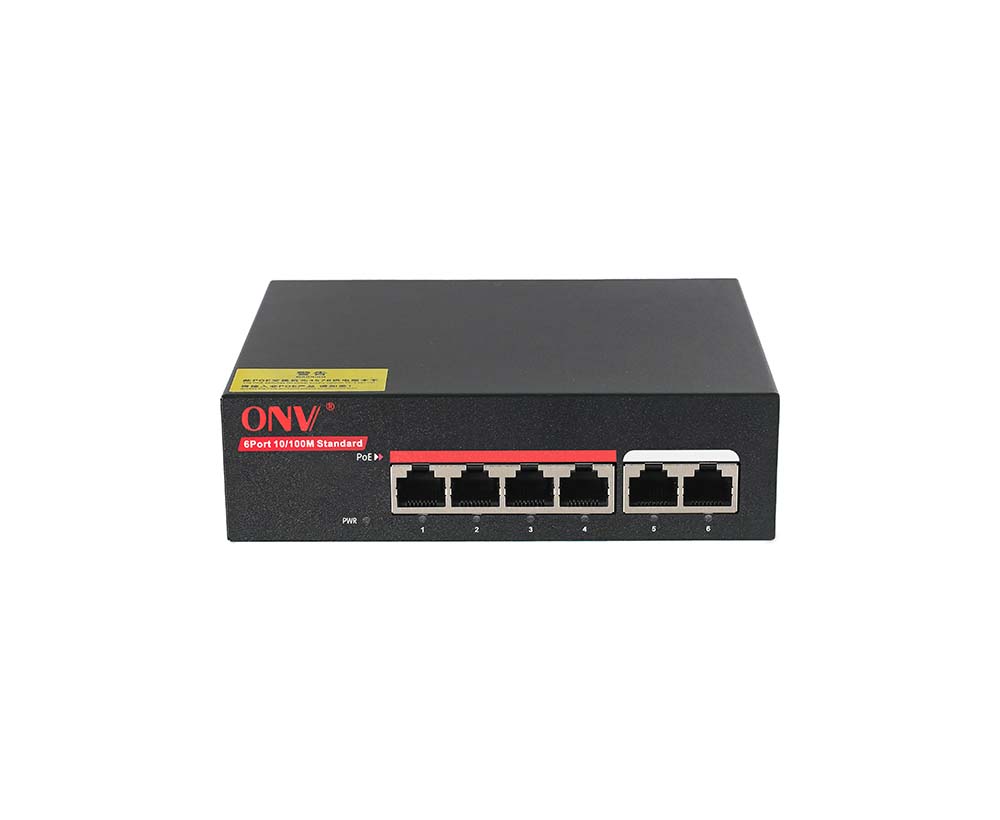

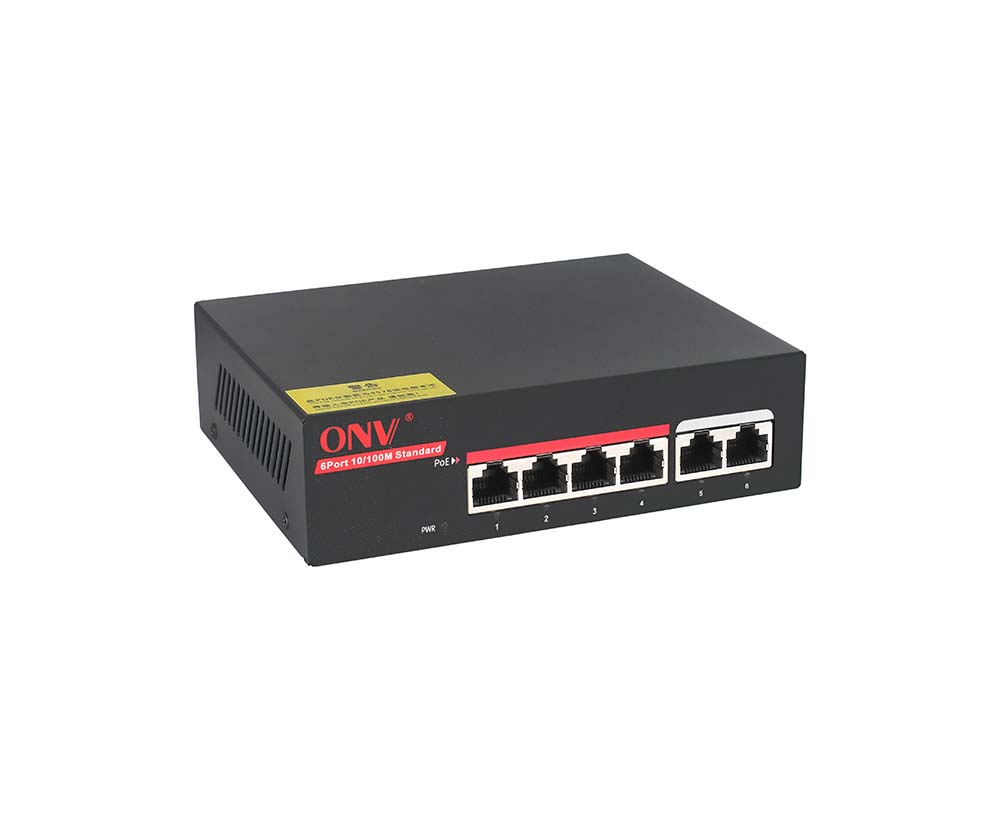

The ONV-H2064PL is a 10/100M non-standard PoE switch independently developed by ONV. It has 6*10/100M RJ45 ports. Port 1-4 can support 24V non-standard PoE+ power supply and single-port PoE power up to 24W. As a non-standard PoE power supply device, it must be connected to the corresponding non-standard electrical equipment (such as wireless bridge), or the corresponding non-standard PoE splitter to convert, and then achieve the PoE power supply. It can supply power to various adaptable terminals through network cables to meet the demand for a high-density PoE power supply network environment. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to establish cost-effective networks. Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
10/100M access, uplink RJ45 port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Provides 6*10/100M RJ45 ports, which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.
Smart PoE power supply
◇ 4*10/100Base-TX RJ45 ports support 24V PoE power supply meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ Quickly implement PoE network cable power supply through the switch to directly connect non-standard electrical equipment or the switch and non-standard PoE splitter cable.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ Port 1-4 supports 10M/250 meters transmission when the functional switch is on 250m.
◇ The user-friendly panel can show the device status through the LED indicator of PWR and L/A.
◇ Self-developed power supply, high redundancy design, providing a long-term and stable PoE power output.
◇ Low power consumption, galvanized steel housing, and excellent heat dissipation to ensure the stable operation of the switch.

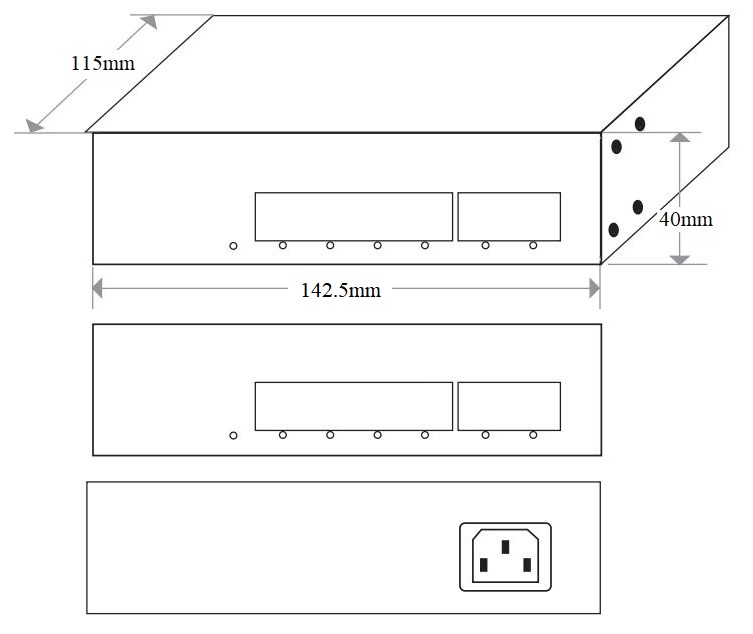

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
ONV-H2064PL |
Unmanaged PoE switch with 6*10/100M RJ45 ports. Port 1-4 support DC24V PoE output. Port 1-4 can support port VLAN and 10M/250 meters transmission when the functional switch is on 250m. Built-in power supply. |
65W |
|
ONV-H2108PL |
Unmanaged PoE switch with 10*10/100M RJ45 ports. Port 1-8 support DC24V PoE output. Port 1-8 can support port VLAN and 10M/250 meters transmission when the functional switch is on 250m. Built-in power supply. |
120W |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
6-port 10/100M non-standard PoE switch |
1 |
SET |
|
|
AC Power Cable |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-H2064PL |
ONV-H2108PL |
|
Interface Characteristics |
||
|
Fixed Port |
4*10/100Base-TX 24V PoE ports (Data /Power) 2*10/100Base-TX uplink RJ45 Ports (Data) |
8*10/100Base-TX 24V PoE ports (Data /Power) 2*10/100Base-TX uplink RJ45 Ports (Data) |
|
Ethernet Port |
Port 1- 6/ 1-10 can support 10/100BaseT(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Function Switch (100m/250m) |
250m: Port 1-4/ 1-8 can support port VLAN and 10M/250 meters transmission when the functional switch is on 250m. Note: When the switch status changes, the PoE switch must be restarted for the function switch to take effect. |
|
|
Twisted Pair Transmission |
10BASE-TX: Cat5 or later UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x |
|
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
|
Switching Capacity |
1.6Gbps (non-blocking) |
2Gbps (non-blocking) |
|
Forwarding Rate @64byte |
0.89Mpps |
1.488Mpps |
|
MAC |
1K |
2K |
|
Buffer Memory |
768K |
1.25M |
|
Jumbo Frame |
1536byte |
|
|
LED Indicator |
Power: PWR (Green), Network: L/A (Green), Function switch: 100m/250m (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Port 1-4 |
Port 1-8 |
|
Power Supply Pin |
4/5(+) 7/8 (-) |
|
|
Max Power Per Port |
24W, non-standard PoE+ |
|
|
Total PWR / Input Voltage |
65W /(AC100-240V) |
120W/ (AC100-240V) |
|
Power Consumption |
Standby<3W, Full load<65W |
Standby<5W, Full load<120W |
|
Power Supply |
Built-in power supply, AC100~240V, 50-60Hz, 1.0A |
Built-in power supply, AC100~240V, 50-60Hz, 2.2A |
|
Physical Parameter |
||
|
Operation Temp/ Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
|
Storage Temp/ Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
142.5*115*40mm |
195*130*40mm |
|
Net /Gross Weight |
0.55kg/ 0.8kg |
0.75kg/ 1.0kg |
|
Installation |
Desktop, Wall mount |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
