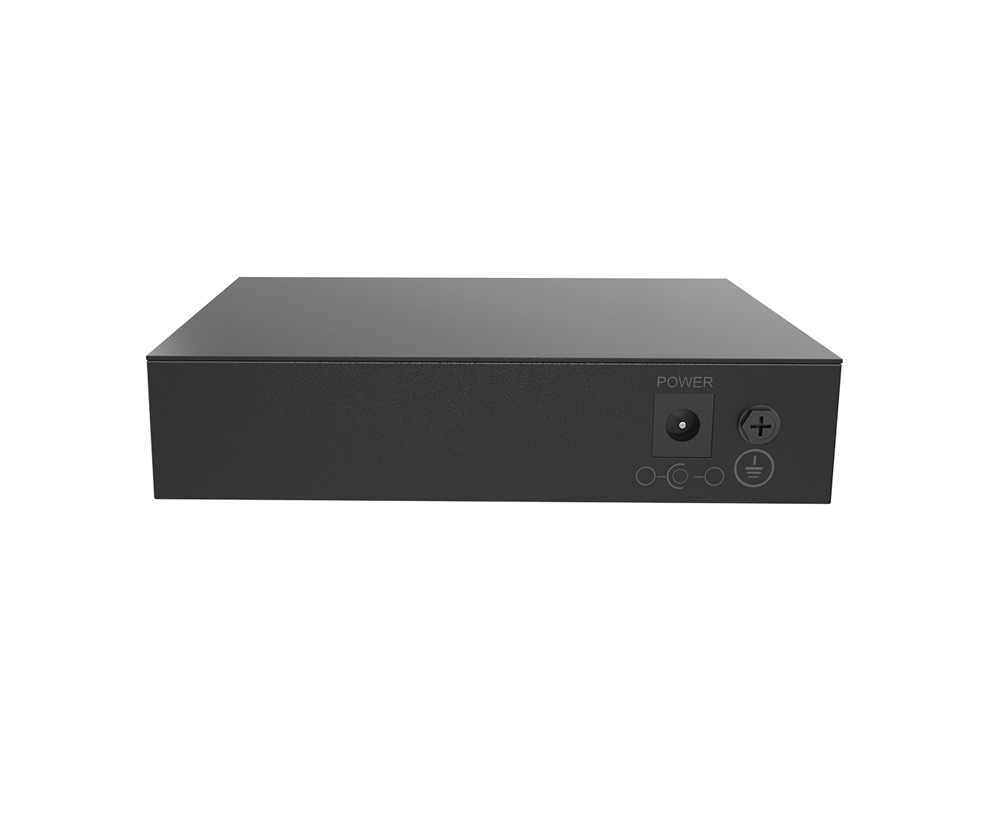

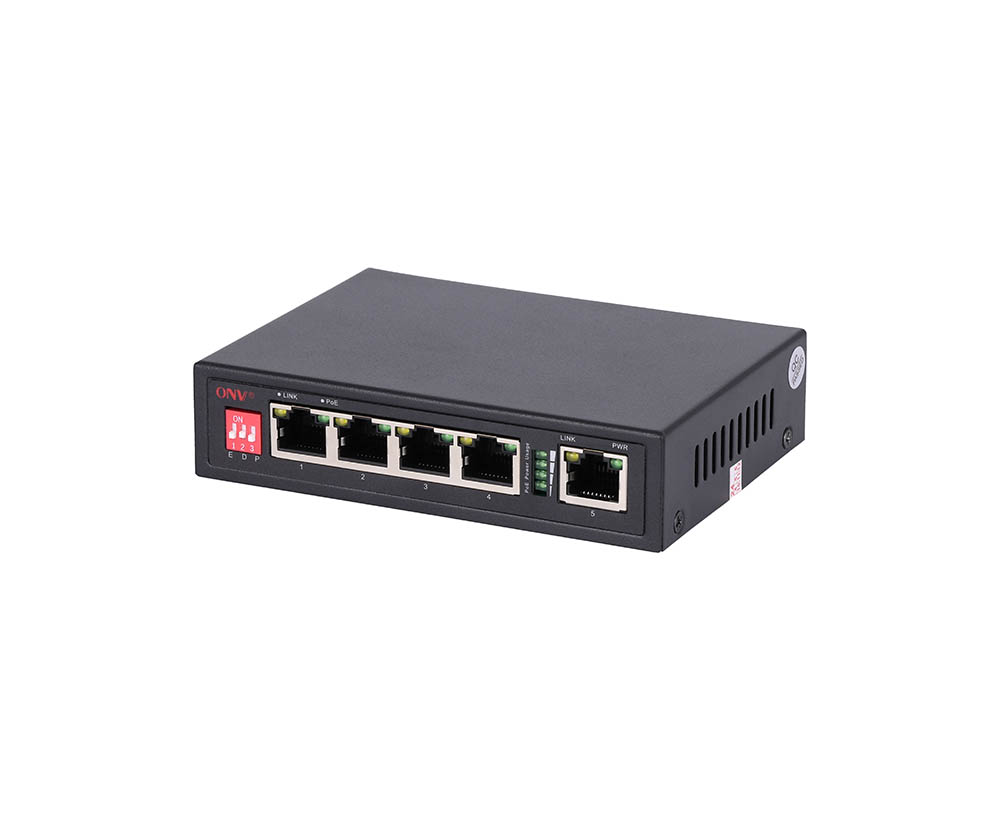

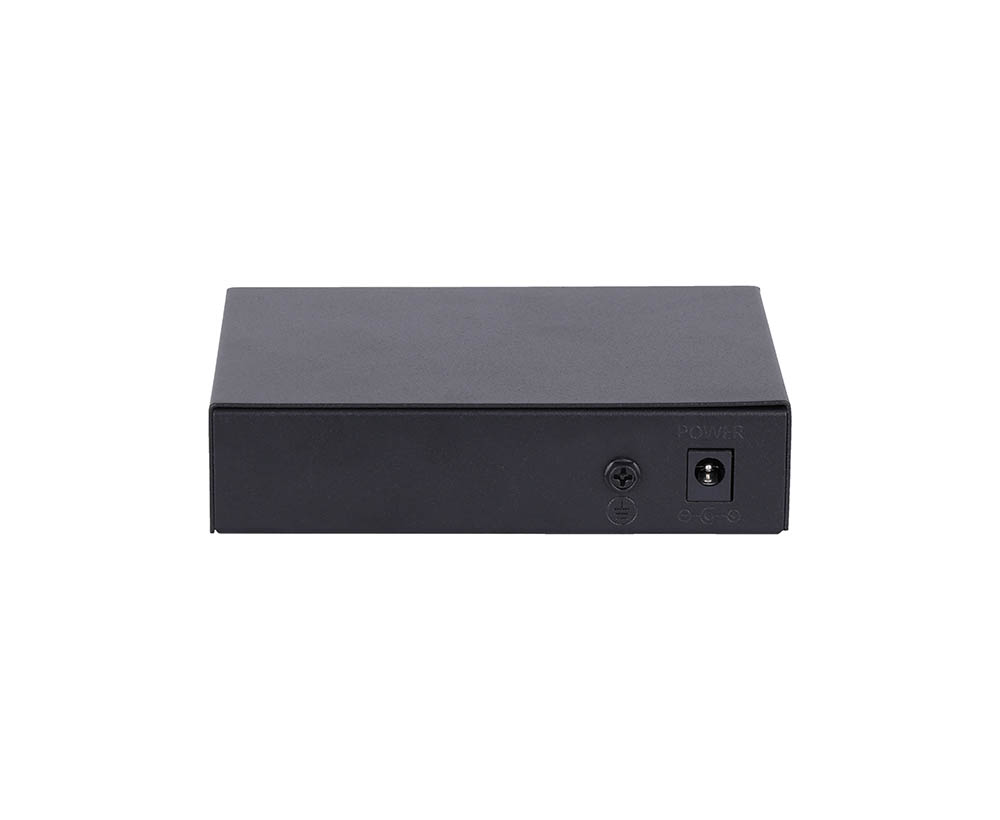

OVERVIEW
The ONV-POE31004PLD is a smart PoE switch independently developed by ONV. It has 5*10/100Base-TX RJ45 ports. Port 1-4 can support IEEE 802.3 af/at PoE standard and single-port PoE power reaches 30W. Port 1-4 can support the PoE watchdog function. When the port communication failure corresponds to the port PoE will automatically restart, self-recover network communication, reducing manual intervention and maintenance. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP, and visual intelligent building intercom through a network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, parks, banks, hospitals, factories, and small and medium-sized enterprises to form a cost-effective network. Unmanaged mode, plug, and play, no configuration, easy to use.
FEATURE
10/100M access
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ 5*10/100Base-TX RJ45 ports allow users to flexibly network to meet the networking requirements of various scenarios.
Smart PoE power supply
◇ 4*10/100Base-TX PoE ports can support the PoE watchdog function, real-time detection of data communication status.
◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
◇ 4*10/100Base-TX PoE ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
Innovative function

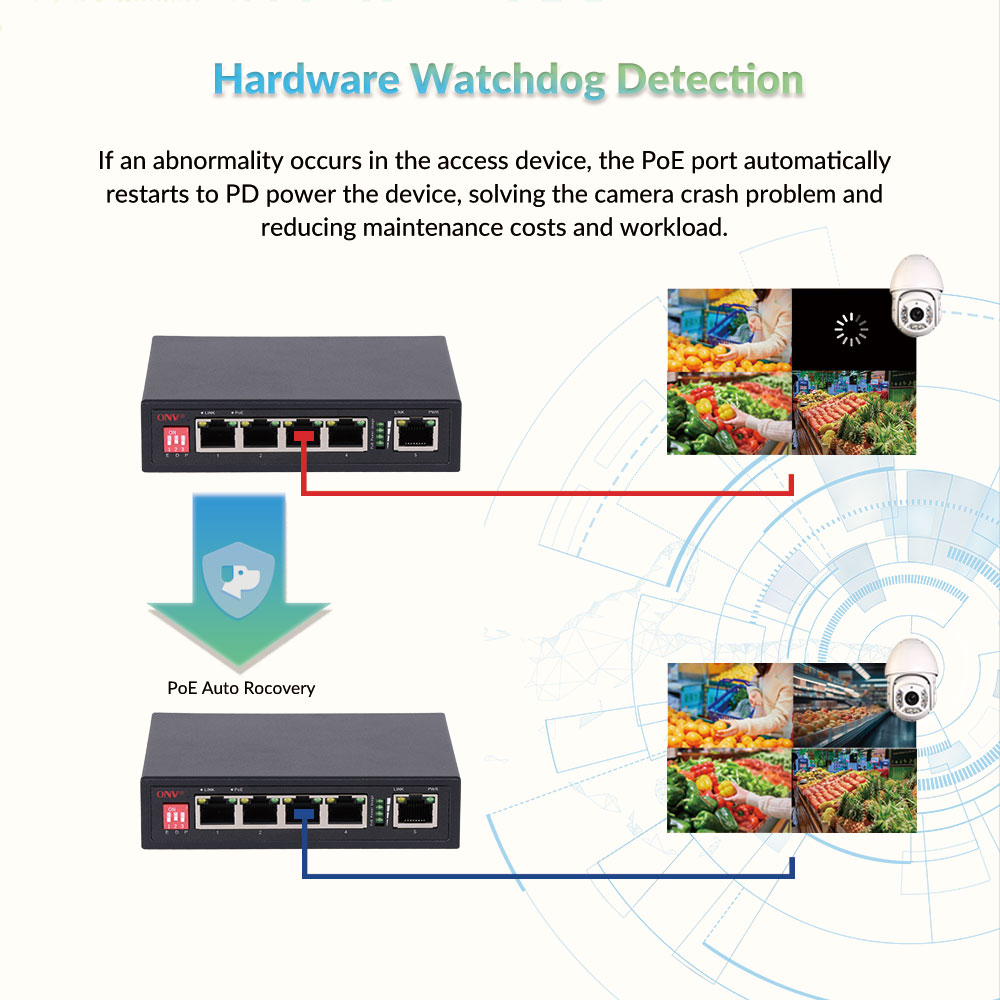

◇ AI PoE watchdog mode (D): When the switch status is ON, port 1-4 can support the watchdog function and automatically detect the data communication status in real time.

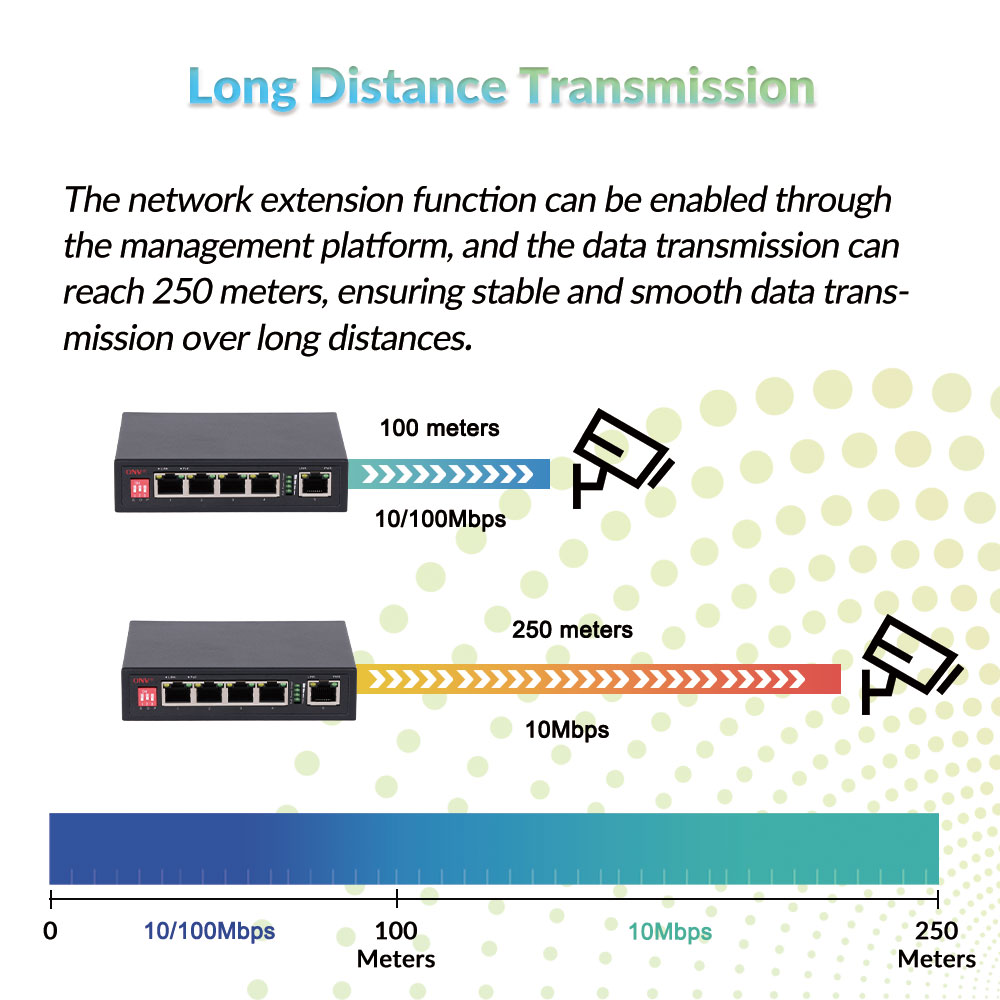

◇ long-distance transmission and VLAN mode (E): When the switch status is ON, Port 1-4 rate is 10M/250 meters transmission, the port physical VLAN isolated, broadcast storm.
◇ Real-time power and power priority mode (P): When the switch status is ON, the PoE real-time power grading indicator lights up, quickly understanding the power consumption of the host, and enabling the port priority function to ensure the port 1 power output.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Plug and play, no configuration, easy to maintain.

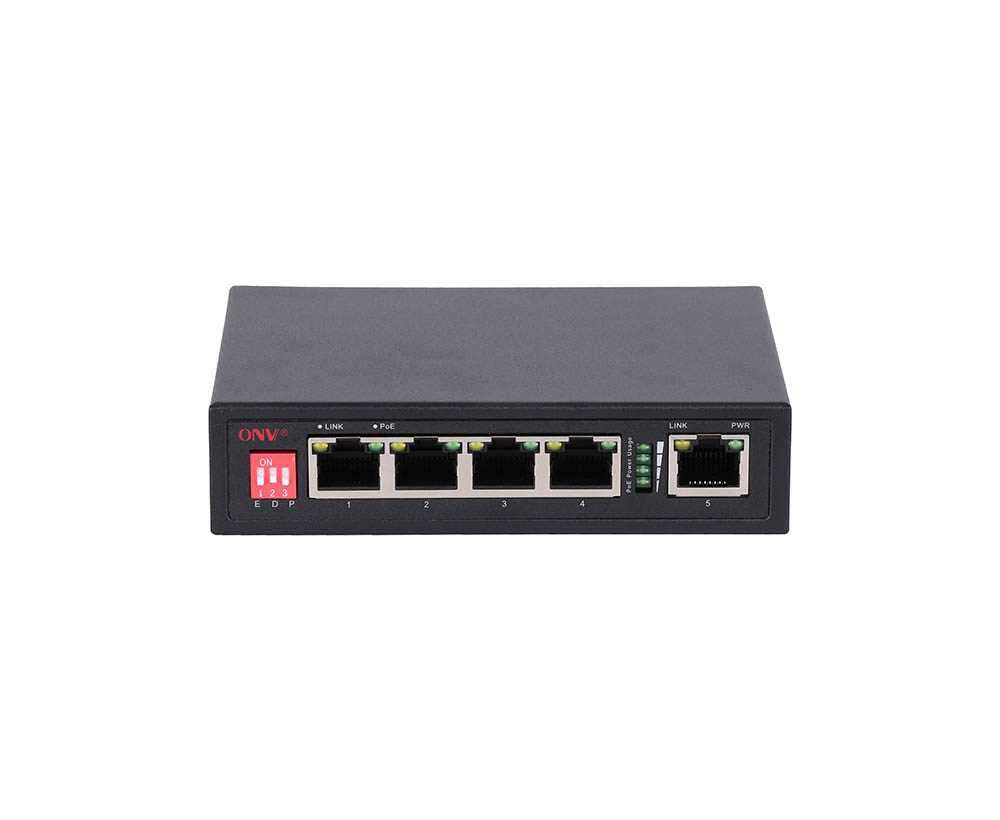

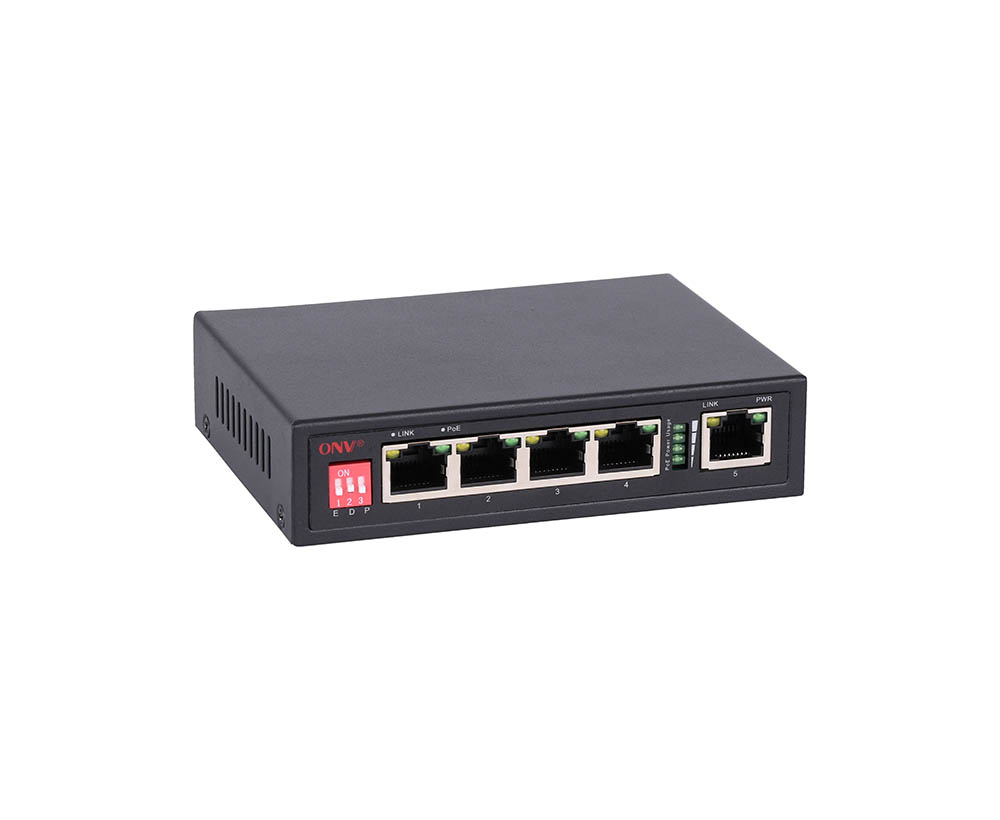

◇ The user-friendly panel can show the device status through the LED indicator of P, Link, and PoE.
◇ Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.
◇ Low power consumption, with fan, galvanized steel metal shell, and excellent heat dissipation to ensure the stable operation of the switch.
DIMENSION
ORDERING INFORMATION
|
Model |
Description |
External Power Adapter |
|
ONV-POE31004PLD |
Smart PoE switch with 5*10/100M RJ45 ports. Port 1-4 can support IEEE 802.3 af/at PoE standard. Adjust function switch, port 1-4 support VLAN isolation, PoE watchdog, 10M/250 meters transmission, power indication, and power supply priority. External power adapter. |
65W |
|
ONV-POE31004PLD-at |
110W |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
5-port 10/100M smart PoE switch |
1 |
SET |
|
|
Power supply kit (AC power line + power adapter) |
1 |
SET |
|
|
Mounting Kits |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-POE31004PLD |
ONV-POE31004PLD-at |
|
Interface Characteristics |
||
|
Fixed Port |
4*10/100Base-TX PoE ports (Data/Power) 1*10/100Base-TX uplink RJ45 port (Data) |
|
|
Ethernet Port |
Port 1-4 can support 10/100Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤250 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) |
|
|
Function Switch |
E is the on state, port 1-4 can support 10M/250 meters and VLAN transmission mode, when off, 100 meters transmission. |
|
|
D is the on state, port 1-4 can support AI PoE watchdog mode, when off, no communication PoE watchdog function. |
||
|
P is the on state, PoE output total power and priority indication mode, when off, no power indication function. |
||
|
Chip Parameter |
||
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x |
|
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
|
Switching Capacity |
1.6Gbps (non-blocking) |
|
|
Forwarding Rate @64byte |
0.74Mpps |
|
|
MAC |
1K |
|
|
Buffer Memory |
768K |
|
|
Jumbo Frame |
1632byte |
|
|
LED Indicator |
Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Port 1-4 |
|
|
Power Supply Pin |
1/2(+) 3/6 (-) |
|
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
|
Total PWR / Input Voltage |
65W /DC52V |
110W /DC52V |
|
Power Consumption |
Standby<4W, Full load<60W |
Standby<6W, Full load<110W |
|
Power Supply |
External power adapter, AC100~240V 50-60Hz, 1.0A |
External power adapter, AC100~240V 50-60Hz, 2.0A |
|
Physical Parameter |
||
|
Operation TEMP/ Humidity |
-20°C~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP/ Humidity |
-40°C~+75°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
118*85*28mm |
|
|
Net /Gross Weight |
0.3kg / 0.7kg |
0.3kg / 0.8kg |
|
Installation |
Desktop, wall mount |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Port lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
3 years, lifelong maintenance. |
|
