OVERVIEW

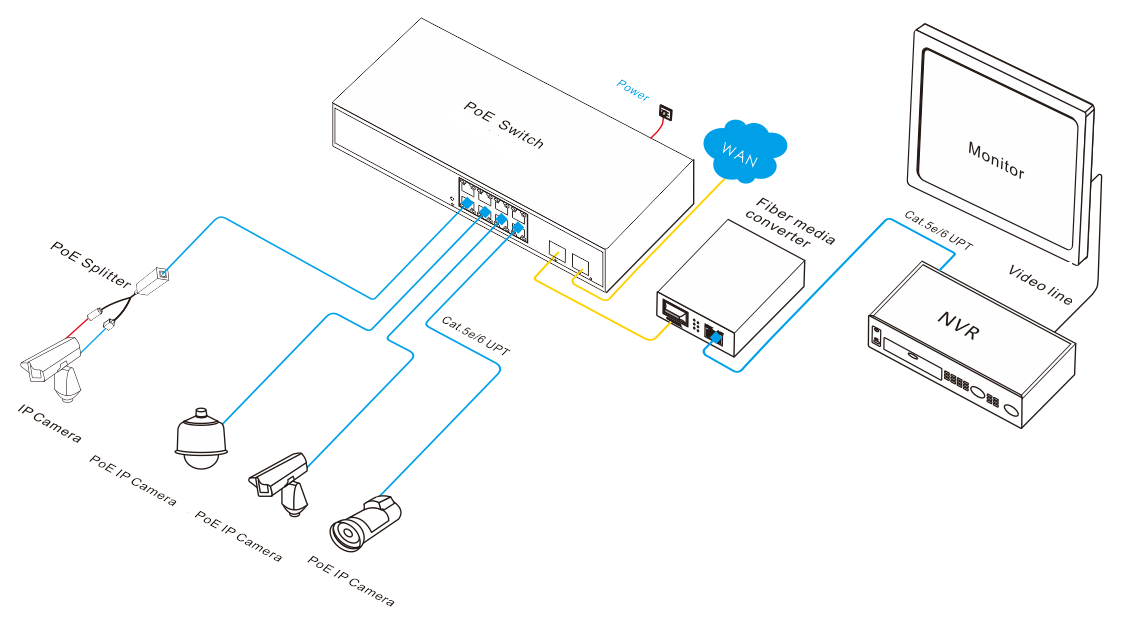

The ONV-H5108PFM is a Gigabit Easy managed PoE fiber switch independently developed by ONV. It has 8*10/100/1000Base-T adaptive RJ45 ports and 2*1000Base-X uplink SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard and single-port PoE power is 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP phone, building visual access control intercom, etc. through the network cable, to meet the network environment that needs a high-density PoE power supply. It suits hotels, campuses, factory dormitories, and small and medium-sized enterprises to form cost-effective networks.
The ONV-H5108PFM can support Web management, ONV-NMS management platform, and mobile APP cloud platform management, which can realize functions such as security network topology management, link aggregation, port management, port mirroring, and remote operation and maintenance. The switch has high reliability, easy installation and maintenance, a fast switching function, and multiple access ports, which are suitable for access to LAN devices of various scales.
FEATURE
Gigabit access, uplink SFP fiber port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Support Gigabit RJ45 port and SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
◇ Support remote PoE management, realize remote on/off of PoE ports, port power status check, port fault query, etc.
◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
◇ 8*10/100/1000Base-T RJ45 ports can support PoE power to meet the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
Extreme Optimization, minimalist application
◇ Real-time fault alarm and fault location.
◇ Remote upgrade, remote restart, and factory reset.
◇ Local platform, cloud platform, and mobile APP operation and maintenance management.
◇ Visual network topology management, VLAN division, PoE control, port control, and switching capacity management.
◇ Practical network management functions are retained according to industry application requirements, and network deployment and centralized operation and maintenance can be quickly realized through the operation and maintenance platform.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, and P.
◇ Low power consumption,, no fan. galvanized steel housing, and excellent heat dissipation to ensure the stable operation of the switch.

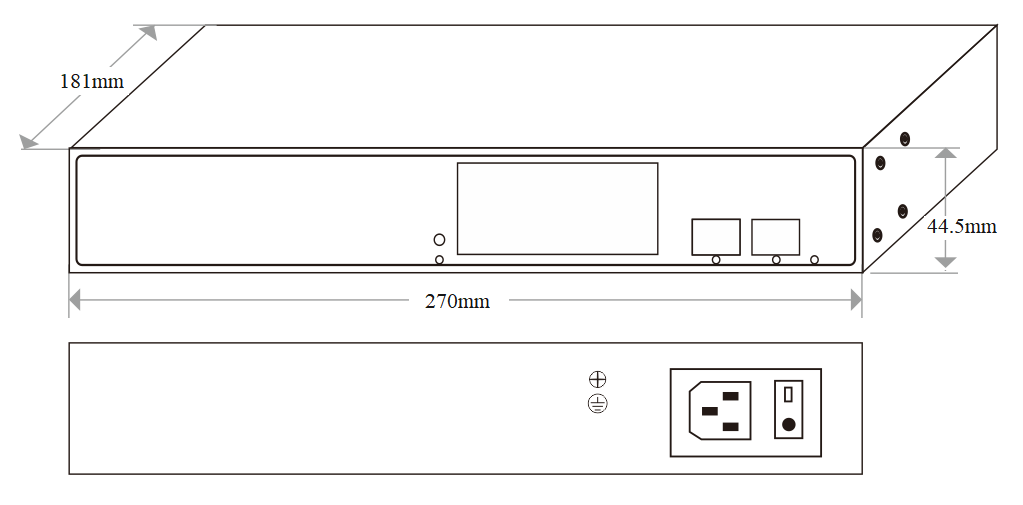

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
ONV-H5108PFM |
L2 Easy managed PoE switch with 2*1000M uplink SFP fiber ports and 8*10/100/1000M RJ45 ports. Port 1-8 can support IEEE 802.3 af/at PoE standard. It built-in power supply and 1U/19” cabinet mount. |
120W |
|
Note: The optical module is not included and needs to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
10-port Gigabit Easy managed PoE switch |
1 |
SET |
|
|
AC Power Cable |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module |
2630 |
SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. support DDM function and hot plugging. |
PC |
|
2632 |
SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. support DDM function and hot plugging. |
PC |
|
|
2612-T |
SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface. support DDM function and hot plugging. |
PC |
|
|
2613-R |
SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface. support DDM function and hot plugging. |
PC |
|
|
2612-T-SC |
SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface. support DDM function and hot plugging. |
PC |
|
|
2613-R-SC |
SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface. support DDM function and hot plugging. |
PC |
|
|
Power Module |
2633 |
1.25G SFP optical module transfers to 10/100/1000M RJ45 port. |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-H5108PFM |
|
Interface Characteristics |
|
|
Fixed Port |
2*1000Base-X SFP ports (Data) 8*10/100/1000Base-T PoE ports (Power/Data) |
|
Ethernet Port |
Port 1-8 can support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
Optical Fiber Port |
Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC). |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
|
Chip Parameter |
|
|
Network Management Type |
L2 (Web management, platform management) |
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x |
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
Switching Capacity |
20Gbps (non-blocking) |
|
Forwarding Rate @64byte |
14.88Mpps |
|
MAC |
8K |
|
Buffer Memory |
2M |
|
Jumbo Frame |
9.2K |
|
LED Indicator |
Power: PWR (Green), System: SYS (Green), Network: Link (Yellow), Fiber port: L/A(Green) |
|
Reset Switch |
Press and hold for 6s and release to restore the factory settings, short press 2 times (1s interval) to switch to the unmanaged state |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1-8 |
|
PoE Management |
Port PoE output on/off, Port PoE working status display |
|
Power Supply Pin |
1/2(+) 3/6(-) |
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
|
Total PWR / Input Voltage |
120W/ (AC100-240V) |
|
Power Consumption |
Standby<5W, Full load<120W |
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz, 2.0A |
|
Physical Parameter |
|
|
Operation Temp/ Humidity |
-20°C~+55°C, 5%~90% RH Non condensing |
|
Storage Temp/ Humidity |
-40°C~+80°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
270*181*44.5mm |
|
Net /Gross Weight |
1.3kg / 1.8kg |
|
Installation |
Desktop, wall mount, 1U/19” cabinet |
|
Certification & Warranty |
|
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
1 year, lifelong maintenance. |
|
Network Management Feature |
|
|
Interface |
Port status display, Port traffic statistics Port duplex/negotiation rate configuration EEE Energy-saving and green Ethernet function IEEE802.3x flow control configuration (Full-duplex) |
|
VLAN |
Port-based IEEE802.1Q VLAN configuration (4K) |
|
Port Aggregation |
Static aggregation |
|
Loop Protection |
Loop protection function, Prevent ring network failure function |
|
Multicast |
IGMP Snooping v1/v2, Max 256 multicast groups |
|
Port Mirroring |
Bidirectional data mirroring based on port |
|
QoS |
Diff-Serv QoS, Priority Mark/ Remark 8*Output queues of each port, 802.1p/DSCP priority mapping |
|
Security |
Broadcast storm control, Port isolation, Port speed limit |
|
DHCP |
DHCP Snooping |
|
Management |
Mobile APP operation and maintenance management One-key recovery, Cable Diagnose, Web Management (https) ONV-NMS platform management (Local platform/ Cloud platform) |
|
System |
Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable |
