OVERVIEW

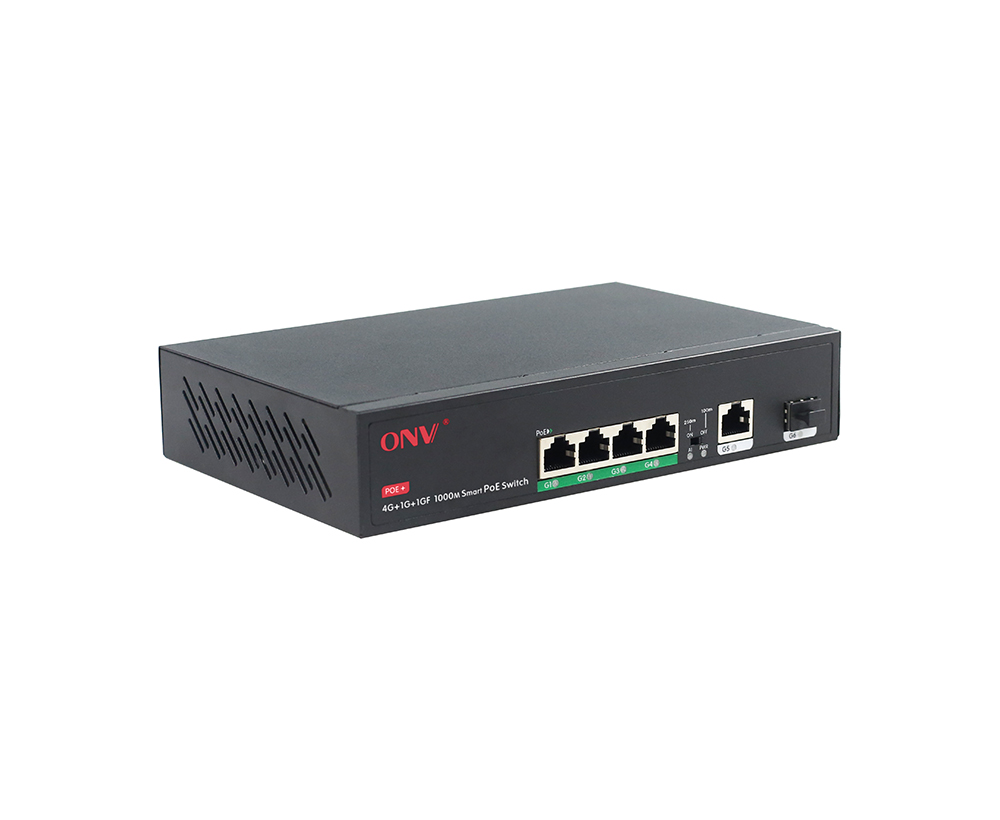

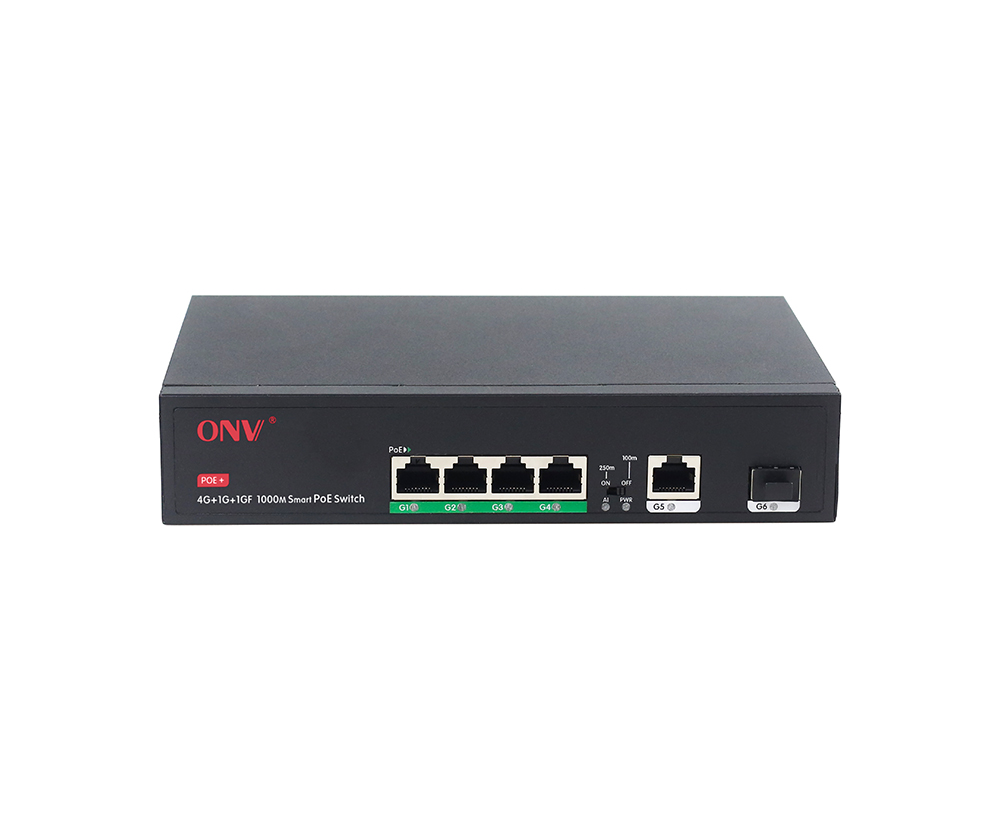

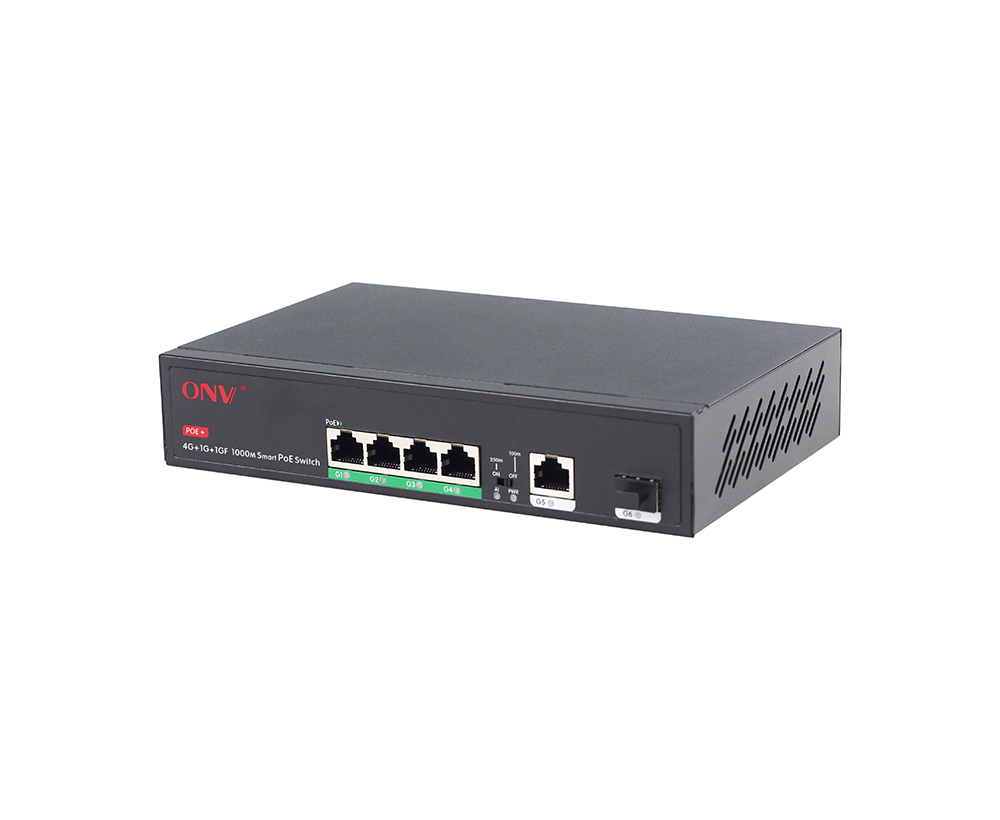

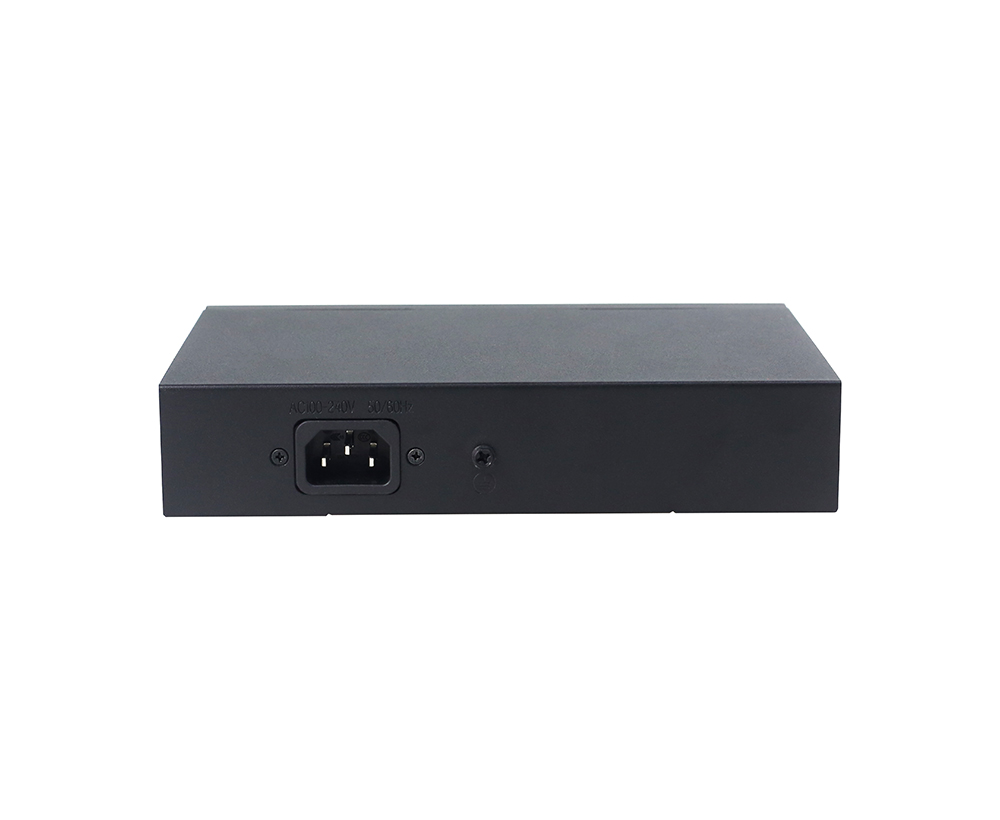

The ONV-H3054PFD is a Gigabit PoE switch independently developed by ONV. It has 1*1000Base-X uplink SFP fiber port and 1*10/100/1000Base-T uplink RJ45 port and 4*10/100/1000Base-T RJ45 ports. Port 1-4 can support PoE+ power supply, and single-port PoE power reaches 30W. The PoE port supports the watchdog servo function. When a port communication fails, the corresponding port PoE will automatically restart and restore network communication without affecting the normal operation of other ports. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP phone, video access control intercom, etc., through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory quarters, and small and medium-sized enterprises to form an economically efficient network. Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
Gigabit access, uplink RJ45/ SFP fiber port
◇ Support non-blocking wire-speed forwarding for smoother transmission.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Provide Gigabit RJ45 ports and SFP fiber port for flexible networking and meets the networking requirements of various scenarios.
Smart PoE power supply
◇ Comply with PoE+ power standard, automatically identify PoE devices for power without damaging non-PoE devices.
◇ 4*10/100/1000Base-T RJ45 ports support PoE power to meet the needs of PoE power in various scenarios in the security field.
Innovative function
◇ PoE watchdog: The watchdog function is enabled by default for port 1-4, which can automatically detect the data communication status in real-time. When the port communication fails, the corresponding port PoE will automatically restart.
◇ Long distance + VLAN mode (E): When the switch is turned to ON (default OFF), the rate of ports 1-4 is 10M, and the maximum transmission distance is up to 250 meters. At the same time, the physical VLAN isolation function of ports 1-4 is enabled.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
◇ Low power consumption, galvanized steel housing, and excellent heat dissipation to ensure the stable operation of the switch.

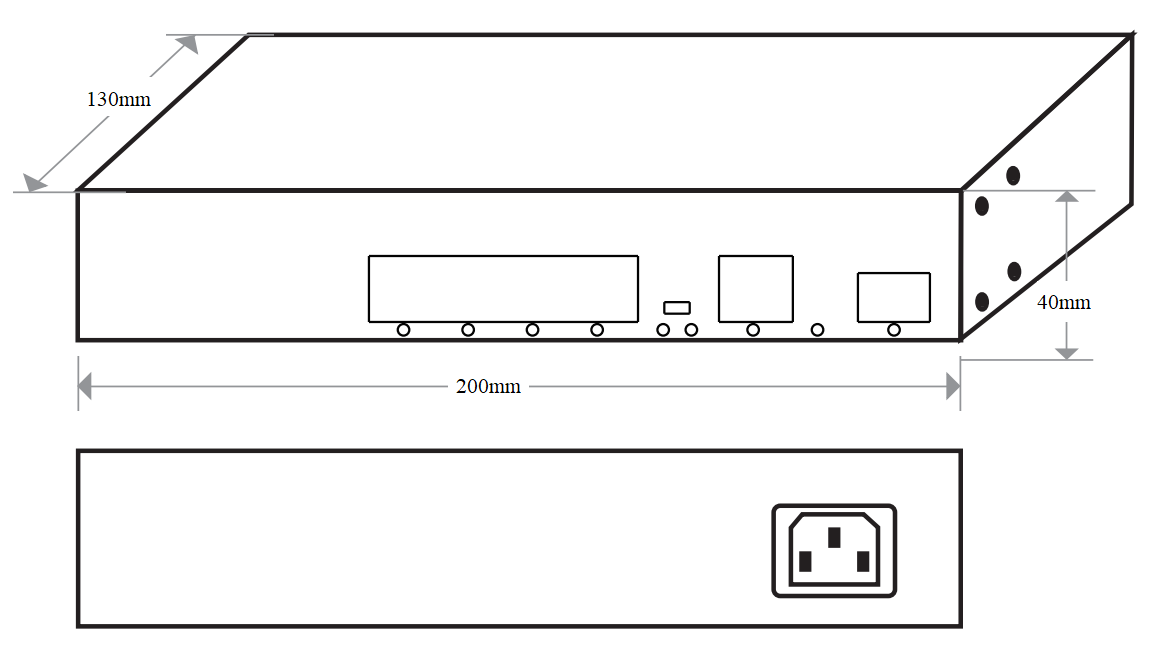

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
ONV-H3054PFD |
PoE switch with 5*10/100/1000M RJ45 ports and 1*1000Base-X uplink SFP fiber ports. Port 1-4 support the PoE+ standard, default support PoE watchdog (auto-restart PoE). Adjustment function switch, 1-4 ports support 10M/250 meter transmission and VLAN isolation. Built-in power supply. |
52V/65W |
|
Note: The optical module and mounting ear are not included and need to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
6-port Gigabit PoE switch |
1 |
Set |
|
|
AC Power Line |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module |
2630 |
SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. supports DDM function and hot plugging. |
PC |
|
2632 |
SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T |
SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R |
SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T-SC |
SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R-SC |
SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-H3054PFD |
|
Interface Characteristics |
|
|
Fixed Port |
1*1000Base-X uplink SFP fiber port (Data) 1*10/100/1000Base-T uplink RJ45 port (Data) 4*10/100/1000Base-T PoE ports (Data/ Power) |
|
Ethernet Port |
Port 1-5 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
Optical Fiber Port |
Default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
Function Switch |
E file: Long distance transmission and VLAN isolation function, Default-OFF, enable-ON, when opening, port 1-4 support 10M/250 meter transmission and VLAN isolation |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and forward (Full wire speed) |
|
Switching Capacity |
12Gbps (non-blocking) |
|
Forwarding Rate@64byte |
8.93Mpps |
|
MAC |
2K |
|
Buffer Memory |
2M |
|
Jumbo Frame |
9.2K |
|
LED Indicator |
Power: PWR (Green), Network: Link (Green), PoE: PoE (Red), Function switch: Extend (Green) |
|
PoE& Power Supply |
|
|
PoE Port |
Port 1-4 |
|
Power Supply Pin |
1/2(+) 3/6(-) |
|
Max Power Per Port |
30W, PoE+ |
|
Total PWR/ Input Voltage |
65W/ (AC100-240V) |
|
Power Consumption |
Standby <3W, full load <65W |
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz, 1.0A |
|
Physical Parameter |
|
|
Operation Temp/ Humidity |
-20~55°C, 5%~90% RH non condensing |
|
Storage Temp/ Humidity |
-40~80°C, 5%~95% RH non condensing |
|
Dimension (L*W*H) |
200*130*40mm |
|
Net /Gross Weight |
0.6kg/ 0.9kg |
|
Installation |
Desktop, Wall mount |
|
Certification& Warranty |
|
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS |
|
Warranty |
1 year, lifelong maintenance. |
