The ONV-H1016PFD-250 is a smart PoE fiber switch independently developed by ONV. It has 16*10/100Base-TX RJ45 ports and 2*10/100/1000Base-T uplink RJ45 ports and 1*1000Base-X uplink SFP fiber port. Port 1-16 can support PoE+ power supply, and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP phone, video access control intercom, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory quarters, and small and medium-sized enterprises to form an economy-efficient network. Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
10/100M access, Gigabit optical port uplink
◇ Support non-blocking wire-speed forwarding for smoother transmission.
◇ Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.
◇ Provide Ethernet ports and Gigabit SFP port uplink for flexible networking and meets the networking requirements of various scenarios.
Smart PoE power supply
◇ 16*10/100Base-TX RJ45 ports support PoE power to meet the needs of PoE power in various scenarios in the security field.
◇ Comply with PoE+ power standard, automatically identify PoE devices for power without damaging non-PoE devices, and the single port max PoE output power is 30W.
Stable and reliable, easy to use
◇ CCC,CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ Low power consumption, no fan, galvanized steel casing, excellent heat dissipation to ensure the stable operation of the switch.
Innovative function
◇ Function switch (100/250m) switch to ON position (default off), the port 9 to 16 rate is 10M, and the PoE watchdog function is turned on at the same time to monitor and automatically restart the communication failure PoE port. Using the existing twisted pair can break through the 100 meters transmission limit, and the transmission distance can be up to 250 meters. At the same time, it can solve the problem of poor transmission caused by aging lines.

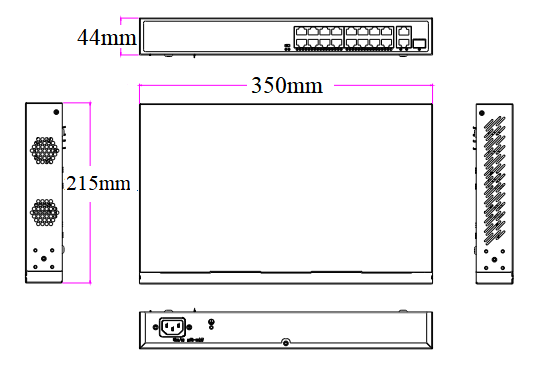

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
ONV-H1016PFD |
Unmanaged PoE switch with 16*10/100M RJ45 ports and 2*10/100/1000M Base-T uplink RJ45 ports and 1*1000Base-X uplink SFP fiber port. Port 1-16 can support PoE+ power supply. PoE watchdog function is turned on by default. switch the functional switch (250m), port 9-16 rate is 10M/250m transmission and built-in power supply. |
52V/160W |
|
ONV-H1024PFD-250 |
52V/250W |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
19-port Gigabit uplink PoE switch |
1 |
SET |
|
|
AC Power Line |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-H1016PFD |
ONV-H1016PFD-250 |
|
Interface Characteristics |
||
|
Fixed Port |
1*1000Base-X uplink SFP fiber port (Data) 16*10/100Base-T PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
|
|
Ethernet Port |
Port 1-16 support 10/100Base-T(X) and port 17-18/ 25-26 support 1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
|
Optical Fiber Port |
Gigabit optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
|
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
|
Functional Switch |
Function switch (100/250m) Default: off, use:on, After opening, port 9-16 support 10M/250m transmission and PoE watchdog function |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
|
Switching Capacity |
9.2Gbps (Non-blocking) |
|
|
Forwarding Rate@64byte |
6.84Mpps |
|
|
MAC |
2K |
|
|
Buffer Memory |
2.75M |
|
|
Jumbo Frame |
9.2K |
|
|
LED Indicator |
Power: PWR (Green), Network: Link (Green) PoE: PoE (Red), Functional switch: 100/250m (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Port 1-16 |
|
|
Power Supply Pin |
1/2(+) 3/6(-) |
|
|
Max Power Per Port |
30W, PoE+ |
|
|
Total PWR / Input Voltage |
160W/ (AC100-240V) |
250W/ (AC100-240V) |
|
Power Consumption |
Standby <5W, Full load <160W |
Standby <8W, Full load <250W |
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz, 3.0A |
Built-in power supply, AC100~240V 50-60Hz, 4.1A |
|
Physical Parameter |
||
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP / Humidity |
-40~+80°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
350*215*44mm |
|
|
Net /Gross Weight |
1.65kg / 2.2kg |
1.9kg / 2.45kg |
|
Installation |
Desktop, Rack mounted |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
