OVERVIEW

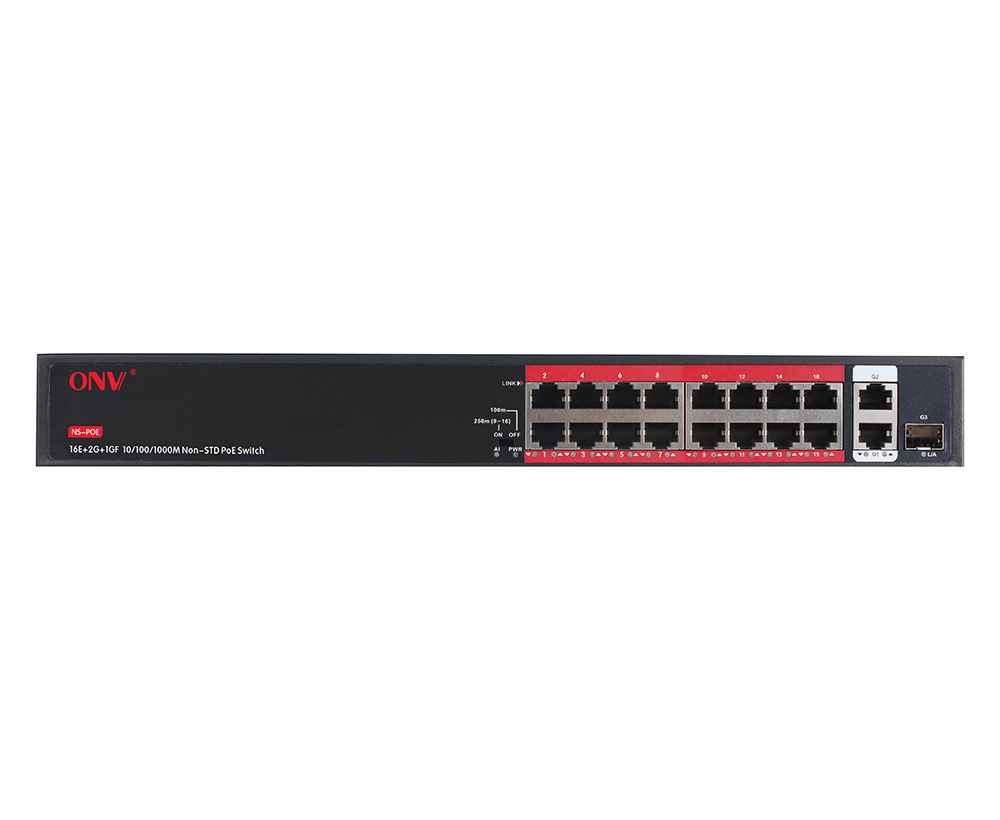

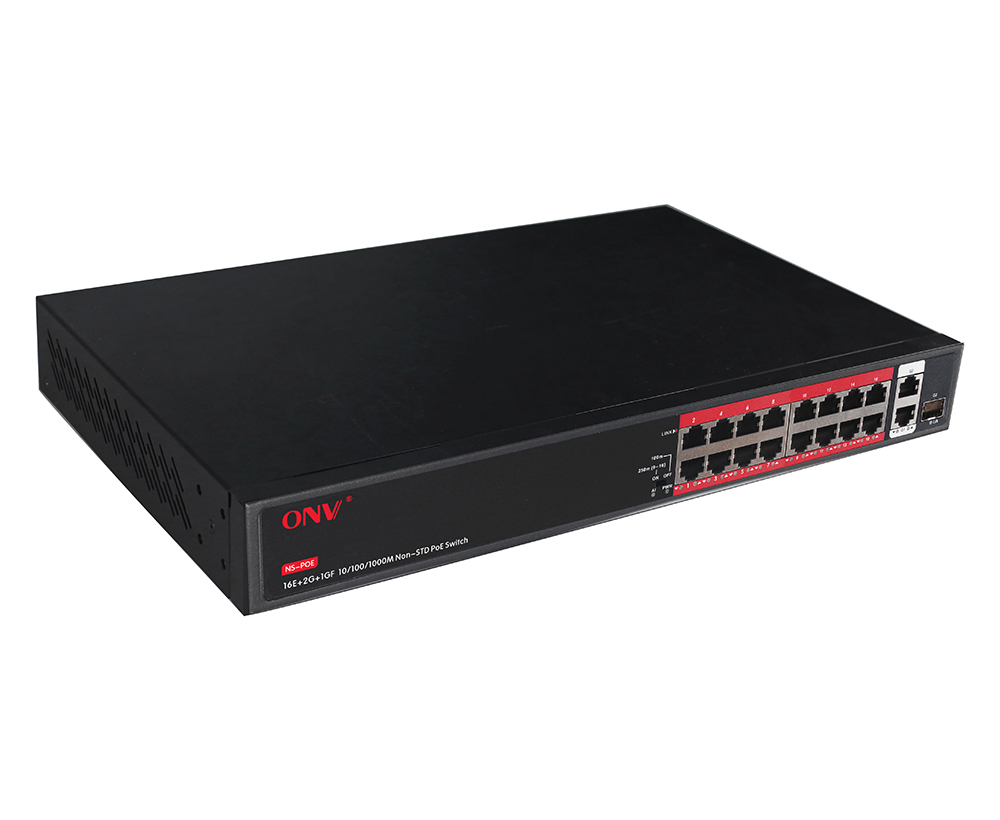

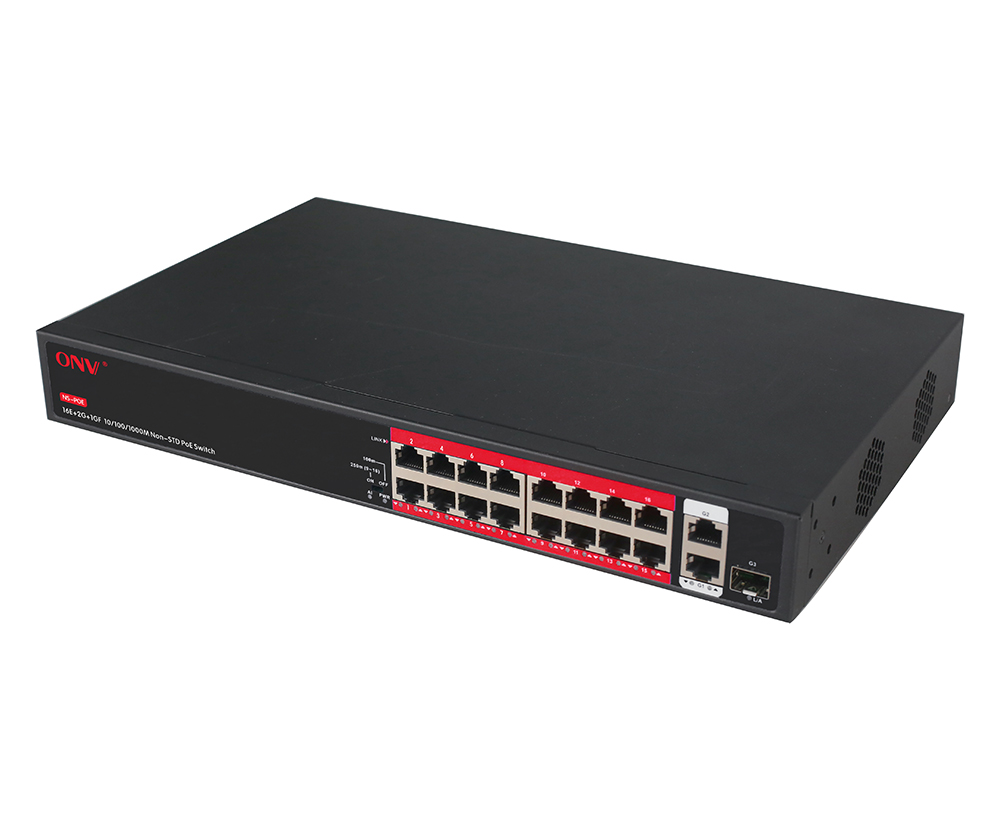

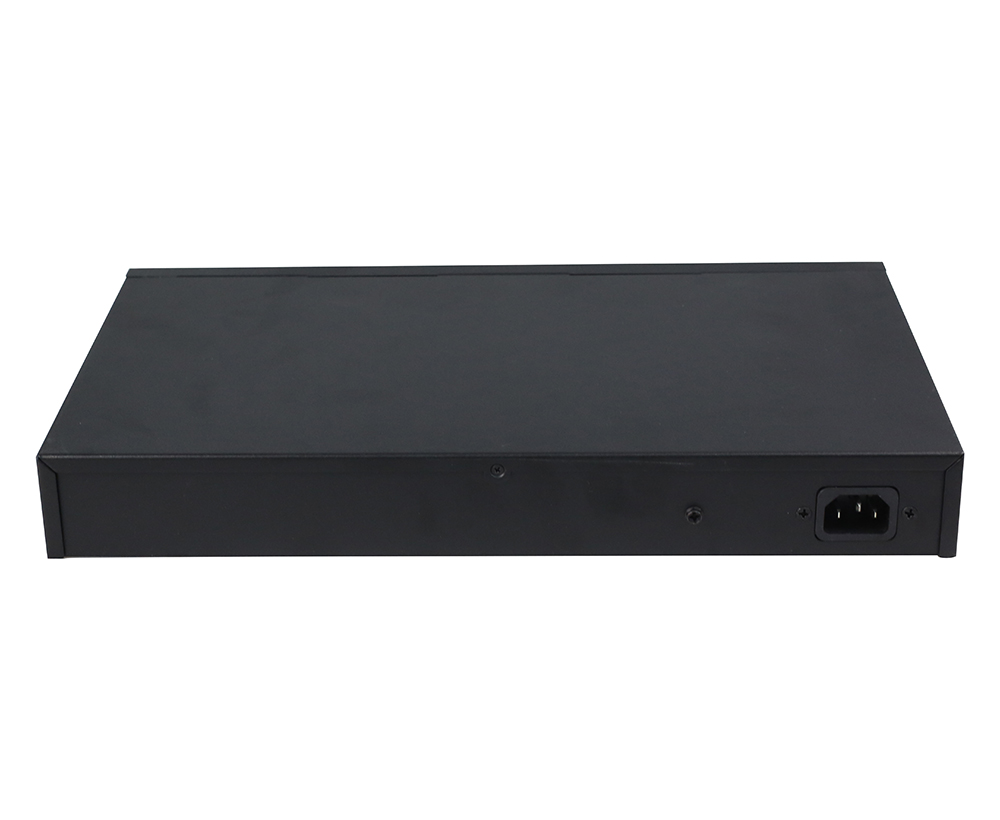

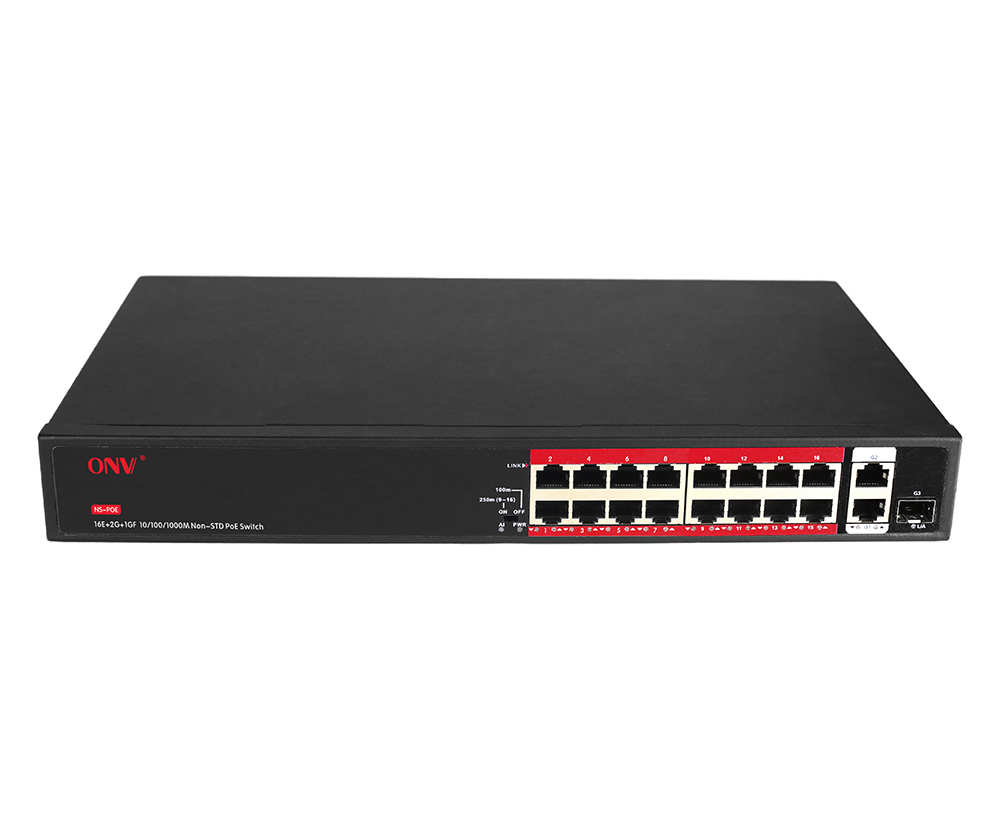

The ONV-H2016PFG-YS is a gigabit uplink non-standard PoE fiber switch independently developed by ONV. It has 16*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports and 1*1000M uplink SFP fiber port. Port 1-16 can support 24V non-standard PoE power supply and single-port PoE power up to 18W. As a non-standard PoE power supply device, it must be connected to the corresponding non-standard electrical equipment (such as wireless bridge, building visual intercom, etc.), or the non-standard PoE splitter to convert, and then achieve the PoE power supply. It can supply power to various adaptable terminals through network cables to meet the demand for a high-density PoE power supply network environment. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to establish cost-effective networks. Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
10/100M access, gigabit uplink RJ45 and SFP port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Provides 10/100M RJ45 port and Gigabit RJ45 and SFP port, which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.
Smart PoE power supply
◇ The PoE port has a short-circuit protection function to prevent accidental contact and short-circuit burns.
◇ Quickly implement PoE network cable power supply through the switch to directly connect non-standard electrical equipment or the switch and non-standard PoE splitter cable.
◇ 16*10/100Base-TX RJ45 ports can support 24V PoE power supply meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ (8 ports in a group, each group has 4 ports at the end) The 8 ports have a delayed start function, which can avoid power overload protection caused by overload at the moment of power-on.
Stable and reliable, easy to use
◇ CCC, CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly pane can show the device status through the LED indicator of PWR and PoE.
◇ Low power consumption, galvanized steel casing, and excellent heat dissipation ensure the stable operation of the switch.
◇ Long-distance mode (250m): Turn the switch to ON (default off), and the rate of ports 9-16 is reduced to 10M/250 meters it can also solve the problem of poor transmission caused by aging lines.

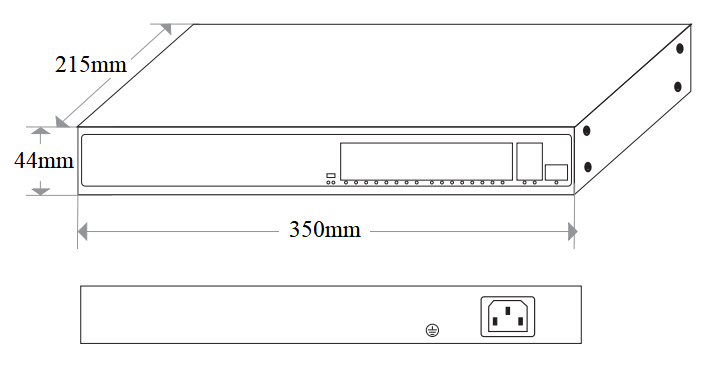

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
ONV-H2016PFG-YS |
Unmanaged PoE switch with 16*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports and 1*1000M uplink SFP fiber port. Port 1-16 support 24V non-standard PoE+ power supply. Port 9-16 can support 10M/250 meters transmission when the functional switch is on 250m. |
24V/250W |
|
ONV-H2024PFG-YS |
Unmanaged PoE switch with 24*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports and 1*1000M uplink SFP fiber port. Port 1-24 support 24V non-standard PoE+ power supply. Port 17-24 can support 10M/250 meters transmission when the functional switch is on 250m. |
24V/250W |
|
Note: The optical module is not included and needs to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
19-port gigabit uplink non-standard PoE fiber switch |
1 |
PC |
|
|
AC Power Cable |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optica Module |
2630 |
SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. supports DDM function and hot plugging. |
PC |
|
2632 |
SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T |
SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R |
SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T-SC |
SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R-SC |
SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-H2016PFG-YS |
ONV-H2024PFG-YS |
|
Interface Characteristics |
||
|
Fixed Port |
16*10/100Base-TX PoE ports (Data/ Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) 1*1000Base-X uplink SFP fiber port (Data) |
24*10/100Base-TX PoE ports (Data/ Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) 1*1000Base-X uplink SFP fiber port (Data) |
|
Ethernet Port |
Port 1-16/ 1-24 can support 10/100Base-T(X) and port 17-18/ 25-26 can support 100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE-TX : Cat5 or later UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T :Cat5e or later UTP (≤100 meters) |
|
|
Optical Fiber Port |
Gigabit optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC/SC) |
|
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-500m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
|
Functional Switch (100m/250m) |
Port 9-16/ 17-24 can support 10M/250 meters transmission when the functional switch is on 250m. |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x |
|
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
|
Switching Capacity |
9.2Gbps (Non-blocking) |
10.8Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
6.84Mpps |
8.04Mpps |
|
MAC |
2K |
|
|
Buffer Memory |
2.75M |
|
|
Jumbo Frame |
9216B |
|
|
LED Indicator |
Power: PWR (Green), Network: Link (Green), PoE: PoE(Red), Fiber port: L/A (Green), Functional switch: 100m/250m (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Port 1-16 |
Port 1-24 |
|
Power Supply Pin |
4/5(+) 7/8(-) |
|
|
Max Single Port PoE Power |
18W, non-standard PoE+ |
|
|
Total PWR / Input Voltage |
250W /(AC100-240V) |
|
|
Power Consumption |
Standby<5W, Full Load<250W |
Standby<8W, Full Load<250W |
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz, 4.1A |
|
|
Physical Parameter |
||
|
Operation TEMP / Humidity |
-20°C~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP / Humidity |
-40°C~+80°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
350*215*44mm |
|
|
Net /Gross Weight |
1.9kg / 2.45kg |
|
|
Installation |
Desktop, Rack mounted |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
