OVERVIEW

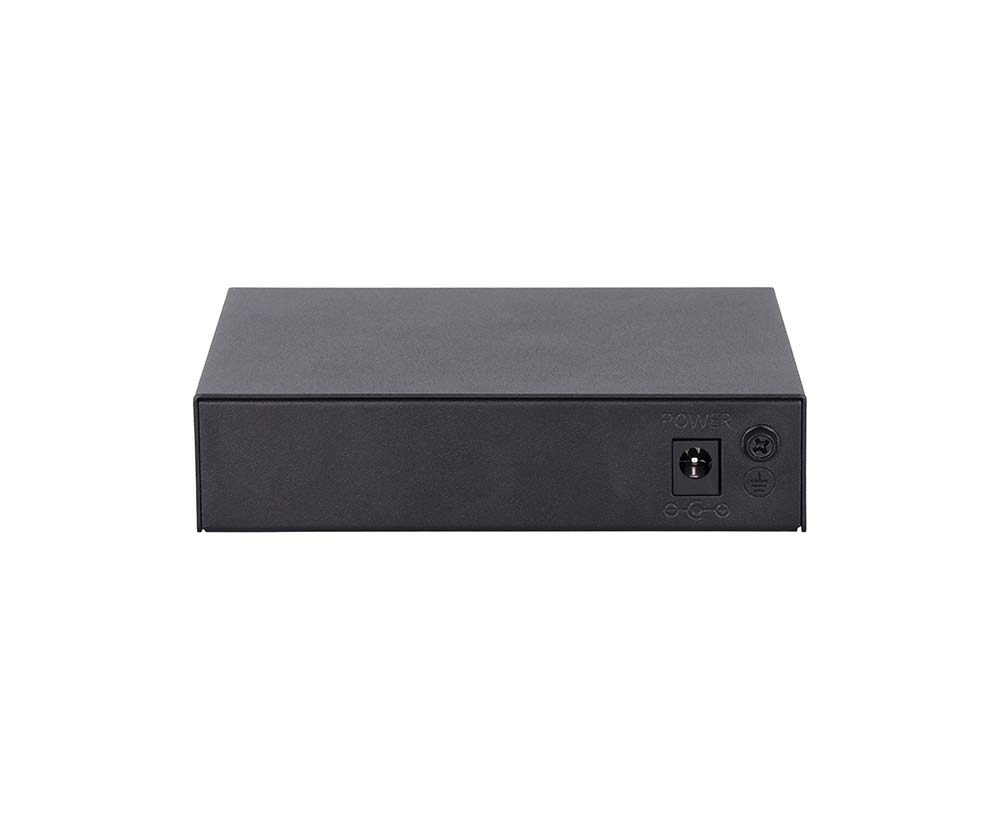

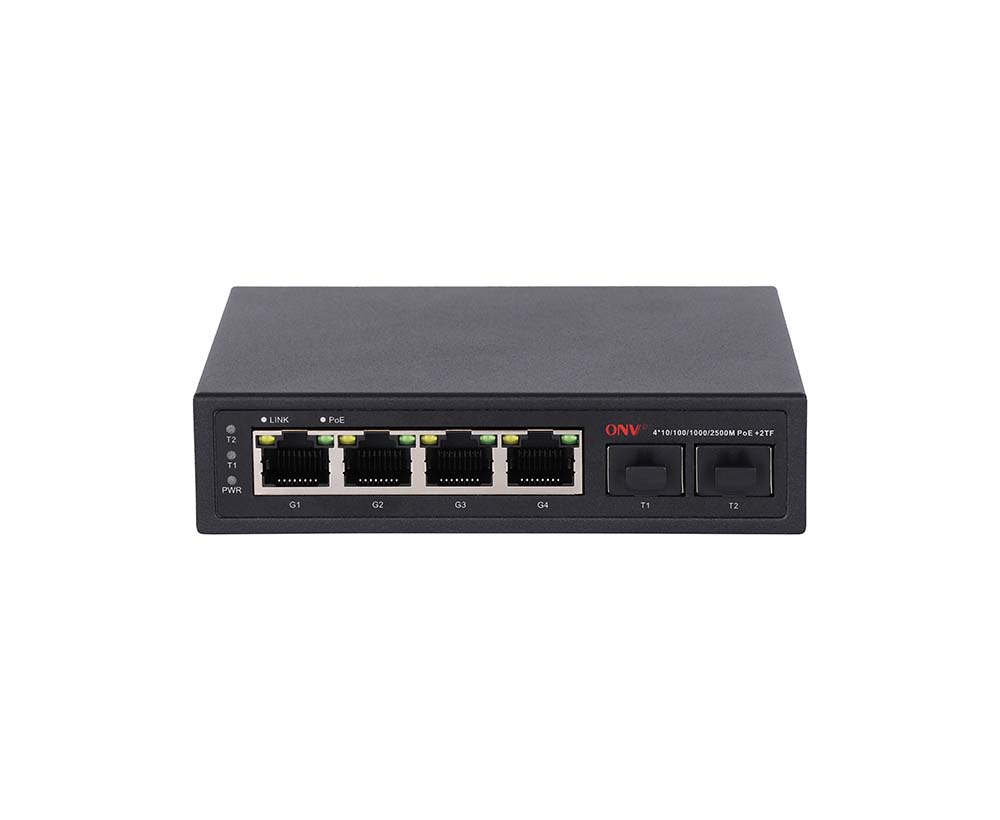

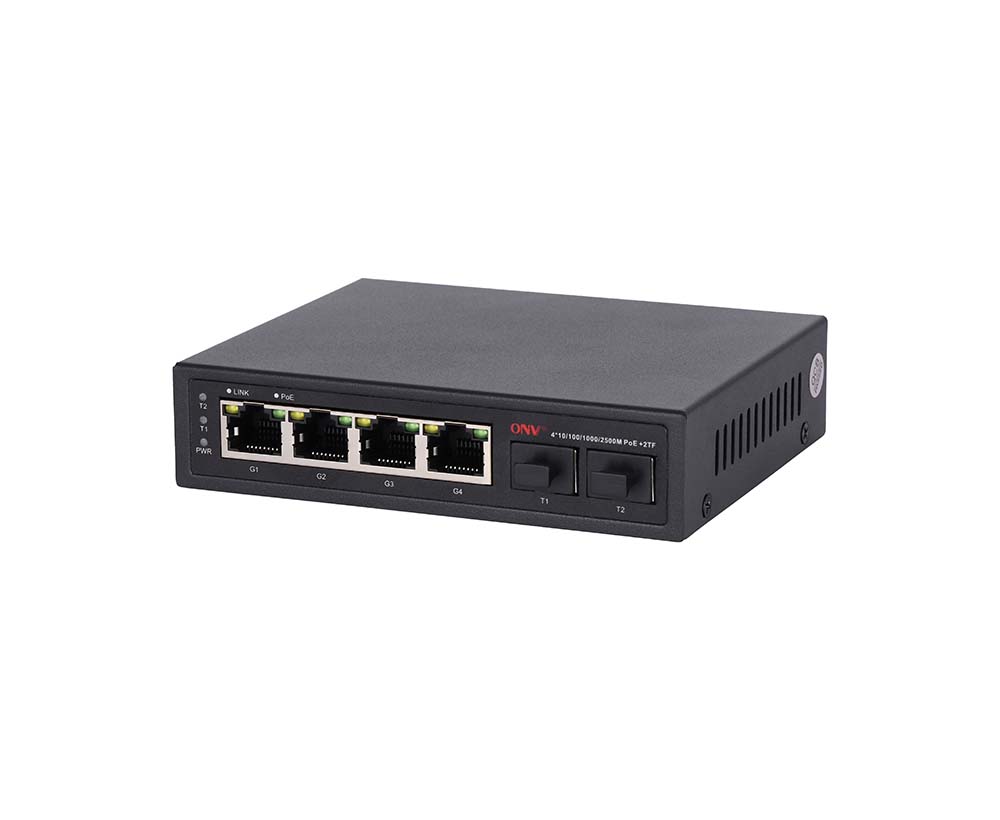

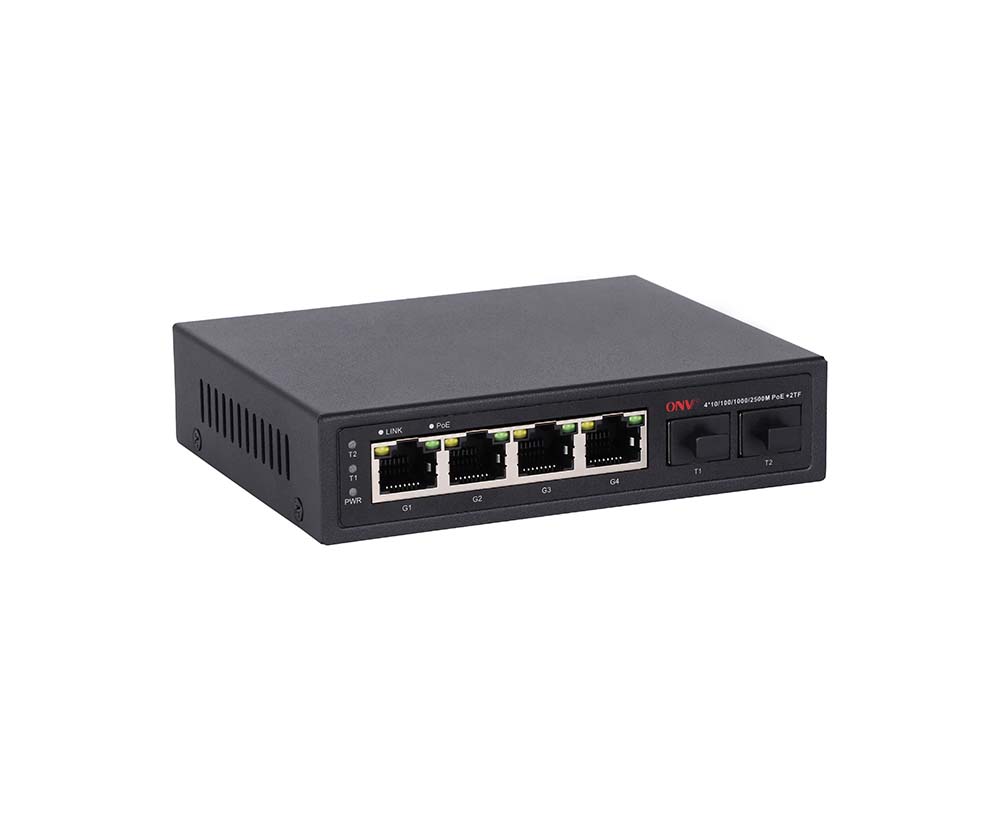

The ONV-POE57064PFB is a 2.5G PoE fiber switch independently developed by ONV. It has 4*10/100/1000/2500Base-T adaptive RJ45 ports and 2*1/10G uplink SFP+ fiber ports. Port 1-4 can support the IEEE802.3af/at PoE standard, and the single-port max PoE power is 30W. As a PoE power supply device, it can automatically detect and identify powered devices that meet standards and power them through network cables. It can power PoE terminal equipment such as wireless AP(WIFi6/WIFi7), IP cameras, Internet telephones, video access control intercoms, etc., through network cables to meet the network environment that requires a high-density PoE power supply. It is suitable for hotels, campuses, factories, parks, supermarkets, and small and medium-sized enterprises to establish cost-effective networks.
FEATURE
2.5G access, uplink 1/10G SFP+ fiber port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Support 2.5G RJ45 port and 1/10G uplink SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
◇ Comply with IEEE802.3af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
◇ 4*10/100/1000/2500Base-T RJ45 ports support PoE power to meet security monitoring, conference call systems, wireless coverage, and other scenarios.
Stable and reliable
◇ CQC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, L/A, and PoE.
◇ Low power consumption, galvanized steel housing, and excellent heat dissipation to ensure stable operation of the switch.

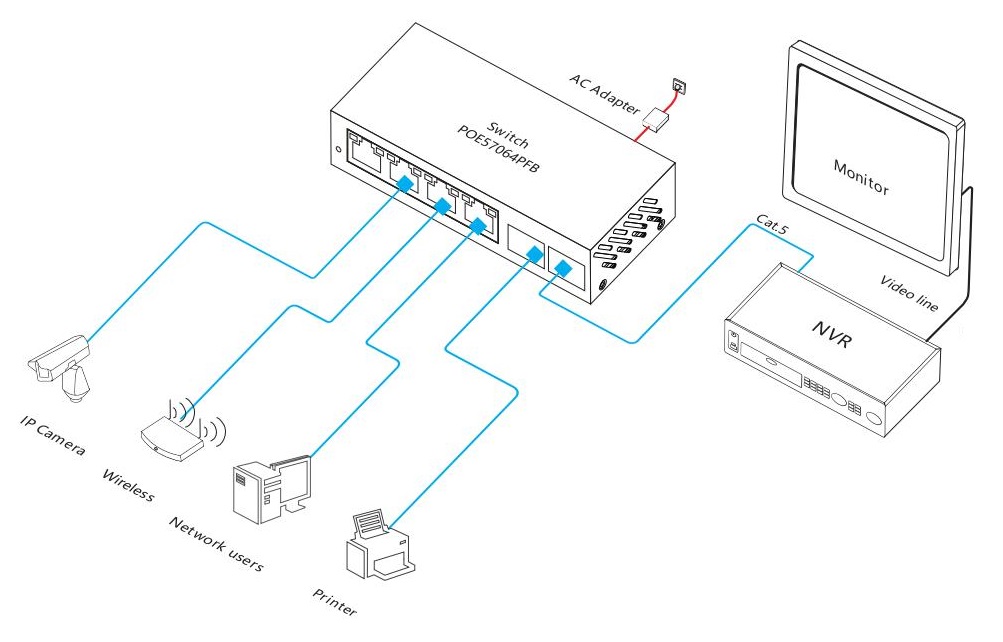

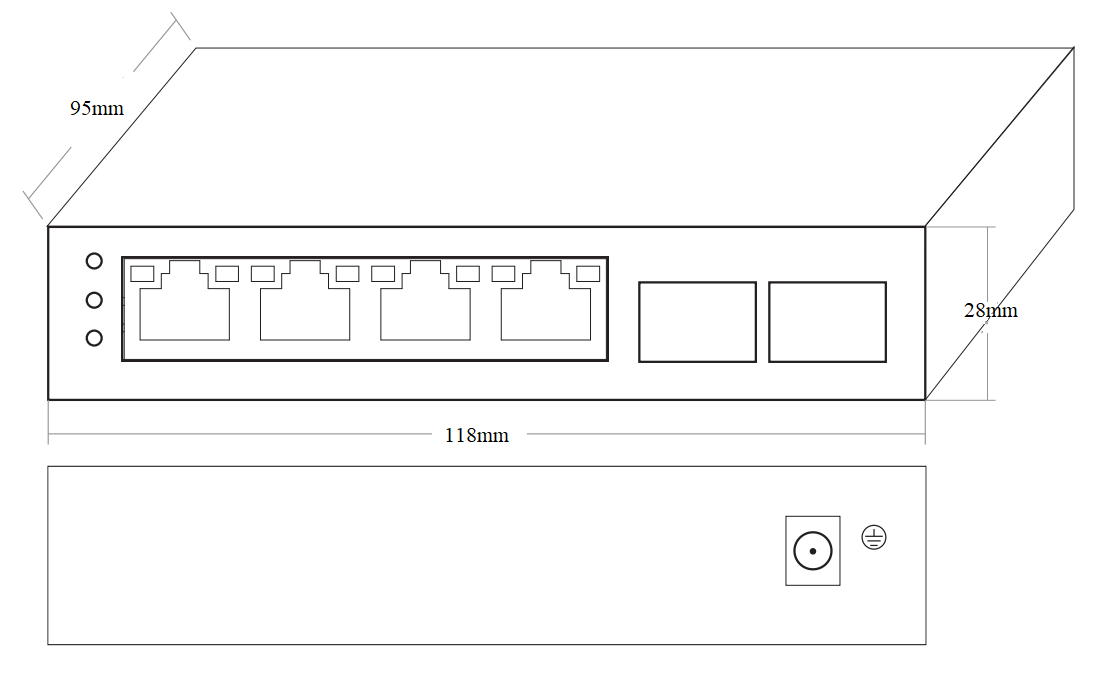

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
External Power Supply |
|
ONV-POE57064PFB |
PoE switch with 4*10/100/1000/2500M RJ45 ports and 2*1/10G uplink SFP+ fiber ports. Port 1-4 can support the IEEE802.3af/at PoE standard. External power supply. |
65W |
|
ONV-POE57064PFB-at |
130W |
|
|
Note: The optical module is not included and needs to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
6-port 2.5G PoE switch |
1 |
Set |
|
|
AC power cord+power adapter |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module |
2630 |
SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. supports DDM function and hot plugging. |
PC |
|
2632 |
SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T |
SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R |
SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T-SC |
SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R-SC |
SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
|
|
10G Optical Module |
6630 |
SFP+ optical module, 10G multi-mode dual fiber 850nm, transmission distance: 300m, LC interface. supports DDM function and hot plugging. |
PC |
|
7832 |
SFP+ optical module, 10G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
7832-33 |
SFP+ optical module, 10G single-mode single fiber TX1330nm/ RX1270nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
7832-27 |
SFP+ optical module, 10G single-mode single fiber TX1270nm/ RX1330nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-POE57064PFB |
ONV-POE57064PFB-at |
|
Interface Characteristics |
||
|
Fixed Port |
2*1/10G uplink SFP+ fiber ports (Data) 4*10/100/1000/2500Base-T PoE ports (Data/ Power) |
|
|
Ethernet Port |
Port 1-4 can support 10/100/1000/2500Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) 2500BASE-T: Cat6a or later UTP (≤100 meters) |
|
|
Optical Fiber Port |
Default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
|
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3bz 2.5GBase-T, IEEE802.3ae 10GBase-SR/LR, IEEE802.3x |
|
|
Forwarding Mode |
Store and forward (Full wire speed) |
|
|
Switching Capacity |
60Gbps (non-blocking) |
|
|
Forwarding Rate@64byte |
44.64Mpps |
|
|
MAC |
4K |
|
|
Buffer Memory |
4M |
|
|
Jumbo Frame |
4K |
|
|
LED Indicator |
Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green), Fiber port: L/A (Green) |
|
|
PoE& Power Supply |
||
|
PoE Port |
Port 1-4 |
|
|
Power Supply Pin |
1/2(+) 3/6 (-) |
|
|
Max Power Per Port |
30W, IEEE802.3af/at |
|
|
Total PWR/ Input Voltage |
65W/DC52V |
130W/DC52V |
|
Power Consumption |
Standby<5W, full load<65W |
Standby<5W, full load<130W |
|
Power Supply |
External power supply, AC100-240V 50-60Hz, 1.1A |
External power supply, AC100-240V 50-60Hz, 2.3A |
|
Physical Parameter |
||
|
Operation Temp/ Humidity |
-20°C~+55°C, 5%~90% RH non condensing |
|
|
Storage Temp/ Humidity |
-40°C~+75°C, 5%~95% RH non condensing |
|
|
Dimension (L*W*H) |
118*95*28mm |
|
|
Net /Gross Weight |
0.3kg/0.8kg |
|
|
Installation |
Desktop, Wall mount |
|
|
Certification& Warranty |
||
|
Lightning Protection |
Protection level: IP30, Lightning protection: 4KV 8/20us |
|
|
Certification |
CQC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS |
|
|
Warranty |
3 years, lifelong maintenance. |
|
