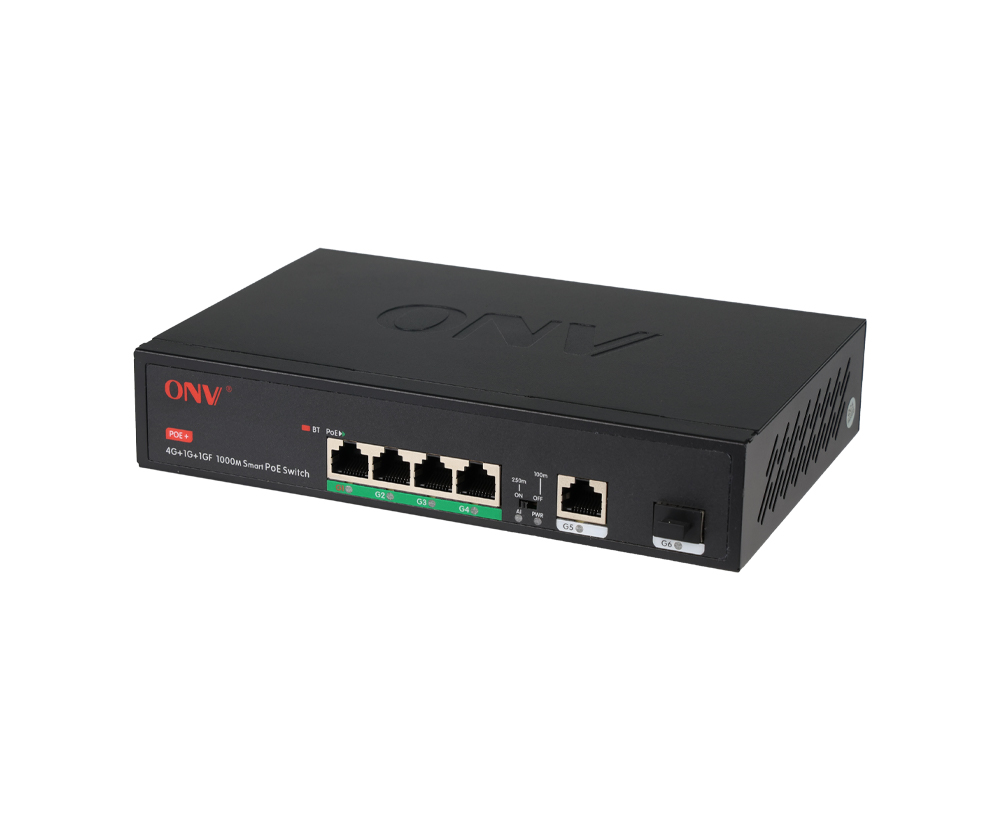

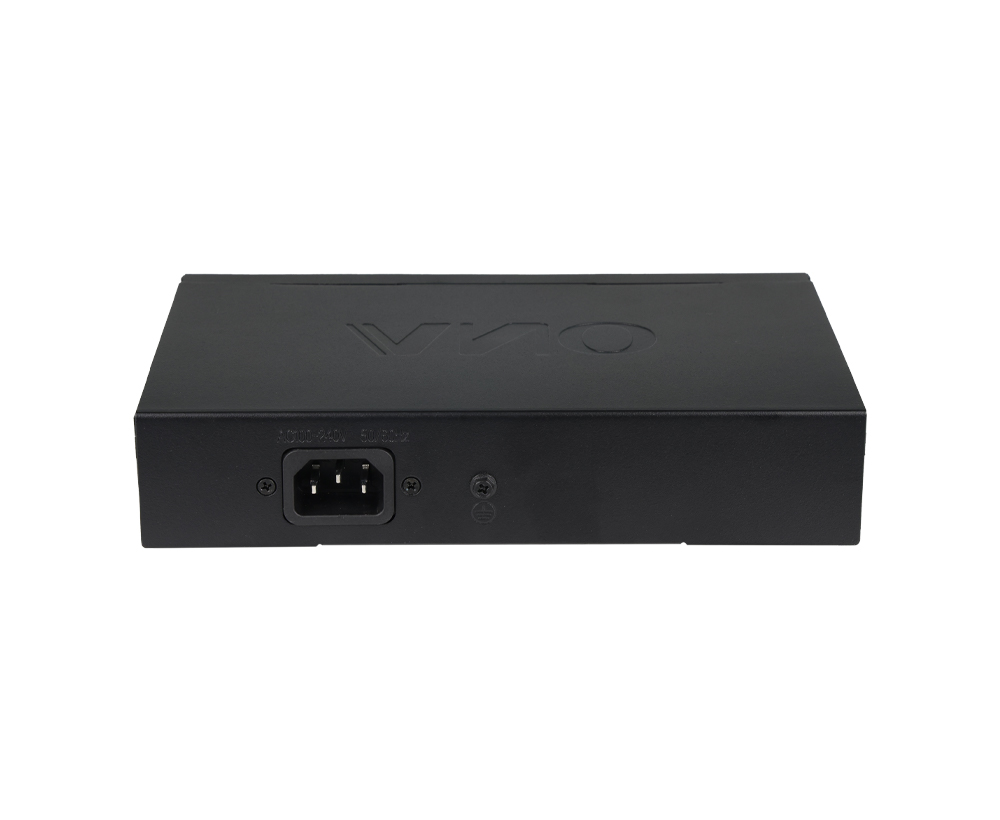

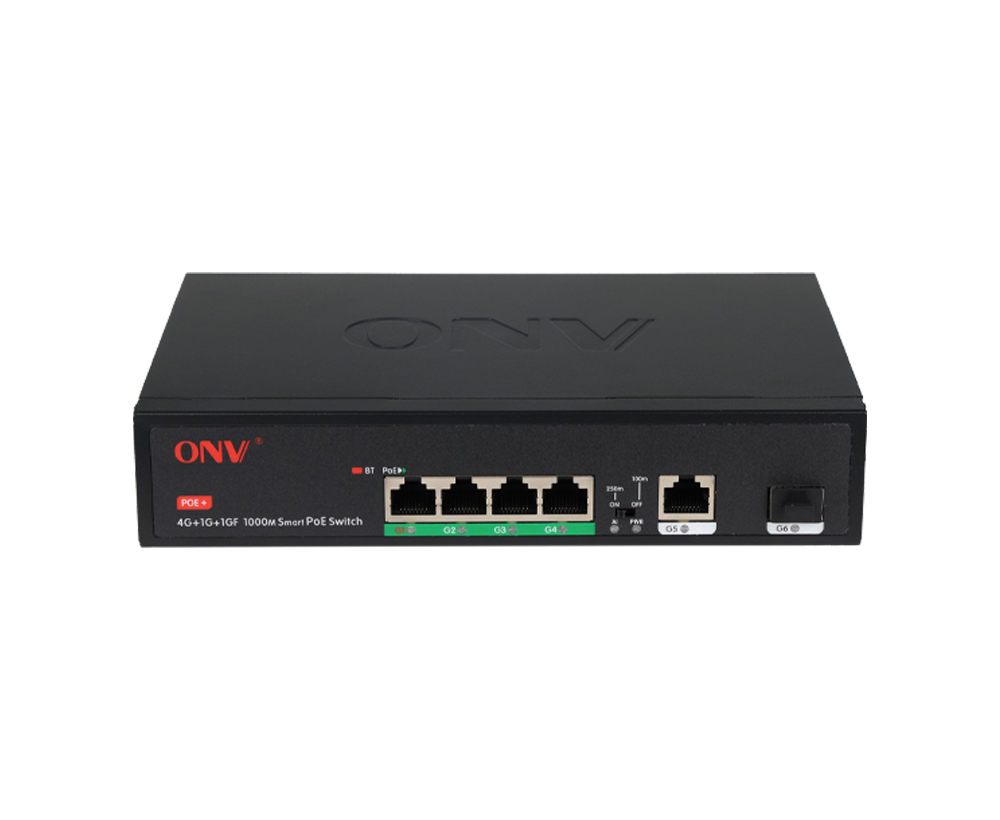

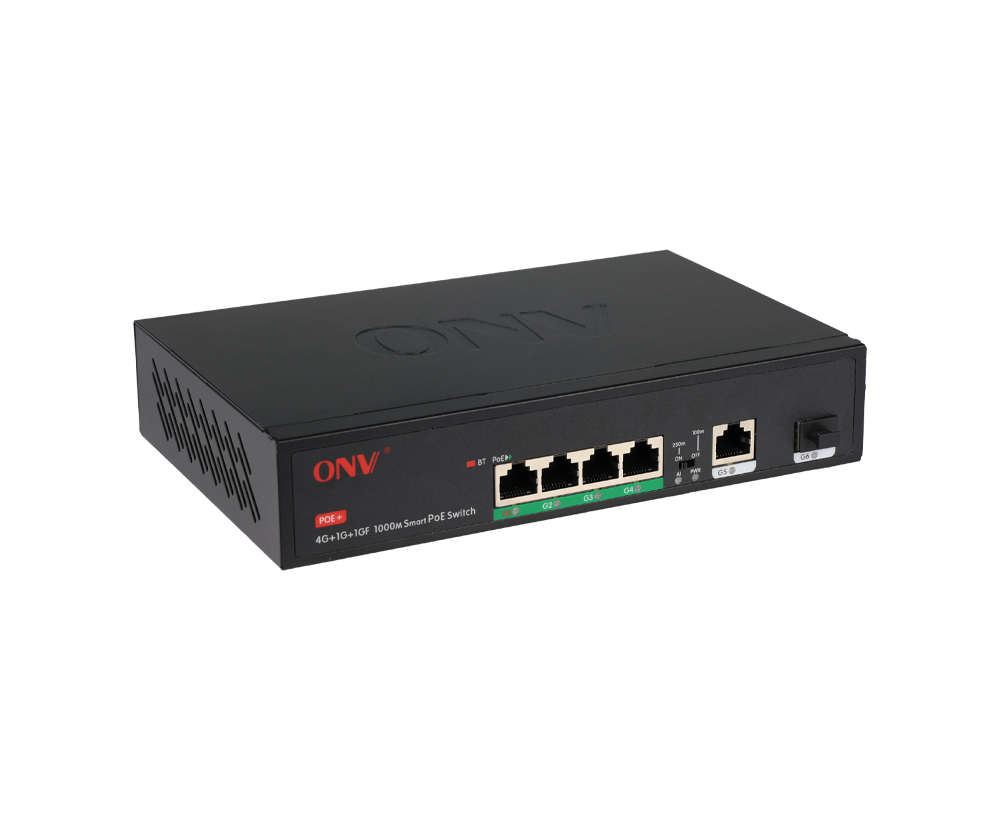

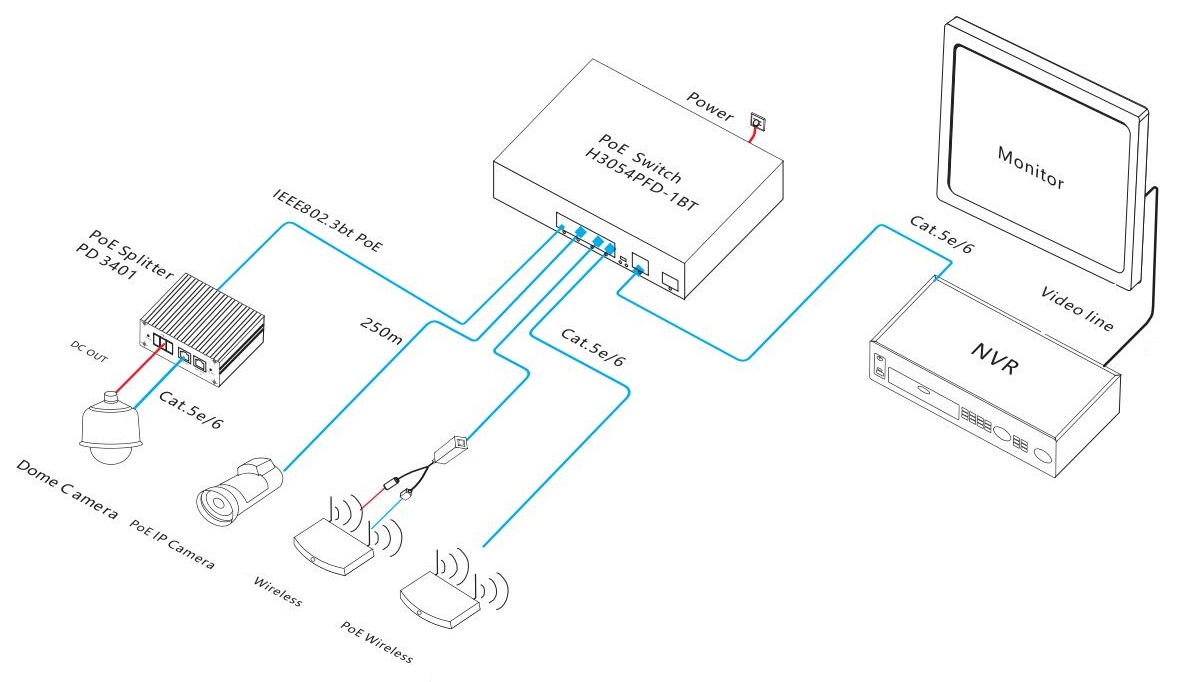

The ONV-H3054PFD-1BT is a Gigabit PoE switch independently developed by ONV. It has 1*1000Base-X uplink SFP fiber port and 5*10/100/1000Base-T RJ45 ports. Port 1 supports PoE++ power supply, with a single-port PoE power of up to 60W and backward compatibility. Port 2-4 supports PoE+ power supply, with a single-port PoE power of up to 30W. The PoE ports support a watchdog function; if a port experiences a communication failure, the corresponding port's PoE will automatically restart, restoring network communication without affecting the normal operation of other ports, effectively reducing manual intervention and maintenance costs. It can power PoE terminal devices such as wireless APs, network cameras, VoIP phones, and video intercoms via Ethernet cables, meeting the needs of network environments requiring high-density/high-power PoE power supply. It is suitable for small and medium-sized enterprises such as hotels, campuses, industrial parks, government and enterprise units, banks, hospitals, communities, and factories to build cost-effective networks. Plug and play, no configuration, easy to use.
FEATURE
Gigabit access, uplink RJ45/ SFP fiber port
◇ Support non-blocking wire-speed forwarding for smoother transmission.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Provide Gigabit RJ45 ports and an uplink RJ45/SFP fiber port for flexible networking, and meet the networking requirements of various scenarios.
Smart PoE power supply
◇ 4*10/100/1000Base-T RJ45 ports support PoE power supply, meeting the PoE power supply needs of various scenarios in the security field.
◇ Compliant with PoE standards, backward compatible, automatically identifies PoE devices, and supplies power without damaging non-PoE devices. Port 1 have a max PoE output power of 60W per port. Port 2-4 have a max PoE output power of 30W per port.
Innovative function
◇ PoE watchdog: The watchdog function is enabled by default for port 1-4, which can automatically detect the data communication status in real-time. When the port communication fails, the corresponding port PoE will automatically restart.
◇ Long distance + VLAN mode (E): When the switch is turned to ON (default OFF), the rate of ports 1-4 is 10M, and the maximum transmission distance is up to 250 meters. At the same time, the physical VLAN isolation function of ports 1-4 is enabled.
Stable and reliable
◇ CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly panel can show the device status through the LED indicators of PWR, Link, and PoE.
◇ Low power consumption, galvanized steel housing, and excellent heat dissipation to ensure the stable operation of the switch.

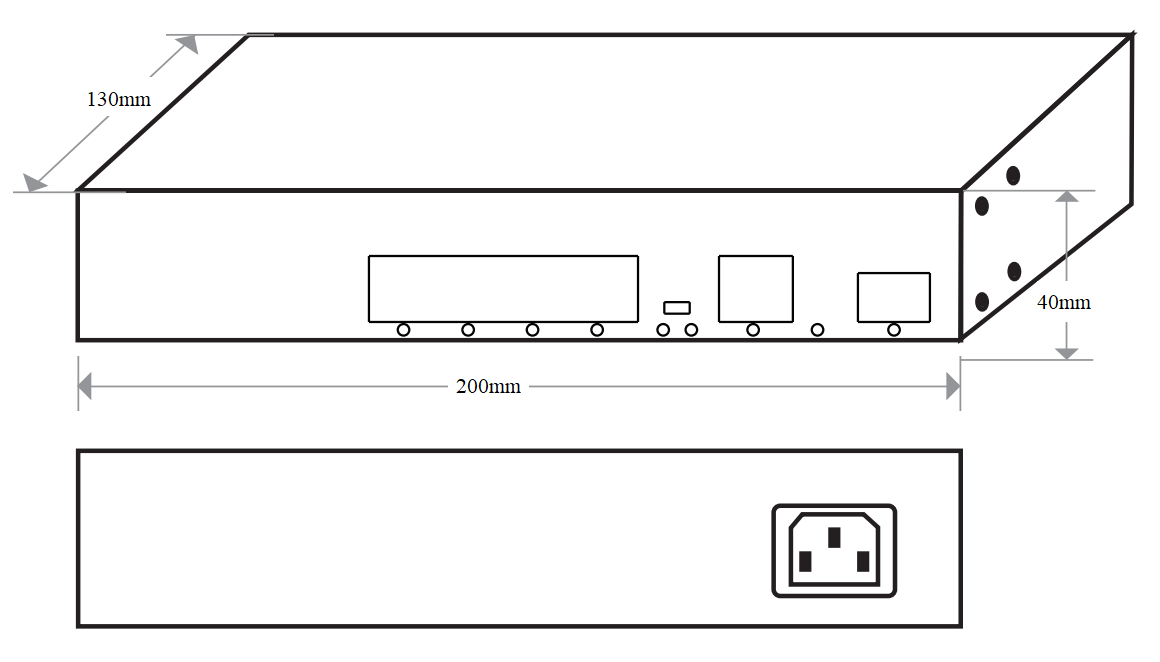

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
ONV-H3054PFD-1BT |
PoE switch with 5*10/100/1000M RJ45 ports and 1*1000Base-X uplink SFP fiber port. Port 1-4 default support PoE watchdog (auto-restart PoE). Adjustment function switch, 1-4 ports support 10M/250 meter transmission and VLAN isolation. Built-in power supply. |
52V/65W |
|
Note: The optical module and mounting ear are not included and need to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
6-port Gigabit PoE switch |
1 |
Set |
|
|
AC Power Line |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module |
2630 |
SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 0.55km, 2*LC interface. supports DDM function and hot plugging. |
PC |
|
2632 |
SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, 2*LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T |
SFP optical module, 1.25G single-mode single fiber TX1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R |
SFP optical module, 1.25G single-mode single fiber TX1550nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
Power Module |
2633 |
1.25G SFP optical module transfers to 10/100/1000M RJ45 port. |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-H3054PFD-1BT |
|
Interface Characteristics |
|
|
Fixed Port |
1*1000Base-X uplink SFP fiber port (Data) 1*10/100/1000Base-T uplink RJ45 port (Data) 3*10/100/1000Base-T PoE ports (Data/ Power) 1*10/100/1000Base-T bt PoE port (Data/ Power) |
|
Ethernet Port |
Port 1-5 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
Optical Fiber Port |
Gigabit optical fiber interface, default does not include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module, LC) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
Function Switch |
E file: Long distance transmission and VLAN isolation function, Default-OFF, enable-ON, when opening, port 1-4 support 10M/250 meter transmission and VLAN isolation |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and forward (Full wire speed) |
|
Switching Capacity |
12Gbps (non-blocking) |
|
Forwarding Rate@64byte |
8.93Mpps |
|
MAC |
2K |
|
Buffer Memory |
2M |
|
Jumbo Frame |
9.2K |
|
LED Indicator |
Power: PWR (Green), Network: Link (Green), PoE: PoE (Red), Function switch: Extend (Green) |
|
PoE& Power Supply |
|
|
PoE Port |
Port 1 support PoE++ power, Port 2-4 support PoE+ power |
|
Power Supply Pin |
Port 1 default 1/2,4/5(+), 3/6,7/8(-), Port 2-4 default 1/2(+) 3/6(-) |
|
Max Power Per Port |
60W, PoE++ |
|
Total PWR/ Input Voltage |
65W/ (AC100-240V) |
|
Power Consumption |
Standby<3W, full load<65W |
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz, 1.0A |
|
Physical Parameter |
|
|
Operation Temp/ Humidity |
-20~55°C, 5%~90% RH non-condensing |
|
Storage Temp/ Humidity |
-40~80°C, 5%~95% RH non-condensing |
|
Dimension |
200*130*40mm |
|
Net /Gross Weight |
0.6kg/ 0.9kg |
|
Installation |
Desktop, Wall mount |
|
Certification& Warranty |
|
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
Certification |
CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS |
|
Warranty |
1 year, lifelong maintenance. |
