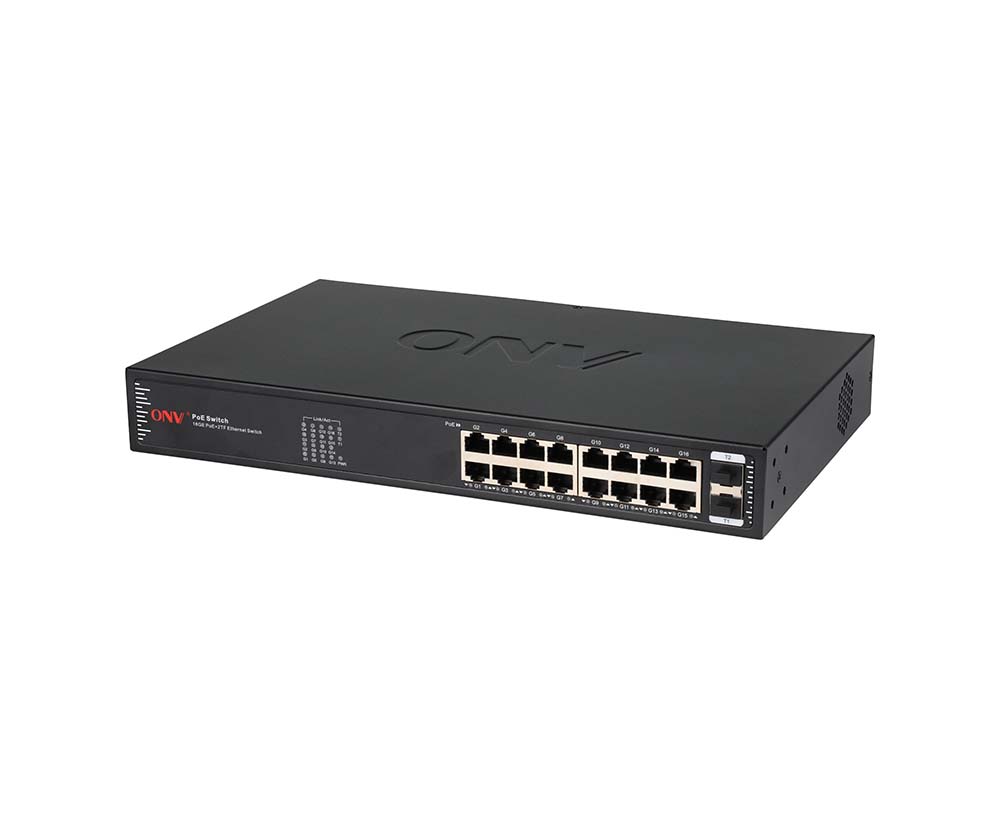

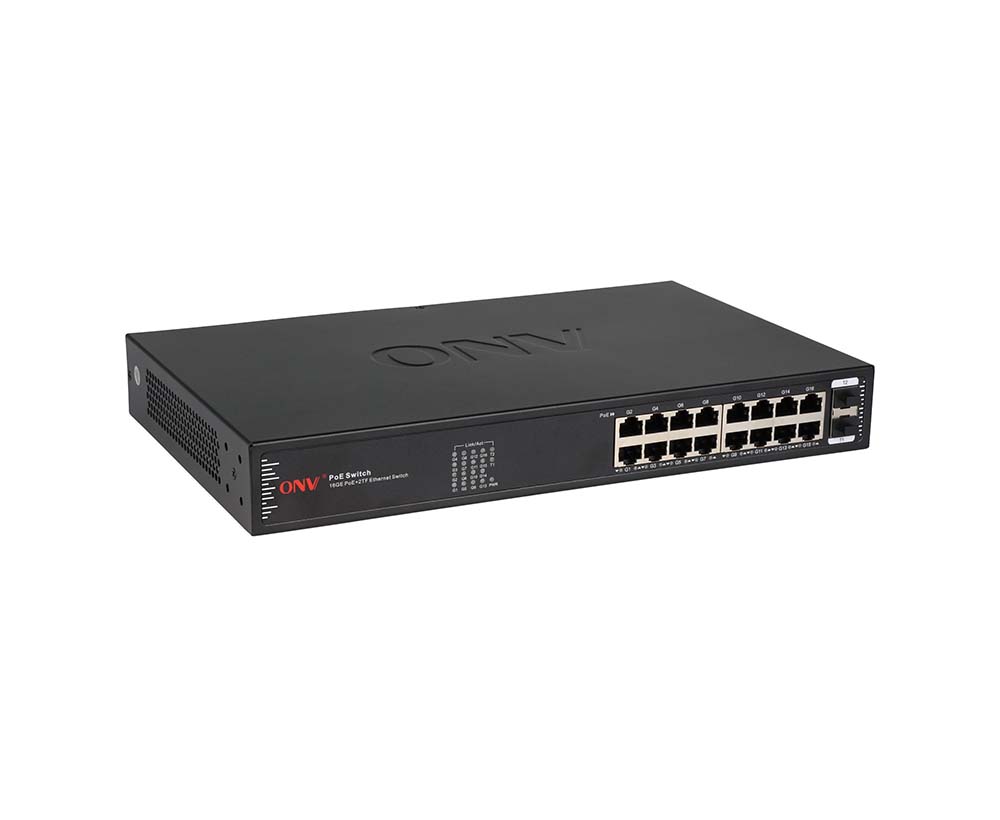

The ONV-POE56016PF is a 10G uplink PoE fiber switch independently developed by ONV, specifically designed for high-density, high-performance PoE power supply and high-speed fiber optic uplink scenarios. It provides 16*10/100/1000Base-T adaptive RJ45 ports and 2*1/2.5/10GBase-X SFP+ fiber ports. Supporting flexible multi-rate fiber optic uplinks and comprehensive PoE power supply capabilities, enabling stable power supply and data transmission for multiple terminal devices simultaneously.

Ports 1-16 can support the IEEE 802.3af/at PoE standard, and the single-port max PoE power is 30W. It can automatically identify and safely power compliant devices. Power and data transmission can be simultaneously supplied to various PoE terminal devices such as wireless access points, network cameras, IP phones, video intercom systems, and IoT terminals via an Ethernet cable, significantly simplifying cabling and reducing deployment and maintenance costs.

The uplink optical port supports 1G, 2.5G, and 10G multi-rate adaptive switching, compatible with optical modules of different rates, facilitating access to gigabit or 10G backbone networks and enabling smooth upgrades and flexible networking. It is suitable for scenarios with high requirements for PoE power density and uplink bandwidth, such as wireless coverage in hotel rooms, multimedia classrooms on campuses, smart park monitoring, wireless networks in scenic areas, security systems in supermarkets and shopping malls, factory dormitory networking, and integrated network construction for small and medium-sized enterprises. Plug and play, requiring no complex configuration, it is ready to use immediately upon power-up, greatly reducing the technical threshold for network deployment and maintenance. Adopting a robust metal casing and optimized heat dissipation design, it ensures stability during long-term high-load operation, making it an ideal choice for building an economical, efficient, safe, and reliable one-stop PoE power supply and fiber optic uplink network.

FEATURE

Gigabit access, uplink 1/2.5/10G SFP+ fiber port

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

◇ Support Gigabit RJ45 port and 1/2.5/10G SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Smart PoE power supply

◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

◇ 16*10/100/1000Base-T RJ45 ports support PoE power, meeting the needs of security monitoring, teleconferencing systems, wireless coverage, and other scenarios.

Stable and reliable

◇ CE, FCC, RoHS.

◇ Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.

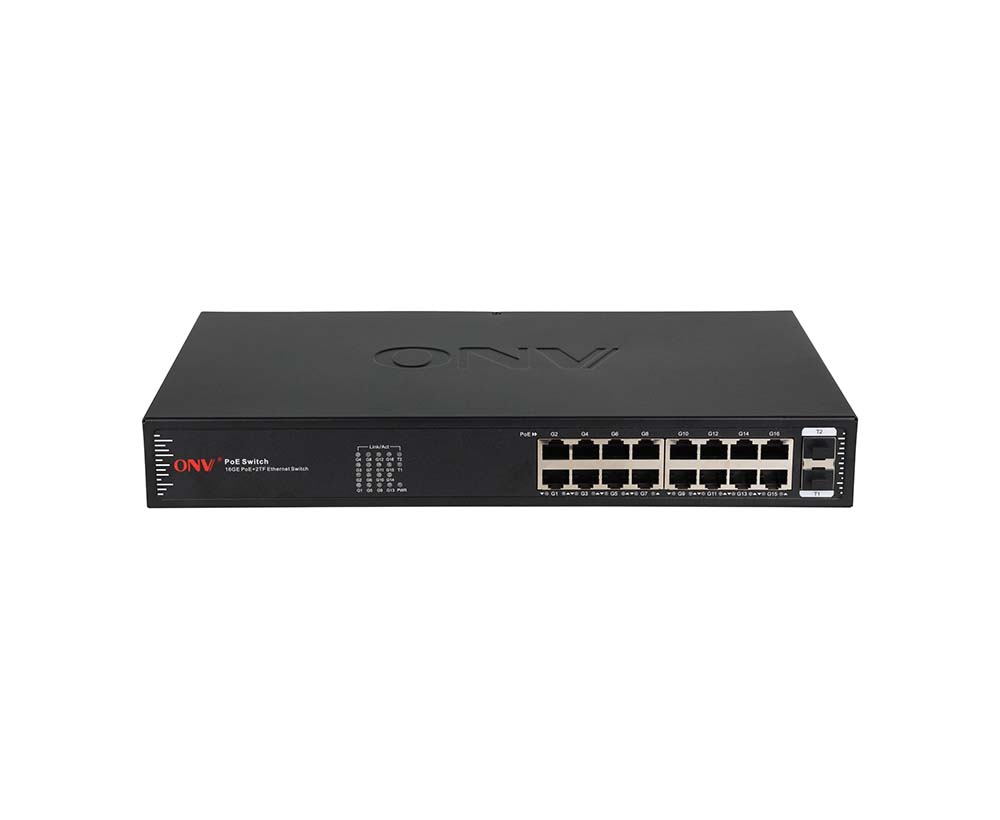

◇ The user-friendly panel can show the device status through the LED indicators of PWR, Link, and PoE.

◇ Low power consumption, with fan, Galvanized steel housing, and excellent heat dissipation to ensure stable operation of the switch.
