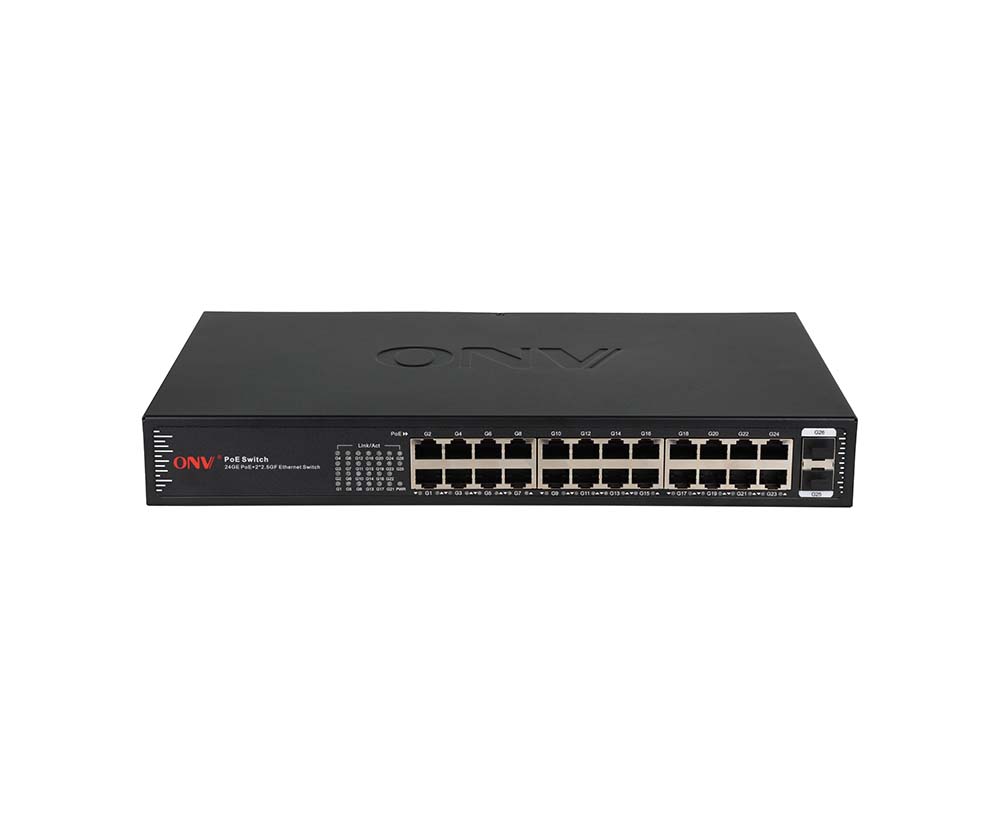

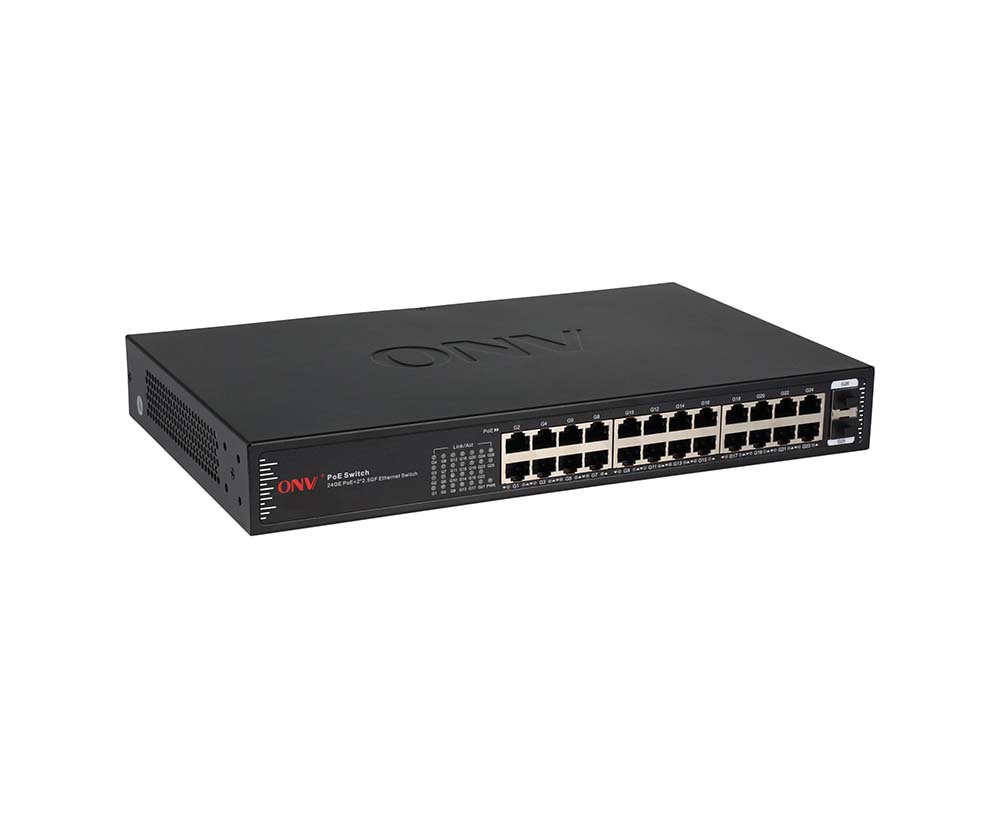

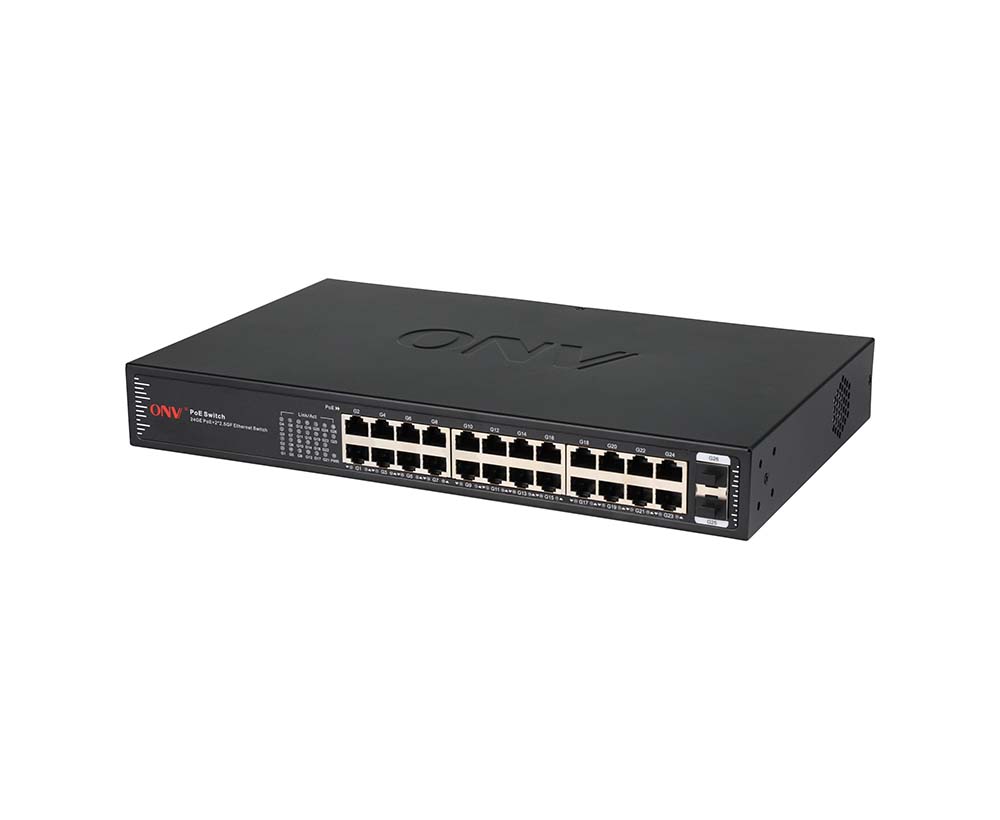

The ONV-POE37024PF is a 2.5G uplink PoE switch independently developed by ONV, designed specifically for medium-to-high density PoE power supply and high-speed fiber optic uplink requirements. It provides 24*10/100/1000Base-T adaptive RJ45 ports and 2*1/2.5G uplink SFP fiber ports, ensuring high-performance networking for terminal devices while supporting smooth upgrades to 2.5G fiber-optic uplinks, thereby improving the transmission bandwidth of the network aggregation layer.

Ports 1-24 can support the IEEE 802.3af/at PoE standard, and the single-port max PoE power is 30W. It can automatically detect and safely and stably power various standard PoE terminal devices. Data communication and power delivery can be completed simultaneously through a single network cable, allowing flexible connection to wireless access points, high-definition network cameras, IP phones, smart building intercom terminals, IoT devices, etc., significantly simplifying cabling and reducing deployment and maintenance costs.

SFP fiber ports support adaptive 1G and 2.5G speeds, providing users with an economical and flexible fiber optic uplink option, especially suitable for scenarios requiring increased uplink bandwidth, such as surveillance aggregation and wireless network backhaul. Plug and play, no configuration required; simply power on and it's ready to use, significantly lowering the technical barrier to network deployment and maintenance.

The ONV-POE37024PF is suitable for hotel room and public area coverage, campus multimedia teaching and monitoring networks, smart park IoT access, scenic area security and wireless systems, supermarket digital operation networks, factory dormitories, and integrated networking for small and medium-sized enterprises. It is an ideal choice for building high-density PoE power supply and cost-effective fiber optic uplink networks.

FEATURE

Gigabit access, uplink 1/2.5G SFP fiber port

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

◇ Support Gigabit RJ45 port and uplink 1/2.5G SFP fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Smart PoE power supply

◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

◇ 24*10/100/1000Base-T RJ45 ports support PoE power, meeting the needs of security monitoring, teleconferencing systems, wireless coverage, and other scenarios.

Stable and reliable

◇ CE, FCC, RoHS.

◇ The user-friendly panel can show the device status through the LED indicators of PWR and PoE.

◇ Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.

◇ Low power consumption, with fan, Galvanized steel housing, and excellent heat dissipation to ensure stable operation of the switch.
