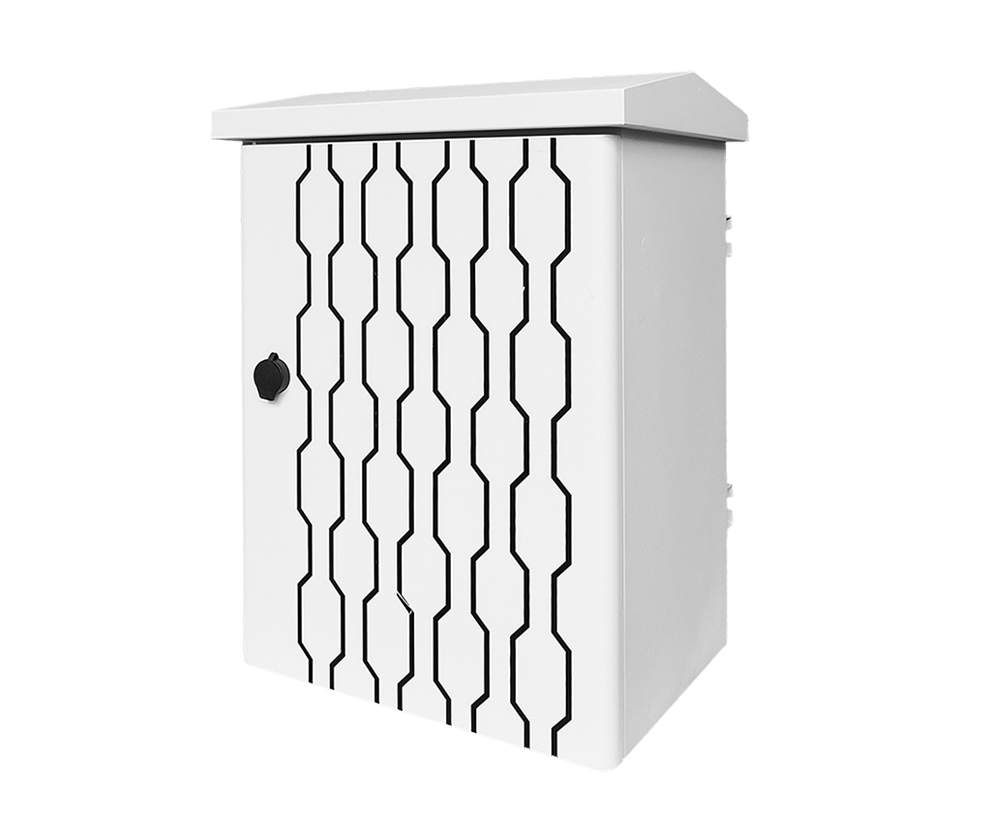

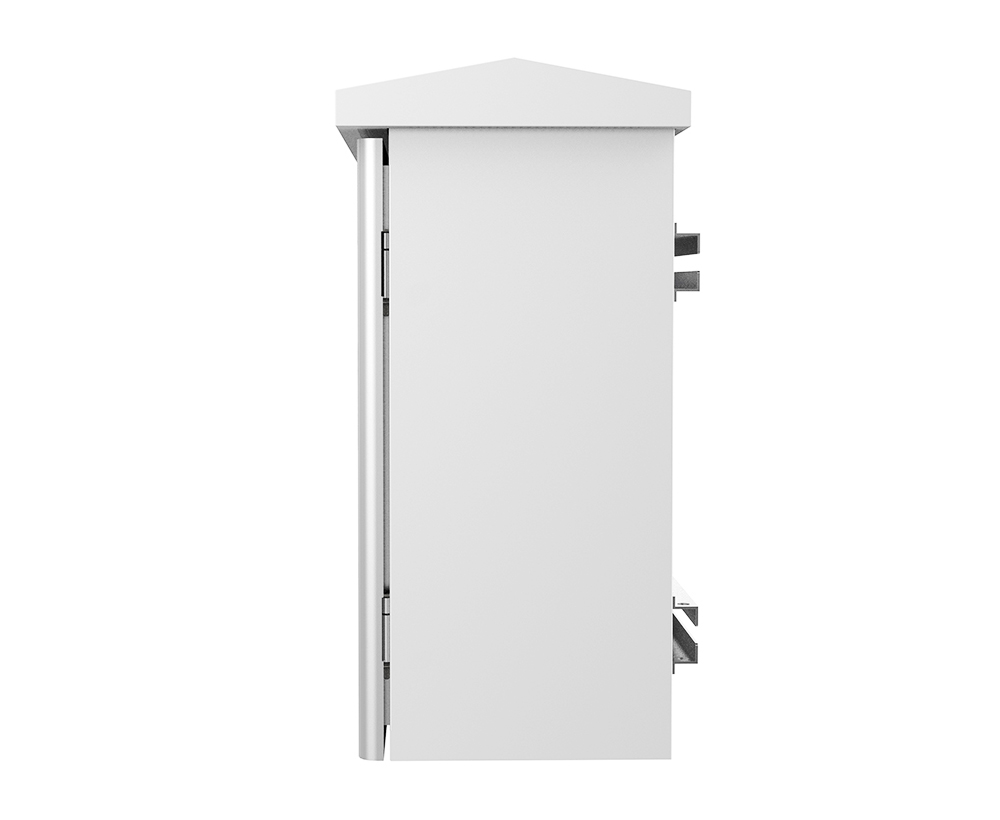

OVERVIEW
The ONV-IoT9000-ZH series is an IoT comprehensive intelligent box independently developed by ONV. It is an intelligent transmission and power control system with high integration, high functionality, and simple use. It has a modular structure and provides multiple sets of power output and remote monitoring control. The transmission module can be selected according to the application requirements to realize the optical transmission of various topologies. The IoT comprehensive intelligent box consists of project requirements, integrated PoE power supply network transmission module, port lightning protection module, power supply control module, etc. The high-performance, high-stability power supply with an intelligent control unit embedded in the main control board. The control core provides practical and detailed, stable and advanced automatic control functions. The IoT comprehensive intelligent box can realize the detection and centralized monitoring and management of the environment, power supply, temperature, communication link and other equipment in the box. The interface is rich and powerful. It can be used for public security safe city monitoring, communication industry base stations, integrated computer rooms, and other monitoring needs, to improve the reliability of unattended sites. It is applicable to the construction of smart security IoT, such as safe city, intelligent transportation, country town monitoring, road checkpoint monitoring, infrastructure, and environmental management, natural disaster monitoring and control, water conservancy monitoring, and communication base station monitoring.
FEATURE
◇ Built-in lightning protection module, air switch, input voltage detection, input voltage overload/underload alarm, lightning strike count indication.
◇ Modular design, centralized the power supply, automatic reclosing, voltage short circuit trip, self-recovery power supply. More than 1 set AC220V power output, 3 set DC12V output, 1 set AC24V output, 1 set DC52V output.
◇ Remote PoE power supply and management, multi-channel UTP network connection, fiber connection, link alarm, supporting fiber optic splice trays and fiber optic adapter.
◇ Power failure detection, voltage, current monitoring, on-site recording and remote viewing of device name and model, voltage output, real-time reporting of detection results, positioning of equipment through cloud platform and online map.
◇ The IoT intelligent box related information can be managed by the QR code in the box to record all status information and logs of the device.
◇ The mechanical lock installed in the box provides the function of preventing the box from being disassembled, and when the box door is opened, the operation and maintenance platform actively gives an alarm prompt.(Optional)
◇ The network management data is output through Ethernet, and the key data of operation and maintenance is transmitted through the optical fiber and the IoT transmission module, and transmitted through the 4th generation mobile communication technology and WIFI signals.
◇ Centralize operation and maintenance management cloud platform, through the cloud platform software, User can manage the front-end devices, remotely view the status devices in real-time, and operate the power supply status. when the front-end devices are abnormal, it can be notified of sound and light, pop-up windows, etc. The user at the same time forms a QR code to send work orders, maintenance personnel to receive work orders under the application view, timely troubleshooting. The centralize management cloud platform has alarm records, history records, fault statistics analysis reports, and operation log records.
PRODUCT INNOVATION
◇ Automatic reclosing lightning protection, IP55 protection, mobile application operation, and maintenance personnel online operation.
◇ Remote center management platform fault dispatch, equipment online management, safety protection, equipment use location BDS/GPS positioning (optional), open box alarm design, centralized power supply design, efficient early warning mechanism, voltage and current, temperature detection, water leakage detection, remote Poe control, remote network control and restart, etc.
◇ Distinguish whether the power supply, the power supply of the IP camera and fill light is normal. The power of the remote control output power, power off IP camera, power on, and restart.
◇ The IoT intelligent box will be uploaded alarm message to the management center platform in time when the box door is accidentally opened or broken.
◇ According to the requirements of the application environment, customize the working temperature of the IoT intelligent box. When the ambient temperature is higher than the set value, start the fan for heat dissipation. When it is lower than the set temperature, the heating module will automatically start the heating until the temperature returns to the set value, so as to ensure that the equipment in the box works in the best condition and extend the service life of the machine.
◇ The box is with LED lighting for maintenance personnel to operate at night. The data control unit provides an LED display. The installation or inspection personnel can check whether the various monitoring signals and status of the smart box are working properly through the display.
DIMENSION

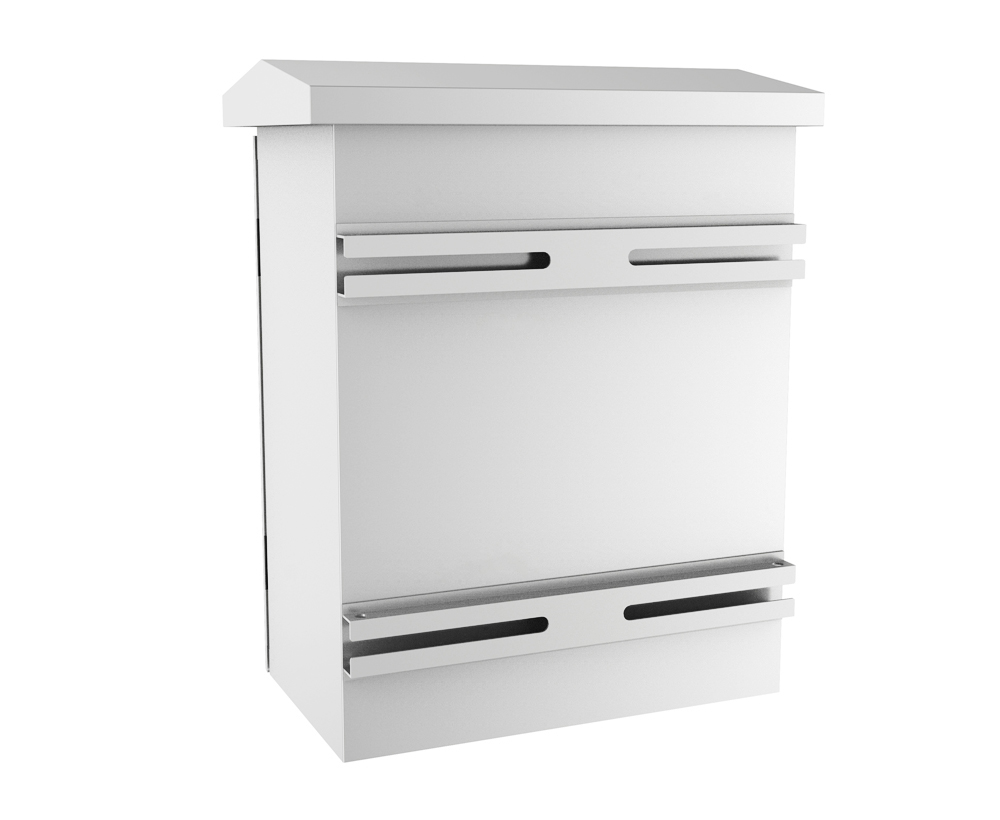

NOTES FOR INSTALLATION
◇ Hold pole installation only supports vertical round pole installation.
◇ When installing the machine, you need to use the matching sheet metal mounting parts and screws.
◇ Wear protective gloves when installing.
◇ It is forbidden to install the intelligent box under power.
◇ The exterior paint of the intelligent box should be kept intact. If the paint is lost, the paint needs to be replenished immediately to prevent corrosion.
INSTALLATION STEPS
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
Comprehensive IoT intelligent box |
1 |
SET |
|
|
User guide |
1 |
PC |
|
|
Warranty card |
1 |
PC |
|
|
Note: Comprehensive IoT intelligent box does not match the SFP module. |
|||
IoT Comprehensive Intelligent Box Series Configuration Details
|
ONV-IoT9000-ZH-HI-P |
|||
|
No. |
Model |
Product Name |
Description |
|
1 |
IoT90-Box-ZHX |
Seiko chassis |
1.2mm thickness Seiko chassis Dimension: 541*440*240mm |
|
2 |
IoT90-CZ250-10A |
AC220 5-hole socket |
National standard 5-hole socket, 10A/250V, DIN rail installation |
|
3 |
IoT90-KK2P250-16A |
2P air switch |
2P bipolar air switch 16A/400V, rated short circuit: 6KA |
|
4 |
IoT90-CH175275-16A |
Auto-reclosing |
working voltage: 175-275VAC 50-60Hz, 16A |
|
5 |
IoT90-SPD-220AC |
AC power supply lightning arrester |
1 set power lightning arrester 220V max: 40kA |
|
6 |
IoT90-7PoE-10 |
PoE network transmission unit (7*PoE ports) |
L2+ managed PoE switch with 7*10/100 /1000Base-T PoE ports and 2*100 /1000Base-X SFP fiber ports |
|
7 |
IoT90-Data-ZH-S224 |
Data acquisition control unit A |
Realize status control, switch control, remote management functions |
|
8 |
IoT90-LED |
LED lighting |
LED lighting inside the case |
|
9 |
IoT90-PWR60-AC24 |
AC24V power supply unit |
AC24V / 2.5A, 60W AC power supply |
|
10 |
IoT90-PWR250-DC52 |
DC52V power supply unit |
DC52V / 4.8A, 250W DC power supply |
|
11 |
IoT90-PWR80-DC12 |
DC12V power supply unit |
DC12V / 8.5A isolated power supply, 90W DC power supply unit |
|
12 |
IoT90-ODF2 |
2ch fiber optic terminal box and adapter |
fiber optic terminal box and adapter |
|
13 |
IoT90-OMS |
Operation and maintenance management software |
Cloud platform integrated management platform, consisting of personal computer and application operation and maintenance |
|
ONV-IoT9000-ZH-HI-P |
|||
|
No. |
Model |
Product Name |
Description |
|
1 |
IoT90-Box-ZHX |
Seiko chassis |
1.2mm thickness Seiko chassis Dimension: 541*440*240mm |
|
2 |
IoT90-CZ250-10A |
AC220 5-hole socket |
National standard 5-hole socket, 10A/250V, DIN rail installation |
|
3 |
IoT90-KK2P250-16A |
2P air switch |
2P bipolar air switch 16A/400V, rated short circuit: 6KA |
|
4 |
IoT90-CH175275-16A |
Auto-reclosing |
working voltage: 175-275VAC 50-60Hz, 16A |
|
5 |
IoT90-SPD-220AC |
AC power supply lightning arrester |
1 set power lightning arrester 220V max: 40kA |
|
6 |
IoT70-SW8G2F |
Network communication transmission unit (8*RJ45 and 2*SFP ports) |
L2+ managed Ethernet switch with 8*10/100 /1000M RJ45 ports and 2*100 /1000M SFP fiber ports |
|
7 |
IoT90-Data-ZH-S224 |
Data acquisition control unit A |
Realize status control, switch control, remote management functions |
|
8 |
IoT90-LED |
LED lighting |
LED lighting inside the case |
|
9 |
IoT90-PWR60-AC24 |
AC24V power supply unit |
AC24V / 2.5A, 60W AC power supply |
|
10 |
IoT90-PWR80-DC12 |
DC12V power supply unit |
DC12V / 8.5A isolated power supply, 90W DC power supply unit |
|
11 |
IoT90-ODF2 |
2ch fiber optic terminal box and adapter |
fiber optic terminal box and adapter |
|
12 |
IoT90-OMS |
Operation and maintenance management software |
Cloud platform integrated management platform, consisting of personal computer and application operation and maintenance |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module
|
2630 |
SFP optical module, 1.25G, multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, support DDM, hot plug and pull. |
PC |
|
2632 |
SFP optical module, 1.25G, single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, support DDM, hot plug and pull. |
PC |
|
|
2612-T |
SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, LC interface,support DDM, hot plug and pull. |
PC |
|
|
2613-R |
SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, LC interface,support DDM, hot plug and pull. |
PC |
|
|
2612-T-SC |
SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, SC interface,support DDM, hot plug and pull. |
PC |
|
|
2613-R-SC |
SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, SC interface,support DDM, hot plug and pull. |
PC |
|
|
Power Module |
2633 |
1.25G SFP optical module transfers to 10/100/1000M RJ45 port. |
PC |
MAIN FUNCTION MODULE TECHNICAL SPECIFICATION
|
Model |
ONV-IoT9000-ZH |
|
Power Configuration |
|
|
220V AC power supply air switch |
1 set, 220V/20A |
|
220V AC power supply lightning arrester
|
1 set power lightning arrester: 220V max: 40kA, In: 10KA Voltage protection Level≤1.1kV Adding 1.2/50us (8-20us ) combined wave of L-N, 2KV does not cause to malfunction, 6KV is non-damaged, the upper limit is 10KV. |
|
Auto-reclosing |
Working voltage: 175-275VAC 50-60Hz Rated output current: 10A Electric leakage protection / action time: 30mA/≤0.1S Over voltage protection / action time: AC275V/2-5S Under voltage protection / action time: AC145V/2-5S Over current protection / action time: 16A/2-5S Short circuit protection/ action time: 3 times input current/≤0.1S Detection function before closing, with remote control function |
|
AC24V power supply |
1 set of AC100-264V input, AC24V/2.5A output, 60W AC power supply |
|
DC52V power supply |
1 set of AC100-264V input, DC52V/4.8A output, 250W DC power supply |
|
DC12V power supply |
3 set of AC100-264V input, DC12V/8.5A, DC power supply with total power of 90W |
|
Power Consumption |
Standby<50W, Full Load<1500W |
|
Data Control Unit |
|
|
Main control board parameters |
Flash:4GByte, DDR: 512MByte, CPU: ARM 600MHz |
|
Data port |
1ch RS232 data, 1ch RS485 data, 2ch switch interface |
|
Extended Function port |
1ch automatic heating control 1ch local storage SD card slot 1ch water leak detection control 1ch fan control, 1ch lighting control 1ch 4G wireless routing expansion slot |
|
Alarm Output port |
1ch alarm output, 1ch status indicator output 1ch door status output, 1ch automatic lighting status output |
|
Controlled Power Supply |
1ch 24VAC output, 3ch 12VDC output, Support remote control |
|
Ethernet port |
1*10/100Base-TX RJ45 port for transmitting control signals |
|
Ethernet Standard |
IEEE802.3 10Base-TX, IEEE802.3u 100Base-TX |
|
Screen Display |
A status display LCD screen, used to display the address of the device, query the status of various control switches |
|
Door Alarm switch |
Unpacking alarm signal output |
|
PoE Power Supply Transmission Unit |
|
|
Fixed Port |
1*Console RS232 port (115200,N,8,1) 7*10/100/1000Base-T PoE ports (Data/Power) 1*10/100/1000Base-T uplink RJ45 ports (Data) 2*100/1000Base-X uplink SFP fiber slot ports (Data) |
|
Ethernet Port |
Port 1-8 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
Optical Fiber Port |
Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-500m, Single-mode:1310nm/ 0-40km, 1550nm /0-120km. |
|
Chip Parameter |
|
|
Network Management Type |
L2+ |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
192Gbps (non-blocking) |
|
Forwarding Rate@64byte |
14.88Mpps |
|
MAC |
8K |
|
Buffer Memory |
4M |
|
Jumbo Frame |
9.6K |
|
LED Indicator |
Power: PWR (Green), System: SYS (Yellow), Network: Link (Yellow), PoE: PoE(Green), Fiber port: L/A (Green) |
|
Reset Switch |
Yes, support one key to restore factory settings |
|
PoE & Power |
|
|
PoE Port |
Port 1 to 7 |
|
PoE Management |
Delay start of power supply Scheduling of PoE operation and time Total power limit of PoE power supply PoE output power allocation, PoE on/off & af /at PoE working status, PoE output priority configuration |
|
Power Supply Pin |
1/2 (+) 3/6 (-) |
|
Max Power Per Port |
30W, IEEE802.3af/at |
|
Total PWR / Input Voltage |
250W/52VDC |
|
Power Consumption |
Standby<8W, Full Load<240W |
|
Network Management Features |
|
|
Interface |
IEEE802.3X (Full-duplex) Port temperature protection setting Port green Ethernet Energy-saving setting Broadcast storm control based on port speed The speed limit of the message flow in the access port. The minimum particle size is 64Kbps. |
|
Layer 3 Features |
Static route, Default route @ 128 pcs L3 soft routing forwarding, APR @ 1024 pcs L2+ network management , IPV4/IPV6 management |
|
VLAN |
VLAN based on MAC, VLAN based on the protocol Port configuration of Access, Trunk, Hybrid, Voice VLAN 4K VLAN based on port, IEEE802.1q, QinQ configuration |
|
Port Aggregation |
LACP(IEEE802.3ad), Static aggregation Max 5 aggregation groups and 8 ports per group. |
|
Spanning Tree |
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
|
Industrial Ring Network Protocol |
G.8032 (ERPS), Recovery time less than 20ms 250 Ring at most, Max 250 devices per ring. |
|
Multicast |
IGMP Snooping v1/v2, Max 1024 multicast groups MLD Snooping v1/v2, Multicast VLAN, Fast log out |
|
Port Mirroring |
Bidirectional data mirroring based on port |
|
QoS |
Flow-based Rate Limiting Flow-based Packet Filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS,Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) |
|
ACL |
Port-based Issuing ACL,ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
|
Security |
IP-MAC-VLAN-Port binding ARP inspection, Anti-DoS attack AAA & RADIUS, MAC learning limit Mac black holes, IP source protection IEEE802.1X & MAC address authentication Broadcast storm control, Backup for host datum SSH 2.0, SSL, Port isolation, ARP message speed limit User hierarchical management and password protection |
|
DHCP |
DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay |
|
Management |
One-key recovery, Cable Diagnose, LLDP SNMP V1/V2C/V3, CPU instant utilization status NTP, System work log, Web Management (HTTPS) viewConsole/AUX Modem/Telnet/SSH2.0 CLI, Ping Test Download & Management on FTP, TFTP, Xmodem, SFTP ONV NMS- smart network management system platform(LLDP+SNMP) |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+80°C,5%~95% RH Non condensing |
|
MTBF |
>100000 hours |
|
Dimension (L*W*H) |
542*440* 280mm |
|
Net /Gross Weight |
<26kg / <28kg |
|
Installation |
Pole hoop mount |
|
Certification & Warranty |
|
|
Lightning Protection |
Lightning protection: 6KV 8/20us; Protection level: IP55 |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS |
|
Warranty |
3 years, lifelong maintenance. |
