OVERVIEW
The ONV-IPS33064F is a full gigabit industrial Ethernet fiber switch independently developed by ONV. It is designed to meet industrial fields and systems and can operate stably for a long time in harsh environments. The ONV-IPS33064F has 4*10/100/1000M RJ45 ports and 2*1000M SFP fiber slot ports. Each port can support full line-rate forwarding.
ONV-IPS33064F industrial Ethernet switch has excellent industrial field environment adaptability (including mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), protection level up to IP40, support for dual redundant power supply, low power consumptiony, MTBF average trouble-free working time up to 35 years, 5-year warranty, unmanaged models, plug and play, no configuration, easy to use. It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a cost-effective and stable communication network.
FEATURE
Full gigabit Ethernet port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support Gigabit Ethernet port and Gigabit SFP port to meet the networking requirements of various scenarios.
Stable and reliable
◇ CCC,CE, FCC, RoHS.
◇ Low power consumption, no fan, aluminum shell.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link.
DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Recommended Power Supply |
|
ONV-IPS33064F |
Unmanaged industrial Ethernet fiber switch with 2*1000M SFP fiber slot ports and 4*10/100/1000M RJ45 ports. It can support DC redundant power supply input and DIN rail mounting. |
24W |
|
Note: The SFP optical module is not included by default and needs to be purchased separately. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
6-port full gigabit industrial Ethernet switch |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module
|
2630-G |
Industrial SFP optical module, 1.25G, multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2632-G |
Industrial SFP optical module, 1.25G, single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T-G |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R-G |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T-G-SC |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R-G-SC |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
POWER SUPPLY
|
Product |
Model |
Description |
Unit |
|
24W DIN Rail Industrial Power Supply |
GWS-DP24-24 |
Din Rail 24W single set of output power supply Input Voltage: AC 100V~240V 50-60H, 0.35A Output Voltage: DC 24V 1.0A Operation Temperature:-40℃ to +70℃ |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV-IPS33021F |
Unmanaged industrial Ethernet fiber switch with 1*10/100/1000M RJ45 port and 1*1000M SFP slot port. It can support dual DC redundant power input and DIN rail mounting. |
|
ONV-IPS33032F |
Unmanaged industrial Ethernet fiber switch with 2*10/100/1000M RJ45 ports and 1*1000M SFP slot port. It can support dual DC redundant power input and DIN rail mounting. |
|
ONV-IPS33042F |
Unmanaged industrial Ethernet fiber switch with 2*10/100/1000M RJ45 ports and 2*1000M SFP slot ports. It can support dual DC redundant power input and DIN rail mounting. |
|
ONV-IPS33064 |
Unmanaged industrial Ethernet switch with 6*10/100/1000M RJ45 ports. It can support dual DC redundant power input and DIN rail mounting. |
|
ONV-IPS33108 |
Unmanaged industrial Ethernet switch with 10*10/100/1000M RJ45 ports. It can support dual DC redundant power input and DIN rail mounting. |
|
ONV-IPS33108F |
Unmanaged industrial Ethernet fiber switch with 8*10/100/1000M RJ45 ports and 2*1000M SFP slot ports. It can support dual DC redundant power input and DIN rail mounting. |
|
ONV-IPS33128F |
Unmanaged industrial Ethernet fiber switch with 10*10/100/1000M RJ45 ports and 2*1000M SFP slot ports. It can support dual DC redundant power input and DIN rail mounting. |
TECHNICAL SPECIFICATION
|
Model |
ONV-IPS33064F |
|
Interface Characteristics |
|
|
Fixed Port |
4*10/100/1000Base-T RJ45 ports (Data) 2*1000Base-X uplink SFP fiber slot ports(Data) 2 groups V+, V- redundant DC power interface (5P phoenix terminal) |
|
Ethernet Port |
Port 1-4 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
SC Slot Port |
Gigabit SFP optical fiber interface, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi mode: 850nm/ 0-550M, Single-mode: 1310nm/ 0-40KM, 1550nm/ 0-120KM. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-TX, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
12Gbps |
|
Forwarding Rate@64byte |
8.93Mpps |
|
MAC |
8K |
|
Buffer Memory |
2M |
|
Jumbo Frame |
9.2K |
|
LED Indicator |
Power:PWR (Green), Network: Link, Link/Act (Yellow) |
|
Power |
|
|
Power Consumption |
Standby<5W, Full load<8W |
|
Power Supply |
No, optional 24V/24W industrial power supply |
|
Working Voltage |
DC12-48V, 5P industrial Phoenix terminal, support anti-reverse protection. |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-40~+80°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
119*100*30mm |
|
Net /Gross Weight |
<0.7kg / <1.0kg |
|

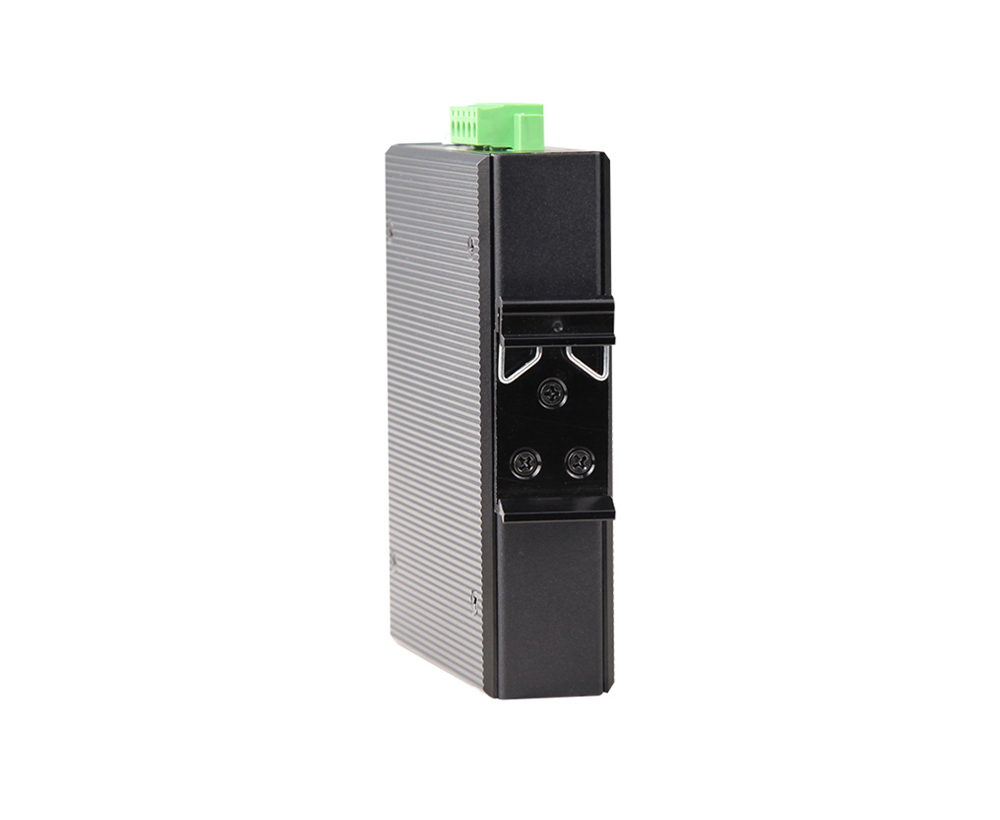

Installation |
Desktop, DIN rail |
|
Certification & Warranty |
|
|
Lightning Protection |
Lightning protection: 6KV 8/20us, Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A IEC61000-6-2(Common Industrial Standard) |
|
Mechanical Properties |
IEC60068-2-6 (anti vibration) IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
