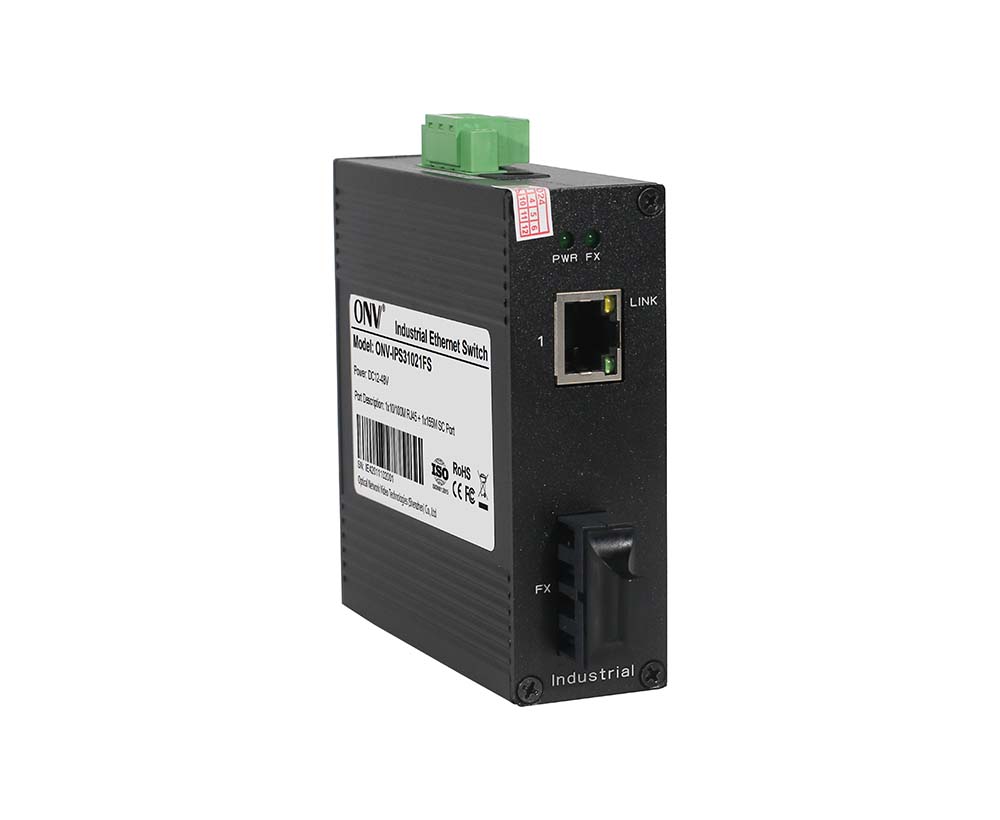

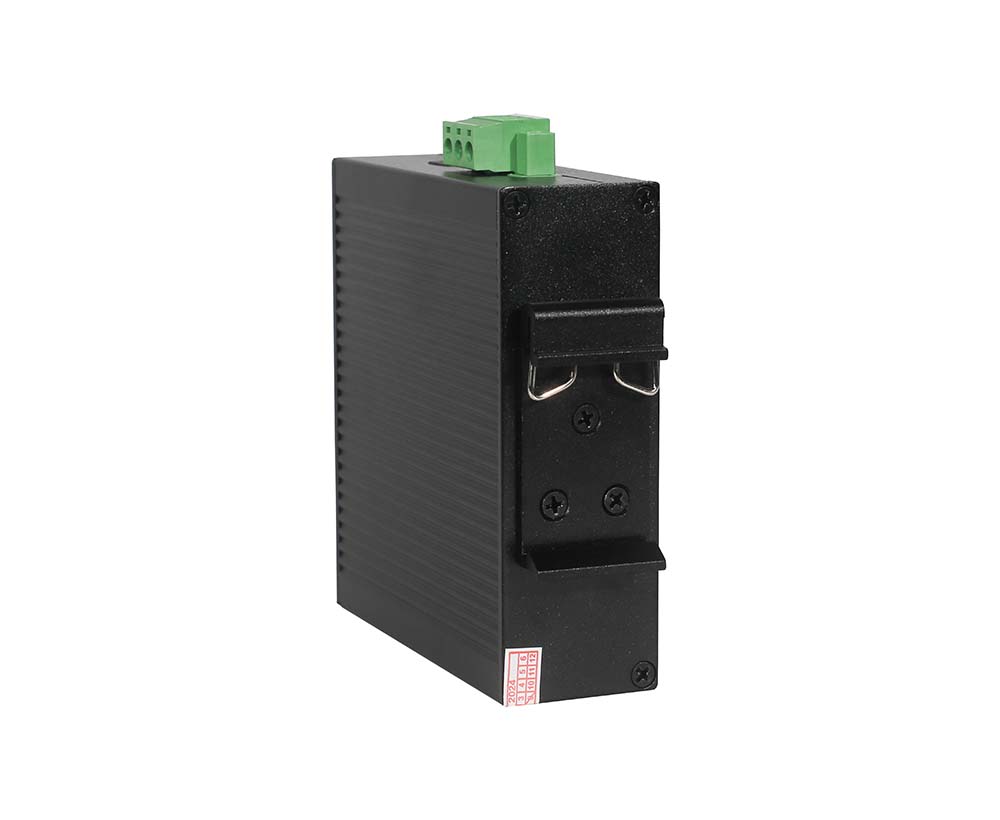

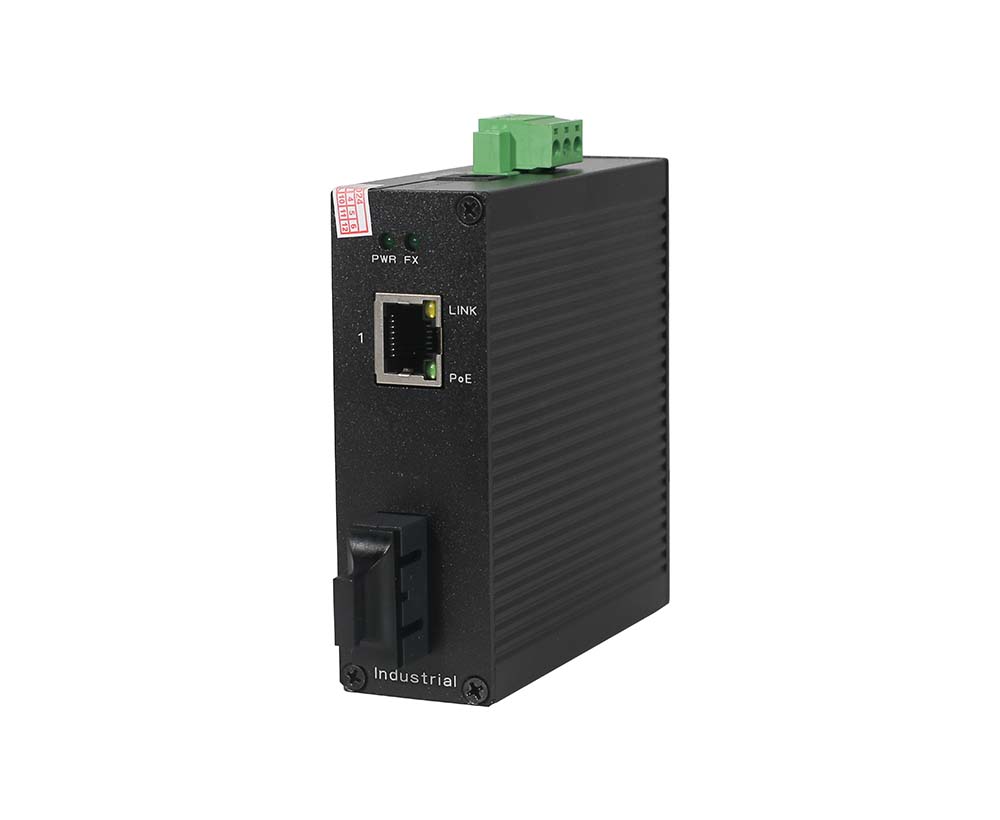

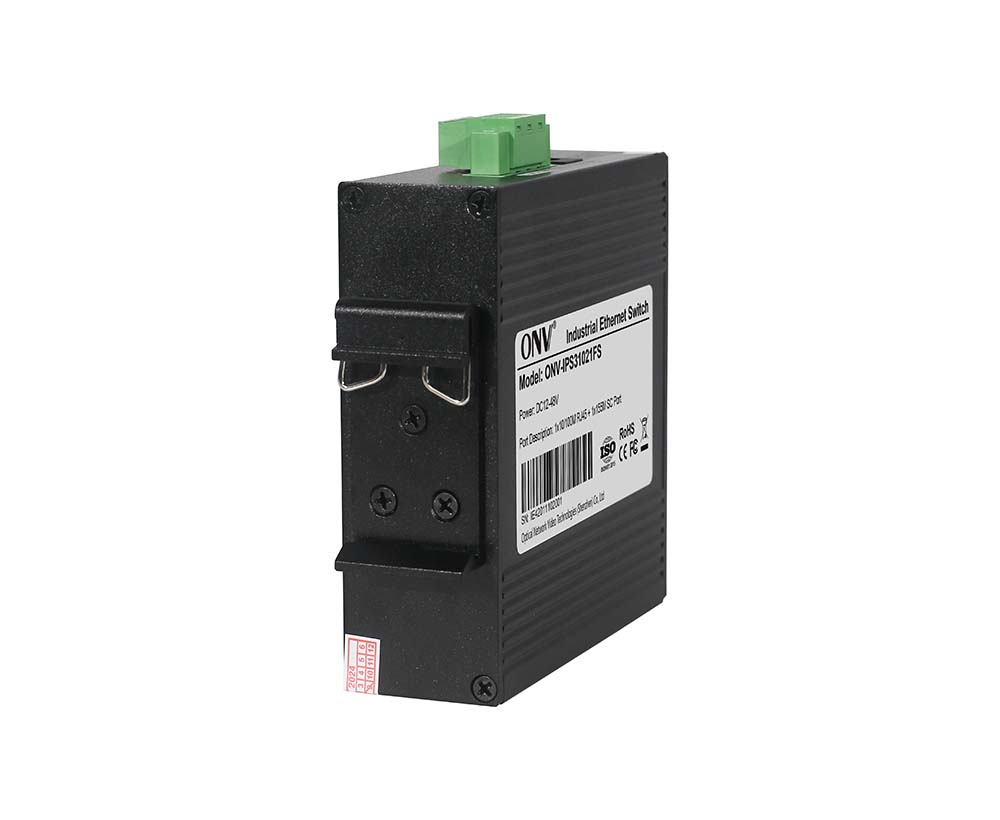

The ONV-IPS31021FS is a 10/100M industrial Ethernet fiber switch independently developed by ONV. It has 1*10/100M adaptive RJ45 port and 1*155M uplink SC fiber port. Each port can support full line-speed forwarding.
The ONV-IPS31021FS boasts excellent adaptability to industrial environments (including mechanical stability, climatic adaptability, and electromagnetic environment adaptability). It is suitable for industrial scenarios such as intelligent transportation, rail transportation, power industry, mining, petroleum, shipping, metallurgy, and green energy construction, enabling the establishment of cost-effective, stable, and reliable communication networks. Plug-and-play and easy to use.
FEATURE
100M RJ45 and uplink SC port
◇ Supports non-blocking wire-speed forwarding.
◇ Supports full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Supports a combination of 100M RJ45 port and 155M SC fiber port, which allows users to flexibly build networks and meet the networking needs of various scenarios.
Stable and reliable
◇ CE, FCC, RoHS.

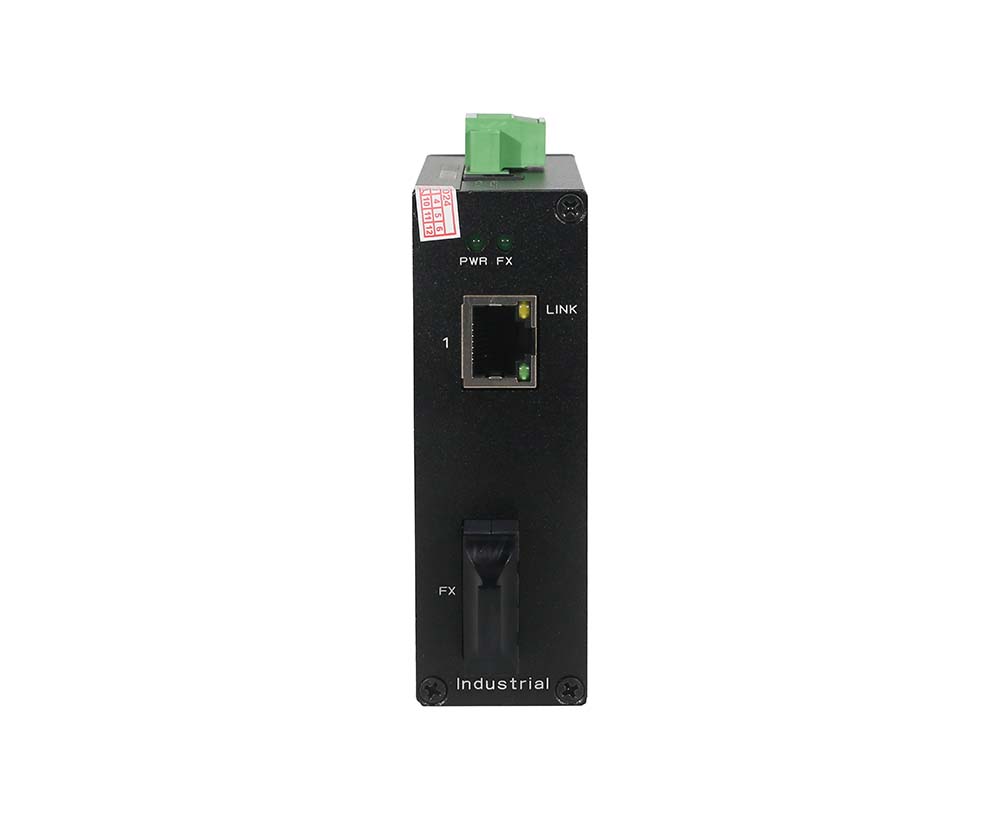

◇ The user-friendly panel can show the device status through the LED indicators for PWR and Link.
◇ Low power consumption, no fan, aluminum alloy housing, and excellent heat dissipation to ensure the stable operation of the switch.

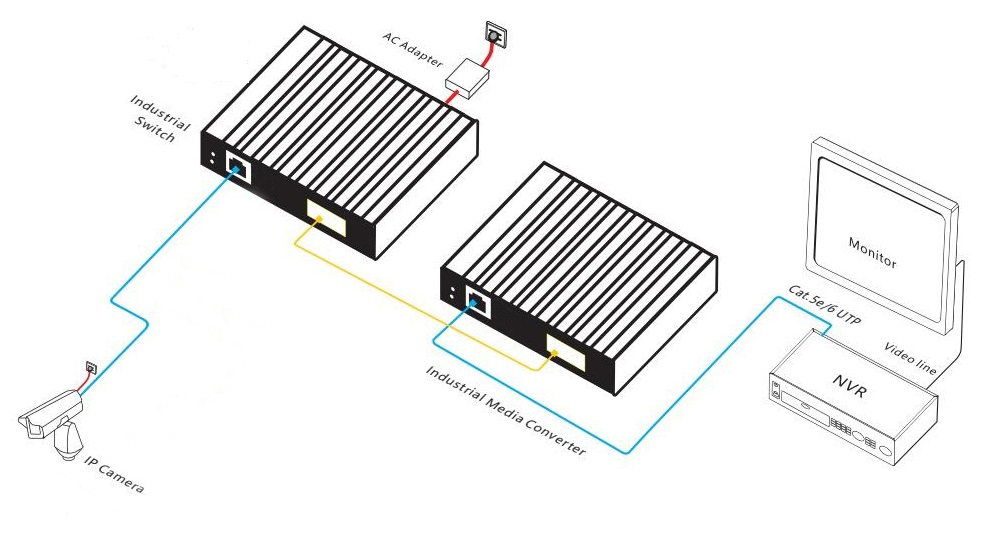

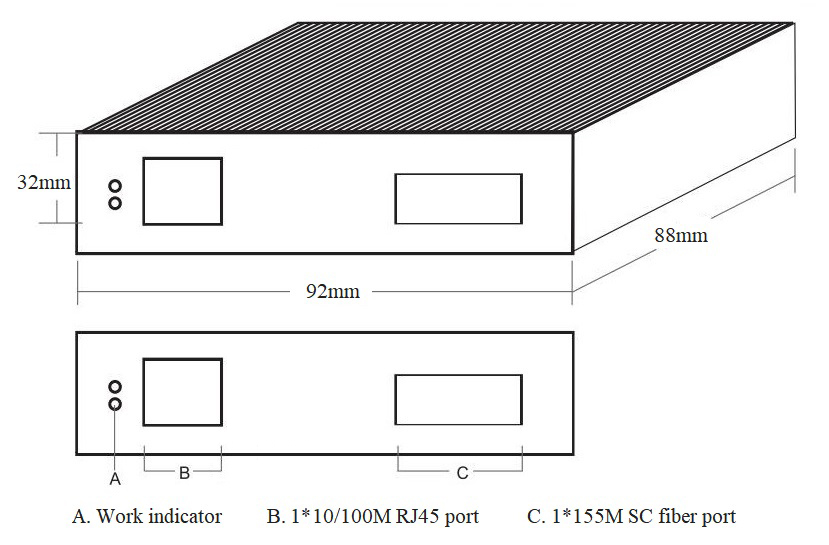

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Recommended Power Supply |
|
ONV-IPS31021FS |
Industrial Ethernet switch with 1*10/100M RJ45 port and 1*155M uplink SC fiber port (1310nm/20km single-mode dual-fiber optical module). It supports dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. |
24W |
|
ONV-IPS31021FS-M |
Industrial Ethernet switch with 1*10/100M RJ45 port and 1*155M uplink SC fiber port (850nm/0.5km or 1310nm/2km multimode dual-fiber optical module). It supports dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. |
24W |
|
ONV-IPS31021FS-A |
Industrial Ethernet switch with 1*10/100M RJ45 port and 1*155M uplink SC fiber port (1310nm/20km single-mode single-fiber optical module). It supports dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. |
24W |
|
ONV-IPS31021FS-B |
Industrial Ethernet switch with 1*10/100M RJ45 port and 1*155M uplink SC fiber port (1550nm/20km single-mode single-fiber optical module). It supports dual DC redundant power input (Phoenix terminal connection) and DIN rail mounting. |
24W |
|
Note: The power supply is not included and needs to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
2-port 10/100M industrial Ethernet fiber switch |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
POWER SUPPLY
|
Product |
Model |
Description |
Unit |
|
24W DIN Rail industrial power supply |
GWS-DP24-12 |
DIN Rail 24W single-set output power supply Input voltage: AC100V~240V 50-60H, 0.5A Output voltage: DC12V, 2.0A Operation temperature: -40℃ to +70℃ |
PC |
|
24W DIN Rail industrial power supply |
GWS-DP24-24 |
DIN Rail 24W single-set output power supply Input voltage: AC100V~240V 50-60H, 0.5A Output voltage: DC24V, 1.0A Operation temperature: -40℃ to +70℃ |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-IPS31021FS |
|
Interface Characteristics |
|
|
Fixed Port |
1*155M uplink SC fiber port (Data) 1*10/100Base-TX RJ45 port (Data) 2 sets V+, V- redundant DC power ports (5P Phoenix terminal) |
|
Ethernet Port |
Port 1 supports 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5e or later UTP (≤100 meters) |
|
Optical Fiber Port |
Single-mode dual-fiber optical module, 20 km, SC interface. Multimode dual-fiber and single-mode single-fiber options are available. |
|
Optical Cable/ Distance |
Multimode: 850nm/ 0-550m, 1310nm/ 0-2km, single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3x |
|
Forwarding Mode |
Store and forward (Full wire speed) |
|
Switching Capacity |
1.0 Gbps (non-blocking) |
|
Forwarding Rate@64byte |
0.3Mpps |
|
MAC |
1K |
|
Buffer Memory |
768K |
|
LED Indicator |
Power: PWR (Green), Network: Link (Yellow), Fiber port: L/A (Green) |
|
Power Supply |
|
|
Power Consumption |
Standby<3W, full load<5W |
|
Operation Voltage |
DC12-57V, 5 Pin industrial Phoenix terminal supports anti-reverse protection |
|
Power Supply |
No, optional 12V/24W or 24V/24W industrial power supply |
|
Physical Parameter |
|
|
Operation Temp/ Humidity |
-40~+75°C, 5%~90% RH non-condensing |
|
Storage Temp/ Humidity |
-40~+85°C, 5%~95% RH non-condensing |
|
Dimension (L*W*H) |
92*88*32mm |
|
Net /Gross Weight |
0.3kg/ 0.4kg |
|
Installation |
Desktop, 35mm DIN Rail |
|
Certification& Warranty |
|
|
Lightning Protection |
IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnetic field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV Protection level: IP40, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4 kV, data cable: ±2 kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150 kHz- 80 MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV |
|
Mechanical Properties |
IEC 60068-2-6 (Anti vibration), IEC 60068-2-32 (Free fall), IEC 60068-2-27 (Anti shock) |
|
Certification |
CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
