OVERVIEW

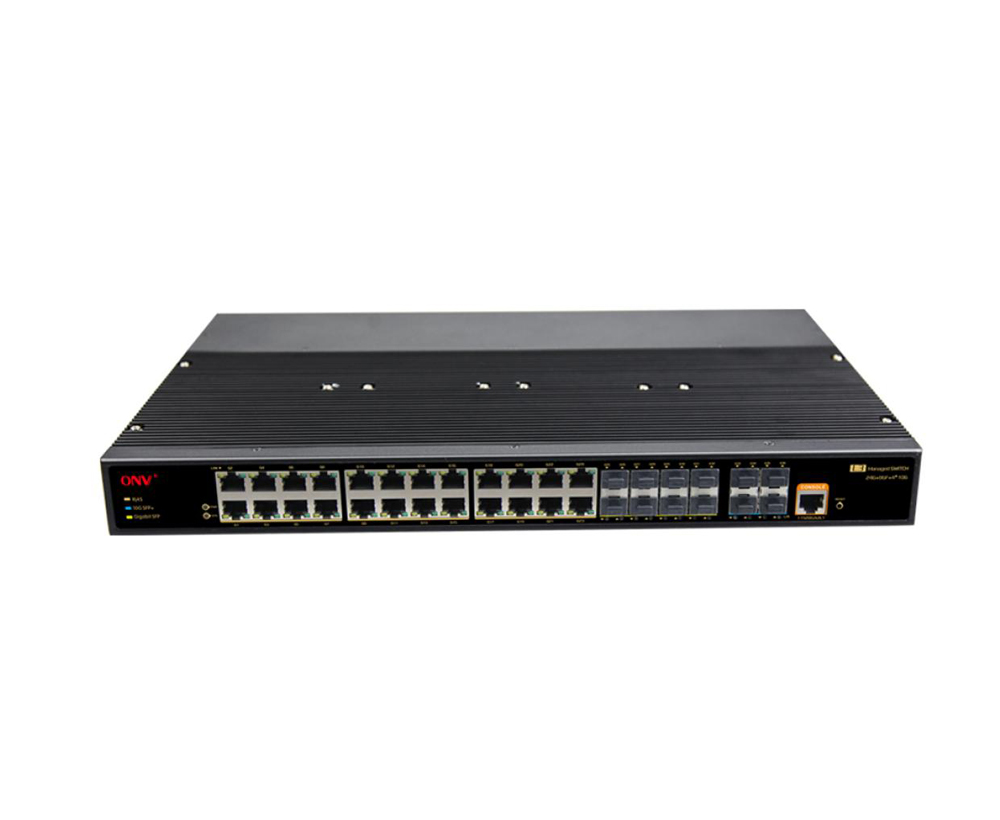

The ONV-IPS38036FM is a 10G uplink managed industrial Ethernet fiber switch independently developed by ONV. It has 24*10/100/1000Base-T adaptive RJ45 ports and 8*100/1000Base-X uplink SFP fiber ports and 4*1/10G uplink SFP+ fiber ports. Each port can support wire-speed forwarding.
The ONV-IPS38036FM has L3 network management functions, supports IPV4/IPV6 management, dynamic routing and full line-speed forwarding, complete security protection mechanism, perfect ACL/QoS strategy, and rich VLAN functions for easy management and maintenance. Supports various industrial-grade redundant ring network protocols, each port can form a ring to support chain, star, double star, ring, tangent ring, intersecting ring, coupled ring, and the ring network self-heals within 20ms. Supports remote management and cooperates with ONV-NMS network management platform for cluster management to achieve full-range blind spot network management. Complying with industrial product design and materials, it has excellent adaptability to industrial site environments (including mechanical stability, climate environment adaptability, electromagnetic environment adaptability, etc.). It is suitable for industrial scenarios such as intelligent transportation, rail transportation, power industry, mining, petroleum, shipping, metallurgy, and green energy construction to form an economical, efficient, stable, and reliable communication network.
FEATURE
Gigabit wire speed access, uplink 1/10G SFP+ fiber port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Support Gigabit RJ45 port and uplink 1/10G SFP+ fiber port to meet the networking requirements of various scenarios.
Security
◇ Support port isolation and port broadcast storm suppression.
◇ Support IP+MAC+port+VLAN quadruple flexible combination binding function.
◇ Support 802.1X authentication to provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.
Strong business processing capability
◇ Support ERPS ring network and STP/RSTP/MSTP to eliminate layer 2 loops and realize link backup.
◇ Support IEEE802.1Q VLAN, Users can flexibly divide VLAN, Voice VLAN, and QinQ configuration according to their needs.
◇ Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
◇ Support QoS, port-based, 802.1P-based, and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
◇ Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
◇ Support IGMP V1/V2/V3 multicast protocol, IGMP Snooping meets multi-terminal high-definition video surveillance and video conference access requirements.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR and Link.
◇ Self-developed power supply, redundant dual power supply provides long-term stable power output.
◇ Low power consumption, no fan, galvanized steel housing, an aluminum alloy heat sink combination, and excellent heat dissipation ensure the switch's stable operation.
Easy O&M management
◇ Support CPU monitoring, memory monitoring, Ping detection, and cable length detection.
◇ Support RMON, system log, and port traffic statistics to facilitate network optimization and transformation.
◇ Support HTTPS, SSLV3, SSHV1/V2, and other encryption methods, making management more secure.
◇ Supports LLDP, making it easier for the network management system to query and determine the communication status of the link.
◇ Support Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3), and other diversified management and maintenance.
DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
ONV-IPS38036FM |
L3 managed industrial Ethernet switch with 24*10/100/1000M RJ45 ports and 8*100/1000Base-X uplink SFP fiber ports and 4*1/10G uplink SFP+ fiber ports. Built-in dual power supply. It supports dual AC+DC redundant power input and 1U/19" cabinet installation. |
2*60W |
|
Note: The optical module is not included and needs to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
36-port 10G uplink managed industrial Ethernet switch |
1 |
SET |
|
|
AC Power Cable |
1 |
PC |
|
|
RJ45-DB9 Adapter Cable |
1 |
PC |
|
|
Mounting Kit |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optica Module |
2630-G |
Industrial SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. supports DDM function and hot plugging. |
PC |
|
2632-G |
Industrial SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R-G |
Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T-G-SC |
Industrial SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R-G-SC |
Industrial SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
|
|
10G Optica Module |
6630-G |
Industrial SFP+ optical module, 10G multi-mode dual fiber 850nm, transmission distance: 300m, LC interface. supports DDM function and hot plugging. |
PC |
|
7832-G |
Industrial SFP+ optical module, 10G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
7832-33-G |
Industrial SFP+ optical module, 10G single-mode single fiber TX1330nm/ RX1270nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
7832-27-G |
Industrial SFP+ optical module, 10G single-mode single fiber TX1270nm/ RX13300nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV-IPS33018FM |
L2+ managed industrial Ethernet switch with 16*10/100/1000M RJ45 ports and 2*100/1000M uplink SFP fiber ports. Built-in dual power supply. It supports dual AC+DC redundant power input and 1U/19" cabinet installation. |
|
ONV-IPS38028FM |
L3 managed industrial Ethernet switch with 24*10/100/1000M RJ45 ports and 4*1/10G uplink SFP+ fiber ports. Built-in dual power supply. It supports dual AC+DC redundant power input and 1U/19" cabinet installation. |
|
ONV-IPS38368FM |
L3 managed industrial Ethernet switch with 8*10/100/1000M RJ45 ports and 24*100/1000M SFP fiber ports and 4*1/10G uplink SFP+ fiber ports. Built-in dual power supply. It supports dual AC+DC redundant power input and 1U/19" cabinet installation. |
|
ONV-IPS38448FM |
L3 managed industrial Ethernet switch 12*10/100/1000M RJ45 ports and 28*100/1000M SFP fiber ports and 4*1/10G uplink SFP+ fiber ports. Built-in dual power supply. It supports dual AC+DC redundant power input and 1U/19" cabinet installation. |
|
ONV-IPS38048FM |
L3 managed industrial Ethernet switch with 48*10/100/1000M RJ45 ports and 4*1/10G uplink SFP+ fiber ports. Built-in dual power supply. It supports dual AC+DC redundant power input and 1U/19" cabinet installation. |
TECHNICAL SPECIFICATION
|
Model |
ONV-IPS38036FM |
|
Interface Characteristics |
|
|
Fixed Port |
2*AC100-240V input ports Console port (115200, N, 8,1) Power off alarm switch port (FAULT) 4*1/10G uplink SFP+ fiber ports (Data) 24*10/100/1000Base-T RJ45 ports (Data) 8*100/1000Base-X uplink SFP fiber ports (Data) 2*DC12-48V power input ports ( support anti-reverse protection) |
|
Ethernet Port |
Port 1-24 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
Optical Fiber Port |
1/10G SFP+ optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
|
Optical Fiber Port Expansion |
Turbo overclocking 2.5G optical module expansion and ring network |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m, 850nm/ 0-300m(10G), Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
Chip Parameter |
|
|
Network Management Type |
L3 |
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3ae 10GBase-LR/SR, IEEE 802.3x |
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
Switching Capacity |
176Gbps (non-blocking) |
|
Forwarding Rate @64byte |
107.14Mpps |
|
CPU |
500MHz |
|
DRAM |
2G |
|
Flash |
128M |
|
MAC |
32K |
|
Buffer Memory |
32M |
|
Jumbo Frame |
9.6K |
|
LED Indicator |
Power: PWR (Yellow), System: SYS (Yellow), Network: Link/Act (Yellow), Fiber port: L/A (Green) |
|
Reset Switch |
Yes |
|
Power Supply |
|
|
Total PWR / Input Voltage |
60W/ (AC100-240V) |
|
Power Consumption |
Standby<30W, Full Load<45W |
|
Power Supply |
Built-in power supply, AC 100~240V 50-60Hz, 0.65A |
|
Power Input Port |
Alarm switch port, 2*AC power input ports, 2*DC12-48V input ports Dual input power port design: AC power supply priority to support anti-reverse connection protection, and automatically switches to DC connection when power fails. |
|
Physical Parameter |
|
|
Operation Temp/ Humidity |
-40°C~+80°C, 5%~90% RH Non condensing |
|
Storage Temp/ Humidity |
-40°C~+85°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
440*298*44mm |
|
Net /Gross Weight |
3.95kg/ 4.75kg |
|
Installation |
Desktop, 1U/19” cabinet |
|
Certification & Warranty |
|
|
Lightning Protection |
Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3(RS):10V/m (80~1000MHz) FCC Part 15/CISPR22(EN55022): Class B IEC61000-6-2(Common Industrial Standard) IEC61000-4-9(Pulsed magnet field): 1000A/m IEC61000-4-10(Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18(Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16(Common-mode transmission): 30V, 300V, 1s IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6(Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8(Power frequency magnetic field):100A/m,1000A/m,1-3s IEC61000-4-5(Surge): Power cable: CM±4kV/DM±2kV, Data cable: ±4kV |
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
5 years, lifelong maintenance. |
|
Network Management Feature |
|
|
Interface |
Port temperature protection setting No connection port automatic sleep IEEE 802.3x flow control (Full duplex) Port green Ethernet Energy-saving setting Broadcast storm control based on port speed SFP+ optical port DDMI real-time digital diagnosis Limit the rate of packet traffic on incoming and outgoing ports, mini granularity is 64Kbps. |
|
L3 Feature |
Pingv6, Telnetv6, TFTPv6, DNSv6, ICMPv6 IPV4/IPV6 VLANIF ports each support up to 128 IPV4/IPV6 static route/ default route, max 128 entries IPV4 Equal Cost Routing, IPV4/IPV6 VRRP max 255 group NG protocol, max 1000 entries, ARP protocol, max 1000 entries L3 network management function, IPV4/IPV6 dual-stack management IPV4 dynamic routing, RIPv1/v2, OSPFv2, BGP4+, 4000 routing entries IPV6 dynamic routing OSPFv3, BGP+, RIPng, IPV6 management, 1000 routing entries L3 routing and forwarding, support communication between different network segments and different VLAN |
|
VLAN |
Voice VLAN, QinQ configuration, IEEE 802.1q VLAN based on MAC, VLAN based on the protocol 4K VLAN based on port, Port configuration of Access, Trunk, Hybrid. |
|
Port Aggregation |
LACP dynamic aggregation, Static aggregation, Max 18 aggregation groups and 8 ports per group. |
|
Spanning Tree |
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
|
Industrial Ring Network Protocol |
G.8032 (ERPS), Recovery time less than 20ms, 250 Ring at most, Max 250 devices per ring. |
|
Multicast |
MLD Snooping, Multicast VLAN, Fast log out, IGMP Snooping v1/v2/v3, Max 1024 multicast groups |
|
Port Mirroring |
Bidirectional data mirroring based on port |
|
QoS |
Flow-based rate limiting, Flow-based redirection Queue scheduling algorithm (SP, WRR, SP+WRR) Flow-based packet filtering, 8*Output queues of each port 802.1p/DSCP priority mapping, Diff-Serv QoS, Priority mark/ remark |
|
ACL |
ACL distribution based on port and VLAN L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc. |
|
Security |
IP source address protection ARP intrusion detection function ARP message rate limiting function Port broadcast message suppression AAA&RADIUS&TACACS+ certification SSL ensures data transmission security Anti-DoS attack, MAC address black hole Limit the number of MAC addresses learned Port isolation, Host data backup mechanism Quadruple binding function of IP+MAC+VLAN+port User hierarchical management and password protection SSH 2.0 provides a secure encrypted channel for user login IEEE802.1X authentication/ centralized MAC address authentication |
|
DHCP |
DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping |
|
Management |
System work log, Dual system backup NTP clock, CPU real-time utilization status check One-click restore, Link layer discovery protocol LLDP FTP, TFTP, Xmodem, SFTP file upload and download management SNMP V1/V2/V3, Ping detection, Web network management (https) Console/AUX Modem/Telnet/SSH2.0 CLI command line configuration Cable length status detection, Mobile APP operation and maintenance NMS Network management platform cluster management (PC+cloud) |
|
System |
Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable |
