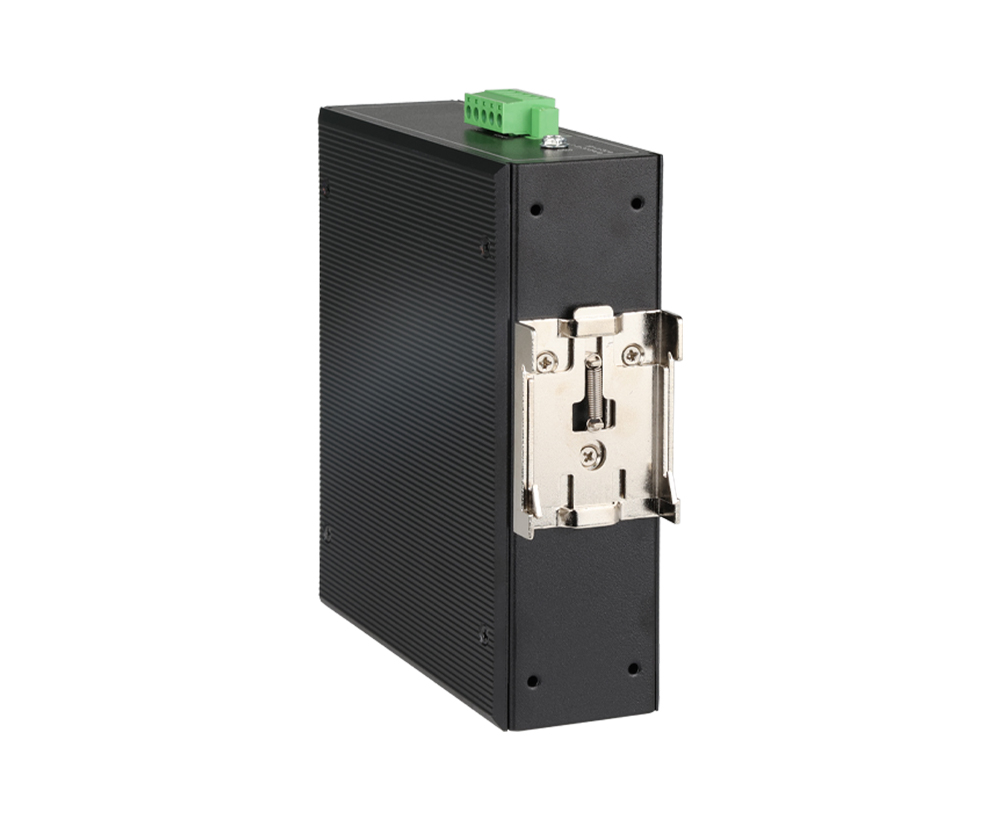

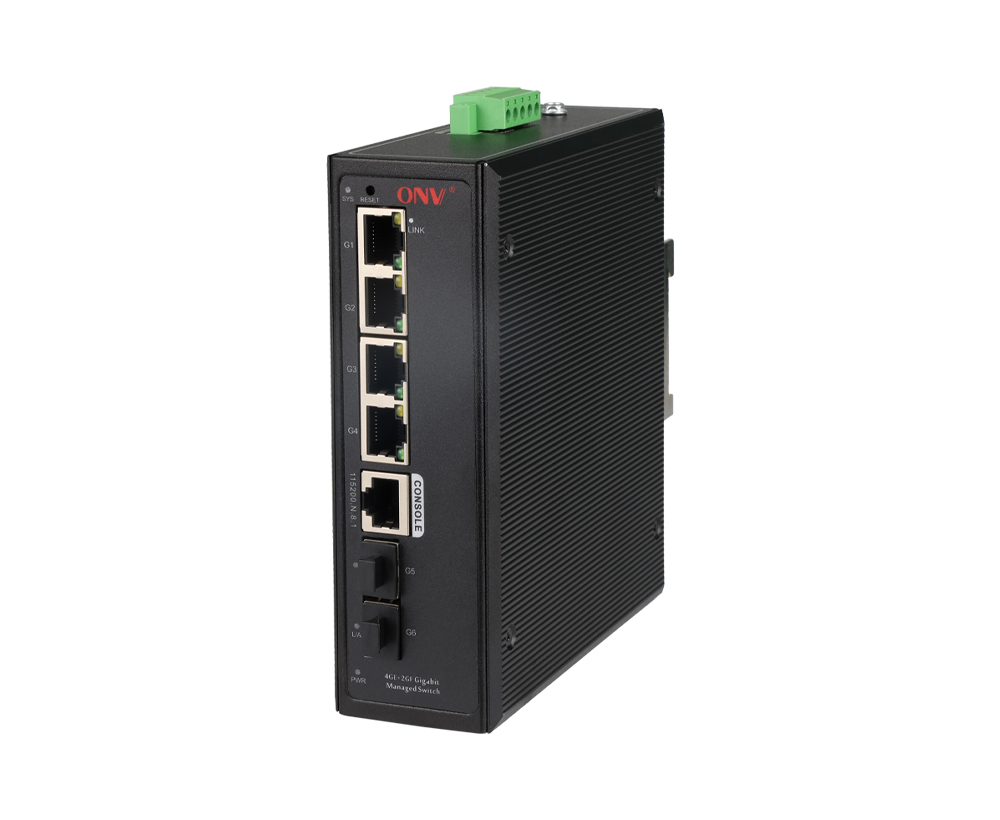

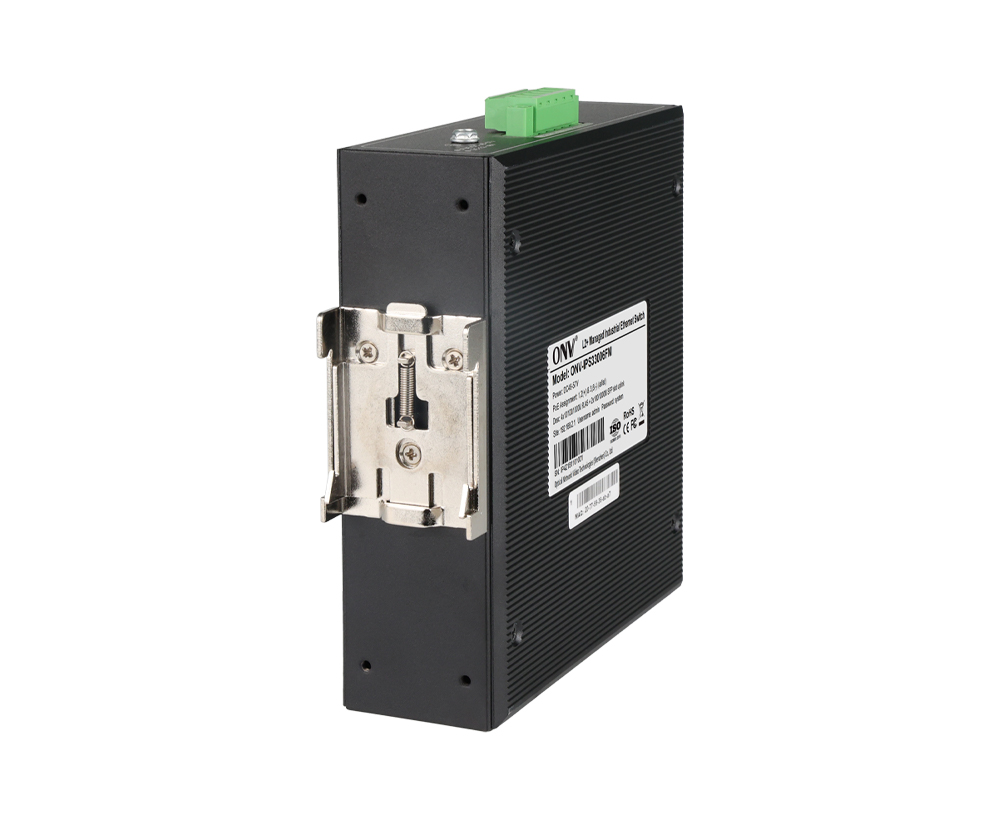

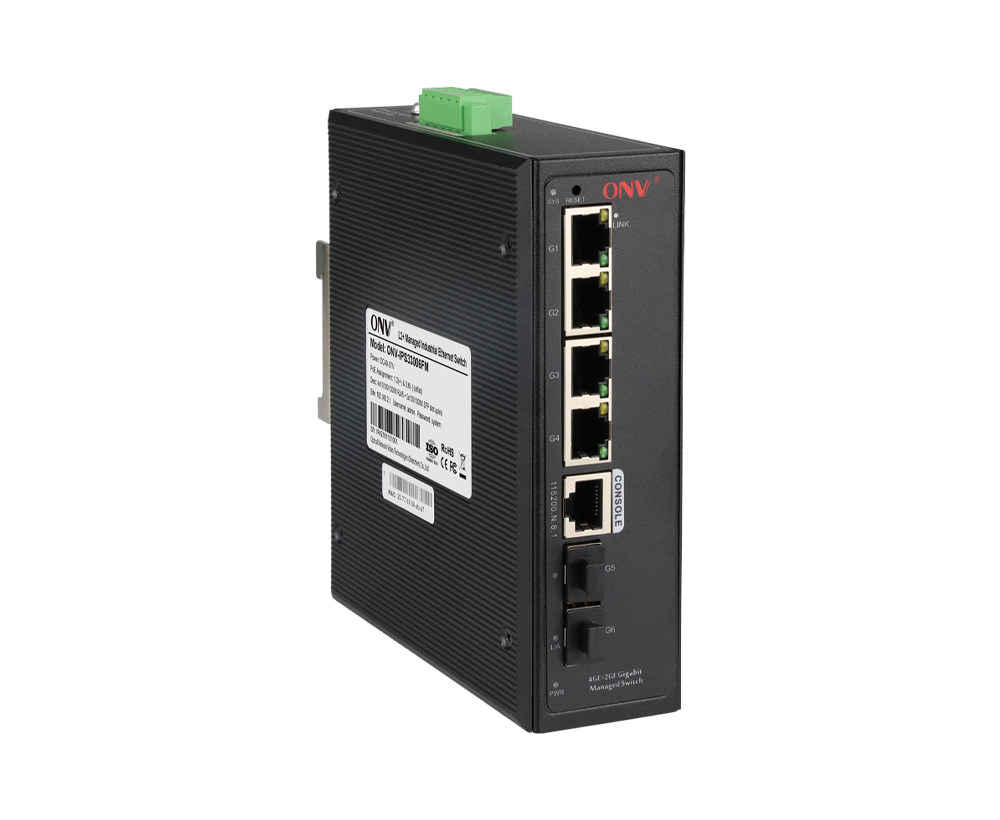

OVERVIEW
The ONV-IPS33006FM is a full Gigabit Layer 2 managed industrial Ethernet fiber switch independently developed by ONV. It has 4*10/100/1000Base-T adaptive RJ45 ports and 2*100/1000Base-X SFP optical ports. The port supports wire-speed forwarding.
The ONV-IPS33006FM has L2+ network management functions, It can support IPV4 management, static route forwarding, complete security protection mechanisms, complete ACL/QoS policies, and rich VLAN functions for easy management and maintenance. It supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) to improve link backup and network reliability to ensure uninterrupted communication for important applications. According to application needs, various application configurations such as port management, routing address management, port flow control, VLAN division, IGMP, and security policies can be performed through network management methods such as Web, CLI, SNMP, and Telnet. Industrial product design and materials, aluminum alloy shell, with excellent industrial site environmental adaptability (mechanical stability, climate environment adaptability, electromagnetic environment adaptability, etc.). Protection grade IP40, dual redundant power supply. low-power no fan cooling technology, MTBF up to 35 years, and 5 years warranty. It is suitable for industrial scenarios such as intelligent transportation, rail transportation, power industry, mining, petroleum, shipping, metallurgy, and green energy construction to establish an economical, efficient, stable, and reliable communication network.

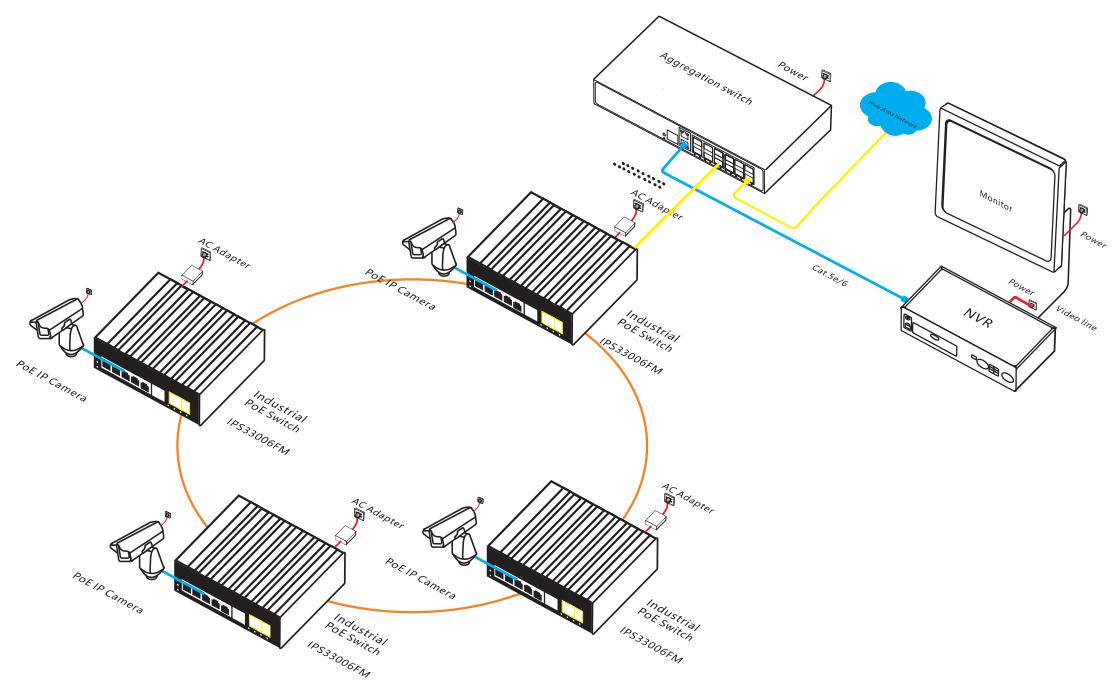

FEATURE
Gigabit access, SFP fiber port uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support Gigabit Ethernet port and Gigabit SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Strong business processing capability
◇ Support STP/RSTP/MSTP to eliminate layer 2 loops and realize link backup.
◇ IEEE 802.1Q VLAN, users can flexibly divide VLAN according to needs. Three types of port configurations (Access, Trunk, Hybrid).
◇ Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
◇ Support QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
◇ Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
◇ Support IGMP Snooping V1/V2/V3 multicast protocol IGMP Snooping to meet the high-definition video surveillance and video conference access requirements.
Security
◇ Support port isolation.
◇ Support port broadcast storm suppression.
◇ Support IP+MAC+port+VLAN quadruple flexible combination binding function.
◇ Support 802.1X authentication to provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, L/A.
◇ Low power consumption, No fan, aluminum shell, and excellent heat dissipation ensure the stable operation of the switch.
Easy O&M management
◇ CPU monitoring, memory monitoring, Ping detection, cable length detection.
◇ HTTPS, SSHV1/V2 and other encryption methods, making management more secure.
◇ RMON, system log, and port traffic statistics to facilitate network optimization and transformation.
◇ LLDP to facilitate the network management system to query and judge the communication status of the link.
◇ Web network management, CLI (Console, Telnet), SNMP (V1/V2/V3), Telnet and other diversified management and maintenance methods.
DIMENSION
ORDERING INFORMATION
Model |
Description |
Recommended Power Supply |
ONV-IPS33006FM |
L2+ managed industrial Ethernet fiber switch with 4*10/100/1000M RJ45 ports and 2*100/1000M SFP slot ports. It can support dual DC power input and DIN rail mounting. |
24V/24W |
Note: The optical module and power supply are not included. need to be purchased separately. |
PACKING LIST
Packing List |
Content |
Qty |
Unit |
6-port full gigabit managed industrial Ethernet switch |
1 |
SET |
|
RJ45-DB9 adaptation conversion line |
1 |
PC |
|
User guide |
1 |
PC |
|
Warranty card |
1 |
PC |
OPTICAL MODULE
Product |
Model |
Description |
Unit |
1.25G Optical Module
|
2630-G |
Industrial SFP optical module, 1.25G, multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. supports DDM function and hot plugging. |
PC |
2632-G |
Industrial SFP optical module, 1.25G, single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
2612-T-G |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
2613-R-G |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
2612-T-G-SC |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
|
2613-R-G-SC |
Industrial SFP optical module, 1.25G, single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
|
Power Module |
2633 |
1.25G SFP optical module transfers to 10/100/1000M RJ45 port. |
PC |
POWER SUPPLY
Product |
Model |
Description |
Unit |
24W DIN Rail Industrial Power Supply |
GWS-DP24-24 |
Din Rail 24W single set of output power supply Input Voltage: AC100V~240V 50-60H, 0.35A Output Voltage: DC24V, 1.0A Operation Temperature:-40℃ to +70℃ |
PC |
RELATED PRODUCT
Model |
Description |
ONV-IPS33010FM |
L2+ managed industrial Ethernet fiber switch with 8*10/100/1000M RJ45 ports and 2*100/1000M SFP slot ports. It can support dual DC power input and DIN rail mounting. |
ONV-IPS33128FM |
L2+ managed industrial Ethernet fiber switch with 10*10/100/1000M RJ45 ports and 2*100/1000M SFP slot ports. It can support dual DC power input and DIN rail mounting. |
ONV-IPS33148FM |
L2+ managed industrial Ethernet fiber switch with 10*10/100/1000M RJ45 ports and 4*100/1000M SFP slot ports. It can support dual DC power input and DIN rail mounting. |
ONV-IPS33168FM |
L2+ managed industrial Ethernet fiber switch with 8*10/100/1000M RJ45 ports and 8*100/1000M SFP slot ports. It can support dual DC power input and DIN rail mounting. |
ONV-IPS33168FM-4GF |
L2+ managed industrial Ethernet fiber switch with 12*10/100/1000M RJ45 ports and 4*100/1000M SFP slot ports. It can support dual DC power input and DIN rail mounting. |
TECHNICAL SPECIFICATION
Model |
ONV-IPS33006FM |
Interface Characteristics |
|
Fixed Port |
1*RS232 console port (115200,N,8,1) 4*10/100/1000Base-T RJ45 ports (Data) 2*100/1000Base-X uplink SFP ports (Data) 2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal) |
Ethernet Port |
Port 1-4 support 10/100/1000Base-T auto-sensing, Full/ half duplex MDI/ MDI-X self-adaption |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
SFP Slot Port |
Gigabit SFP optical fiber interface, default matching optical modules (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-500m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
Chip Parameter |
|
Network Management Type |
L2+ |
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-TX, IEEE802.3z 1000Base-X, IEEE802.3x |
Forwarding Mode |
Store and Forward(Full Wire Speed) |
Switching Capacity |
12Gbps |
Forwarding Rate@64byte |
8.93Mpps |
CPU(Hz) |
500M |
DRAM |
1G |
Flash |
128M |
MAC |
8K |
Buffer Memory |
4.1M |
Jumbo Frame |
10K |
LED Indicator |
Power/ System: SYS (Green), Network: Link (Yellow), Fiber port: L/A (Green) |
Reset Switch |
Yes, Press and hold the reset switch for 10s and release it to restore the factory settings |
Power Supply |
|
Working Voltage |
DC12-48V, 5P Phoenix terminal connection, supports anti-reverse connection protection |
Power Consumption |
Standby<8W, Full load<12W |
Power Supply |
No, optional 24V/24W industrial power supply |
Physical Parameter |
|
Operation TEMP / Humidity |
-40~+80°C, 5%~90% RH Non condensing |
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
Dimension (L*W*H) |
145*134.5*47.5mm |
Net /Gross Weight |
<0.6kg / <0.8kg |
Installation |
Desktop, 35mm DIN rail |
Certification & Warranty |
|
Lightning Protection |
Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable: ±4kV; data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m,1s to 3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV |
Mechanical Properties |
IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock) IEC60068-2-32 (free fall) |
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Warranty |
5 years, lifelong maintenance. |
Network Management Features |
|
Interface |
IEEE802.3x flow control (Full duplex) Broadcast storm suppression based on port rate Port real-time traffic management (Flow Interval) Limit the rate of packet traffic on incoming and outgoing ports. mini granularity is 16Kbps and max is 1Gbps. |
Layer 3 Features |
ARP protocol max entries 1024 L2+ network management function IPV4 static route/default route, max entries 128 |
VLAN |
Three types of port configurations (Access, Trunk, Hybrid) Protocol-based VLAN, Port-based VLAN (4K), IEEE802.1q |
Port Aggregation |
Static aggregation, LACP dynamic aggregation Max 3 aggregation groups, per aggregation group support up to 8 ports |
Spanning Tree |
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
Multicast |
Multicast VLAN, User quick exit mechanism IGMP Snooping v1/v2 max 1024 broadcast groups |
Port Mirroring |
Bidirectional data mirroring based on port |
QoS |
Diff-Serv QoS, Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Rate Limiting, Flow-based Packet Filtering 8*Output queues of each port, 802.1p/ DSCP priority mapping |
ACL |
Port-based Issuing ACL, ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
Security |
IP-MAC-VLAN-Port binding, MAC learning limit AAA & RADIUSMac black holes, IP source protection SSH 2.0, SSL, Port isolation, ARP message speed limit User hierarchical management and password protection IEEE802.1X & MAC address authentication, Anti-DoS attack Broadcast storm control, Backup for host datum, ARP inspection |
DHCP |
DHCP Client, DHCP Snooping, DHCP Server |
Management |
One-key recovery, CPU instant utilization status view NTP, Cable Diagnose, Link Layer Discovery Protocol ONV-NMS platform cluster management (LLDP+SNMP) FTP, TFTP, Xmodem, SFTP file upload and download management Console/ AUX Modem/ Telnet/ SSH2.0 CLI Command line configuration System work log, Ping Test, Web Management (HTTPS),SNMP V1/V2/V3 |
System |
Category 5 Ethernet network cable Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
