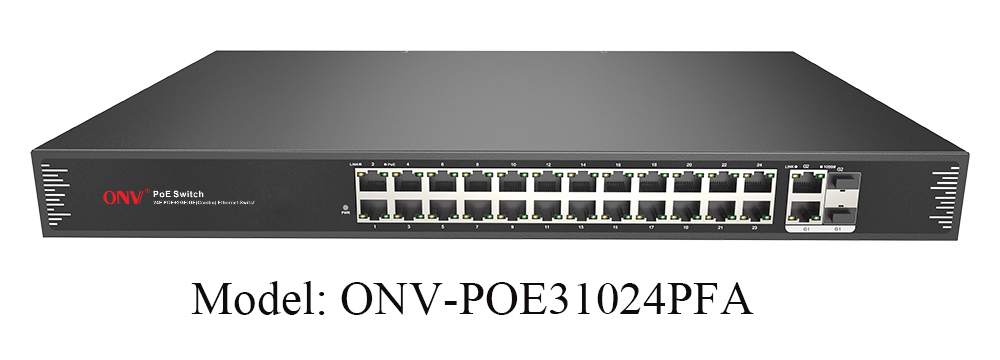

[Abstract]: ONV-POE31024P, 24-Port PoE Switch, is developed for small-sized enterprise and cyber cafe. With 4K MAC address and 8.8Gbps bandwidth, it assures the transmission rate well.
ONV-POE31024P, 24-Port PoE Switch, is developed for small-sized enterprise and cyber cafe. With 4K MAC address and 8.8Gbps bandwidth, it assures the transmission rate well. ONV-POE31024P, in the appearance, is designed at small size of 330*205*44.5mm(L*W*H) and has compendious LED indicator definition. On the performance, it can be working by turning on the power, without any configuration. And it is compatible with many operating system such as PC, Macintosh, Linux and Unix.
Support power supply to AP and IP cameras through Cat.5 cable
1-24 Port support PoE function at the standard of IEEE802.3af. The max power for each port is 15.4W.
24x 10/100M auto-sensing RJ45 ports, 2 10/100/1000M auto-sensing RJ45 ports.
Up to the standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x Flow Control, IEEE 802.1af.
Flow Control Mode: Full duplex at IEEE 802.3x standard. Half duplex at Back pressure standard.
Support Auto MDI/MDIX.
Support anti-thunder protection for RJ45 port.
Total power: 250W
Forwarding Mode: Save and forward. Forwarding Memory: 192K.
All port could support wire-speed switch.( Frame length range: 64-1536)
Plug and Play
1. Intelligent PoE technology, high performance & green energy system, 40% power assumption less than same level product.
2. Strict testing before launching ( Including the testing for High/ Low Temperature, Vibration, EMC, Surge & Signal etc.)
3. Super cache, Intelligent Cache Schedule Technology, Long frame transmission mode, without any packet loss for monitoring burst data.
