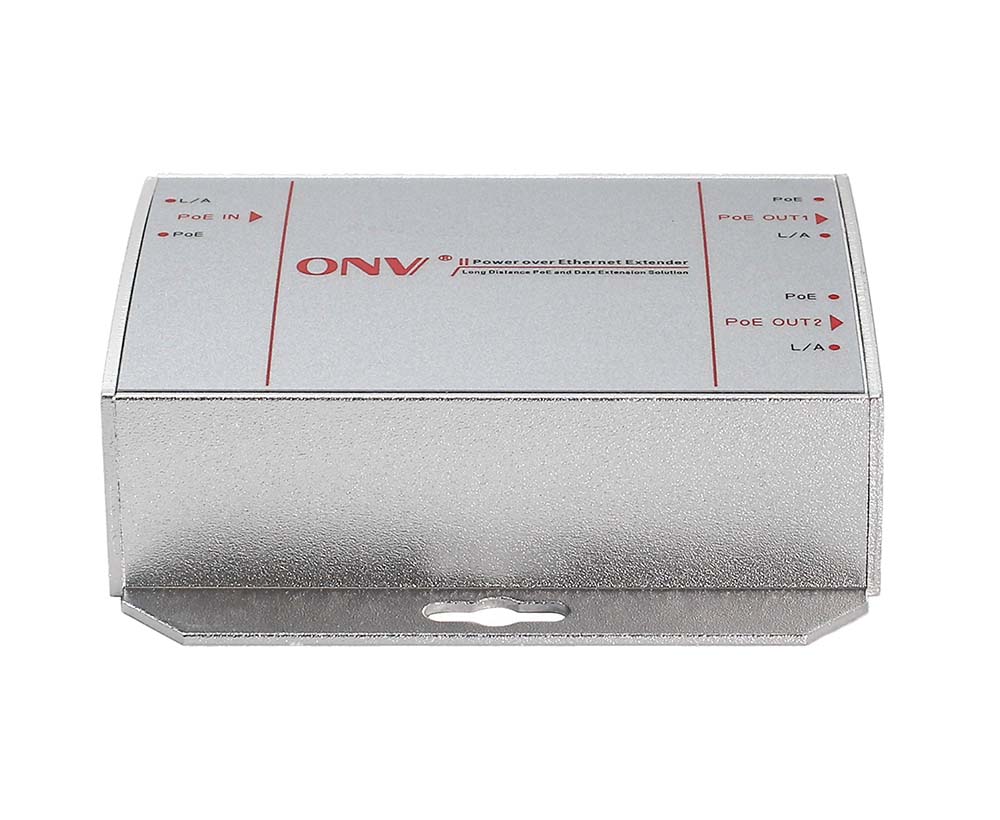

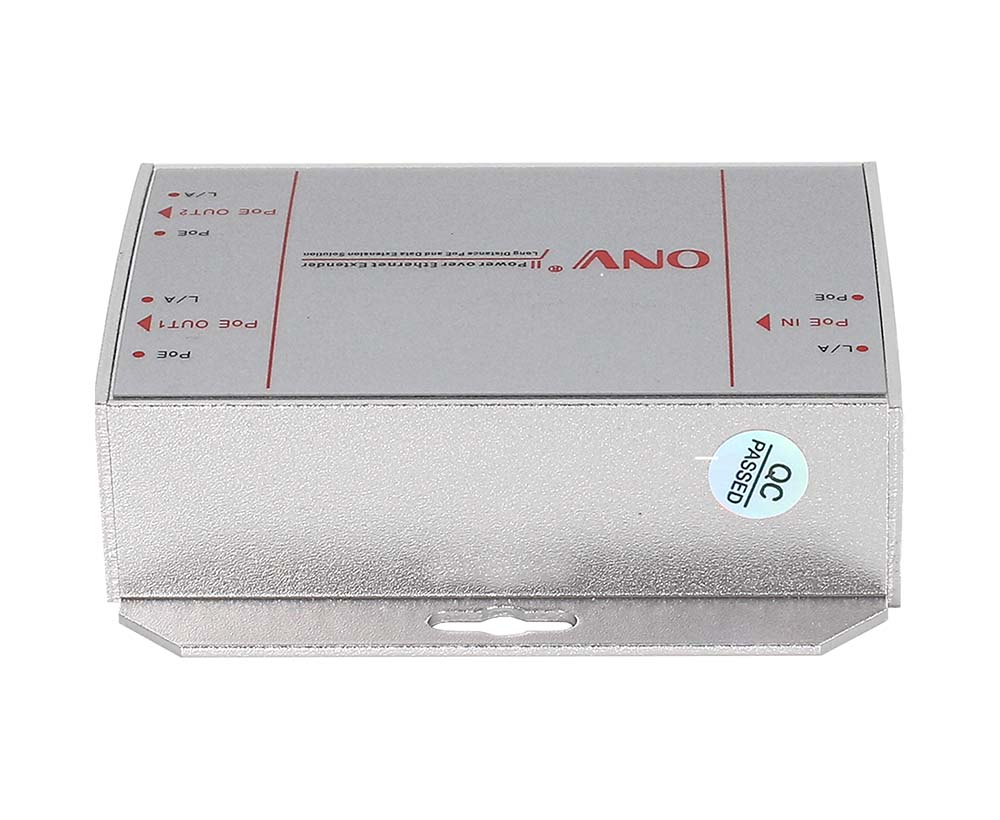

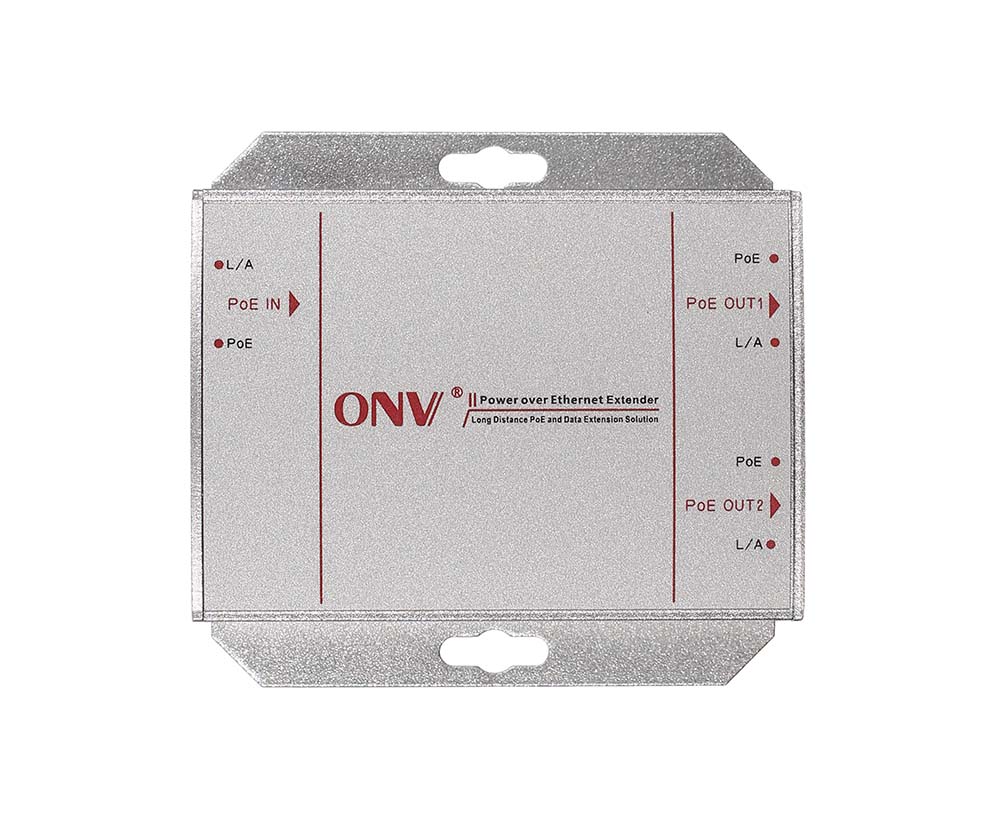

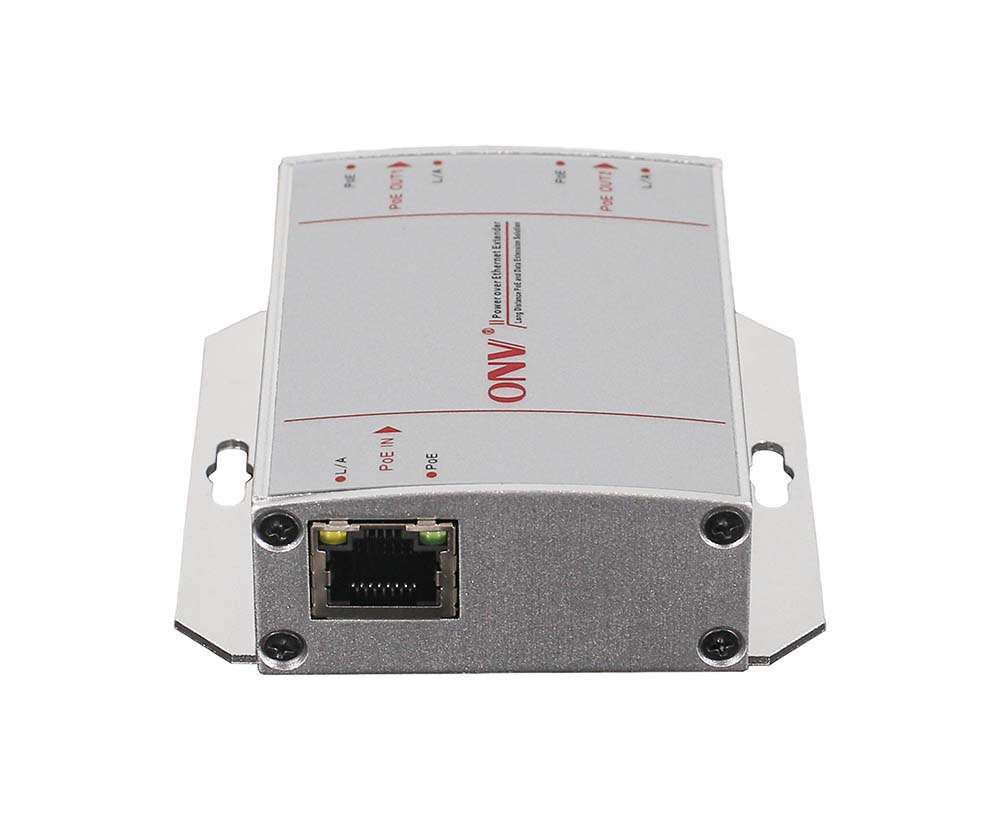

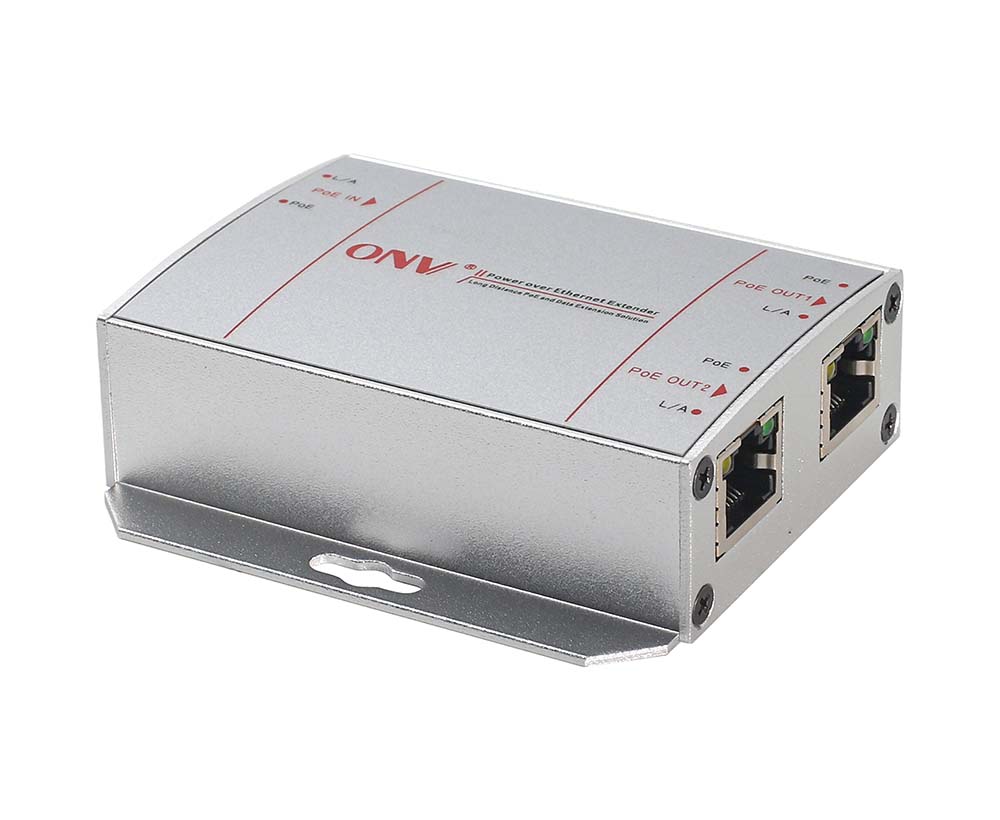

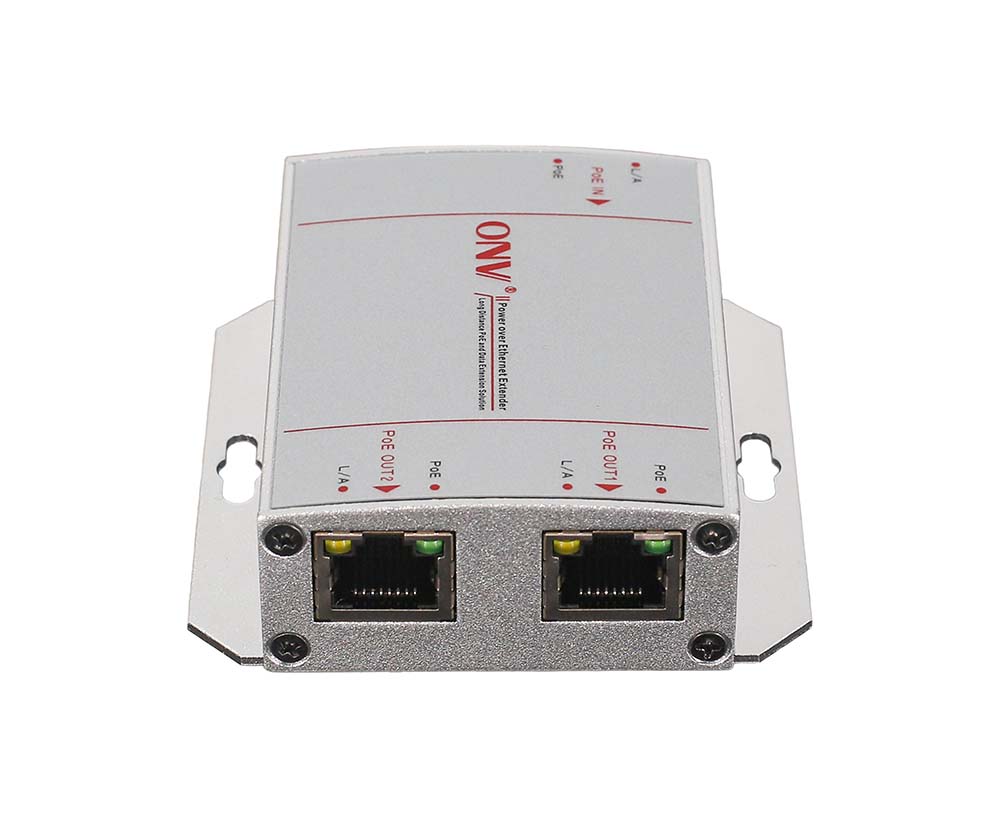

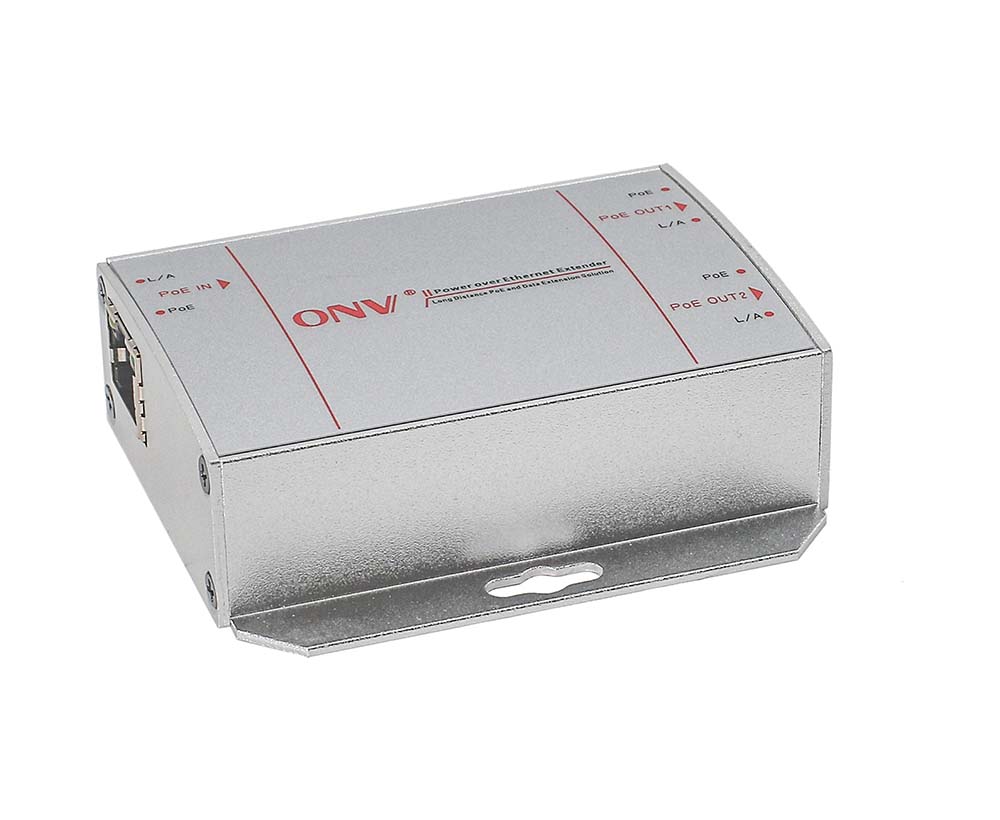

OVERVIEW
The ONV-PSE-PD3102 is a 1/100M PoE Extender with 2*10/100M PoE ports and 1*10/100M uplink RJ45 port. Port 1-2 can support the IEEE 802.3 af/at PoE standard, single-port PoE power output of up to 30W. The uplink port, being the power receiving port, requires an input power greater than 24W to meet the PoE power supply requirements of ports 1-2. As a PoE power supply device, it can automatically detect and identify compliant powered devices and supply power to them via Ethernet cable. It can power PoE terminal devices such as wireless APs, network cameras, VoIP phones, and video intercoms via Ethernet cable, meeting the needs of network environments requiring high-density PoE power supply. It provides lossless bandwidth for twisted-pair PoE transmission applications within a 200-meter range, making it suitable for hotels, campuses, industrial parks, scenic areas, factory dormitories, and small and medium-sized enterprises to build cost-effective networks. Plug and play, no configuration, easy to use.
FEATURE
10/100M access
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ 3*10/100Base-TX RJ45 ports to meet the power supply and transmission requirements of the scene within 200 meters.
Intelligent PoE power supply
◇ 2*10/100Base-TX RJ45 ports support PoE power supply to meet the needs of PoE power supply in various security scenarios.
◇ Complies with IEEE 802.3 af/at PoE standard and automatically identifies PoE devices for power supply without damaging non-PoE devices. The max PoE output power is 24W, and single-port max PoE output power is 30W.
Innovative function
◇ 24W power supply via repeater port, simultaneous use of 8 cores effectively reduces line loss and ensures PoE output power meets usage requirements.
◇ No external power supply is required for PoE extender operation, easily providing sufficient bandwidth and power for network cable transmission within 200 meters.
Stable and reliable
◇ CE, FCC, RoHS.
◇ Low power consumption, fanless quiet design, metal shell, excellent heat dissipation.
◇ PoE extender does not require an external power supply when working and can solve network cable transmission within 200 meters.

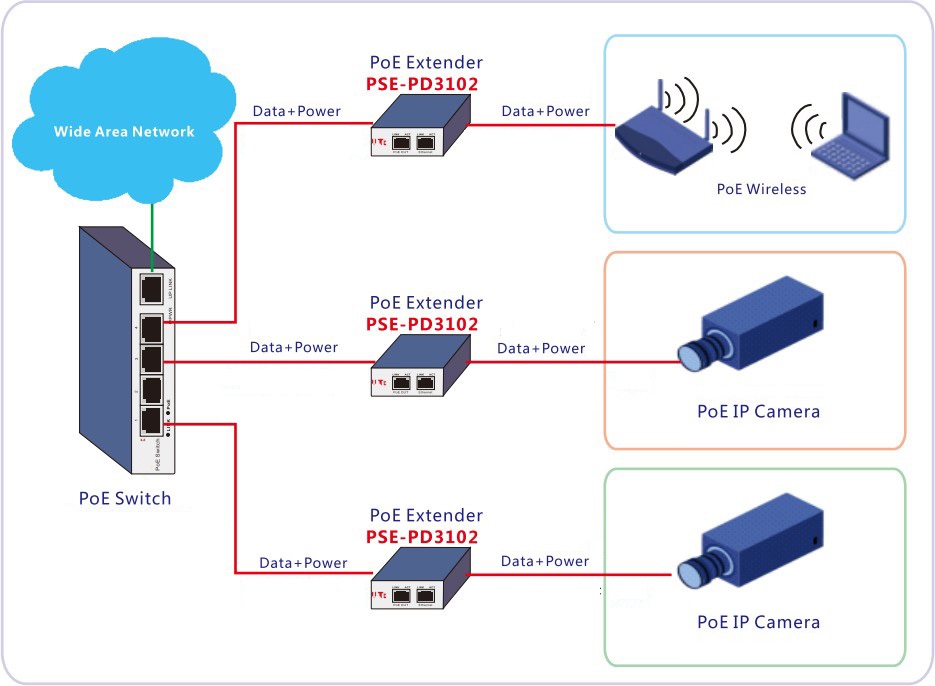

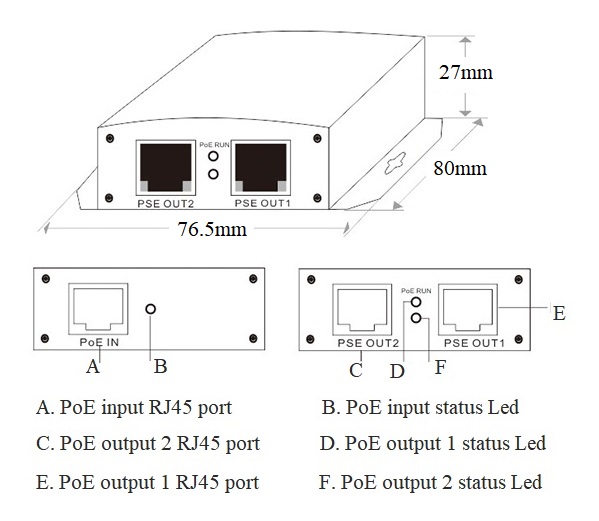

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
|
ONV-PSE-PD3102 |
PoE extender with 2*10/100M RJ45 ports and 1*10/100M uplink RJ45 port. Port 1-2 support IEEE802.3 af/at PoE standard, and the uplink port supports 24W PoE input. |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
3-port 10/100M PoE extender |
1 |
Set |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV-PSE-PD3302 |
PoE extender with 2*10/100/1000M PoE ports and 1*10/100/1000M uplink PD RJ45 port. Port 1- 2 can support IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Metal shell) |
|
ONV-PSE-PD3121L |
PoE extender with 2*10/100M PoE ports and 1*10/100M uplink PD RJ45 port. Port 1- 2 can support IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Plastic shell) |
|
ONV-PSE-PD3321 |
PoE extender with 2*10/100/1000M PoE ports and 1*10/100/1000M uplink PD RJ45 port. Port 1- 2 can support IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Plastic shell) |
|
ONV-PSE-PD3304 |
PoE extender with 4*10/100/1000M PoE ports and 1*10/100M uplink PD RJ45 port. Port 1- 4 can support IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Plastic shell) |
TECHNICAL SPECIFICATION
|
Model |
ONV-PSE-PD3102 |
|
Interface Characteristics |
|
|
Fixed Port |
2*10/100Base-TX PoE ports (Data/Power) 1*10/100Base-TX uplink power receiving port (Data/Power) |
|
Ethernet Port |
Port 1-3 support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x |
|
Forwarding Mode |
Store and forward (Full wire speed) |
|
Switching Capacity |
1.6Gbps(non-blocking) |
|
Forwarding Rate@64byte |
0.45Mpps |
|
MAC |
1K |
|
Buffer Memory |
98K |
|
LED Indicator |
Power: PWR (Green), POE: PoE (Green) |
|
PoE& Power Supply |
|
|
PoE Port |
Port 1-2 |
|
Power Supply Pin |
1/2,4/5(+),3/6,7/8(-) |
|
Max Power Per Port |
30W |
|
Total Power |
24W |
|
Power Consumption |
Standby<1W, full load<24W |
|
Physical Parameter |
|
|
Operation TEMP/ Humidity |
-20°C~+55°C, 5%~90% RH non-condensing |
|
Storage TEMP/ Humidity |
-40°C~+80°C, 5%~95% RH non-condensing |
|
Dimension (L*W*H) |
80*76.5*27mm |
|
Net /Gross Weight |
0.2kg /0.3kg |
|
Installation |
Desktop, wall-mounted |
|
Certification& Warranty |
|
|
Lightning Protection |
4KV 8/20us, Protection level: IP30 |
|
Certification |
CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS |
|
Warranty |
3 years, lifelong maintenance |
