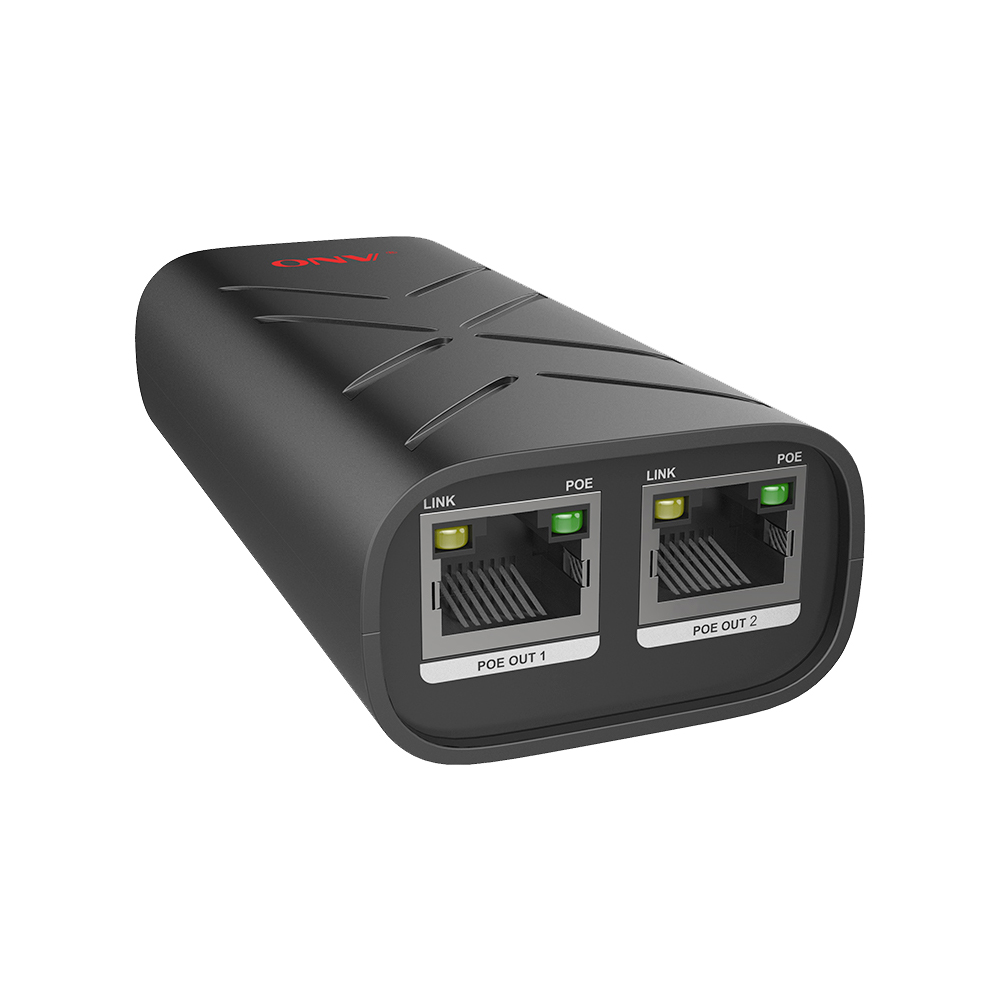

ONV-PSE-PD3121L is a 10/100M PoE extender. It has 2*10/100M PoE ports and 1*10/100M uplink PD RJ45 port. Port 1-2 can support IEEE802.3af/at PoE standard. Single-port PoE powers up to 25W. The working power of the PoE extender is taken from the PoE switch and no additional power supply. It is installed at the end of the 100-meter network cable to extend the network and PoE power supply by 100 meters at full speed. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, video access control, etc., through a network cable, to meet the network environment that requires high-density PoE power supply, and to reduce the bandwidth to solve the twisted pair POE transmission within 200 meters. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to form a cost-effective network. Plug and play, no configuration, easy to use.
FEATURE
10/100M access, uplink PD RJ45 port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ 3*10/100Base-TX RJ45 ports to meet the power supply and transmission requirements of the scene within 200 meters.
Intelligent PoE power supply
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ 2*10/100Base-TX RJ45 ports can support PoE power supply to meet the needs of PoE power supply in various security scenarios.
Innovative function
◇ PoE Extender can extend network signal transmission distance and PoE power supply distance.
◇ PoE Extender does not require an external power supply, easily solving the problem of insufficient bandwidth and power for network cable transmission within 200 meters.
◇ Selectable 100M/100m standard transmission and 10M/250m long-distance working modes easily solve power supply and transmission problems for distances exceeding 100 meters (Note: For ultra-long-distance repeating, ensure the quality of the network cable matches the power consumption of the equipment).
Stable and reliable
◇ CE, FCC, RoHS.
◇ Plug and play, no configuration, easy to use and maintain.

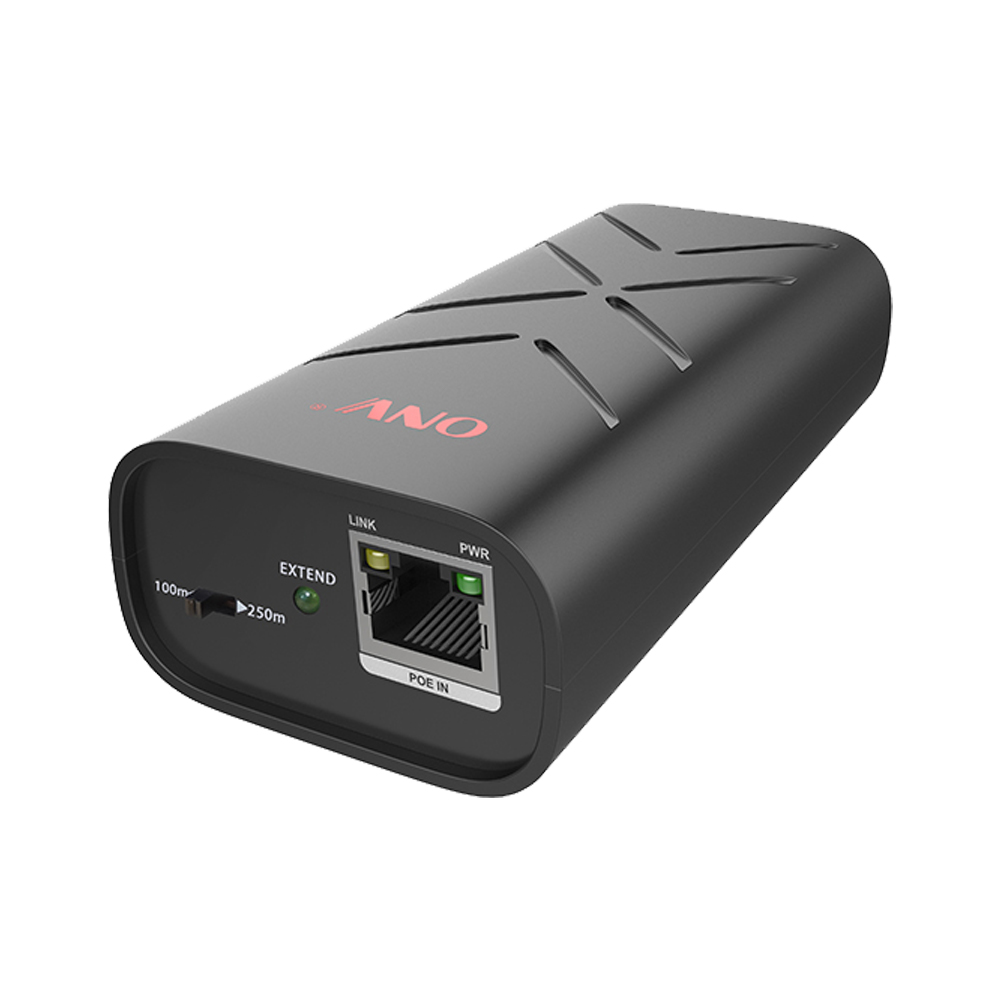

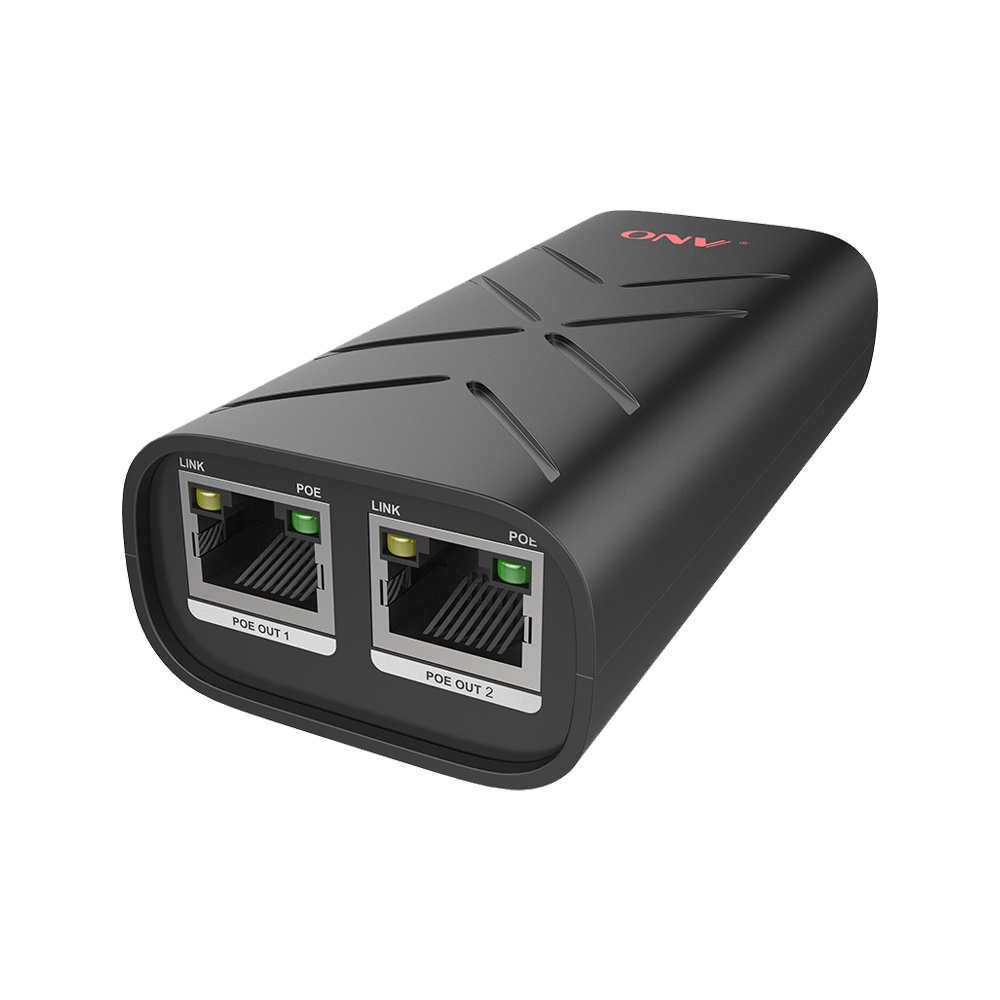

◇ The user-friendly panel can show the device status through the LED indicators of PWR, Link, and PoE.
◇ Low power consumption, fanless silent design, advanced ABS and PC flame-retardant plastic shell is exquisite and beautiful.

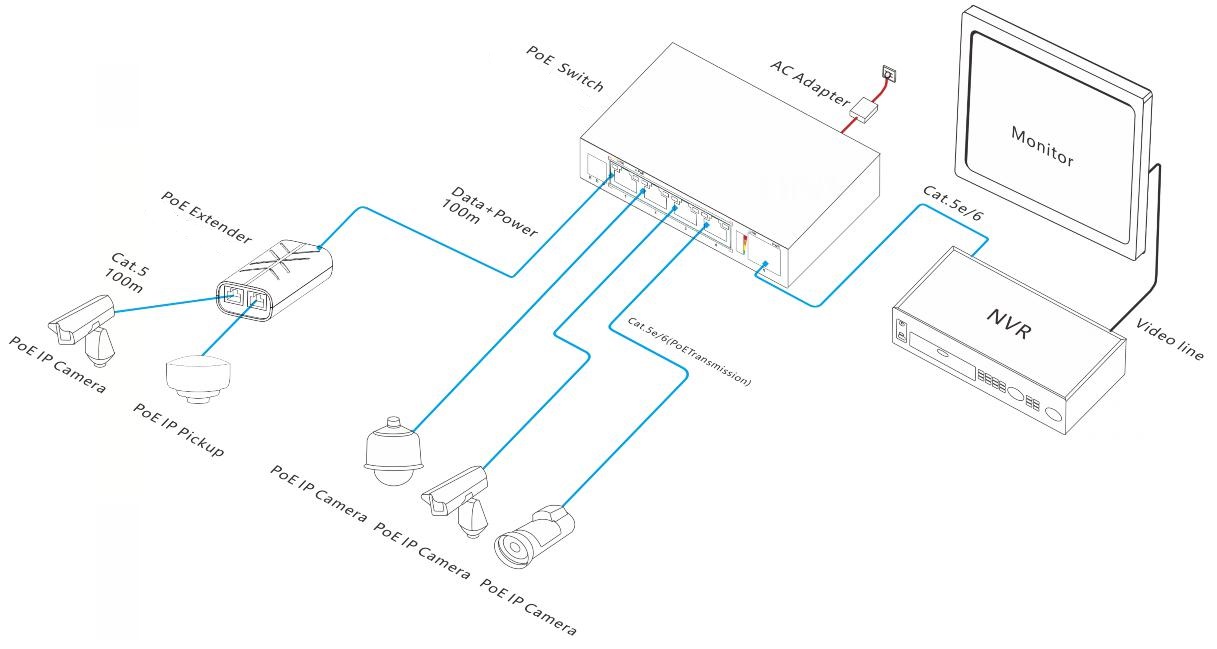

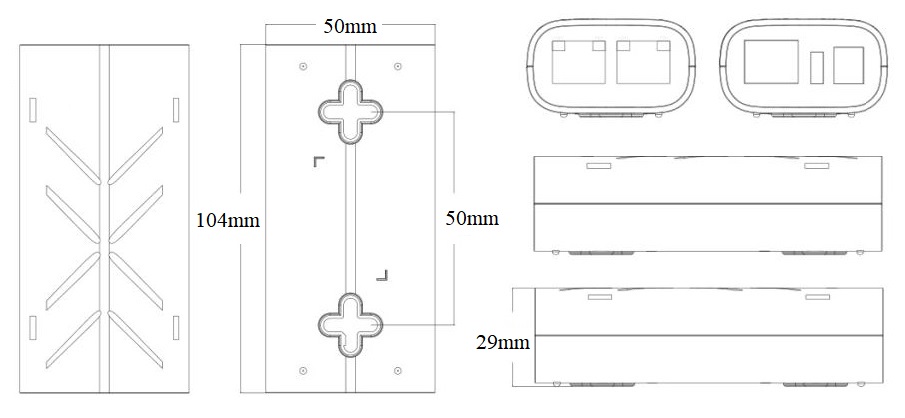

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
|
ONV-PSE-PD3121L |
PoE extender with 2*10/100M PoE ports and 1*10/100M uplink PD RJ45 port. Port 1- 2 can support IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Plastic shell) |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
3-port 10/100M PoE extender |
1 |
Set |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV-PSE-PD3321 |
PoE extender with 2*10/100/1000M PoE ports and 1*10/100/1000M uplink PD RJ45 port. Port 1- 2 can support IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Plastic shell) |
|
ONV-PSE-PD3304 |
PoE extender with 4*10/100/1000M PoE ports and 1*10/100M uplink PD RJ45 port. Port 1- 4 can support IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Plastic shell) |
|
ONV-PSE-PD3102 |
PoE extender with 2*10/100M PoE ports and 1*10/100M uplink PD RJ45 port. Port 1- 2 can support IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Metal shell) |
|
ONV-PSE-PD3302 |
PoE extender with 2*10/100/1000M PoE ports and 1*10/100/1000M uplink PD RJ45 port. Port 1- 2 can support IEEE802.3af/at PoE standard. Extend data communication and power supply by 100 meters. (Metal shell) |
|
Model |
ONV-PSE-PD3121L |
|
Interface Characteristics |
|
|
Fixed Port |
2*10/100Base-TX PoE ports (Data/Power) 1*10/100Base-TX uplink PD RJ45 port (Data/Power) |
|
Ethernet Port |
Port 1-3 support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) |
|
Function switch |
Two working modes: 100m and 250m 100m: Works in standard 100M/100m mode, 250m: Works in long-distance 10M/250m mode |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX,IEEE802.3x |
|
Forwarding Mode |
Store and forward(Full wire speed) |
|
Switching Capacity |
1.0Gbps(non-blocking) |
|
Forwarding Rate@64byte |
0.45Mpps |
|
MAC |
1K |
|
Buffer Memory |
512K |
|
Jumbo Frame |
1536byte |
|
LED Indicator |
Power: PWR (Green), Data: Link(Yellow), POE: PoE (Green) |
|
PoE& Power Supply |
|
|
PoE Port |
Port 2-3, IEEE802.3af/at |
|
Power Supply Pin |
1/2 (+) 3/6 (-) |
|
Max Power Per Port |
25W, IEEE802.3af/at (Limited by max input power of at) |
|
Total PWR/ Input Voltage |
25W/(DC48-57V) |
|
Power Consumption |
Standby<2W, full load<30W |
|
Input Voltage and Interface |
48-57V PoE (IEEE802.3af/at), RJ45 port connection |
|
Physical Parameter |
|
|
Operation TEMP/ Humidity |
-20~+55°C, 5%~90% RH non-condensing |
|
Storage TEMP/ Humidity |
-40~+80°C, 5%~95% RH non-condensing |
|
Dimension |
104*50*29mm |
|
Net/Gross Weight |
0.15kg/0.2kg |
|
Installation |
Desktop, Wall-mounted |
|
Certification& Warranty |
|
|
Lightning Protection |
4KV 8/20us, Protection level: IP30 |
|
Certification |
CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS |
|
Warranty |
3 years, lifelong maintenance |
