OVERVIEW

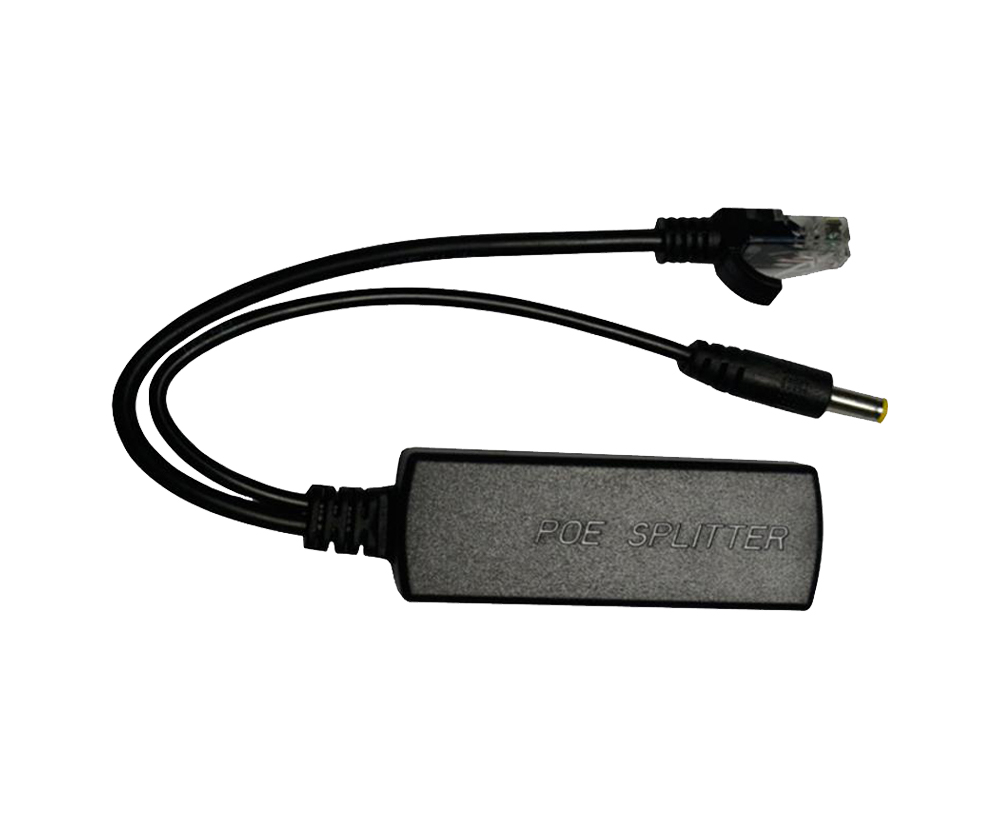

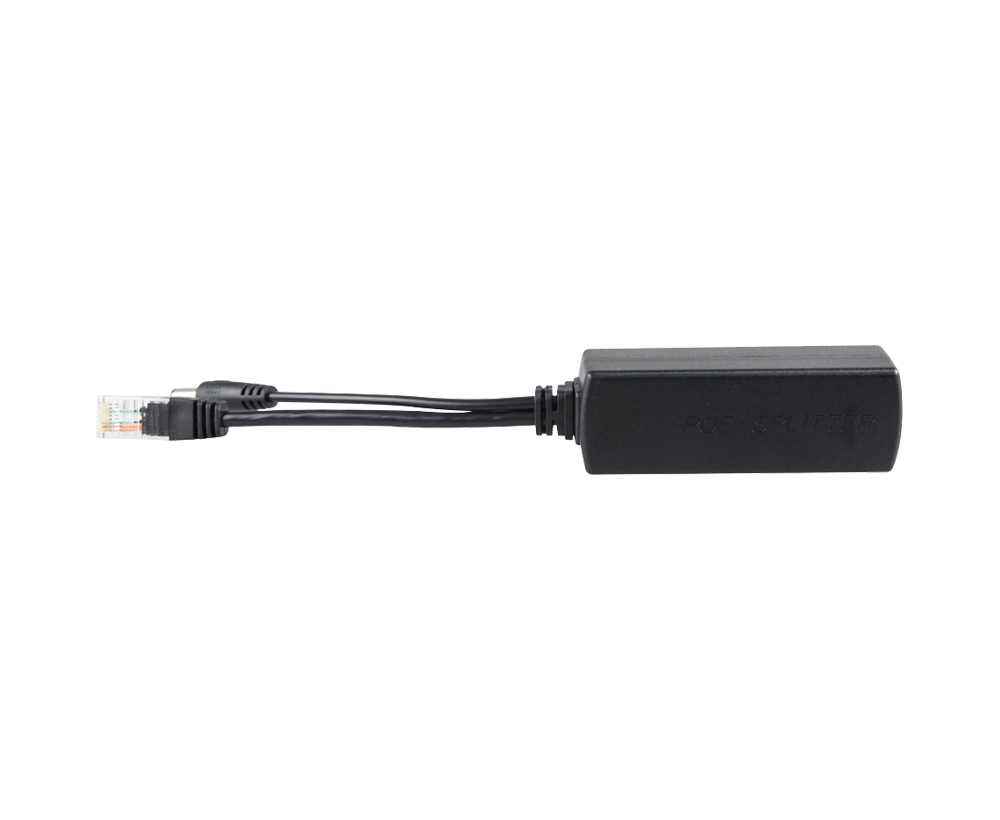

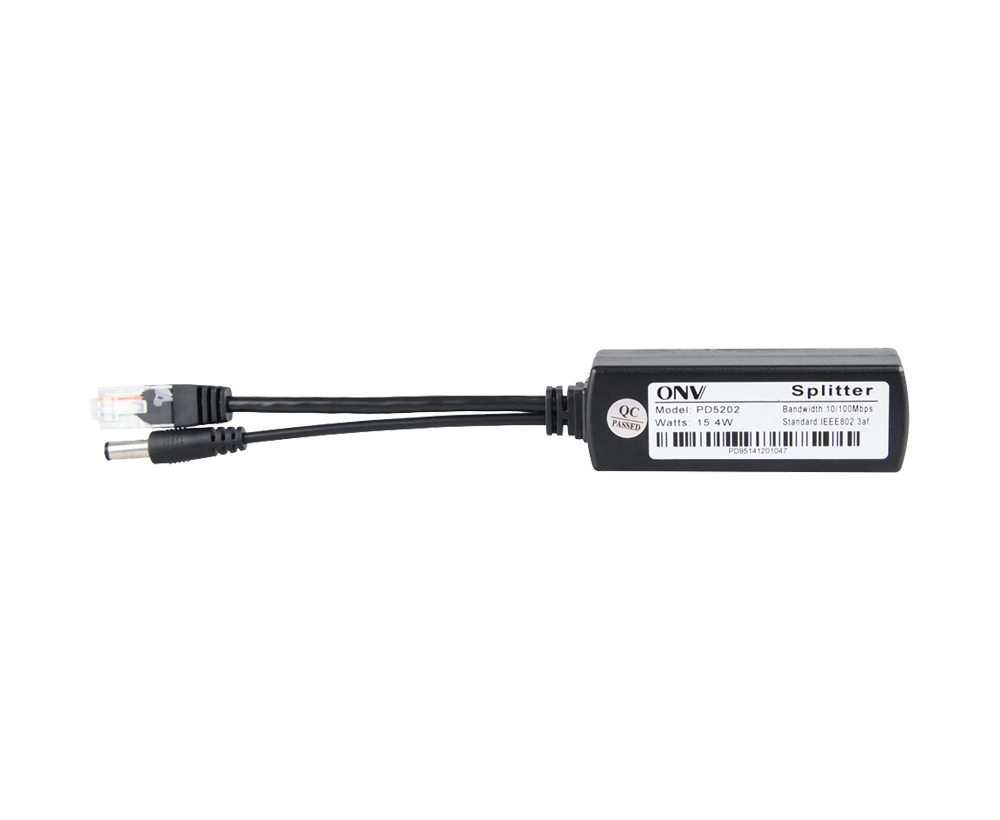

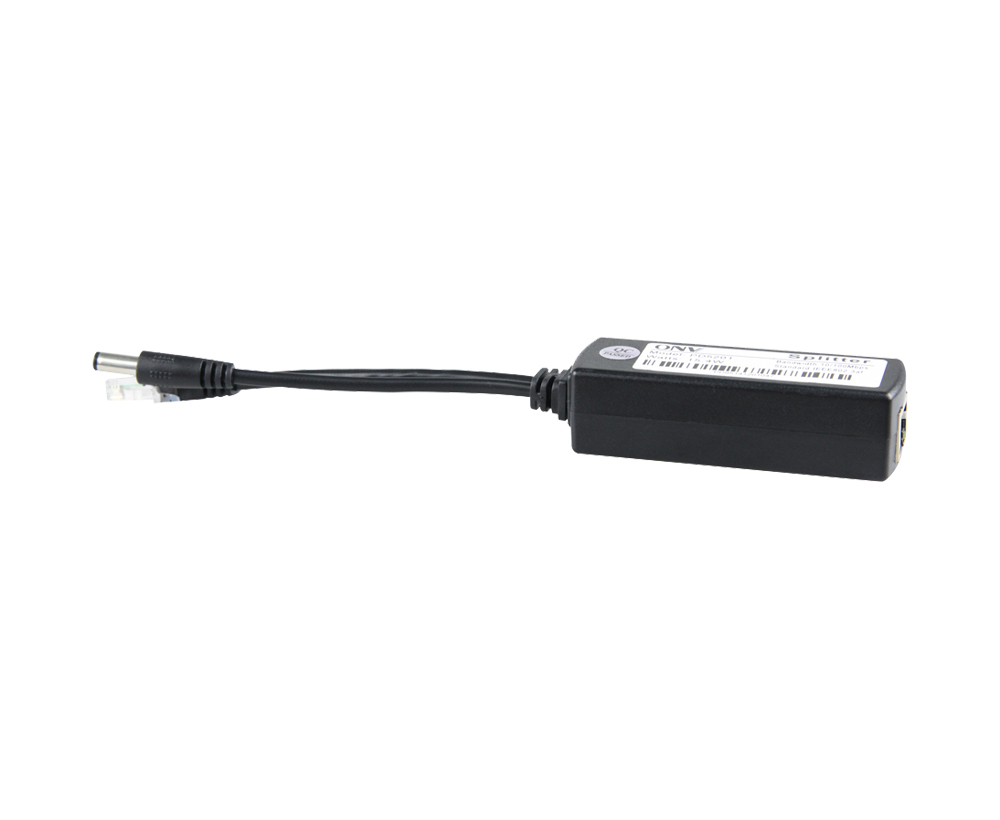

The ONV-PD5202 is a 10/100M PD PoE splitter cable independently developed by ONV. It has 1*10/100Base-TX RJ45 port and 1*8P male output port and 1*DC5521 power port. The invention meets the requirements that various non-PoE network terminals can be externally connected with PoE switches for use, flexibly expands security monitoring and wireless networks without being limited by power line layout, reduces system wiring, improves system stability and safety, and reduces maintenance cost.
The ONV-PD5202 housing is made of ABS and PC flame retardant plastic material,Meeting the standard of IEEE802.3af/at. Compatible with power supply methods of both End-span(1,2+ 3,6-) and Mid-span (4,5+ 7,8-). With the features of output power at 13W, low ripple, more than 82% high efficiency, Port Isolation Protection: 2KV and Protection for short circuit, over-current & over-temperature. Plug and play, no configuration required, simple and convenient to use.
FEATURE
10/100Mbps fast Ethernet
◇ Support IEEE802.3af/at standard, Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- )
◇ Output voltage:12VDC(Default), 5~24VDC can be customized, with low ripple.
◇ Input voltage 44-57VDC, rated output power 12W, greater than 82% efficiency
◇ Support short circuit, over current and over temperature protection
◇ 1500V high voltage isolation (input stage to output stage) (only applicable to ONV-PD5202, ONV-PD5202-at)
◇ DC interface has dustproof and waterproof measures
ORDERING INFORMATION
|
Model |
Description |
|
ONV-PD5201 |
10/100M non-isolated PD PoE splitter cable can support IEEE802.3af/at PoE standard. Input voltage: 44-57VDC. compatible with 1236&4578 dual mode power supply. Output voltage: 12VDC, and maximum full load power is 15W. |
|
ONV-PD5202 |
10/100M isolated PD PoE splitter cable can support IEEE802.3af/at PoE standard. Input voltage: 44-57VDC. compatible with 1236&4578 dual mode power supply. Output voltage: 12VDC, and maximum full load power is 13W. |
|
ONV-PD5202-at |
10/100M isolated high power PD PoE splitter cable can support IEEE802.3af/at PoE standard. Input voltage: 44-57VDC. compatible with 1236&4578 dual mode power supply. Output voltage: 12VDC, and maximum full load power is 24W. |
PACKING LIST
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
10/100M PD PoE splitter cable |
1 |
SET |
|
|
Warranty Card |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-PD5201 |
ONV-PD5202 |
ONV-PD5202-at |
|
Interface Characteristics |
|||
|
Fixed Port |
1*10/100Base-TX RJ45 port (Data) 1*8P male output port (Data) 1*DC5521 power port (Power) |
||
|
Ethernet Port |
Ethernet port can support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption |
||
|
Network Characteristics |
|||
|
Transmission Bandwidth (Rate) |
10/100Mbps |
||
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
||
|
LED Indicator |
Working indicator: POE (Yellow) |
||
|
PoE & Power Supply |
|||
|
PoE Port (PD) |
PD port IEEE802.3af/at @ POE |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3x |
||
|
Power Supply Pin |
1/2 (+), 3/6 (-)& 4/5 (+), 7/8 (-) |
||
|
Input Voltage |
44-57VDC |
||
|
Output Voltage |
Default 12VDC± 0.5V, optional 5V,9V,24VDC Default DC5521 plug, optional Micro USB power plug |
||
|
Power Consumption |
Standby<1W, Full Load<15W |
Standby<1W, Full Load<13W |
Standby<1W, Full Load<24W |
|
Conversion Efficiency (Output: Input) |
≥82% |
||
|
Physical Parameter |
|||
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
||
|
Storage TEMP / Humidity |
-40~+85°C, 5%~95% RH Non condensing |
||
|

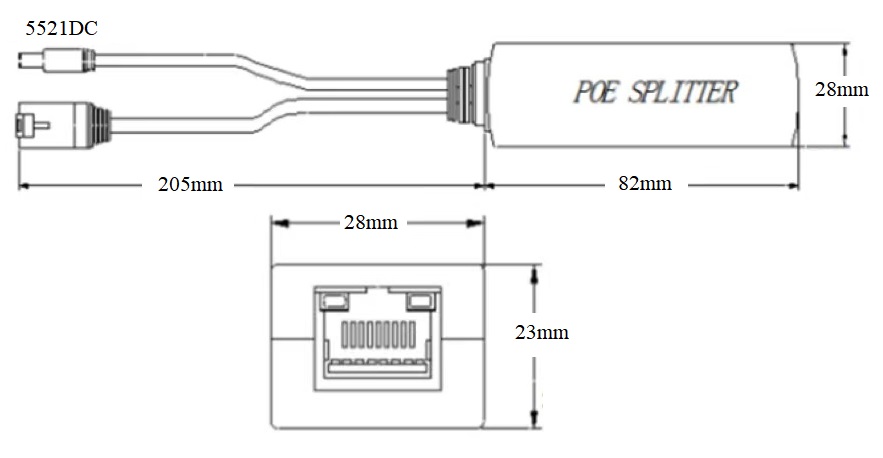

Dimension (L*W*H) |
85*31*26mm, cable length:≤150mm |
||
|
Net /Gross Weight |
<0.1kg /<0.15kg |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP40 |
||
|
Warranty |
1 year, lifelong maintenance. |
||
