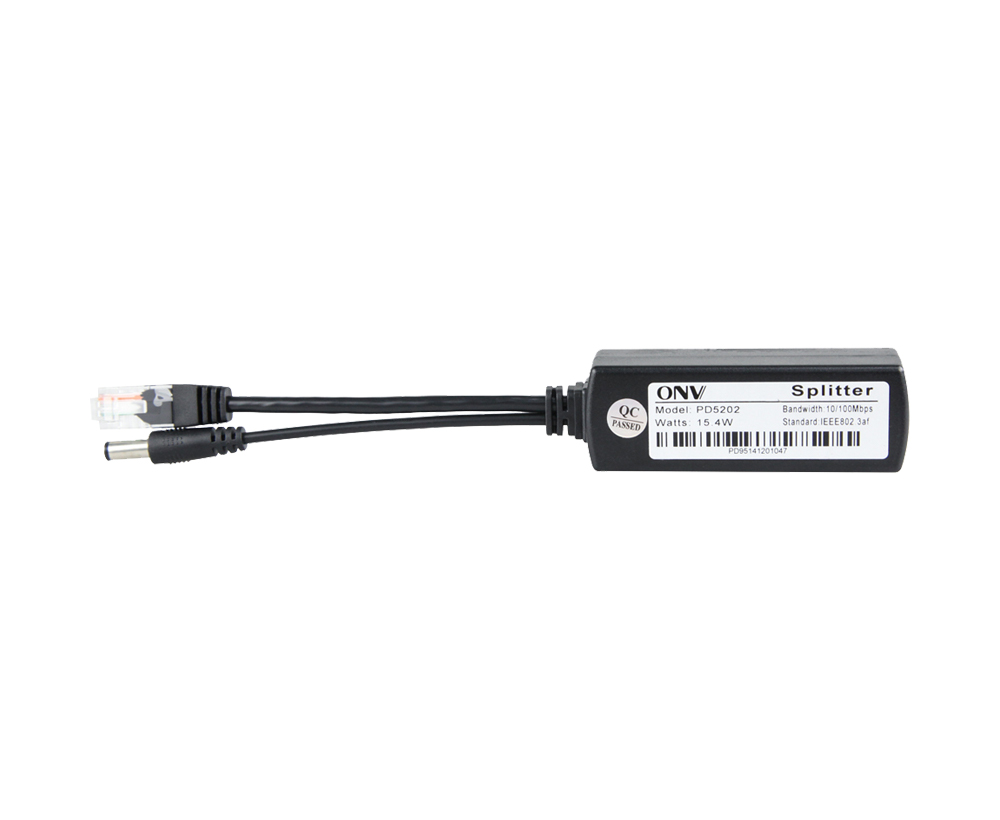

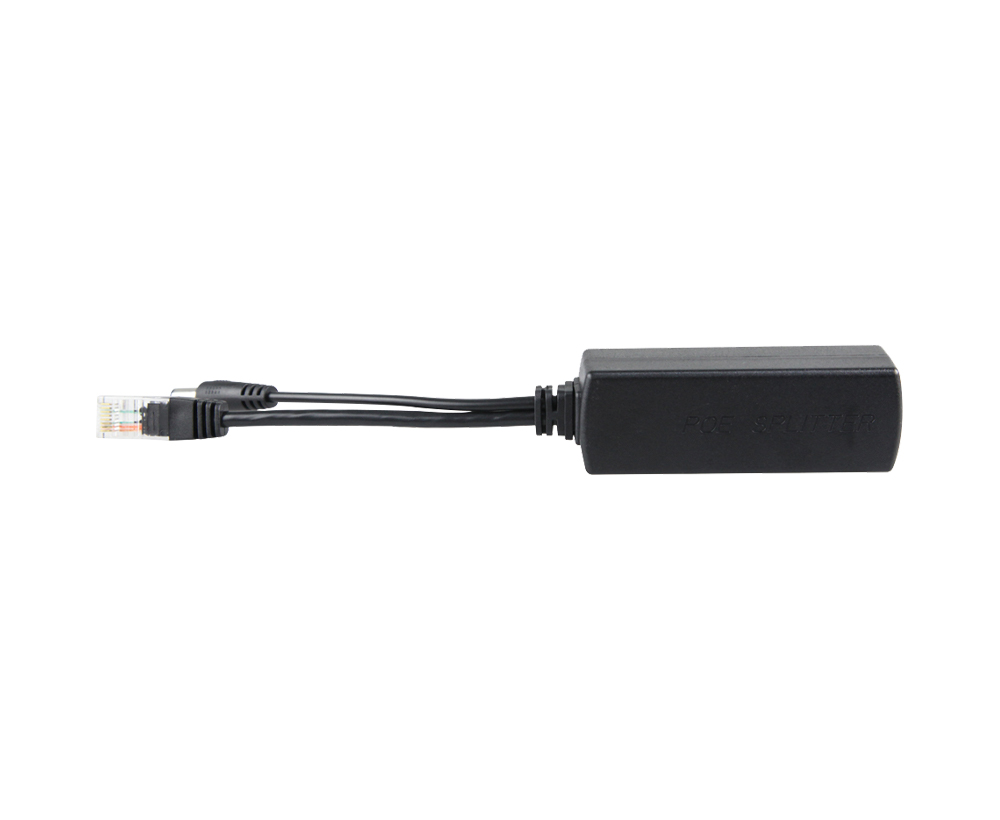

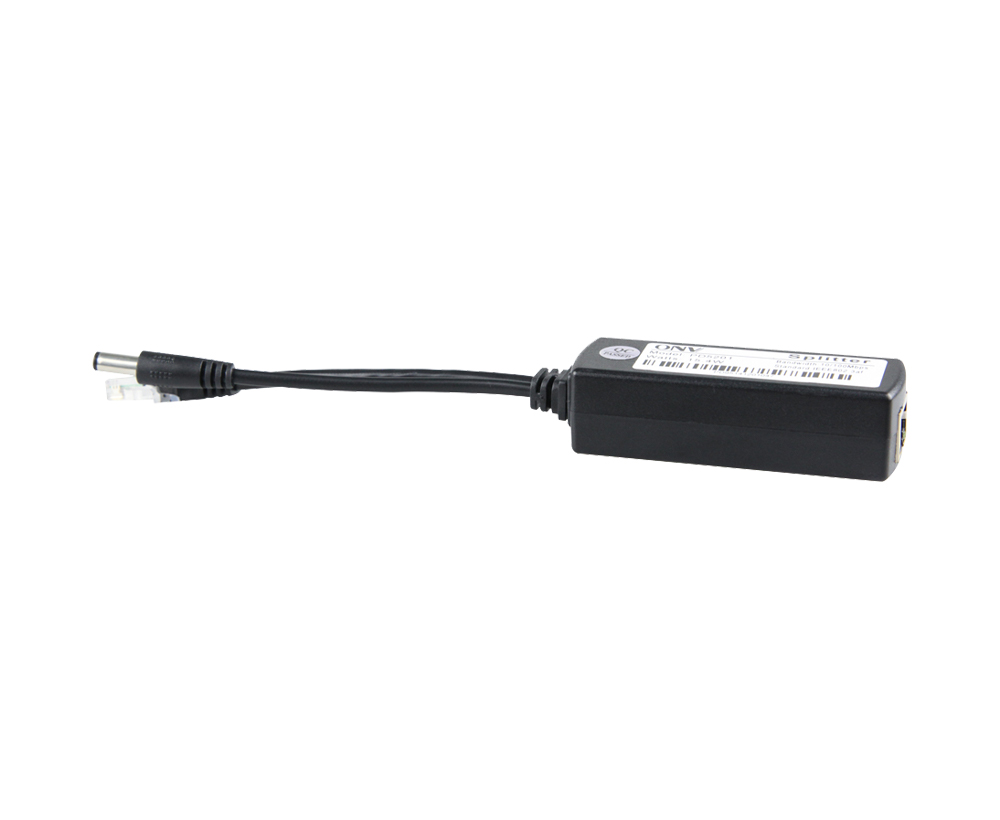

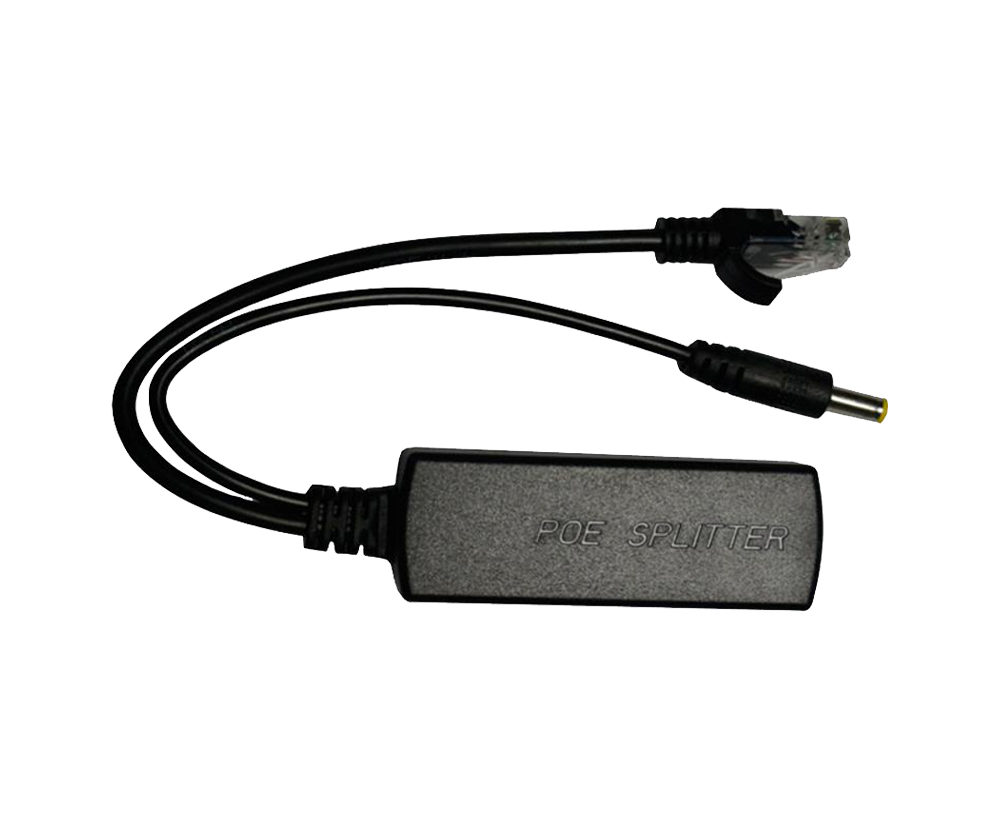

The ONV-PD5202-at is a 10/100M high-power PoE splitter cable independently developed by ONV. It has 1*10/100Base-TX RJ45 port and 1*8P male output port and 1*DC5521 power port. The invention meets the requirements that various non-PoE network terminals can be externally connected with PoE switches for use, flexibly expands security monitoring and wireless networks without being limited by power line layout, reduces system wiring, improves system stability and safety, and reduces maintenance costs.
The ONV-PD5202-at housing is made of ABS and PC flame-retardant plastic material, meeting the standard of IEEE802.3af/at. Compatible with power supply methods of both End-span(1,2+ 3,6-) and Mid-span (4,5+ 7,8-). With the features of output power at 24W, low ripple, more than 82% high efficiency, port isolation protection: 2KV and protection for short circuit, overcurrent, and overtemperature. Plug and play, no configuration required, simple and convenient to use.
FEATURE
10/100M Fast Ethernet
◇ DC interface has dustproof and waterproof measures.
◇ Support short circuit, overcurrent, and overtemperature protection.
◇ Output voltage: 12VDC(Default), 5~24VDC can be customized, with low ripple.
◇ Input voltage 44-57VDC, rated output power 12W, greater than 82% efficiency.
◇ Support IEEE802.3af/at standard, Both mid-span (4/5+, 7/8-) and end-span (1/2+, 3/6-).
◇ 1500V high voltage isolation (input stage to output stage) (only applicable to ONV-PD5202, ONV-PD5202-at).

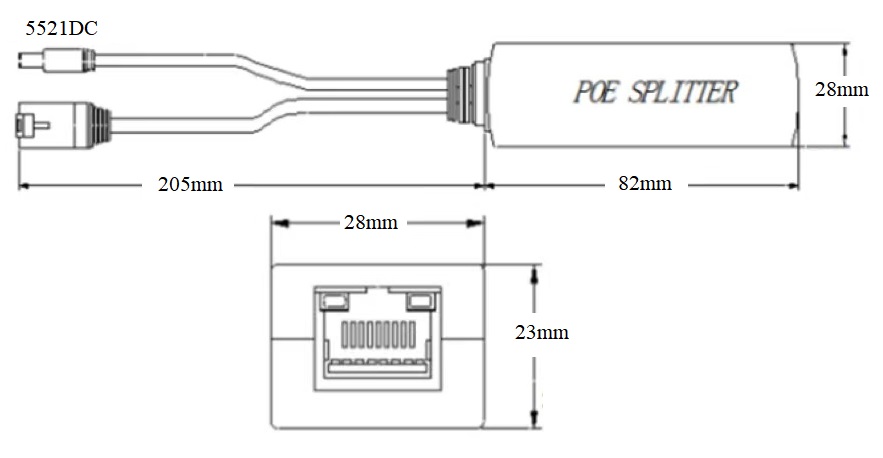

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
|
ONV-PD5201 |
10/100M non-isolated PoE splitter cable can support IEEE 802.3 af/at PoE standard. Input voltage: 44-57VDC. compatible with 1236&4578 dual mode power supply. Output voltage: 12VDC, and max full load power is 15W. |
|
ONV-PD5202 |
10/100M isolated PoE splitter cable can support IEEE 802.3 af/at PoE standard. Input voltage: 44-57VDC. compatible with 1236&4578 dual mode power supply. Output voltage: 12VDC, and max full load power is 13W. |
|
ONV-PD5202-at |
10/100M isolated high-power PoE splitter cable can support IEEE 802.3 af/at PoE standard. Input voltage: 44-57VDC. compatible with 1236&4578 dual mode power supply. Output voltage: 12VDC, and max full load power is 24W. |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
10/100M high-power PoE splitter cable |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
TECHNICAL SPECIFICATION
Model
ONV-PD5201
ONV-PD5202
ONV-PD5202-at
Interface Characteristics
Fixed Port
1*8P male output port (Data)
1*DC5521 power port (Power)
1*10/100Base-TX RJ45 port (Data)
Ethernet Port
10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Network Characteristics
Transmission Bandwidth
10/100M
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
LED Indicator
Working indicator: POE (Yellow)
PoE& Power Supply
PoE Port (PD)
PD port IEEE 802.3 af/at @ PoE
Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
Power Supply Pin
1/2(+)3/6(-) & 4/5(+)7/8(-)
Input Voltage
44-57VDC
Output Voltage
Default 12VDC± 0.5V, optional 5V, 9V, 24VDC output
Default DC5521 plug, optional Micro USB power plug
Power Consumption
Standby<1W, full load<15W
Standby<1W, full load<13W
Standby<1W, full load<24W
Conversion Efficiency (Output: Input)
≥82%
Physical Parameter
Operation TEMP/ Humidity
-20°C~+55°C, 5%~90% RH non-condensing
Storage TEMP/ Humidity
-40°C~+85°C, 5%~95% RH non-condensing
Dimension (L*W*H)
82*28*23mm, cable length ≤ 250mm
Net /Gross Weight
0.05kg /0.07kg
0.06kg /0.08kg
0.1kg /0.12kg
Lightning Protection
4KV 8/20us, Protection level: IP40
Warranty
1 year, lifelong maintenance
