OVERVIEW

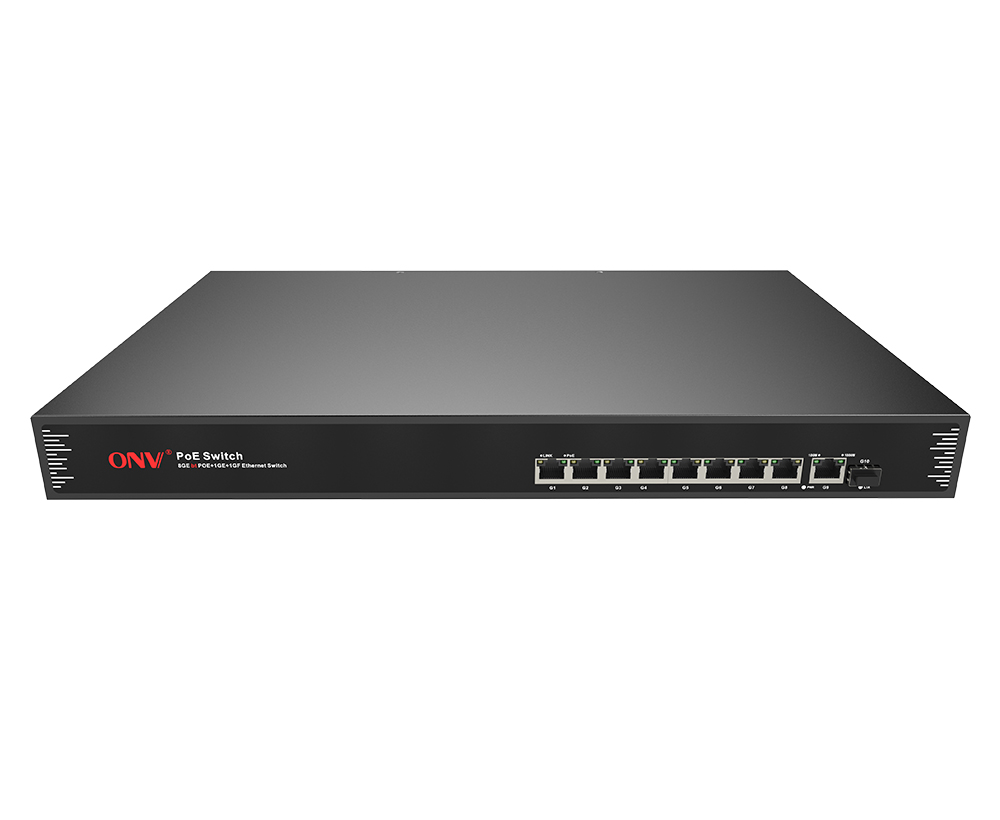

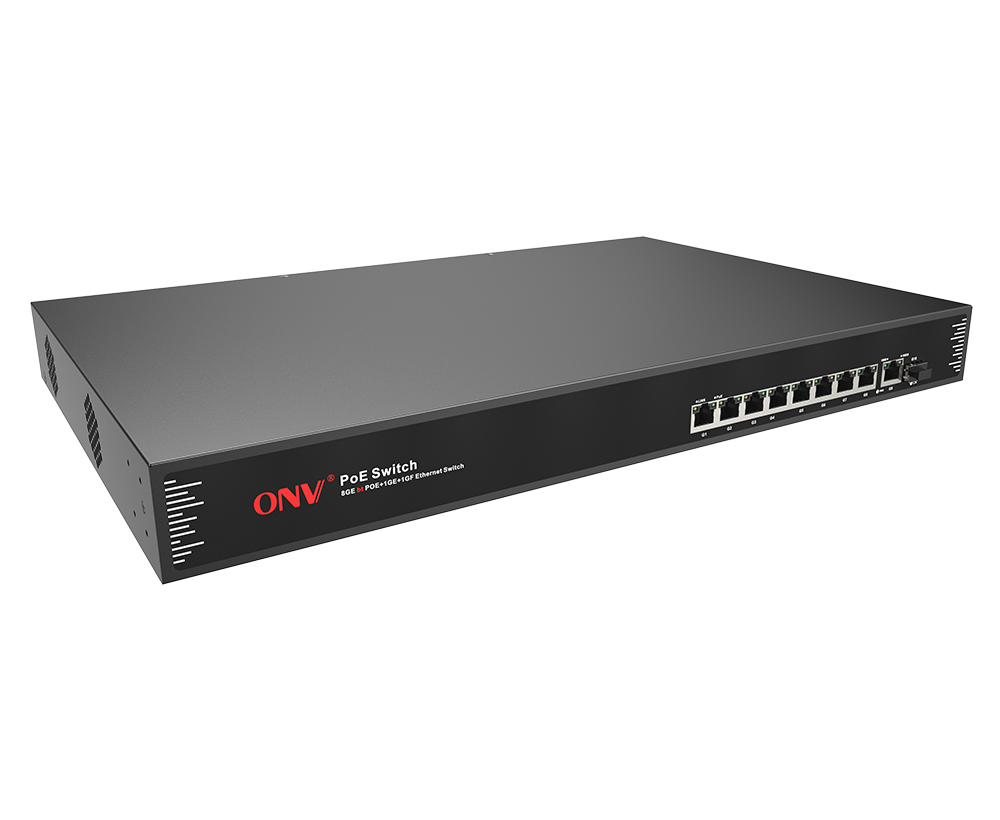

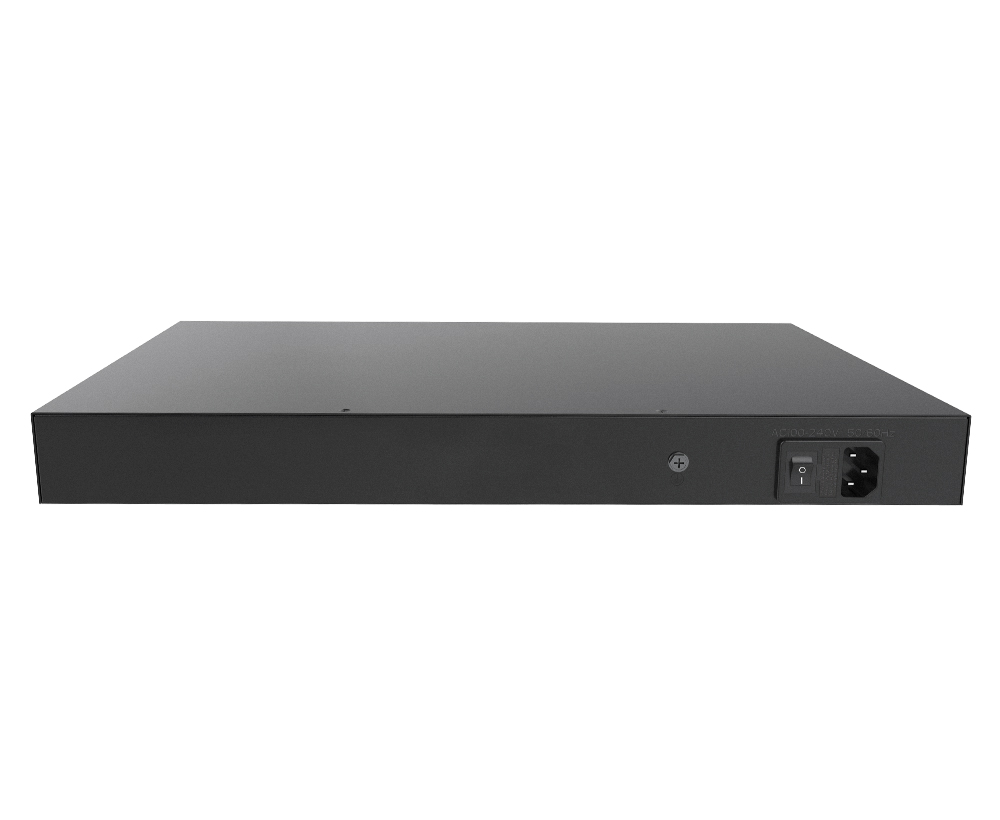

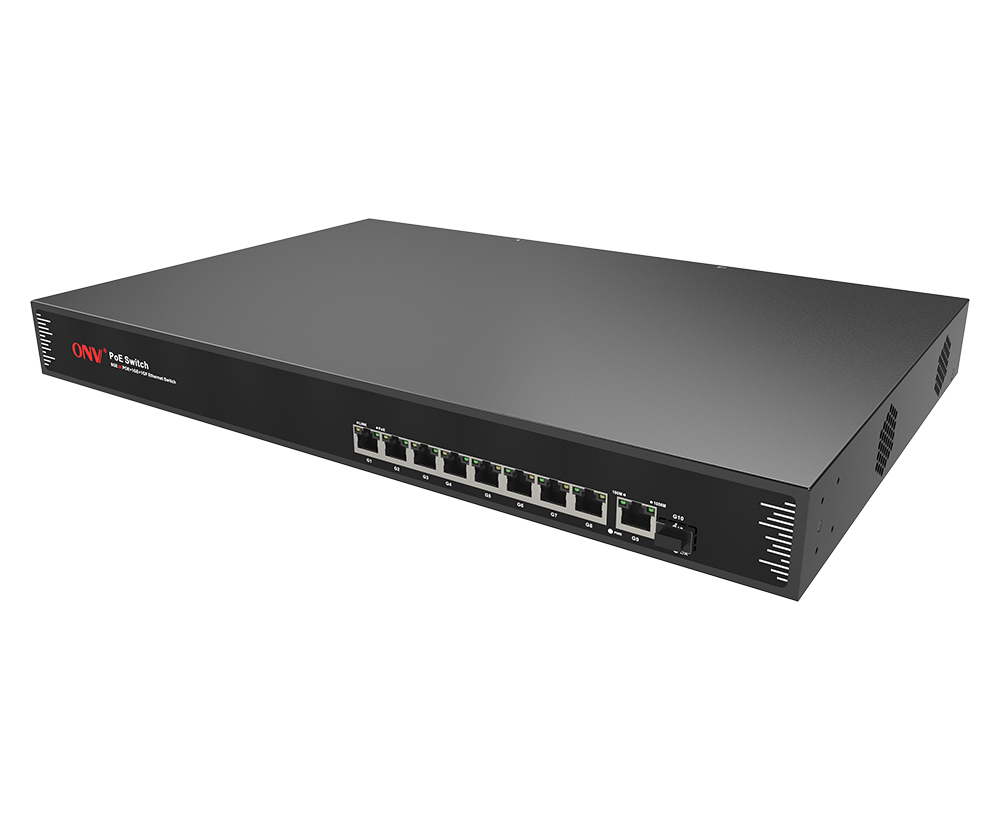

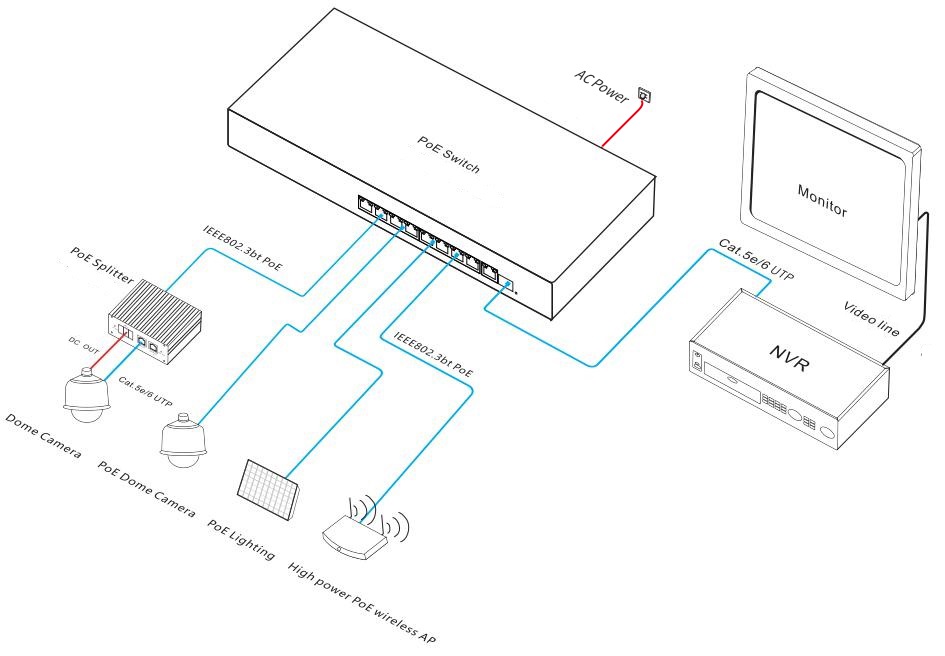

The ONV-POE33108PFG-bt is a gigabit bt PoE fiber switch independently developed by ONV. It has 9*10/100/1000Base-T RJ45 ports and 1*1000M uplink SFP slot port. Port 1-8 can support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. Single-port max output power is 90W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It provides stable and safe terminals for PTZ network domes, high-power wireless AP, high-power network multimedia speakers, high-power POE lighting, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, parks, shopping malls, scenic spots, hospitals, factory dormitories, and small and medium-sized enterprises. Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Full gigabit access, gigabit TP/SFP uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Gigabit RJ45 ports and SFP fiber port combination, high-speed high-bandwidth connection, to meet the networking needs of various scenarios.
Smart PoE power supply
◇ 8*10/100/1000Base-T RJ45 ports can support bt PoE power, meeting the demand for super high power PoE power supply in various scenarios.
◇ Priority system for PoE port, It will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
◇ The max output power of single-port PoE is 90W and the backward compatibility IEEE 802.3 af/at PoE standard automatically identifies PoE devices for power supply without damaging non-PoE devices.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.
◇ Low power consumption, galvanized steel casing, excellent heat dissipation to ensure stable operation of the switch.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

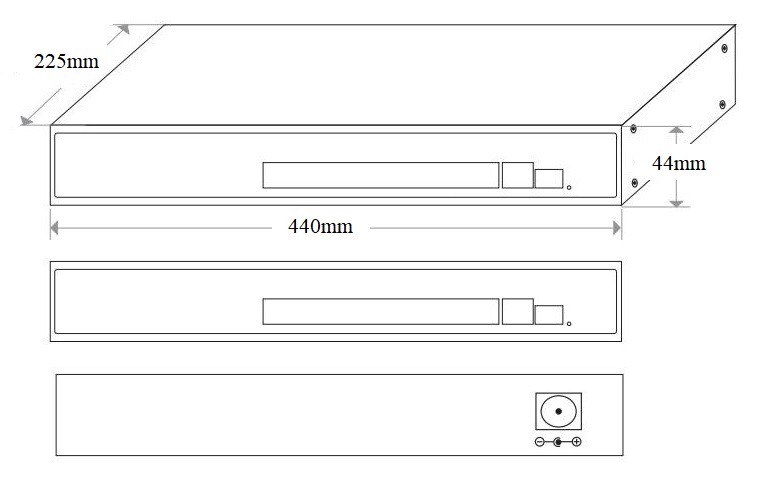

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Configure Power Supply |
|
ONV-POE33108PFG-bt |
Unmanaged bt PoE switch with 9*10/100/1000M RJ45 ports and 1*1000M uplink SFP port. Port 1-8 support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. Built-in power supply, support 1U rack mount. |
600W |
|
Note: The optical module is not included, and needs to be purchased separately. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
10-port full gigabit bt PoE fiber switch |
1 |
SET |
|
|
AC Power Cable |
1 |
SET |
|
|
Mounting Kits |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical module
|
2630 |
SFP optical module, 1.25G, multi mode dual fiber 850nm, transmission distance: 550m, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2632 |
SFP optical module, 1.25G, single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T |
SFP optical module, 1.25G, single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R |
SFP optical module, 1.25G, single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T-SC |
SFP optical module, 1.25G, single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R-SC |
SFP optical module, 1.25G, single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
|
Power Module |
2633 |
1.25G SFP optical module transfers to 10/100/1000M RJ45 port. |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV-POE31004PF-bt |
Unmanaged bt PoE fiber switch with 4*10/100M RJ45 ports and 1*155M uplink SC port. Port1-4 support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. Default configuration SC port 1310nm/ 20km single-mode dual fiber optical module. External power supply. |
|
ONV-POE31064P-bt |
Unmanaged bt PoEswitch with 6*10/100M RJ45 ports. Port 1-4 support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. External 250W power supply. |
|
ONV-POE33064P-bt |
Unmanaged bt PoE switch with 6*10/100/1000M RJ45 ports. Port 1-4 support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. External 250W power supply. |
|
ONV-POE33064PF-bt |
Unmanaged bt PoE switch with 4*10/100/1000M RJ45 ports and 2*1000M SFP ports. Port 1-4 support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. External 250W power supply. |
|
ONV-POE33064PFG-bt |
Unmanaged bt PoE switch with 5*10/100/1000M RJ45 ports and 1*1000M SFP port. Port 1-4 support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. External 250W power supply. |
|
ONV-POE33016PF-bt |
Unmanaged bt PoE fiber switch with 16*10/100/1000M RJ45 ports and 2*1000M uplink SFP ports. Port 1-16 support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard. Built-in 1200W power supply. |
TECHNICAL SPECIFICATION
|
Model |
ONV-POE33108PFG-bt |
|
Interface Characteristics |
|
|
Fixed Port |
1*1000M uplink SFP port (Data) 1*10/100/1000M uplink RJ45 port (Data) 8*10/100/1000M bt PoE ports (Data /Power) |
|
Ethernet Port |
Port 1-8 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
SFP Slot Port |
Gigabit SFP optical fiber port, default no include optical modules (optional single-mode/ multi-mode, single fiber / dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-500m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3u 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
20Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
14.88Mpps |
|
MAC |
8K |
|
Buffer Memory |
2M |
|
Jumbo Frame |
9.2K |
|
LED Indicator |
Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1-8 support bt PoE output and are backward compatible with IEEE 802.3 af/at PoE standard |
|
Power Supply Pin |
1/2(+)3/6 (-), 4/5(+)7/8 (-) |
|
Max Power Per Port |
90W, IEEE 802.3 af/at/bt |
|
Total PWR / Input Voltage |
600W / (AC100-240V) |
|
Power Consumption |
Standby<10W, Full Load<600W |
|
Input Voltage / Interface |
DC48-57V/ DC5521 power supply terminal connected |
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz 4.1A |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-20°C~+55°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40°C~+80°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
440*225*44mm |
|
Net /Gross Weight |
<2.5kg /<3.0kg |
|
Installation |
Desktop,1U/19 inch cabinet |
|
Certification & Warranty |
|
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
3 years, lifelong maintenance. |
