The ONV-H3108PF is a gigabit PoE fiber switch independently developed by ONV. It has 8*10/100/1000Base-T PoE ports and 2*1000Base-X uplink SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP phone, video access control intercom, etc. through network cable to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, factory quarters and small and medium-sized enterprises to form an economy efficient network. Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Gigabit access
◇ Support IEEE 802.3x full-duplex flow control and Backpressure.
◇ Support non-blocking wire-speed forwarding for smoother transmission.
◇ Provides Gigabit RJ45 port and SFP port uplink for flexible networking and meets the networking requirements of various scenarios.
Smart PoE power supply
◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
◇ The PoE port supports the priority mechanism. When the remaining power is insufficient, the power of the high-priority port is given priority to avoid overloading of the device.
◇ 8*10/100/1000Base-T RJ45 ports support PoE power, meeting the PoE power requirements of security monitoring, teleconferencing systems, wireless coverage and other scenarios.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ Low power consumption, metal housing, and excellent heat dissipation to ensure stable operation of the switch.

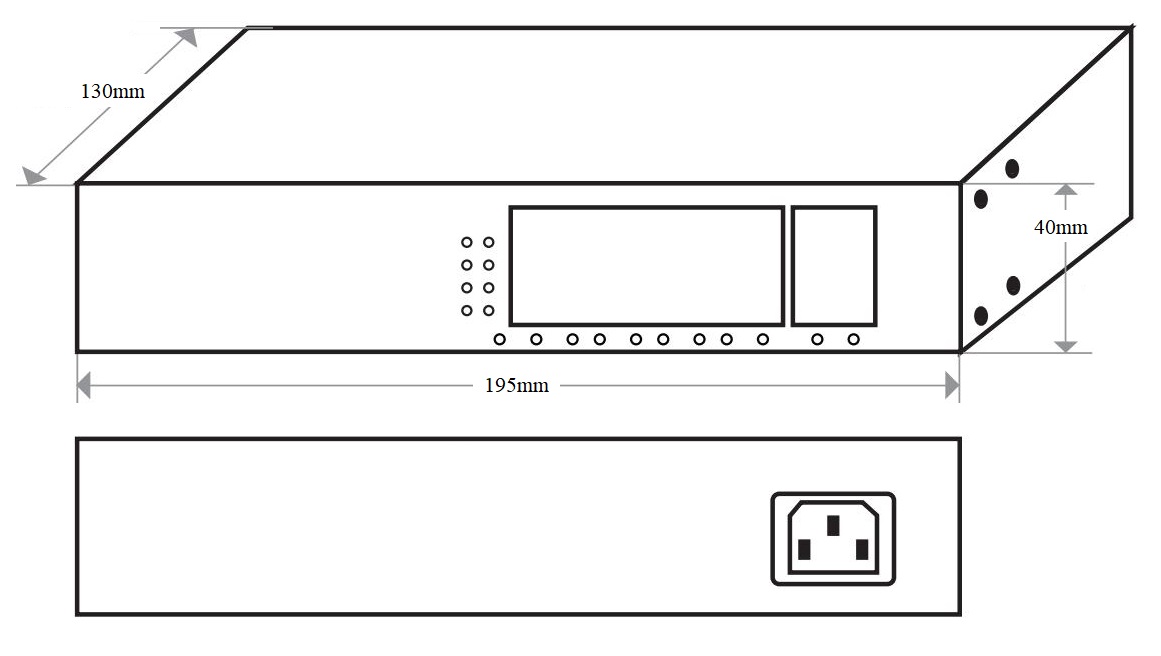

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
ONV-H3108PF |
Unmanaged PoE switch with 8*10/100/1000M PoE ports and 2*1000M SFP ports. Port 1-8 can support IEEE 802.3 af/at PoE standard. Built-in power supply. |
120W |
|
ONV-H3108PFS |
Unmanaged PoE switch with 8*10/100/1000M PoE ports and 2*1000M SFP ports. Port 1-8 can support PoE+ power supply. Built-in power supply. |
100W |
|
Note: The optical module is not included and needs to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
10-port gigabit PoE switch |
1 |
SET |
|
|
AC Power Line |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module |
2630 |
SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. supports DDM function and hot plugging. |
PC |
|
2632 |
SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T |
SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R |
SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T-SC |
SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R-SC |
SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-H3108PF |
ONV-H3108PFS |
|
Interface Characteristics |
||
|
Fixed Port |
2*1000Base-X uplink SFP fiber ports (Data) 8*10/100/1000Base-T PoE ports (Data/Power) |
|
|
Ethernet Port |
Port 1-8 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3, 4, 5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
|
Optical Fiber Port |
Optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
|
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x |
|
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
|
Switching Capacity |
20Gbps (non-blocking) |
|
|
Forwarding Rate @64byte |
14.88Mpps |
|
|
MAC |
2K |
|
|
Buffer Memory |
2M |
|
|
Jumbo Frame |
9.2k |
|
|
LED Indicator |
Power: PWR (Green), Network: Link (Green), PoE: PoE (Green) |
|
|
PoE & Power Supply |
||
|
PoE Port |
Port 1 to 8 |
|
|
Power Supply Pin |
1/2(+) 3/6(-) |
|
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
30W, PoE+ |
|
Total PWR / Input Voltage |
120W/ (AC100-240V) |
100W/ (AC100-240V) |
|
Power Consumption |
Standby <6W, Full load <120W |
Standby <6W, Full load <100W |
|
Power Supply |
Built-in power supply, AC100~240V 50-60Hz, 2.0A |
Built-in power supply, AC100~240V 50-60Hz, 2.0A |
|
Physical Parameter |
||
|
Operation TEMP/ Humidity |
-20°C~+55°C, 5%~90% RH Non condensing |
|
|
Storage TEMP/ Humidity |
-40°C~+85°C, 5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
195*130*40mm |
|
|
Net /Gross Weight |
0.75kg / 1.0kg |
|
|
Installation |
Desktop, Wall mount |
|
|
Certification & Warranty |
||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
|
Warranty |
1 year, lifelong maintenance. |
|
