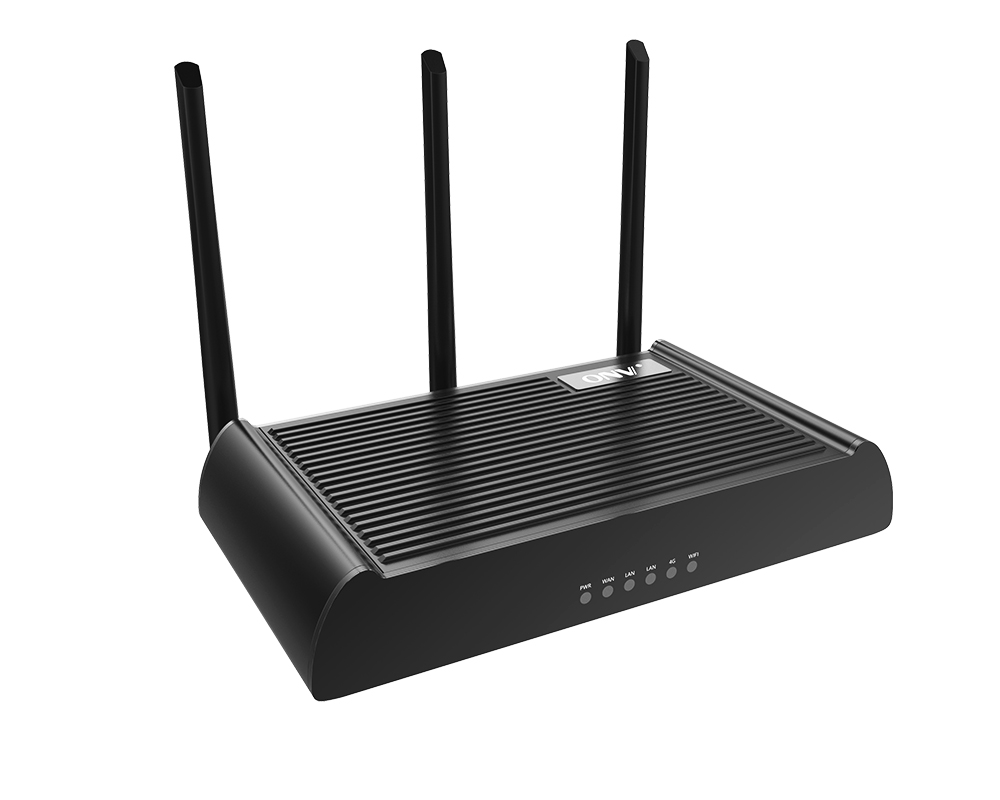

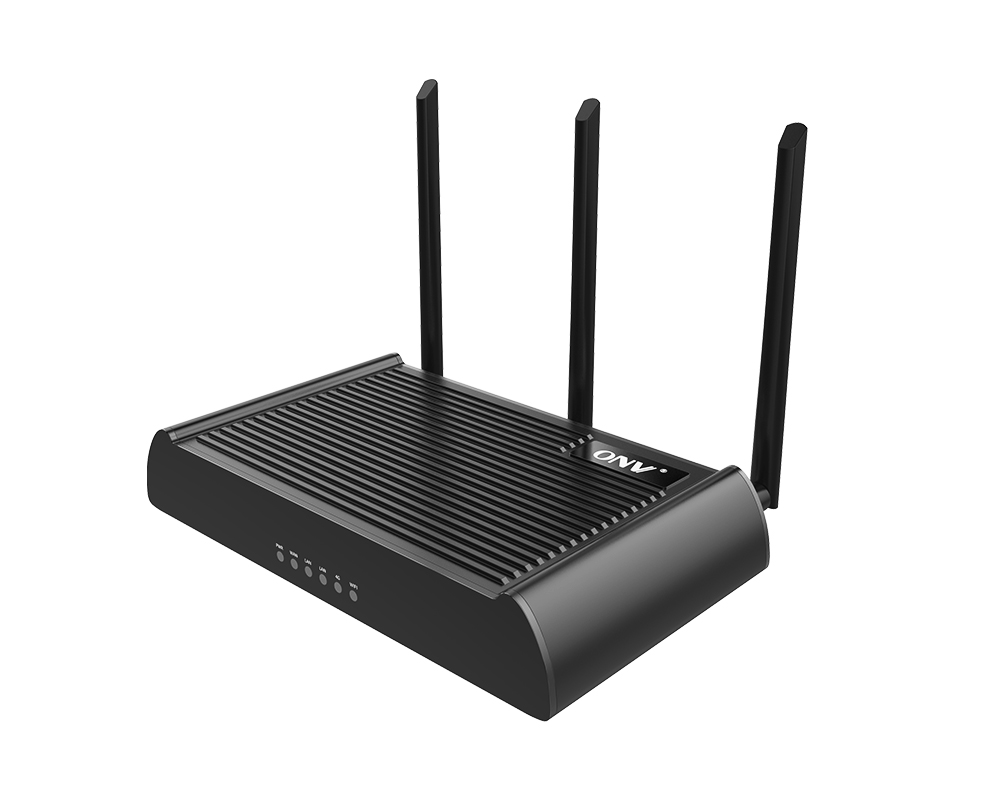

OVERVIEW

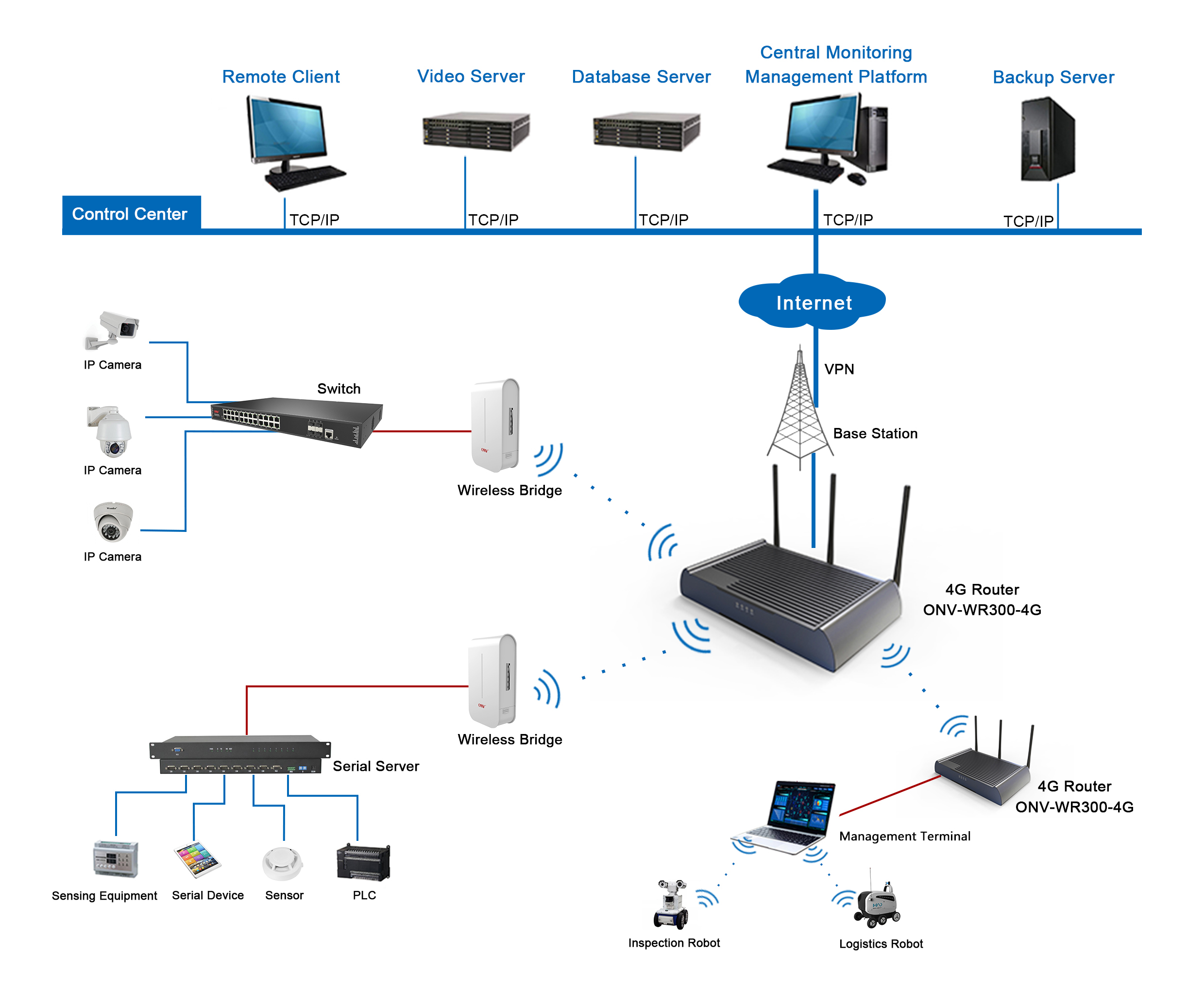

ONV-WR300-4G is an industrial 4G wireless router independently developed by ONV. The main control adopts the Qualcomm 9531 chip solution, the wireless rate can reach 300M, supports 4G full Netcom, and uses the public GPRS/CDMA/WCDMA/EVDO/LTE network to provide users with wireless long-distance data transmission functions. Built-in embedded operating system, self-designed automatic reconnection function, to provide users with a safe, high-speed, stable, and reliable 4G wireless network. 4G wireless routers have been widely used in the M2M industry in the IoT industry chain, such as self-service terminals, smart grids, smart transportation, smart homes, finance, mobile POS terminals, supply chain automation, industrial automation, smart buildings, fire protection, public safety, Environmental protection, meteorology, digital medical treatment, remote sensing survey, military, space exploration, agriculture, forestry, water affairs, coal mining, petrochemical, and other fields.
FEATURE
No configuration, just use the network card
◇ Insert a 4G SIM card, turn on the power, and enjoy 4G wired/4G wireless high-speed Internet access.
◇ It uses 4G full Netcom modules, compatible with China Mobile, China Unicom, and telecommunications, and users can choose freely.
Industrial grade design, stable and reliable
◇ Low power consumption, No fan design, aluminum alloy shell, excellent heat dissipation, to ensure stable operation of the product.
◇ It uses a high-frequency 650MHz Qualcomm chipset to carry large-capacity loads and processing speeds and can operate stably in an environment of -40°C~+75°C.
Innovative design, powerful function
◇ Support DC9-24V input, which can be better compatible with industrial access, eliminating the trouble of on-site construction.
◇ Equipped with 3 high-gain external omnidirectional antennas, the WIFI downlink peak rate can reach 300Mbps, allowing you to have a stronger signal and faster Internet access.
◇ It adopts the dual design of hardware watchdog and software multi-level link detection mechanism, with automatic fault detection and automatic recovery capabilities to ensure stable and reliable operation of the equipment.
◇ Original network link detection, 4G network is unstable, and 4G disconnection can be automatically re-dull quickly. Adaptive 4G/3G/2G network intelligent switching to ensure reliable transmission without dropping the line.
DIMENSION
ORDERING INFORMATION
|
Model |
Description |
|
ONV-WR300-4G |
2.4G/300Mbps industrial 4G WIFI router with 1*10/100M WAN port and 2*10/100M LAN ports, supporting DC9V-24V input. |
PACKING LIST
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
Industrial 4G wireless router |
1 |
SET |
|
|
DC12V power adapter |
1 |
PC |
|
|
Hanging ears |
1 |
Pair |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-WR300-4G |
|
|
Interface Characteristics |
||
|

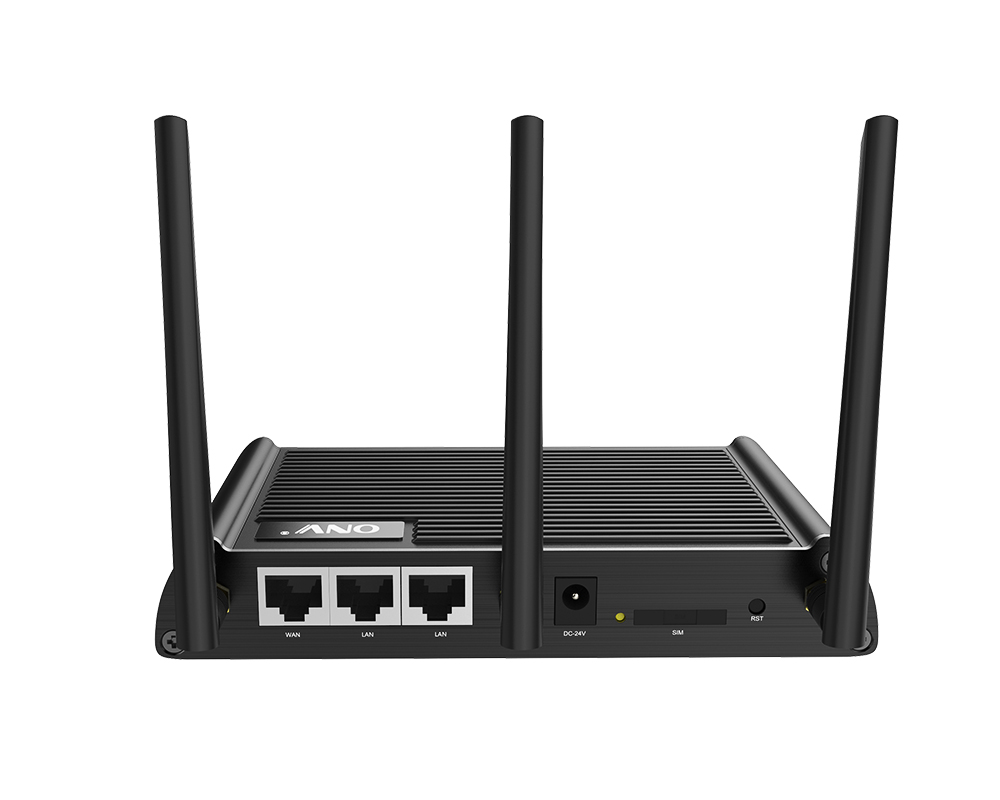

Fixed Port |
1*10/100M WAN port (Data) 2*10/100M LAN ports(Data) |
|
|
SIM Card Slot |
1 |
|
|
Ethernet Port |
10/100Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
|
|
Network Protocol and Indicator |
||
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u100Base-TX, IEEE802.3x |
|
|
Wireless protocol |
IEEE802.11b, IEEE802.11g, IEEE802.11n |
|
|
Chip |
QCA9531 |
|
|
DDR2 Memory |
128Mbyte |
|
|
Flash |
16Mbyte |
|
|
Reset Switch |
Yes, Press for 10 seconds and release to restore factory settings |
|
|

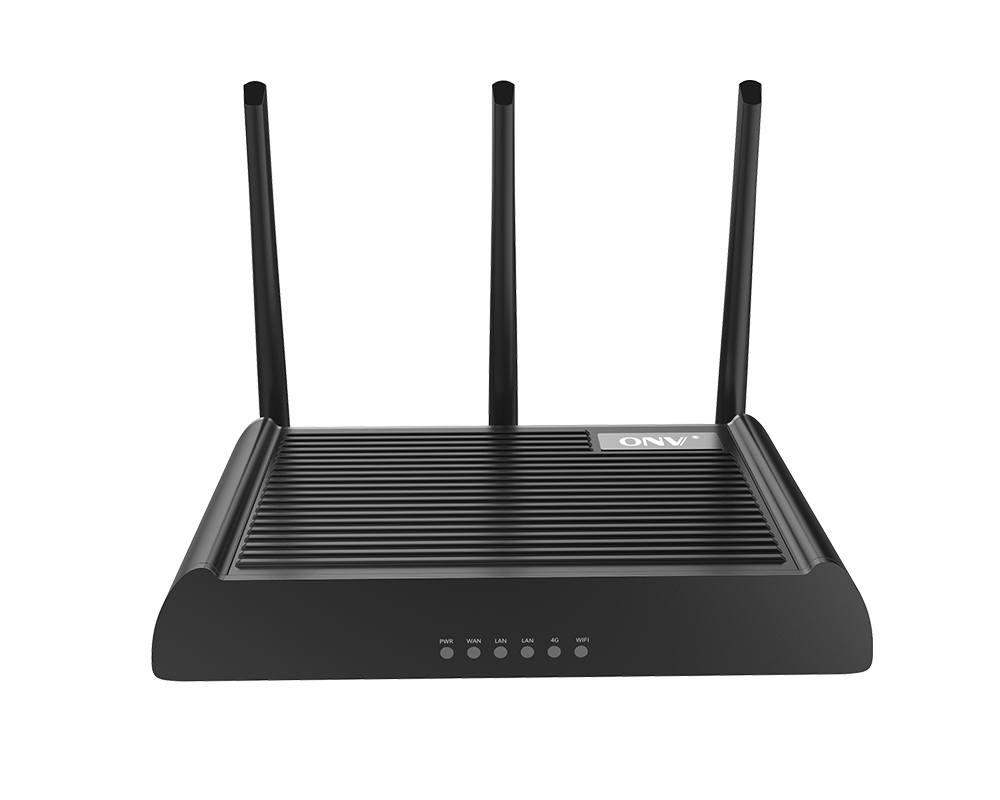

LED Indicator |
Power: PWR (green), Network: WAN, LAN (green), 4G connection: 4G (green), Wireless: WIFI (green) |
|
|
Wireless Parameters |
||
|
Antenna |
2.4G 2 pcs, 4G antenna 1 pc External omnidirectional antenna: 2.4G 3dBi, 4G 3dBi |
|
|
Transmission Rate |
11b:11Mbps, 11g: 54Mbps, 11n:300Mbps |
|
|
Modulation |
VHT OFDM/OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK |
|
|
RF Frequency Range |
China: 2.412 GHz~2.472 GHz (signal channel 1~signal channel13) |
|
|
Modulation Mode |
OFDM=BPSK,QPSK, 16-QAM, 64-QAM |
|
|
DSSS=DBPSK, DQPSK, CCK |
||
|
Transmit Power |
802.11b 11Mbps |
22 ±1.5dBm |
|
802.11g 54Mbps |
20 ±1.5dBm |
|
|
802.11n HT40 MS7 |
20 ±1.5dBm |
|
|
Receiving Sensitivity |
802.11b 11Mbps |
-87dBM |
|
802.11g 54Mbps |
-74dBM |
|
|
802.11n HT40 MS7 |
-70dBM |
|
|
Power Supply |
||
|
Power Consumption |
Standby<3W,Full Load≤8W |
|
|
Power Supply |
DC12V 1A power adapter. |
|
|
Physical Parameter |
||
|
Operation TEMP / Humidity |
-40~+75°C;5%~90% RH Non condensing |
|
|
Storage TEMP / Humidity |
-40~+80°C;5%~95% RH Non condensing |
|
|
Dimension (L*W*H) |
162*109*30.5mm |
|
|
Net /Gross Weight |
<0.4kg / <0.65kg |
|
|
Installation |
Desktop, Wall-mounted |
|
|
Certification & Warranty |
||
|
Lightning protection / protection level |
Port lightning protection: 46KV 8/20us Protection level: IP40 |
|
|
Certification |
CE mark, commercial,CE/LVD EN60950, |
|
|
Warranty |
3 years, lifelong maintenance. |
|
