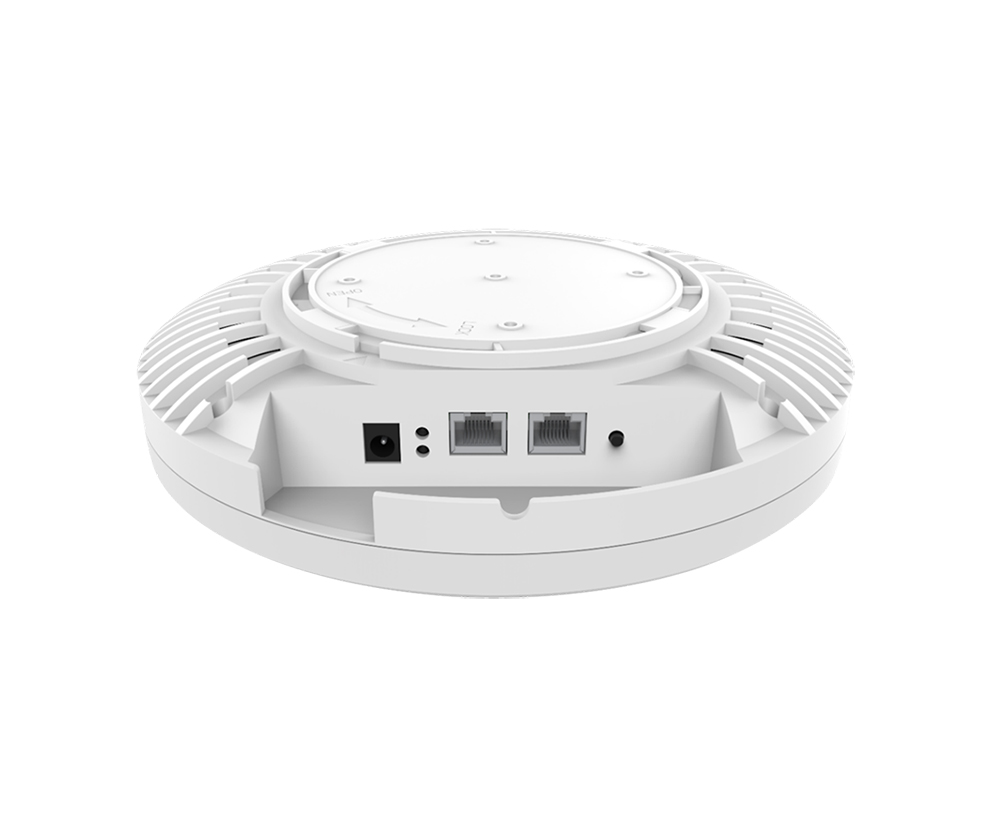

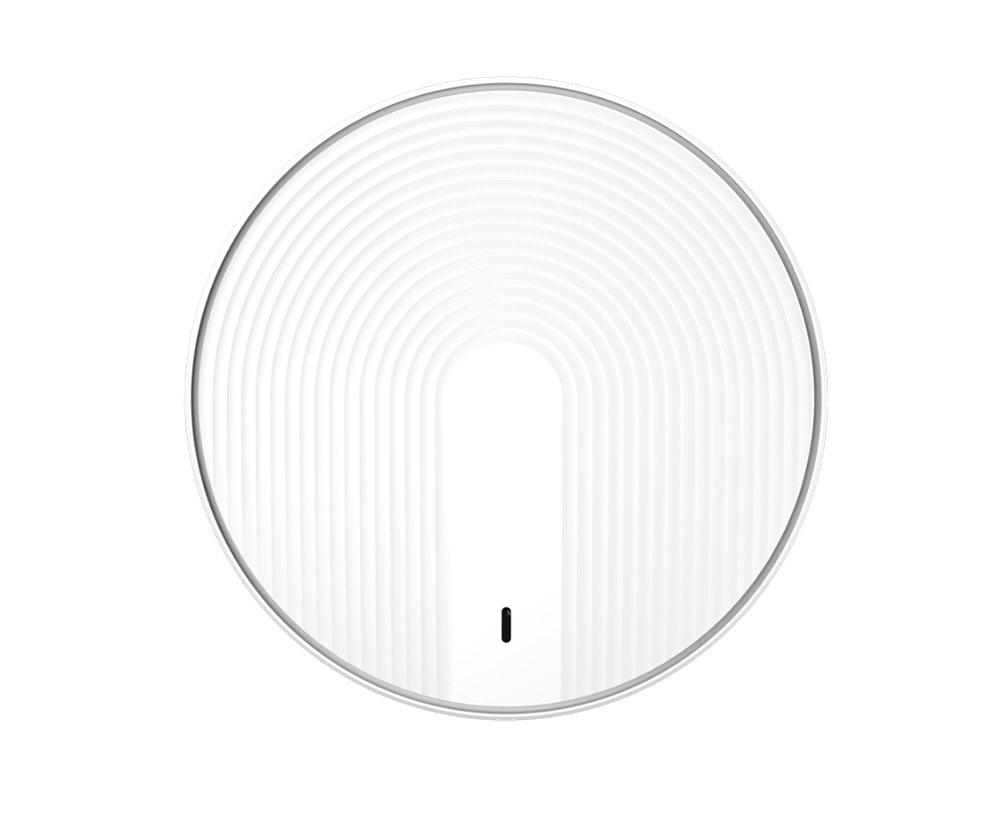

The ONV-XAP3000-2.5GE1 is a high-performance, high-speed 11ax indoor dual-band ceiling wireless AP that can provide 2.4GHz and 5.8GHz dual-band wireless services. 2.4G provides a max access rate of 574Mbps, and 5G provides a max access rate of 2402Mbps.
FEATURE
◇ Support 48V PoE and DC12V power supply modes.
◇ Support hardware watchdog function, abnormal equipment automatically recovers, and is maintenance-free.
◇ It has better transmission quality, higher transmission rate, and the whole machine concurrent rate is up to 3000Mbps.

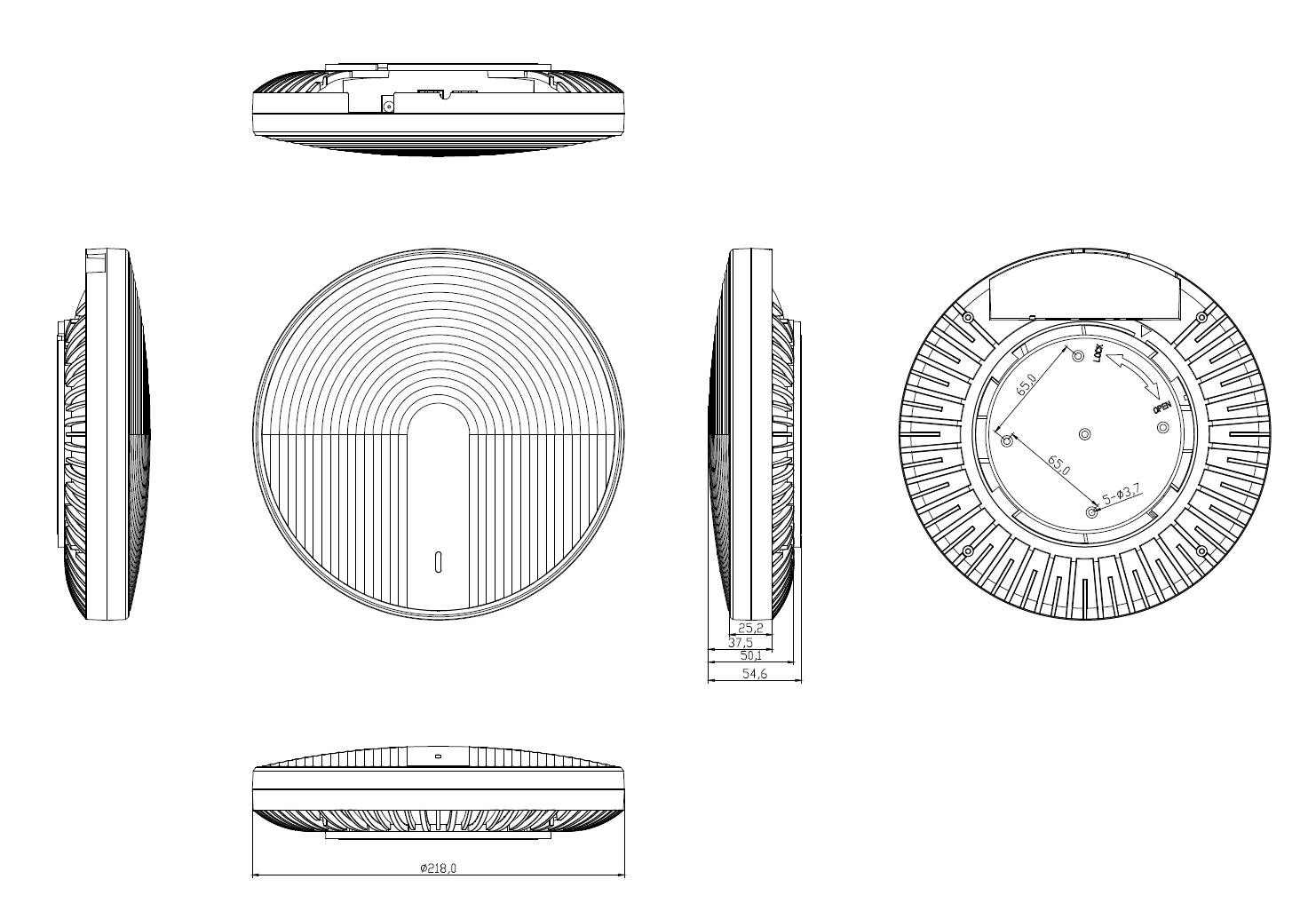

DIMENSION
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
WiFi6 dual-band 3000M 2.5G ceiling wireless AP |
1 |
PC |
|
|
Screw |
4 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
|
Model |
ONV-XAP3000-2.5GE1 |
||||
|
Hardware |
|||||
|
CPU |
MT7981B+MT7976DA+GPY211 |
||||
|
Flash |
SPI NOR 16MB |
||||
|
Memory |
256M |
||||
|
2.4G Working Frequency Band |
2.4GHz-2.484GHz |
||||
|
2.4G WIFI Transmission Protocol |
802.11 b/g/n/ ax |
||||
|
5G Working Frequency Band |
5.150GHz-5.850GHz |
||||
|
5G WIFI Transmission Protocol |
802.11 a/n/ac/ax |
||||
|
Built-in Antenna 2.4G |
1*2.4G antenna, each gain: 3dBi |
||||
|
Built-in Antenna 5G |
2*5G antennas, each gain: 3.5dBi |
||||
|
Built-in Dual-band Antenna |
1*2.4G/5G dual-band antenna, each gain: 3dBi |
||||
|
Max Speed |
2.4G max 574Mbps access rate, 5G max 2402Mbps access rate |
||||
|
Max Support Wireless Access |
120+ |
||||
|
2.4G Wireless Power |
802.11b |
11M |
25±2dBm |
1M |
25±2dBm |
|
802.11g |
54M |
21±2dBm |
6M |
24±2dBm |
|
|
802.11n HT20 |
MCS7 |
21±2dBm |
MCS0 |
24±2dBm |
|
|
802.11n HT40 |
MCS7 |
21±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ax HE20 |
MCS11 |
19±2dBm |
MCS0 |
24±2dBm |
|
|
802.11ax HE40 |
MCS11 |
19±2dBm |
MCS0 |
23±2dBm |
|
|
5G Wireless Power |
802.11a |
54M |
20±2dBm |
6M |
23±2dBm |
|
802.11n HT20 |
MCS7 |
20±2dBm |
MCS0 |
23±2dBm |
|
|
802.11n HT40 |
MCS7 |
20±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ac VHT20 |
MCS8 |
20±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ac VHT40 |
MCS9 |
19±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ac VHT80 |
MCS9 |
19±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ac VHT160 |
MCS9 |
19±2dBm |
MCS0 |
22±2dBm |
|
|
802.11ax HE20 |
MCS11 |
17±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ax HE40 |
MCS11 |
17±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ax HE80 |
MCS11 |
17±2dBm |
MCS0 |
23±2dBm |
|
|
802.11ax HE160 |
MCS11 |
17±2dBm |
MCS0 |
22±2dBm |
|
|
2.4G Receiving Sensitivity |
802.11b |
11M |
-76dBm |
1M |
-82dBm |
|
802.11g |
54M |
-65dBm |
6M |
-82dBm |
|
|
802.11n HT20 |
MCS7 |
-64dBm |
MCS0 |
-82dBm |
|
|
802.11n HT40 |
MCS7 |
-61dBm |
MCS0 |
-79dBm |
|
|
802.11ax HE20 |
MCS11 |
-52dBm |
MCS0 |
-82dBm |
|
|
802.11ax HE40 |
MCS11 |
-49dBm |
MCS0 |
-79dBm |
|
|
5G Receiving Sensitivity |
802.11a |
54M |
-65dBm |
6M |
-82dBm |
|
802.11n HT20 |
MCS7 |
-64dBm |
MCS0 |
-82dBm |
|
|
802.11n HT40 |
MCS7 |
-61dBm |
MCS0 |
-79dBm |
|
|
802.11ac VHT20 |
MCS8 |
-59dBm |
MCS0 |
-82dBm
| |
