OVERVIEW
The ONV56036FM is a 10G uplink L2+ managed Ethernet fiber switch independently developed by ONV. It has 16*10/100/1000Base-T RJ45 ports and 8*10/100/1000Base-T RJ45 or 8*100/1000Base-X SFP combo ports and 4*1/10G SFP+ fiber slot ports. Each port can support wire-speed forwarding.
The ONV56036FM has L2+ full network management function, supports IPV4/ IPV6 management, static route forwarding, complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS(<20ms) to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as port traffic control, VLAN division, and SNMP through the Web network management mode. It satisfies high-density network application environment and is suitable for medium, large-scale scenes such as hotel, campus, park, shopping mall, scenic spot, hospital, bank to form an economical, efficient and reliable communication network.
FEATURE
Full Gigabit access, 10G SFP+ fiber port uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Supports Gigabit Ethernet port and gigabit SFP fiber slot port and 1/10G SFP+ fiber slot port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Strong business processing capability
◇ ERPS/STP/RSTP/MSTP.
◇ Static and dynamic aggregation.
◇ IGMP V1/V2 and IGMP Snooping.
◇ IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration.
◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.
◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
Security
◇ 802.1X authentication.
◇ Port isolation,Storm control.
◇ IP-MAC-VLAN-Port binding.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Low power consumption, galvanized steel casing, with fan.
◇ Self-developed power supply high redundancy design, providing a long term and stable power output.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link.
Easy operation and maintenance management
◇ HTTPS, SSLV3, and SSHV1/V2.
◇ RMON, system log, LLDP, and port traffic statistics.
◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.
◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

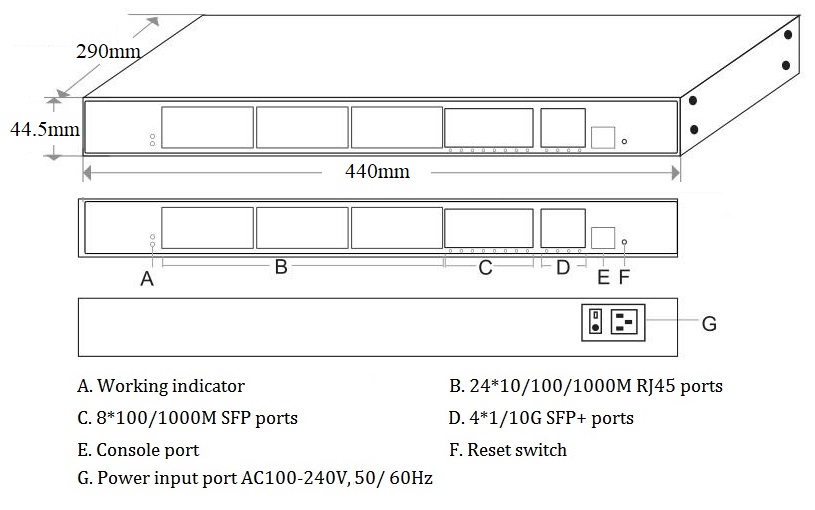

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Built-in Power Supply |
|
ONV56036FM |
L2+ managed Ethernet aggregation /core fiber switch with 8*10/100/1000Base-T RJ45 or 8*100/1000Base-X SFP combo ports and 16*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber slot ports. Built-in 60W power supply. Support 1U/19 inch rack installation. |
60W |
|
Note: The SFP optical module is not included by default and needs to be purchased separately. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
36-port 10G uplink managed Ethernet fiber switch |
1 |
SET |
|
|
AC Power Cable |
1 |
PC |
|
|
RJ45-DB9 Line |
1 |
PC |
|
|
Mounting Kits(Hanging Ear) |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module
|
2630 |
SFP optical module, 1.25G, multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, support DDM function, support hot plug and pull. |
PC |
|
2632 |
SFP optical module, 1.25G, single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T |
SFP optical module, 1.25G, single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R |
SFP optical module, 1.25G, single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2612-T-SC |
SFP optical module, 1.25G, single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
|
2613-R-SC |
SFP optical module, 1.25G, single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, SC interface, support DDM function, support hot plug and pull. |
PC |
|
|
Power Module |
2633 |
1.25G SFP optical module transfers to 10/100/1000M RJ45 port. |
PC |
|
10G Optical Module |
6630 |
SFP+ optical module, 10G multi-mode dual fiber 850nm, transmission distance: 300m, LC interface, support DDM function,support hot plug and pull. |
PC |
|
7832 |
SFP+ optical module, 10G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
7832-33 |
SFP+ optical module, 10G single-mode single fiber TX1330nm/ RX1270nm , transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
|
|
7832-27 |
SFP+ optical module, 10G single-mode single fiber TX1270nm/ RX13300nm , transmission distance: 20km, LC interface, support DDM function, support hot plug and pull. |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV56028FM |
L2+ managed Ethernet aggregation fiber switch with 24*10/100/1000M RJ45 ports and 4*1/10G SFP+ fiber ports. Built-in 60W power supply. Support 1U/19 inch rack installation. |
|
ONV56368FM |
L2+ managed Ethernet aggregation /core fiber switch with 8*10/100/1000Base-T RJ45 or 8*100/1000Base-X SFP combo ports and 16*10/100/1000Base-T SFP ports and 4*1/10G SFP+ fiber slot ports. Built-in 60W power supply. Support 1U/19 inch rack installation. |
|
ONV56052FM |
L2+ managed Ethernet aggregation /core fiber switch with 48*10/100/1000M RJ45 ports and 4*1/10G SFP+ fiber ports. Built-in 60W power supply. Support 1U/19 inch rack installation. |
TECHNICAL SPECIFICATION
|
Model |
ONV56036FM |
|
Interface Characteristics |
|
|
Fixed Port |
4*1/10G SFP+ fiber slot ports (Data) 1*Console RS232 port (115200,N,8,1) 16*10/100/1000Base-T RJ45 ports (Data) 8*10/100/1000Base-T RJ45 or 8*100/1000Base-X SFP combo ports (Data) |
|
Ethernet Port |
Port 1-24 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e/6 or later UTP(≤100 meters) |
|
Optical Fiber Port |
Gigabit SFP optical fiber port and 10G SFP+ optical fiber port, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
|
Optical Fiber Port Expansion |
Support Turbo overclocking 2.5G optical module expansion and ring network |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-500M(1G), 850nm/ 0-300M (10G) Single-mode:1310nm/ 0-40KM, 1550nm/ 0-120KM. |
|
Chip Parameter |
|
|
Network Management Type |
L2+ |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X IEEE802.3ae 10GBase-LR/SR, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
336Gbps |
|
Forwarding Rate@64byte |
95.23Mpps |
|
CPU |
800MHz |
|
DRAM |
1GB |
|
FLASH |
128MB |
|
MAC |
16K |
|
Buffer Memory |
12MB |
|
Jumbo Frame |
12KB |
|
LED Indicator |
Power: PWR (Yellow), System: SYS(Yellow), Network: Link/Act (Yellow), Fiber port: L/A (Green) |
|
Reset Switch |
Yes, press and hold the switch for 10 seconds and release it to restore the factory settings |
|
Power Supply |
|
|
Total PWR / Input Voltage |
60W/(AC100-240V) |
|
Power Consumption |
Standby<20W, Full Load<45W |
|
Power Supply |
Built-in power supply, AC 100~240V 50-60Hz 1.0A |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+80°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
440*290*44.5mm |
|
Net /Gross Weight |
<4.8kg / <45.0kg |
|
Installation |
Desktop, 19 inch 1U cabinet installation |
|
Certification & Warranty |
|
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
3 years, lifelong maintenance. |
|
Network Management Features |
|
|
Interface |
IEEE802.3x flow control (full duplex) Port exception protection mechanism Port real-time flow management (Flow Interval) Broadcast storm suppression based on port rate Optical port SFP module DDMI real-time digital diagnosis Limit the rate of incoming and outgoing packet traffic, with a minimum granularity of 16Kbps and a maximum of 1Gbps Port EEE Green Ethernet Energy-Saving configuration and status view Jumbo frame configuration, the largest 12000byte |
|
Layer 3 Features |
OSPFv1/v2, OSPFv3, Static routing, RIPv1/v2, RIPng The maximum number of ARP protocol entries is 1024 L2+ network management function, Dual stack IPv4/IPv6 management |
|
VLAN |
VLAN based on MAC, VLAN based on the protocol Port configuration of Access, Trunk, Hybrid, GVRP VLAN protocol (4K) VLAN based on port, IEEE802.1q, Voice VLAN, QinQ configuration |
|
Port Aggregation |
LACP, Static aggregation Max 14 aggregation groups and 8 ports per group. |
|
Spanning Tree |
STP BPDU Guard, BPDU filtering and BPDU forwarding STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
|
ERPS Ring Network |
Support ERPS ring network, ring network self-healing time is less than 20ms, ITU-T G.8032 |
|
Multicast |
MLD Snooping, IGMP Snooping, Multicast VLAN User quick log out, MVR (Multicast LAN registration) IGMP Snooping v1/v2/v3 and 1024 multicast groups at most |
|
Mirroring |
Bidirectional traffic mirroring for basic ports Supports 1-to-multiple mirroring, supports up to 4 port sessions |
|
QoS |
Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Rate Limiting, Stream based redirection Flow-based Packet Filtering, 8*Output queues of each port 802.1p/DSCP priority mapping, Diff-Serv QoS, Priority Mark/Remark |
|
ACL |
ACL distribution based on port and VLAN L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc. |
|
Security |
Port based IEEE802.1X authentication SSL guarantees data transmission security Quad binding function of IP+MAC+VLAN+ports MAC address learning limit, MAC address black hole Anti DoS attack, Port broadcast message suppression IP Source Guard function, AAA&RADIUS certification Hierarchical user management and password protection SSH 2.0 provides a secure encrypted channel for user login Host data backup mechanism, ARP intrusion detection function Port isolation, IP Source Guard, ARP message speed limit function |
|
DHCP |
DHCP Client, DHCP Snooping, DHCP Server |
|
Management |
Web network management (https) Link Layer Discovery Protocol(LLDP) Viewing CPU Instant Utilization Status NTP clock, One click restore, SNMP V1/V2C/V3 Cable status check, Ping detection, System work log ONV NMS platform cluster management (LLDP+SNMP) Console/AUX Modem/Telnet/CLI command line configuration FTP, TFTP, Xmodem, SFTP file upload and download management |
|
System |
Category 5 Ethernet network cable Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
