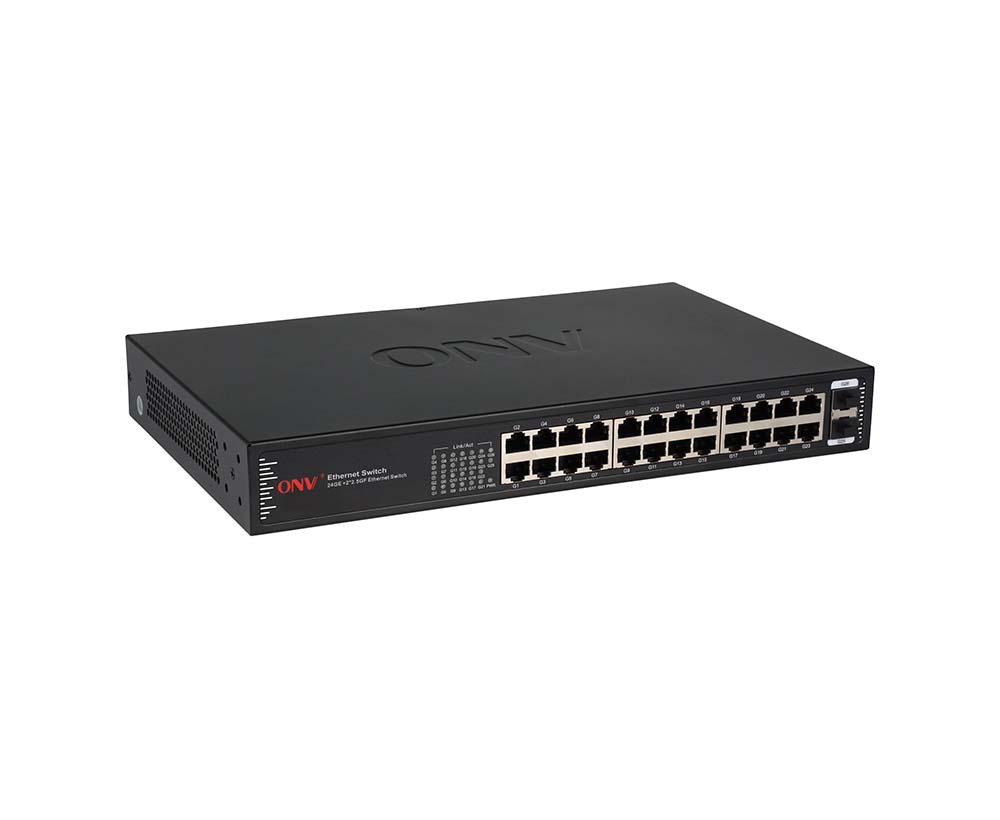

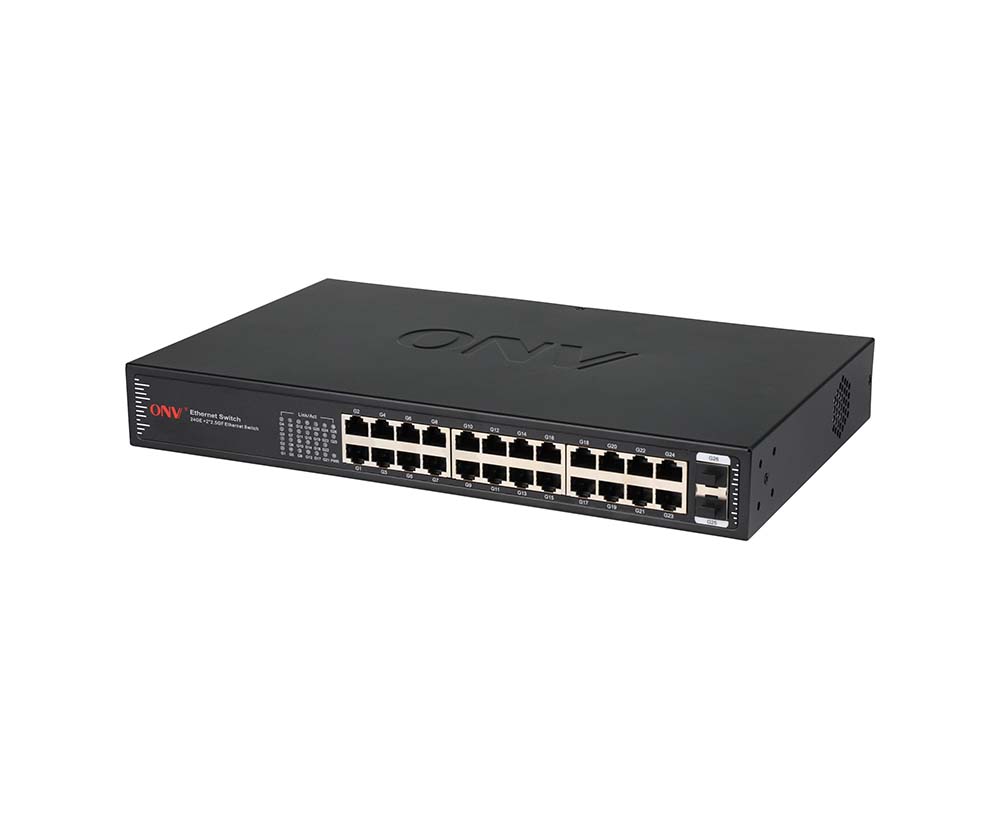

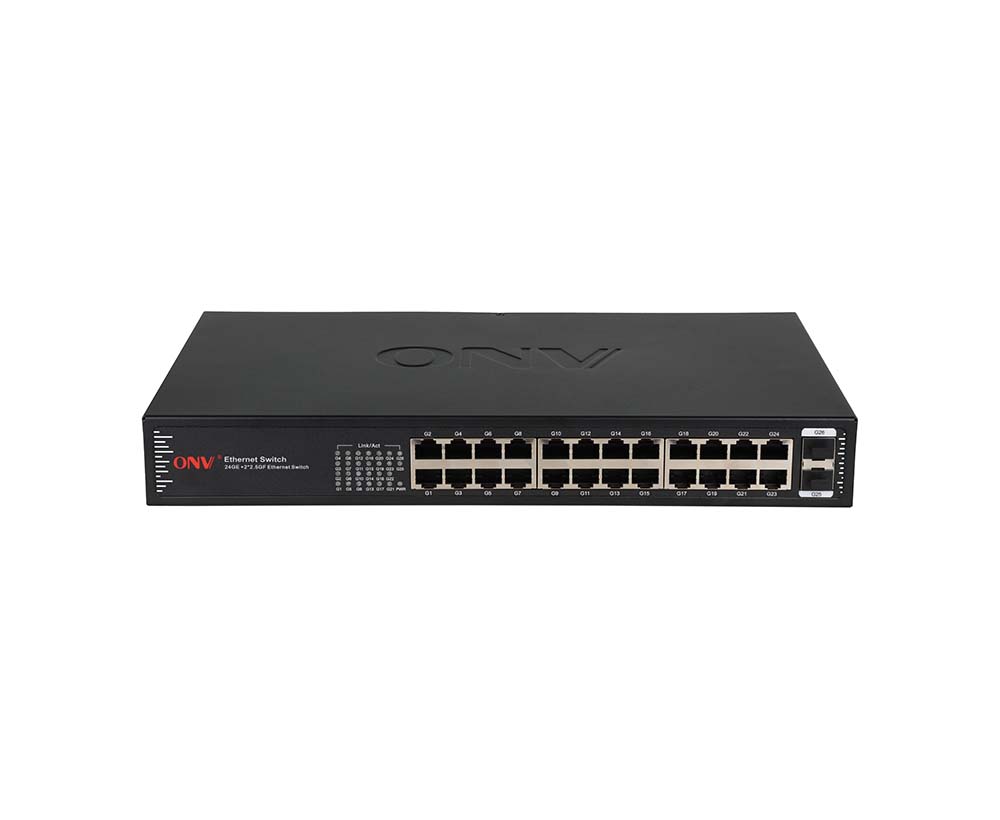

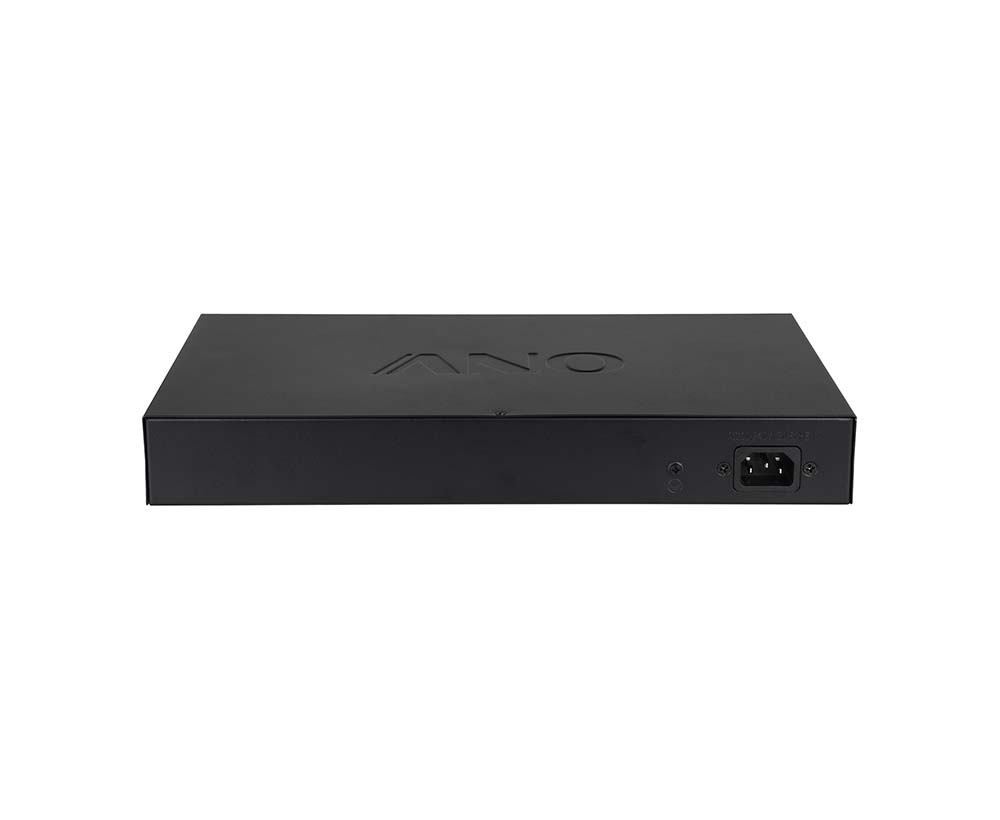

The ONV37024F is a 2.5G uplink Ethernet switch independently developed by ONV, designed specifically for high-performance access and high-speed fiber uplink requirements. It provides 24*10/100/1000M adaptive RJ45 ports and 2*1/2.5G SFP fiber ports, ensuring high-speed network connectivity for terminal devices while supporting smooth upgrades to 2.5G fiber uplink, effectively improving the transmission bandwidth and overall performance of the network aggregation layer.

The RJ45 ports employ intelligent traffic identification and data forwarding technology, supporting non-blocking line-speed switching to ensure smooth and stable operation of high-bandwidth applications such as high-definition video transmission and large file exchange. The SFP fiber ports support adaptive 1G and 2.5G speeds, providing users with an economical and flexible fiber uplink option, especially suitable for scenarios requiring increased uplink bandwidth and transmission distance, such as surveillance aggregation, wireless network backhaul, and inter-building interconnection.

Equipped with a robust metal casing and efficient heat dissipation design, it boasts excellent heat dissipation performance, ensuring long-term stability under 24/7 continuous operation.

It is plug-and-play, ready to use immediately upon power-up. Suitable for scenarios such as hotel network coverage, campus multimedia classrooms, smart park access, supermarket security networking, factory workshops, and office networks of small and medium-sized enterprises, it is a reliable choice for building cost-effective and high-performance fiber optic uplink access networks.

FEATURE

Gigabit access, uplink 1/2.5G SFP fiber port

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

◇ Support Gigabit RJ45 port and uplink 1/2.5G SFP fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Stable and reliable

◇ CE, FCC, RoHS.

◇ Self-developed power supply, high redundancy, providing a long-term and stable power output.

◇ The user-friendly panel can show the device status through the LED indicators of PWR and Link.

◇ Low power consumption, with fan, Galvanized steel housing, and excellent heat dissipation to ensure stable operation of the switch.

ORDERING INFORMATION

PACKING LIST

OPTICAL MODULE
