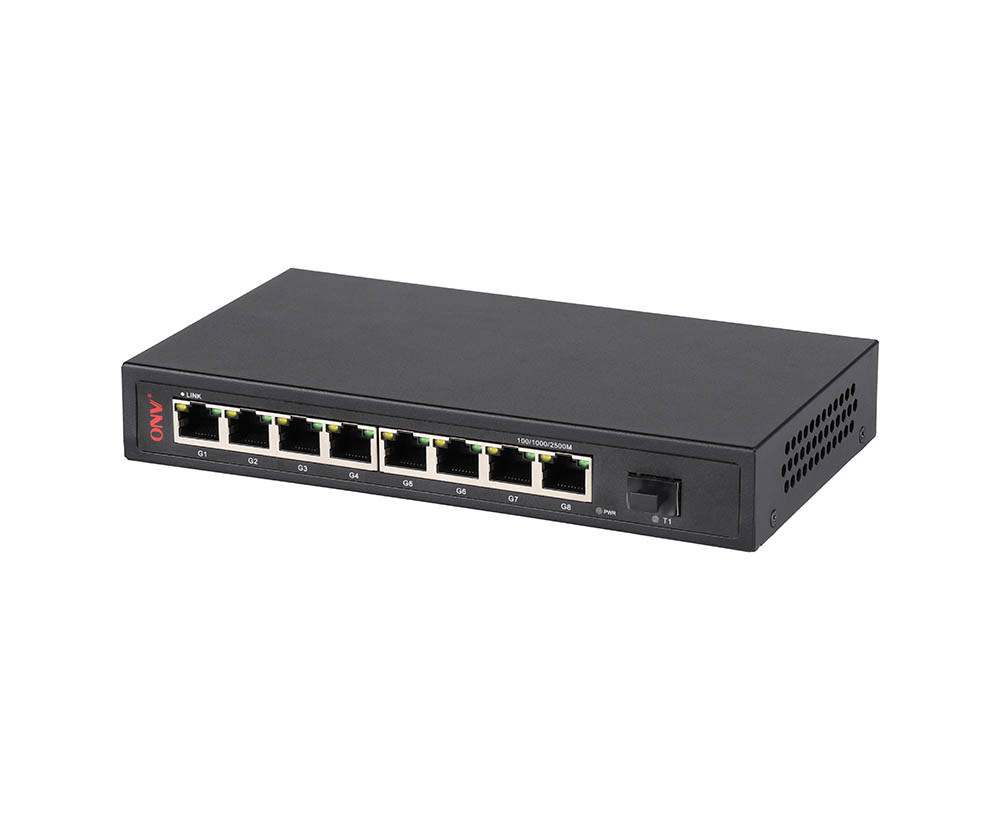

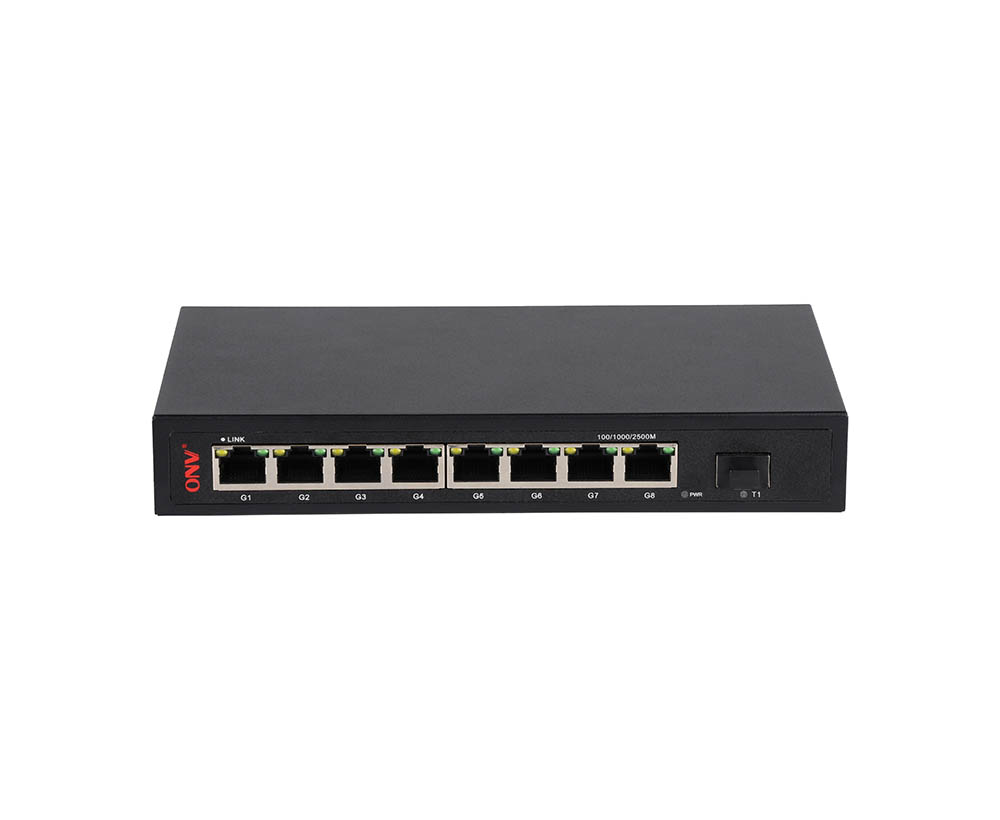

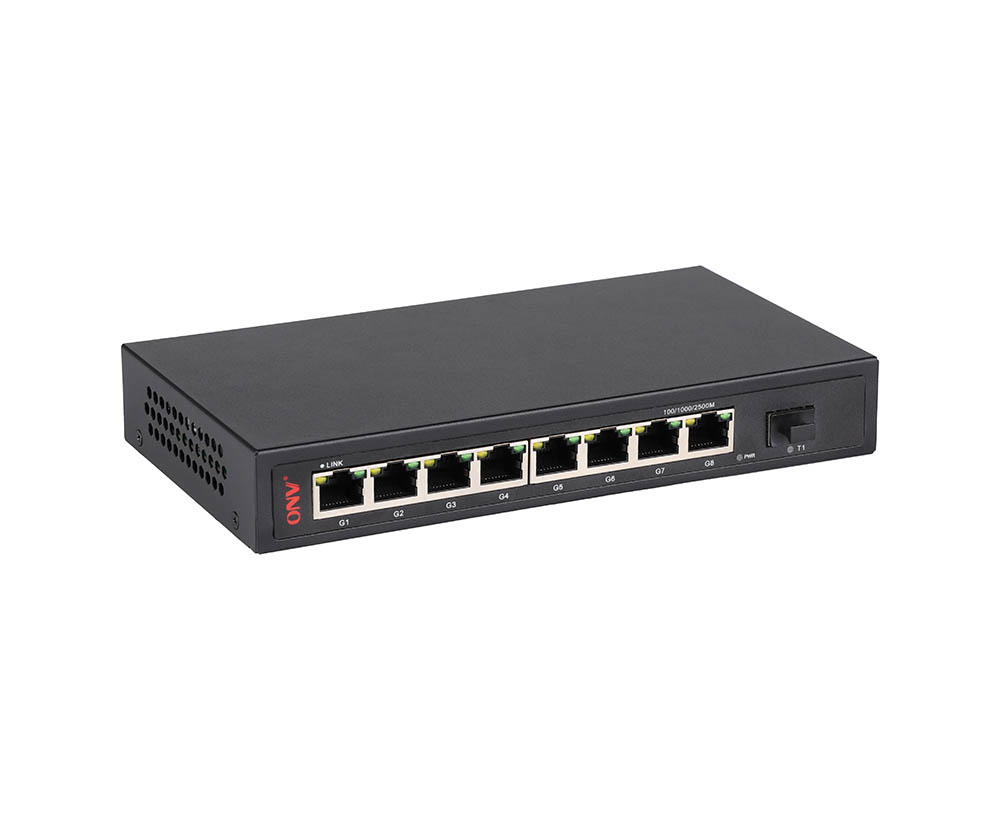

The ONV57008FB is a 2.5G Ethernet switch independently developed by ONV. It's a high-performance, easy-to-maintain 10G uplink Ethernet switch designed for high-speed forwarding network environments such as hotels, banks, campuses, factory dormitories, and small and medium-sized enterprises. It has 8*10/100/1000/2500Base-T adaptive RJ45 ports and 1*1/2.5/10G SFP+ uplink SFP+ fiber port. All ports support line-speed forwarding, and an 8MB large-capacity buffer ensures the timely transmission of large files and stable video streaming. It provides 7*24-hour stable connectivity, effectively solving problems such as video stuttering and image loss in high-definition monitoring environments. Plug and play, no configuration, it's an ideal choice for improving network performance.
FEATURE
2.5G access, uplink 1/2.5/10G SFP+ fiber port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Support 2.5G RJ45 port and 1/2.5/10G uplink SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Stable and reliable
◇ CQC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and L/A.
◇ Low power consumption, galvanized steel housing, and excellent heat dissipation to ensure stable operation of the switch.

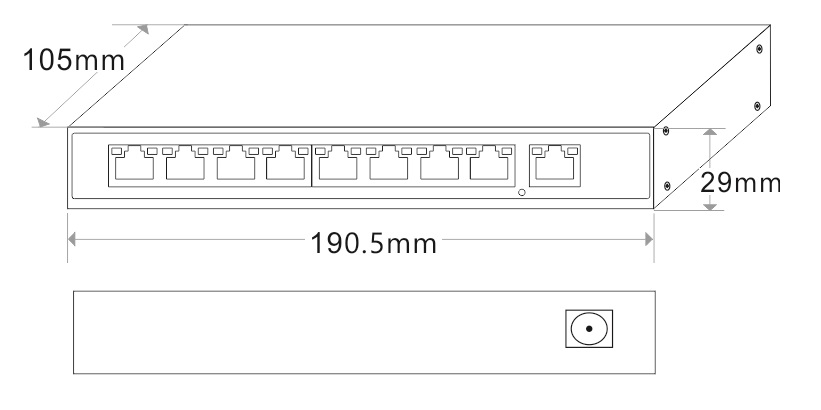

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
External Power Supply |
|
ONV57008FB |
Unmanaged Ethernet switch with 8*10/100/1000/2500M RJ45 ports and 1*1/2.5/10G uplink SFP+ fiber port. External power supply. |
12W |
|
Note: The optical module is not included and needs to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
9-port 2.5G Ethernet switch |
1 |
Set |
|
|
AC power cord+power adapter |
1 |
PC |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
OPTICAL MODULE
|
Product |
Model |
Description |
Unit |
|
1.25G Optical Module |
2630 |
SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. supports DDM function and hot plugging. |
PC |
|
2632 |
SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T |
SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R |
SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
2612-T-SC |
SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
|
|
2613-R-SC |
SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface. supports DDM function and hot plugging. |
PC |
|
|
10G Optical Module |
6630 |
SFP+ optical module, 10G multi-mode dual fiber 850nm, transmission distance: 300m, LC interface. supports DDM function and hot plugging. |
PC |
|
7832 |
SFP+ optical module, 10G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
7832-33 |
SFP+ optical module, 10G single-mode single fiber, TX1330nm/ RX1270nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
|
|
7832-27 |
SFP+ optical module, 10G single-mode single fiber, TX1270nm/ RX1330nm, transmission distance: 20km, LC interface. supports DDM function and hot plugging. |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV57008FB |
|
Interface Characteristics |
|
|
Fixed Port |
1*1/2.5/10G uplink SFP+ fiber port (Data) 8*10/100/1000/2500Base-T RJ45 ports (Data) |
|
Ethernet Port |
Port 1-8 can support 10/100/1000/2500Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) 2500BASE-T: Cat6a or later UTP (≤100 meters) |
|
Optical Fiber Port |
Default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m, 10G: 850nm/ 0-300m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3bz 2.5GBase-T, IEEE802.3ae 10GBase-SR/LR, IEEE802.3x |
|
Forwarding Mode |
Store and forward (Full wire speed) |
|
Switching Capacity |
60Gbps (non-blocking) |
|
Forwarding Rate@64byte |
44.64Mpps |
|
MAC |
4K |
|
Buffer Memory |
8M |
|
Jumbo Frame |
12K |
|
LED Indicator |
Power: PWR (Green), Network: Link (Yellow), Fiber port: L/A (Green) |
|
Power Supply |
|
|
Total PWR/ Input Voltage |
12W/DC12V |
|
Power Consumption |
Standby<3W, full load<10W |
|
Power Supply |
External power supply, AC100-240V 50-60Hz, 0.5A |
|
Physical Parameter |
|
|
Operation Temp/ Humidity |
-20°C~+55°C, 5%~90% RH non condensing |
|
Storage Temp/ Humidity |
-40°C~+80°C, 5%~95% RH non condensing |
|
Dimension (L*W*H) |
190.5*105*29mm |
|
Net /Gross Weight |
0.45kg/ 1.05kg |
|
Installation |
Desktop, Wall mount |
|
Certification& Warranty |
|
|
Lightning Protection |
Protection level: IP30, Lightning protection: 4KV 8/20us |
|
Certification |
CQC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS |
|
Warranty |
3 years, lifelong maintenance. |
